Epson EB 1771W

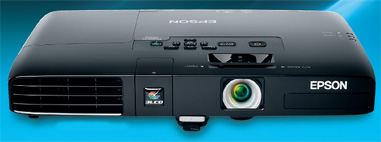

Image Epson EB 1771W
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The EB 1771W is a LCD projector by Epson, whose specifications list 3000 ANSI lumens, a contrast of 2000:1 and a WXGA 1280 x 800 resolution. The manufacturer lists the lamp life at 4000 hours, which amounts to roughly 5.5 years at 2 hours of daily use.
For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups.
Looking at practical performance, up to 556 cm can be illuminated with 3000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 371 cm.
Regarding signal processing, the model is compatible with incoming 1080P content. As an additional feature, an integrated media player enables the direct playback of files without an external source device.
Since entering the market in 2012, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type 3 x 0,59" LCD TFT Panel mit MLA
WXGA 16/10 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3000 / 1700 im Eco Mode
Screen
1200 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 1,5000 min. Lumen 0,601 min. Lumen
Offset 40,91% cm under screen top edge →
SCREEN
+ Projector
Resolution WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: bmp, sit, gif, jpeg, png
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 230W UHE Lamp
Article Nr.: ELPLP65 / V13H010L65
Order Lamp
72,39 - 167,80 €
Light Life 4000 h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
212 - 256 cm
Lux: 1200 Lux
Contrast: 2000:1
Candela pro m²: 380 cd/m²
Foot-Lamberts: 111 fL
51 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=1,58-1,7 f=13,52-16,22 mm
Throw Ratio 1,06-1,28:1 show
Audio 1W Mono
Connections HD´MI in
D-sub 15 pin in
Cinch Video in
USB Typ A,B
Ceiling Mounting -
Size WxHxD 292 x 44 x 210 mm (11,5"x1,7"x8,3") 2,7 L/dm³
Power 304 / 203W in Eco Mode
Keystone
Key: 173 cm

Key: 122 cm
+
+
SCREEN

Key: 122 cm
Key: 71 cm

Operating Noise 40 / 30 dB in Eco Mode
Weight 1,68 kg / 3,7 lbs.
Keystone Vert.: +/-30°  automatisch
Hori.: +/-30°
Illumination -
Frequenz H-sync: 15-92 kHz
V-sync: 50-117 Hz
Foot-Lamberts 111 fL / max. 556 cm screen width
Candela m² 380 cd/m²
Features Integrated Media Player
Freeze
Blackboard Mode
Eco Mode
Automatic and Manual Vertical Keystone Correction
Kensington Slot
sRGB
Password Protection
Remote Control with Mouse Control
Adjustable Overscan
Screen Mirroring -
In Comparison
The Epson EB 1771W compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
43 Weight:
97
Contrast:
32 dB:
23
Black level:
24 Power cons.:
67
Picture Total Points:33 Projector Total Points:62
Popularity Top 100
3 popularity points in May 4 popularity points in June 10 popularity points in July 12 popularity points in August 24 popularity points in September 15 popularity points in October
Points:
15
Ranking: 713 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 6 -9% Trend
Optional accessories
lamp ruby Ruby-LMP24315167,80 €
lamp OriginalELPLP65 / V13H010L65EOL €
Compatible lamp LMP-K1990972,39 €
air filter compatible Alternative zu:ELPAF31 / V13H134A31 / 154221325,29 €
remote control Original156609030,05 €
air filter OriginalELPAF31 / V13H134A31 / 154221354,92 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2012 Discontinued (EOL) // Last update of the data: 2026-06-09
