Epson EB 475W/i/T


Epson EB 475Wi | Epson EB 475WT

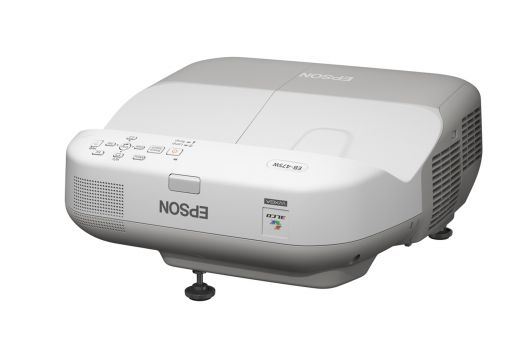

Image Epson EB 475W/i/T
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The basic data of the Epson EB 475W includes 2600 ANSI lumens, a resolution of WXGA 1280 x 800 as well as a contrast of 3000:1. According to Epson, the included lamp lasts up to 3000 hours.
To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion.
A look at the light output reveals: The 2600 ANSI lumens are sufficient to illuminate an image width of up to 518 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 345 cm.
For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. Equipped with a microphone jack and built-in speakers (16W), audio signals during presentations can be played back directly without an external audio system.
Since entering the market in 2012, production has been discontinued; the manufacturer no longer actively offers the model. This model continues to hold a solid place in our database search queries.
Display Type 3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
Ansi-Lumen
Projector
2600 / 2080 im Eco Mode
Screen
1040 Lux (200 cm Screen width)
Contrast 3000:1 full on/off 3000:1 full on/off
Black Level 0,8667 min. Lumen 0,347 min. Lumen
Offset 65,55% 20 cm over screen top edge →
SCREEN
+ Projector
Resolution WXGA 1280 x 800
1.024.000 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Whiteboard | Training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 215W UHE Lamp
Article Nr.: ELPLP71 / V13H010L71
Order Lamp
56,89 - 95,41 €
Light Life 3000 h.
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
58 cm (no Zoom)
Lux: 1040 Lux
Contrast: 3000:1
Candela pro m²: 332 cd/m²
Foot-Lamberts: 97 fL
82 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective F=1,80 f=3,71mm
Throw Ratio 0,29:1
Audio 1 x 16W
Connections HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
USB Typ B, A
Mini Jack Audio in und out
RJ45 in
RS232C Din 9 pin in
Mikrofon in
Ceiling Mounting Yes, is possible.
Size WxHxD 369 x 115 x 481 mm (14,5"x4,5"x18,9") 20,41 L/dm³
Power 313W / 1W standby
Keystone
Key: 87 cm

Key: 5 cm
+
+
SCREEN

Key: 5 cm
Key: -77 cm

Operating Noise 35 / 28 dB in Eco Mode
Weight 5,70 kg / 11,02 lbs.
Keystone Vert.: +/-5°
Hori.: +/-5°
Illumination -
Frequenz H-sync: 15-92 kHz
V-sync: 50-85 Hz
Foot-Lamberts 97 fL / max. 518 cm screen width
Candela m² 332 cd/m²
Features Direct Power Off
Freeze
Blackboard Mode
Custom Logo Display
Eco Mode
Password Protection
Optional W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Short Throw Projector
Crestron® Software compatible.
Digital Zoom
Model ‘I’ with interactive whiteboard.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Epson EB 475W/i/T compared to others not current "Whiteboard" projectors.
Ansi-Lumen:
24 Weight:
97
Contrast:
1 dB:
65
Black level:
97 Power cons.:
97
Picture Total Points:41 Projector Total Points:86
Popularity Top 100
100 popularity points in May 100 popularity points in June 100 popularity points in July 100 popularity points in August 100 popularity points in September 100 popularity points in October
Points:
100
Ranking: 1 (From: 296)
Live-Trend (Last 3 days)   LiveLIVE
Points: 100 ±0% Trend
Optional accessories
bulb only NLMP2166670,51 €
lamp ruby Ruby-LMP2166695,41 €
lamp OriginalELPLP71 / V13H010L71EOL €
lamp OriginalELPLP71 / V13H010L71EOL €
Compatible lamp LMP-K2081456,89 €
air filter compatible Alternative zu:ELPAF40 / V13H134A4022,31 €
Interactive Pen (blue) OriginalV12H523001 / ELPPN03BEOL €
Interactive Pen (blue) OriginalV12H523001 / ELPPN03BEOL €
Interactive Pen (blue) OriginalV12H523001 / ELPPN03BEOL €
Interactive Pen (orange) OriginalV12H522001 / ELPPN03AEOL €
Interactive Pen (blue) OriginalV12H523001 / ELPPN03BEOL €
remote control Original1547200 / 159917630,90 €
air filter OriginalELPAF40 / V13H134A4039,14 €
air filter OriginalELPAF40 / V13H134A4039,14 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2012 Discontinued (EOL) // Last update of the data: 2026-07-09
Data
Epson Website
Product Sheet english
Product Sheet english HC
User Manual english (9.17 MB)

Projektor Epson EB 475W/i/T Projektor Epson EB 475W/i/T Projektor Epson EB 475W/i/T
