Epson USA PowerLite 760C

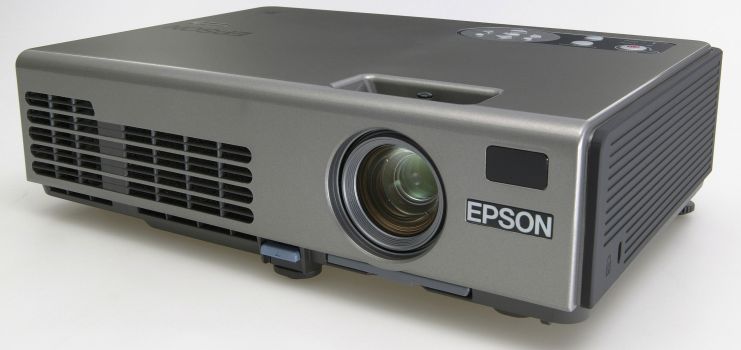

Image Epson USA PowerLite 760C
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview With the PowerLite 760C, Epson USA offers a LCD projector that features 2500 ANSI lumens, a contrast of 400:1 and a resolution of XGA 1024 x 768. According to Epson USA, the included lamp lasts up to 2000 hours.
A look at the light output reveals: The 2500 ANSI lumens are sufficient to illuminate an image width of up to 435 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 290 cm.
Since entering the market in 2005, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type       3 x 0,7" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
2500
Screen
833 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 6,2500 min. Lumen 2,098 min. Lumen
Offset 36% 21 cm under screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 170W UHE Lamp
Article Nr.: ELPLP32
Order Lamp
51,07 - 88,45 €
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
332 - 400 cm
Lux: 833 Lux
Contrast: 400:1
Candela pro m²: 264 cd/m²
Foot-Lamberts: 77 fL
54 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective F=1,58-1,75 f=23,7-28,5 mm
Throw Ratio 1,66-2,00:1 show
Audio 1W Mono
Connections D-sub 15pin in
S-Video in
Cinch Video in
Mini Jack in
USB Typ B in
Ceiling Mounting Yes, is possible.
Power 240W / 4W standby
Size WxHxD 276 x 70 x 193 mm (10,9"x2,8"x7,6") 3,73 L/dm³
Operating Noise 35dB
Key: 246 cm
Key: 138 cm

Weight 1,70 kg / 2,2 lbs.
Keystone Vert.: +/-30°  automatisch
Illumination 90%
Frequenz H-sync: 15-92 kHz
V-sync: 50-85 Hz
Range max.: 162 MHz
Foot-Lamberts 77 fL / max. 435 cm screen width
Candela m² 264 cd/m²
Features Freeze
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
Screen Mirroring -
In Comparison
The Epson USA PowerLite 760C compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
29 Weight:
92
Contrast:
1 dB:
36
Black level:
77 Power cons.:
98
Picture Total Points:36 Projector Total Points:75
Popularity Top 100
1 popularity points 6 popularity points 5 popularity points 1 popularity points 1 popularity points 3 popularity points
Points:
3
Ranking: 4317 (From: 7737)
Optional accessories
Philips bulb only NLMP150169,31 €
lamp ruby Ruby-LMP150188,45 €
lamp OriginalELPLP32 / V13H010L32EOL €
Compatible lamp LMP-K150151,07 €
remote control Original1291754 / 156606421,88 €
air filter OriginalELPAF08 / V13H134A0840,78 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2005 Discontinued (EOL) // Last update of the data: 2026-06-09
