Epson USA Powerlite L690E


V11HB25080
Image Epson USA Powerlite L690E
Customer review
Offer Ads
Discover the projector on Amazon. Now!
Model Overview According to Epson USA, the Powerlite L690E model provides 6500 ANSI lumens, a contrast ratio of 5000000:1 alongside a UHD (4K2K) 3840 x 2160 resolution. The laser technology ensures a specified light source lifespan of up to 30000 hours – calculating to 20.5 years at four hours of use per day.
For distortion-free image alignment, the projector offers both a lens shift function and keystone correction. The amount of leeway the lens provides can be checked in the Projection Calculator.
A look at the light output reveals: The 6500 ANSI lumens are sufficient to illuminate an image width of up to 702 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 468 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams.
For media input, video signals up to 1080P and 4K are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type 3 x 0,67" LCD TFT Panel mit C2 Fine
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
6500
Screen
2889 Lux (200 cm Screen width)
Contrast 5000000:1 5000000:1
Black Level 0,0013 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-20%
 Lens shift
50%  56cm
50%  56cm
20%  40cm
20%  40cm
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Order Accessories
25,89 €
Light Life 30000 h.
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
270 - 440 cm
Lux: 2889 Lux
Contrast: 5000000:1
Candela pro m²: 918 cd/m²
Foot-Lamberts: 268 fL
56 cm

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered 1,63
Objective -
Throw Ratio 1,35-2,20:1 show
Audio -
Connections 2x HDMI in und 1x out
Mini Jack Audio out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT
Ceiling Mounting Yes, is possible.
Size WxHxD 440 x 138 x 340 mm (17,3"x5,4"x13,4") 20,64 L/dm³
Power -
Keystone & Lens shift
Key: 156 cm
Shift: 56 cm

Key: 156 cm
Shift: 40 cm
+
+
SCREEN

Key: 156 cm
Shift: 40 cm
Key: 156 cm
Shift: 56 cm

Operating Noise 32 / 25 dB in Eco Mode
Weight 8,20 kg / 17,64 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination -
Frequenz -
Foot-Lamberts 268 fL / max. 702 cm screen width
Candela m² 918 cd/m²
Features HDBaseT Connection
4K UHD (Ultra High Definition)
Custom Logo Display
Eco Mode
Kensington Slot
Warping
360° Installation Capable
Edge Blending
Web Browser Control
W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Crestron® Software compatible.
VESA-Halterung
Epson iProjection
Optionale PixAlign?-Kamera (f?r Multiprojektoren)
Variables Seitenverh?ltnis
Integriertes NFC
Over-the-Air-Updates
erh?ltlich ?ber das Brighter Futures?-Programm
Control4
Dicom SIM
Extron XTP
AMX
Screen Mirroring Miracast (Epson iProjection), Airplay 2
In Comparison
The Epson USA Powerlite L690E compared to others current "Stationary" projectors.
Ansi-Lumen:
16 Weight:
98
Contrast:
100 dB:
68
Black level:
100 Power cons.: -
Picture Total Points:72 Projector Total Points:-
Popularity Top 100
10 popularity points in May 12 popularity points in June 9 popularity points in July 7 popularity points in August 13 popularity points in September 6 popularity points in October
Points:
6
Ranking: 189 (From: 254)
Live-Trend (Last 3 days)   LiveLIVE
Points: 6 ±0% Trend
Optional accessories

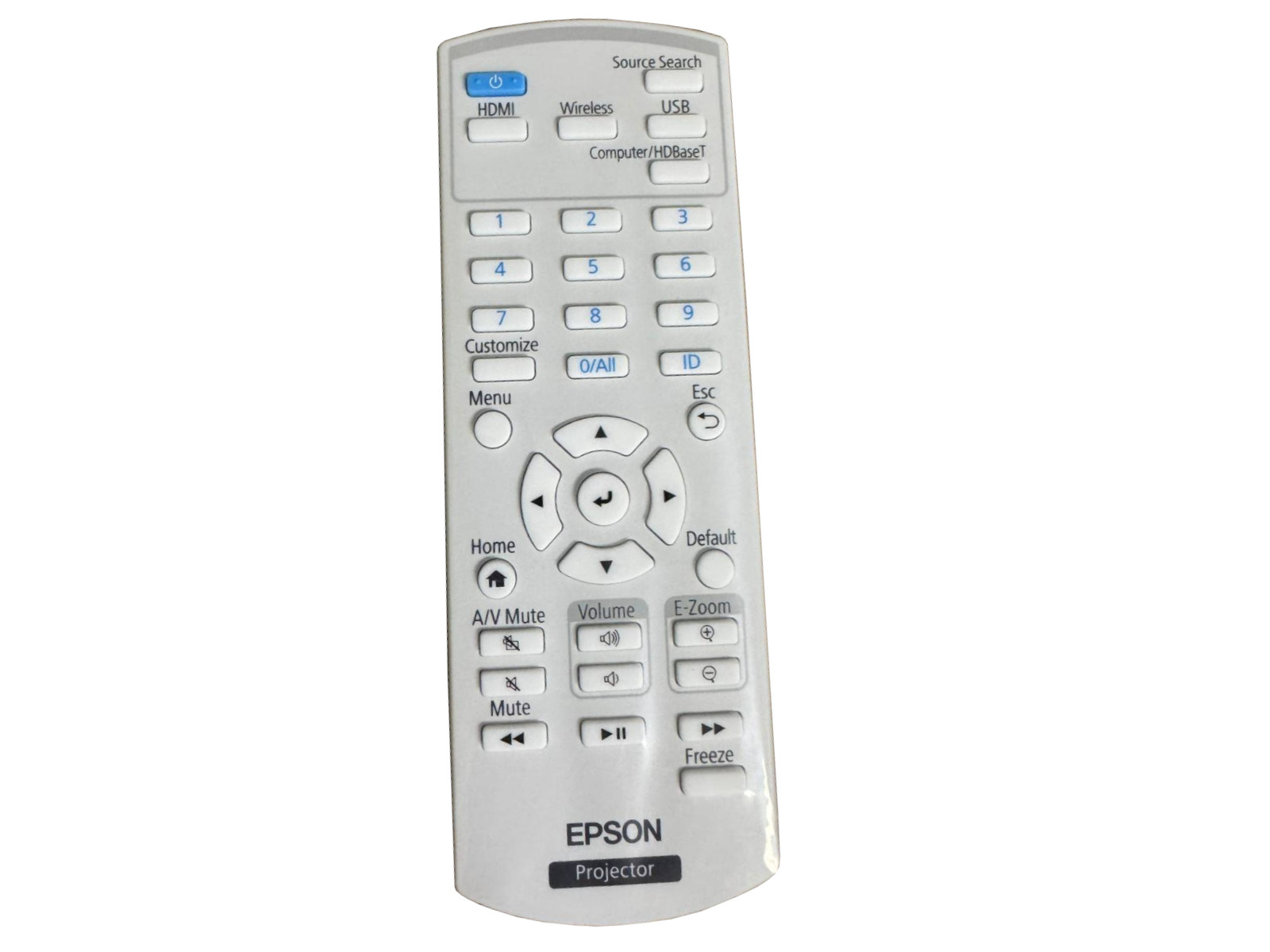

remote control Original2234491, 223449100, HB2425,89 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2025 Current model // Last update of the data: 2026-11-01
Created:
Data
Epson USA Website
Product Sheet english HC
User Manual english (5.64 MB)

Projektor Epson USA Powerlite L690E
