Panasonic PT D5000E/U/LS


PANASONIC PT-D5000U | PANASONIC PT-D5000UL | PANASONIC PT-D5000ULS | PANASONIC PT-D5000E | PANASONIC PT-D5000EL | PANASONIC PT-D5000ELS | PANASONIC PT-D5000ES

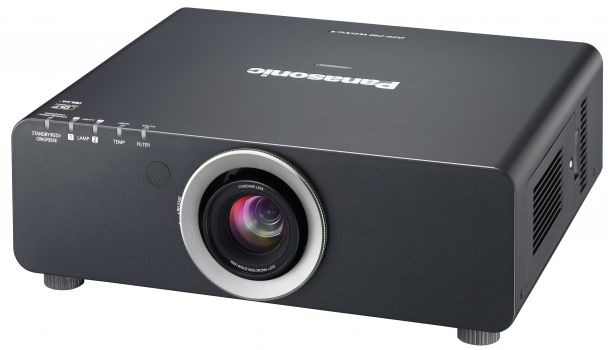

Image Panasonic PT D5000E/U/LS
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on DLP technology, the Panasonic PT D5000E device delivers 5000 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 1000:1 as a projector. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projector Calculator.
A look at the light output reveals: The 5000 ANSI lumens are sufficient to illuminate an image width of up to 616 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 411 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Since entering the market in 2009, production has been discontinued; the manufacturer no longer actively offers the model. As an archive device, the projector remains highly relevant in our database.
Display Type       1 x 0,7" DLP Chip
      XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000
Screen
1667 Lux (200 cm Screen width)
Contrast 1000:1 full on/off 1000:1 full on/off
Black Level 5,0000 min. Lumen 1,672 min. Lumen
Lens shift Vert.: +50% -0% Hori.: +/-10%
 Lens shift
50%  75cm
0%  0cm
10%  20cm
10%  20cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 2 x 240W UHM Lamp
Article Nr.: ET-LAD60
Order Lamp
76,12 - 583,79 €
Light Life 2000 h.
Operating Costs
| cheap costly |
1
 8,79% / 0,29 €
Calculated brightness quality
The screen width may also be larger. Perfect
360 - 480 cm
Lux: 1667 Lux
Contrast: 1000:1
Candela pro m²: 531 cd/m²
Foot-Lamberts: 155 fL
75 cm

Screen width:cm
          Room:
Focus Powered
Zoom Powered 1,32
Objective F=1,7-2,0 f=25,6-33,8 mm / L optional
Throw Ratio 1,8-2,4:1 show
Audio -
Connections DVI-D in
5 x BNC RGBHV in
D-sub 15 pin in
BNC Video in
S-Video in
RS232C Din 9 pin
RJ45 in
Ceiling Mounting Yes, is possible.
Power 800W / 9W standby
Size WxHxD 498 x 175 x 423 mm (19,6"x6,9"x16,7") 36,86 L/dm³
Operating Noise -
Key: 208 cm
Shift: 75 cm

Shift: 20 cm

Shift: 20 cm
Key: 208 cm

Weight 16,00 kg / 35,27 lbs.
Keystone Vert.: +/-30°
Illumination -
Frequenz H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 150 MHz
Foot-Lamberts 155 fL / max. 616 cm screen width
Candela m² 531 cd/m²
Features Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Kensington Slot
Gamma correction
24/7 continuous operation capable
Password protection
PJLink™
Control via web browser
Lan network compatible.
Screen Mirroring -
In Comparison
The Panasonic PT D5000E/U/LS compared to others not current "Stationary" projectors.
Ansi-Lumen:
49 Weight:
95
Contrast:
1 dB: 0
Black level:
85 Power cons.:
90
Picture Total Points:45 Projector Total Points:0
Popularity Top 100
29 popularity points 14 popularity points 13 popularity points 2 popularity points 20 popularity points 7 popularity points
Points:
7
Ranking: 138 (From: 2536)
Optional accessories
single lamp ruby Ruby-LMP25312165,01 €
dual lamp ruby Ruby-LMP18907250,20 €
single lamp incl. airfilter OriginalET-LAD60 / ET-LAD60A375,42 €
twin lamp with air filter OriginalET-LAD60W / ET-LAD60AW583,79 €
Compatible lamp LMP-K1890576,12 €
Compatible lamp LMP-K18907140,29 €
air filter compatible Alternative zu:ET-ACF10050,28 €
object lens OriginalET-DLE1502.248,28 €
rental frame OriginalET-RFD91EOL €
Lens Used OriginalET-DLE2502.248,28 €
lens Used OriginalET-DLE150Z1.839,23 €
lens Used OriginalET-DLE4501.482,23 €
lens Used OriginalET-DLE3502.248,28 €
lens Used OriginalET-DLE0304.363,33 €
object lens OriginalET-DLE0553.445,01 €
remote control OriginalN2QAYA000063 / N2QAYA000105 / N2QAYA00015840,76 €
air filter OriginalET-ACF100EOL €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
ET-DLE450 5.5-8.9:1 1100-1780 m 50% +/-10% Powered
ET-DLE350 3.7-5.6:1 740-1120 m 50% +/-10% Powered
ET-DLE250 2.4-3.7:1 480-740 m 50% +/-10% Powered
ET-DLE150 1.3-2:1 260-400 m 50% +/-10% Powered
ET-DLE055 0.8:1 160 m 0.0% Fix No Zoom
ET-DLE030 0.39:1 78 m 70% Fix No Zoom
