Panasonic PT RZ470E/U


Panasonic PT RZ470EW | Panasonic PT RZ470UW | Panasonic PT RZ470EK | Panasonic PT RZ470UK | Panasonic PT RZ470U
Image Panasonic PT RZ470E/U
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with DLP technology, the Panasonic PT RZ470E offers 3000 ANSI lumens, a contrast of 20000:1 and is designed as a versatile projector. As an LED projector, the spec sheet indicates a lifespan of 20000 hours, which translates to 13.7 years with 4 hours of daily use.
Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. Accurate distances are provided by the Projector Calculator.
A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 556 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 371 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams.
Regarding signal processing, the model is compatible with incoming 1080P content, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
This model dates back to 2012 and is no longer part of Panasonic's current product range.
Display Type 1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1333 Lux (200 cm Screen width)
Contrast 20000:1 full on/off 20000:1 full on/off
Black Level 0,1500 min. Lumen 0,067 min. Lumen
Lens shift Vert.: +73% -48% Hori.: +27% -35%
 Lens shift
73%  82cm
48%  54cm
27%  54cm
35%  70cm
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
3D Compatibility Frame Sequential (3D Ready)
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source LED und laser diode
Article Nr.: N2QAYB000812
Order Accessories
31,45 €
Light Life 20000 h.
Operating Costs 0,00 € LED
Calculated brightness quality
The screen width may also be larger. Perfect
300 - 580 cm
Lux: 1333 Lux
Contrast: 20000:1
Candela pro m²: 425 cd/m²
Foot-Lamberts: 124 fL
82 cm



Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,93
Objective F=2,0-3,4 f=21,5-43,0 mm
Throw Ratio 1,5-2,9:1 show
Audio -
Connections HDMI in
DVI-I mit HDCP in
D-sub 15 pin in
Cinch Video in
RJ45 mit HDBaseT in
Mini Jack Audio in und out
3D SYNC OUT
RS232C Din 9 pin

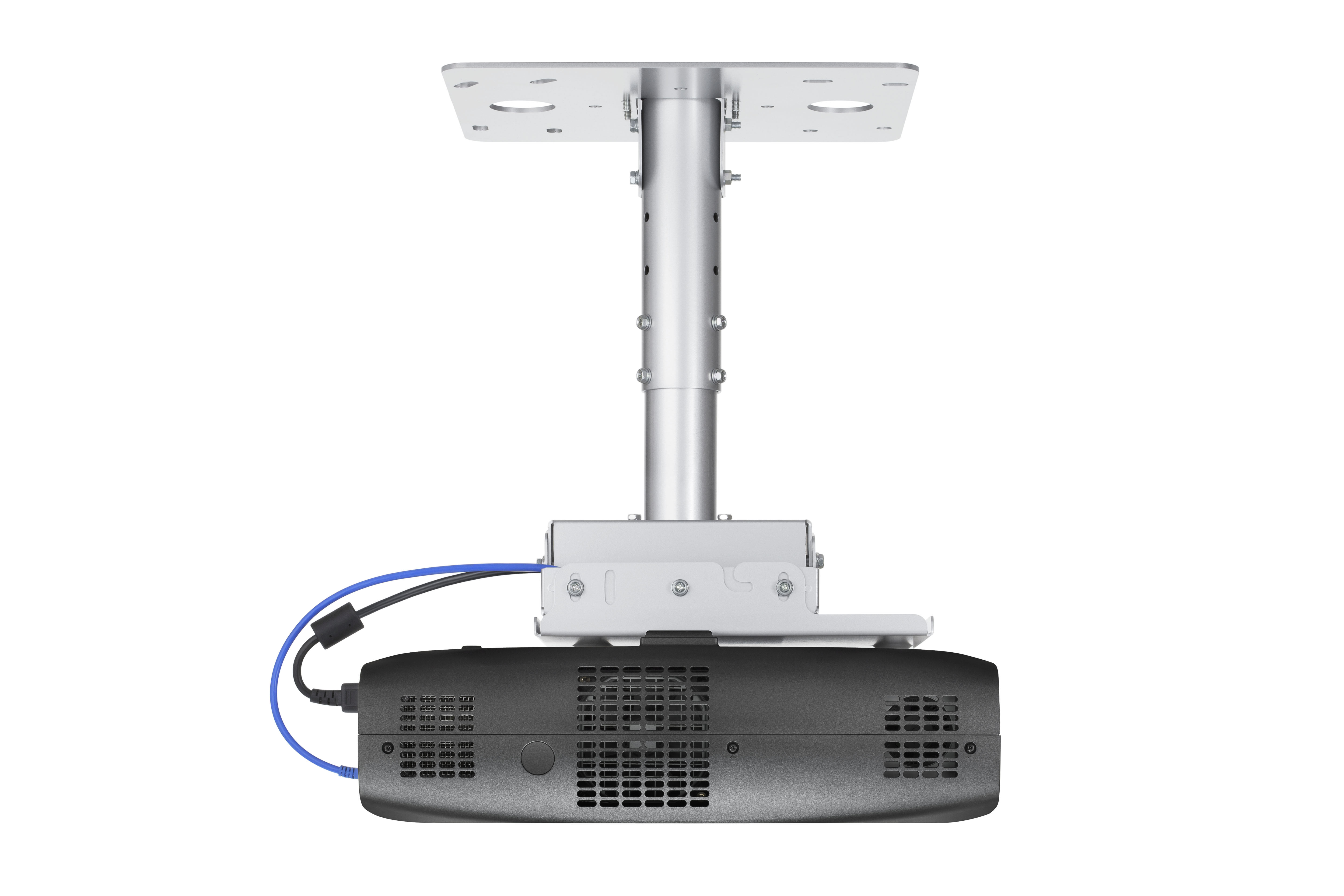

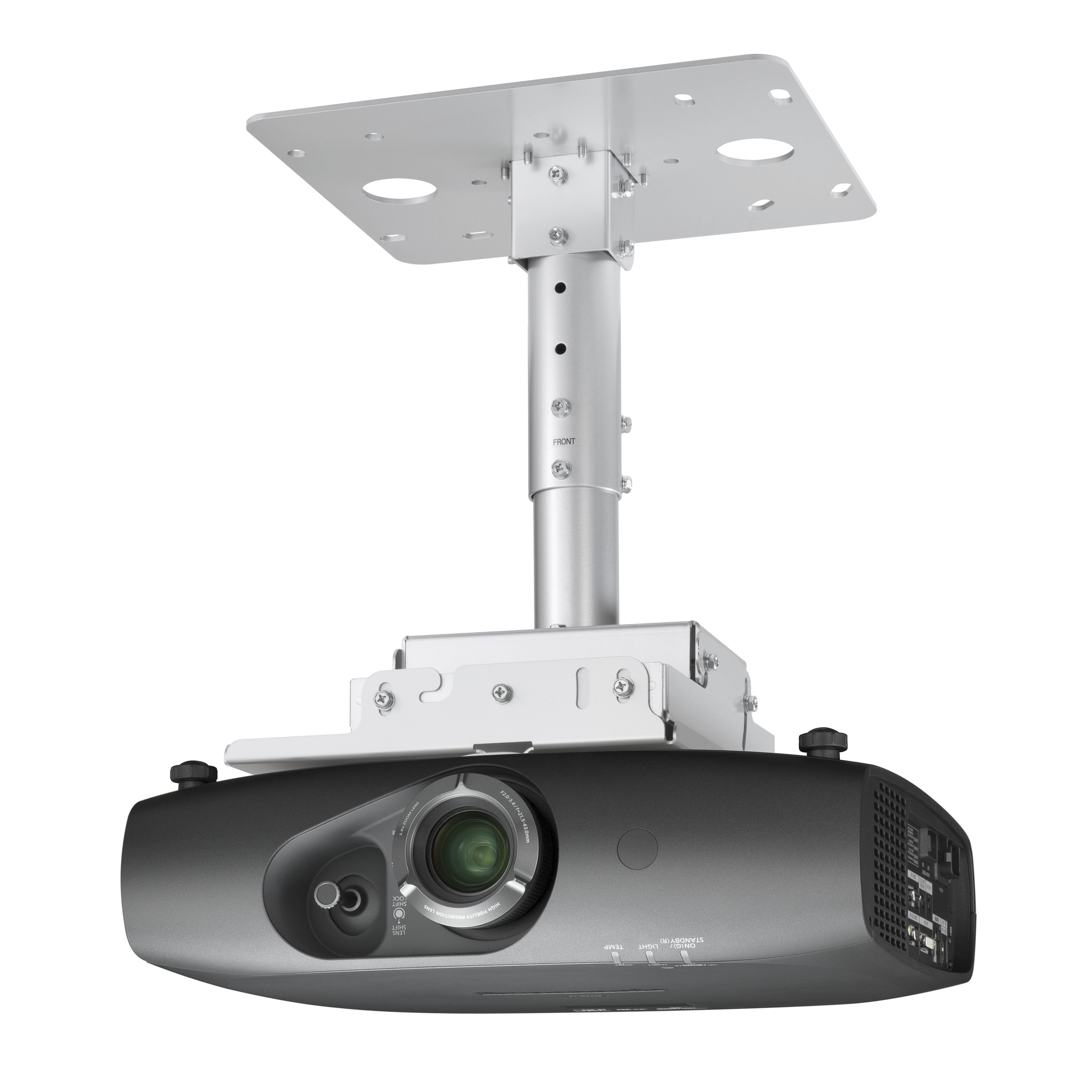

Ceiling Mounting Yes, is possible.
Size WxHxD 445 x 125 x 415 mm (17,5"x4,9"x16,3") 23,08 L/dm³
Power -
Keystone & Lens shift
Key: 252 cm
Shift: 82 cm


Shift: 70 cm
+
+
SCREEN


Shift: 54 cm
Key: 252 cm
Shift: 54 cm

Operating Noise -
Weight 10,00 kg / 22,05 lbs.
Keystone Vert.: +/-40°
Illumination 90%
Frequenz -
Foot-Lamberts 124 fL / max. 556 cm screen width
Candela m² 425 cd/m²
Features Full HD 1080P
HDBaseT Connection
360° Installation Capable
24/7 Operation Capable
Edge Blending
PJLink™
Lan Netzwerk kompatibel.
Crestron® Software compatible.
DICOM Simulation
HDBaseT
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Panasonic PT RZ470E/U compared to others not current "Stationary" projectors.
Ansi-Lumen:
30 Weight:
98
Contrast:
50 dB: -
Black level:
42 Power cons.: -
Picture Total Points:41 Projector Total Points:-
Popularity Top 100
1 popularity points in May 9 popularity points in June 5 popularity points in July 6 popularity points in August 29 popularity points in September 21 popularity points in October
Points:
21
Ranking: 1099 (From: 2537)
Live-Trend (Last 3 days)   LiveLIVE
Points: 15 -6% Trend
Optional accessories
remote control OriginalN2QAYB00081231,45 €
Status 2012 Discontinued (EOL) // Last update of the data: 2026-06-09
