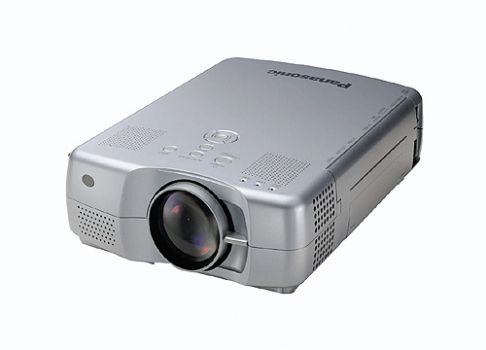

As a projector, the Panasonic PT L701XE combines LCD technology with a resolution of XGA 1024 x 768, and is additionally specified with 1200 ANSI lumens and a contrast of 500:1. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Distance Calculator is available to calculate the exact dimensions. A look at the light output reveals: The 1200 ANSI lumens are sufficient to illuminate an image width of up to 302 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 201 cm. Also on board is a local media player that allows reading and playing content directly from storage media. With a value of only 28 decibels, the noise level during operation remains pleasantly in the background. The projector was released in 2001 and is officially no longer distributed by Panasonic.
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM Pal 60 NTSC 4,43 Media player formats: JPEG-, BMP- oder TIFF
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Cinch Video in
RGB1 in D sub HD 15-Pin
RGB2 in D sub HD 15-Pin
S-Video in Mini-DIN 4-Pin
Video in RCA-Klinkenstecker
Audio in RGB: Stereo-Mini-Klinkenstecker
Video: RCA-Klinkenstecker (L/R)
Audio out Stereo-Mini-Klinkenstecker
RS232C D sub 9-Pin
Ceiling Mounting
Yes, is possible.
Power
240W
Size WxHxD
233 x 98 x 330 mm (9,2"x3,9"x13") 7,54 L/dm³
Operating Noise
28dB
Weight
3,80 kg / 8,38 lbs.
Keystone
-
Illumination
-
Frequenz
H-sync: 24-97 kHz V-sync: 50-120 Hz Range max.: 135 MHz
Integrated Mediaplayer
