Panasonic PT TX300

Image Panasonic PT TX300
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Known as the PT TX300, this LED-DLP projector by Panasonic features basic specs of 3000 ANSI lumens, a contrast of 4000:1 at a XGA 1024 x 768 resolution. The manufacturer specifies a runtime of 3000 hours for this projector's lamp.
The short-throw capabilities allow for large images at a short projection distance. According to specifications, a 2-meter wide image requires a distance of only 104 cm.
Regarding projection size, the value of 3000 ANSI lumens allows for an image width of up to 477 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 318 cm.
Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
This model dates back to 2013 and is no longer part of Panasonic's current product range.
Display Type 1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1000 Lux (200 cm Screen width)
Contrast 4000:1 full on/off 4000:1 full on/off
Black Level 0,7500 min. Lumen 0,25 min. Lumen
Offset 67,65% 26 cm over screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens.

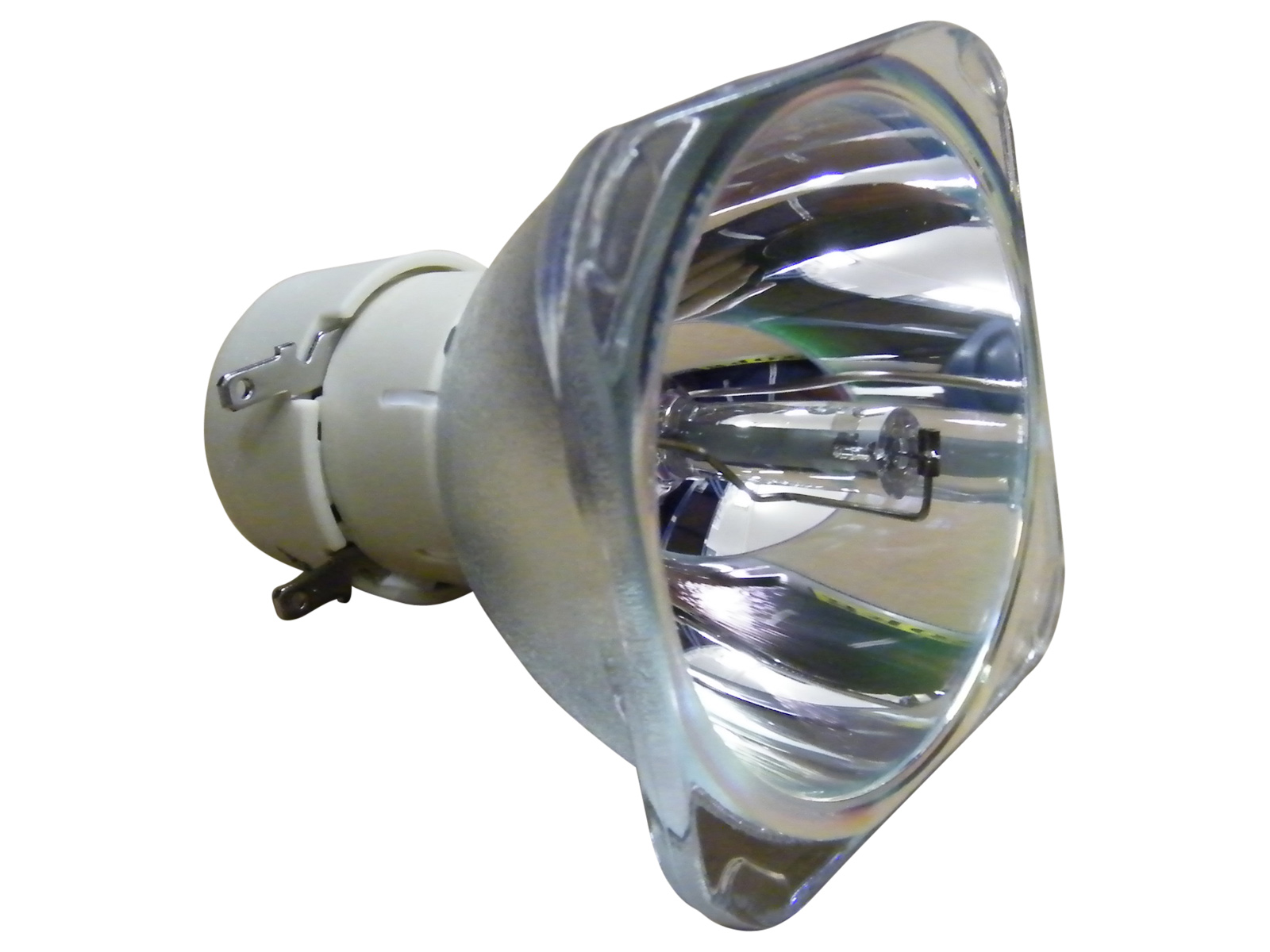

Light Source 240W UHM Lamp
Article Nr.: ET-LAL341
Order Lamp
61,26 - 80,33 €
Light Life 3000 h. 7500 h. in eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
104 cm (no Zoom)
Lux: 1000 Lux
Contrast: 4000:1
Candela pro m²: 319 cd/m²
Foot-Lamberts: 93 fL
101 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective F=2,8 f=7,51mm
Throw Ratio 0,521:1
Audio 8W Mono
Connections HDMI in
2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack Audio in und out
RJ45 in
Ceiling Mounting Yes, is possible.
Size WxHxD 288 x 99,8 x 220 mm (11,3"x3,9"x8,7") 6,27 L/dm³
Power 320W
Keystone
Key: 188 cm

Not
possible
+
+
SCREEN

Not
possible
Key: -14 cm

Operating Noise 37 / 29 dB in Eco Mode
Weight 2,50 kg / 5,51 lbs.
Keystone Vert.: +/-40°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 24-120 Hz
Range max.: 165 MHz
Foot-Lamberts 93 fL / max. 477 cm screen width
Candela m² 319 cd/m²
Features Eco Mode
Kensington Slot
PJLink™
Lan Netzwerk kompatibel.
Short Throw Projector
Crestron® Software compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Panasonic PT TX300 compared to others not current "Short Distance" projectors.
Ansi-Lumen:
37 Weight:
96
Contrast:
31 dB:
20
Black level:
21 Power cons.:
90
Picture Total Points:30 Projector Total Points:69
Popularity Top 100
9 popularity points in May 5 popularity points in June 9 popularity points in July 12 popularity points in August 16 popularity points in September 17 popularity points in October
Points:
17
Ranking: 441 (From: 989)
Live-Trend (Last 3 days)   LiveLIVE
Points: 38 +21% Trend🔥
Optional accessories
Osram bulb only NLMP2265561,26 €
lamp OriginalET-LAL34180,33 €
Compatible lamp LMP-K2265268,20 €
Universal Remote Fernb-uni-V322,31 €
remote control OriginalH458UB01G00131,24 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2013 Discontinued (EOL) // Last update of the data: 2026-06-09
