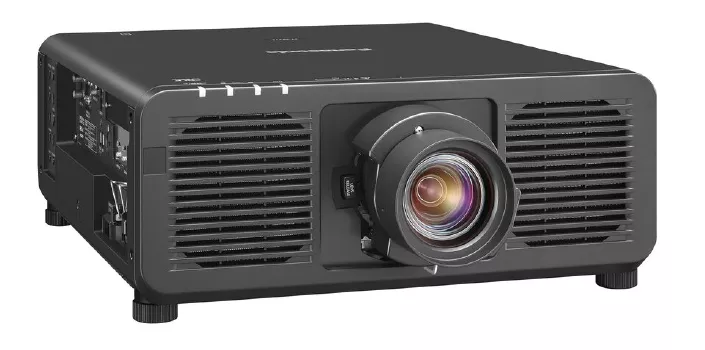

The hardware properties of the PT-REZ15 manufactured by Panasonic include 15000 ANSI lumens, a WUXGA 1920 x 1200 resolution and a contrast value of 20000:1. The laser technology ensures a specified light source lifespan of up to 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. A look at the light output reveals: The 15000 ANSI lumens are sufficient to illuminate an image width of up to 1244 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 829 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, and also offers the technical capability for 360° projection. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type
1 x 0,8" DLP Chip Quad Pixel Drive WUXGA 16/9 Ti Digital Light Processing Chip
The screen width should be larger. It's uncomfortably bright in the dark. too bright
272 - 438 cm
Lux:
6667 Lux
Contrast:
20000:1
Candela pro m²:
2121 cd/m²
Foot-Lamberts:
619 fL
68 cm
•
Focus
Powered
Zoom
Powered 1,61
Objective
Throw Ratio
optional
Audio
Nein
Connections
2x HDMI in
DisplayPort
BNC in und out
Open slot for function boards, Intel® SDM
Mini Jack Audio in und out
Mini-jack for wired remote control
2x USB-A in
RS232C Din 9 pin in
RJ45 in
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Blank (Black screen button) User logo Eco Mode 360° installable 24/7 continuous operation capable Edge Blending Password protection PJLink™ Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Crestron XiO Cloud AMX® DD Intel SDM NFC Function Lens Memory
Real Full HD 3D
