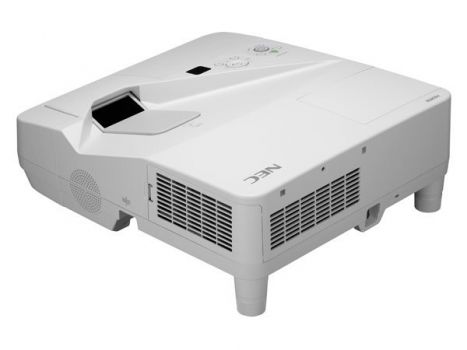

Designed for the Short Distance sector, the UM280X model from Nec features 2800 ANSI lumens, a native XGA 1024 x 768 resolution and a contrast ratio of 3000:1. The manufacturer lists the lamp life at 3000 hours. Thanks to its low throw ratio, the model is excellently suited for rooms with limited space. A distance of just 72 cm is sufficient to generate an image width of 2 meters. A look at the light output reveals: The 2800 ANSI lumens are sufficient to illuminate an image width of up to 461 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 307 cm. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. The projector was released in 2012 and is officially no longer distributed by Nec. However, it remains frequently searched within our database.
Display Type
3 x 0,63" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2800
Screen
933 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
0,9333 min. Lumen
0,311 min. Lumen
Offset
76% 39 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel WUXGA 1920 x 1200 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: JPEG
Disc Recognition
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application
Short Distance | Medium screen width or rooms with little light, max. 100 lumens.
Direkt Power Off Integrated Mediaplayer Blackboard Modus User logo Eco Mode Password protection PJLink™ Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector Crestron®-Software compatible. Offset und Projektionsverhältnis sind nach Objektivmitte.
Direkt Power Off
Nec Website
Product Sheet english
