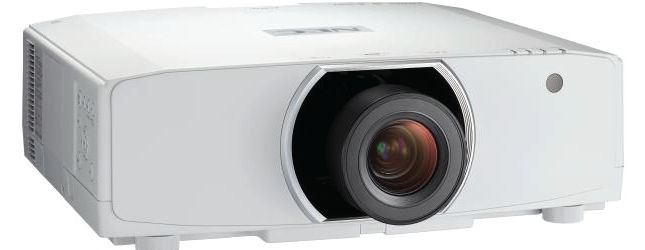

The Nec PA653UL is a 3D-LCD projector offering 6500 ANSI lumens, a contrast of 2500000:1 and a resolution of WUXGA 1920 x 1200. With its laser unit, the projector offers a specified light lifespan of 20000 hours – calculating to 13.7 years at four hours of use per day. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projection Calculator. Regarding projection size, the value of 6500 ANSI lumens allows for an image width of up to 819 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 546 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. This model dates back to 2017 and is no longer part of Nec's current product range. However, it remains frequently searched within our database.
Display Type
3 x 0,76" LCD TFT Panel mit MLA WUXGA 16/9 Liquid Crystal Display with Micro Lense Array
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2889 Lux
Contrast:
2500000:1
Candela pro m²:
918 cd/m²
Foot-Lamberts:
268 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
10W Mono
Connections
2 x HDMI HDCP 2.2 1.4 in
D-sub 15pin in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
Real Full HD 3D Full HD 1080P compatible Direkt Power Off Lens shift Funktion Freeze Blackboard Modus User logo Eco Mode Dynamic iris High Dynamic Range (HDR) Warping 360° installable Edge Blending Picture-in-Picture Password protection PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible.
Real Full HD 3D
