Nec NP63

Image Nec NP63
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Known as the NP63, this BrilliantColor-DLP projector by Nec features basic specs of 3500 ANSI lumens, a contrast of 1600:1 at a XGA 1024 x 768 resolution. According to Nec, the included lamp lasts up to 2500 hours.
Looking at practical performance, up to 515 cm can be illuminated with 3500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 343 cm.
Also on board is a local media player that allows reading and playing content directly from storage media.
This model dates back to 2010 and is no longer part of Nec's current product range.
Display Type 1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3500 / 2500 im Eco Mode
Screen
1167 Lux (200 cm Screen width)
Contrast 1600:1 1600:1
Black Level 2,1875 min. Lumen 0,731 min. Lumen
Offset 64% 21 cm over screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Media player formats: JPEG BMP PNG GIF
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.

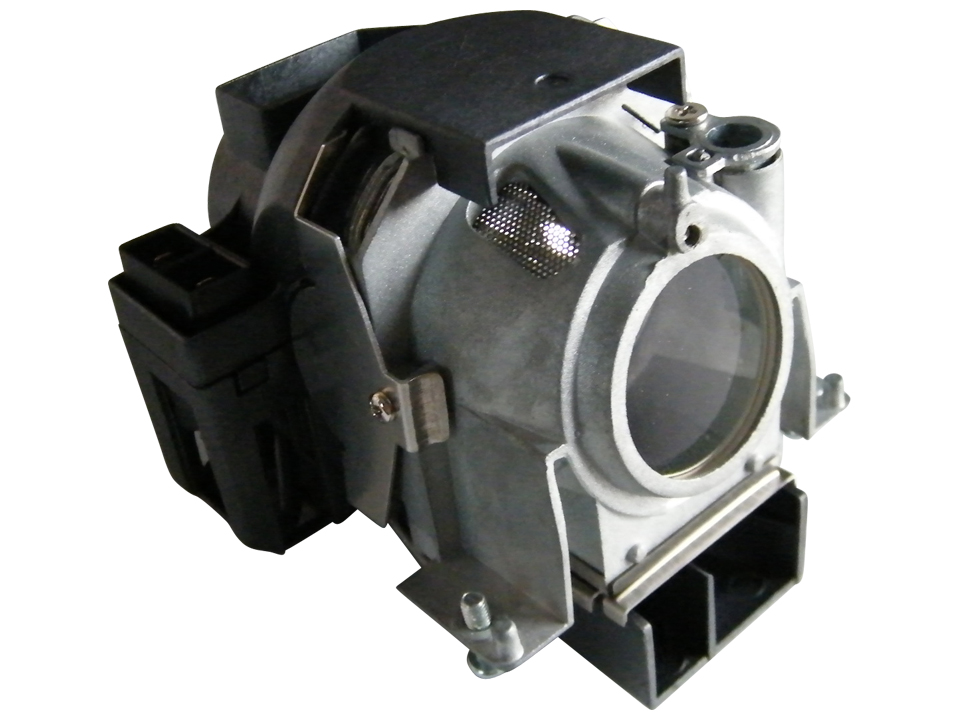

Light Source 220 / 170W im Eco Mode Lamp
Article Nr.: NP09LP
Order Lamp
56,75 - 306,57 €
Light Life 2500 h. 3500 in Eco Mode
Operating Costs
| cheap costly |
1
 28,57% / 0,12 €
Calculated brightness quality
The screen width may also be larger. Perfect
363 - 438 cm
Lux: 1167 Lux
Contrast: 1600:1
Candela pro m²: 370 cd/m²
Foot-Lamberts: 108 fL
96 cm


Screen width:cm
          Room:
•
Focus Kein Focus nötig
Zoom Manual 1,2
Objective F=2,2-2,34 f=20,4-24,5 mm
Throw Ratio 1,815-2,188:1 show
Audio Nein
Connections D-sub 15pin in
S-Video in
Cinch Video in
RS232C
Ceiling Mounting Yes, is possible.
Size WxHxD 246 x 72 x 177 mm (9,7"x2,8"x7") 3,14 L/dm³
Power 272 / 212W in Eco Mode
Keystone
Key: 401 cm

Not
possible
+
+
SCREEN

Not
possible
Key: 209 cm

Operating Noise 37 / 32 dB in Eco Mode
Weight 1,70 kg / 3,75 lbs.
Keystone Vert.: +/-40°  automatisch
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 50-120 Hz
Foot-Lamberts 108 fL / max. 515 cm screen width
Candela m² 370 cd/m²
Features Direct Power Off
Integrated Media Player
Freeze
Blackboard Mode
Eco Mode
Automatic and Manual Vertical Keystone Correction
Kensington Slot
Password Protection
BrilliantColor™
Optional W-Lan Netzwerk kompatibel.
6 Segment Colour Wheel
Screen Mirroring -
In Comparison
The Nec NP63 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
50 Weight:
97
Contrast:
30 dB:
31
Black level:
21 Power cons.:
70
Picture Total Points:34 Projector Total Points:66
Popularity Top 100
1 popularity points in May 1 popularity points in June 3 popularity points in July 4 popularity points in August 6 popularity points in September 5 popularity points in October
Points:
5
Ranking: 5382 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 9 +4% Trend
Optional accessories
Philips bulb only NLMP1851285,18 €
lamp ruby Ruby-LMP18512107,45 €
lamp OriginalNP09LP / 60002444 / NP03LP / 50031756306,57 €
Compatible lamp LMP-K1626656,75 €
Universal Remote Fernb-uni-V322,31 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2010 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Nec Website
Product Sheet english HC
Product Sheet japanisch
User Manual english (5.36 MB)
