Brief Introduction
Beta 2.5 |
A brief introduction to the Acer P1273B. The DLP projector has an XGA 1024 x 768 resolution and a contrast of 17000:1. The manufacturer specifies a lamp life of 4500 hours, which is over 6.2 years with a daily viewing time of 2 hours. The integrated media player can play files directly. A picture width of up to 477 cm is possible. However, the picture should be smaller in room lighting. We recommend max. 318 cm. It is also Full HD 1080P and 3D compatible. This model is no longer offered by Acer.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 / 2400 im Eco Mode |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
17000:1 full on/off |
17000:1 full on/off
|
| Black Level |
0,1765 min. Lumen |
0,059 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Media player formats: Office- und PDF-Dokumente |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

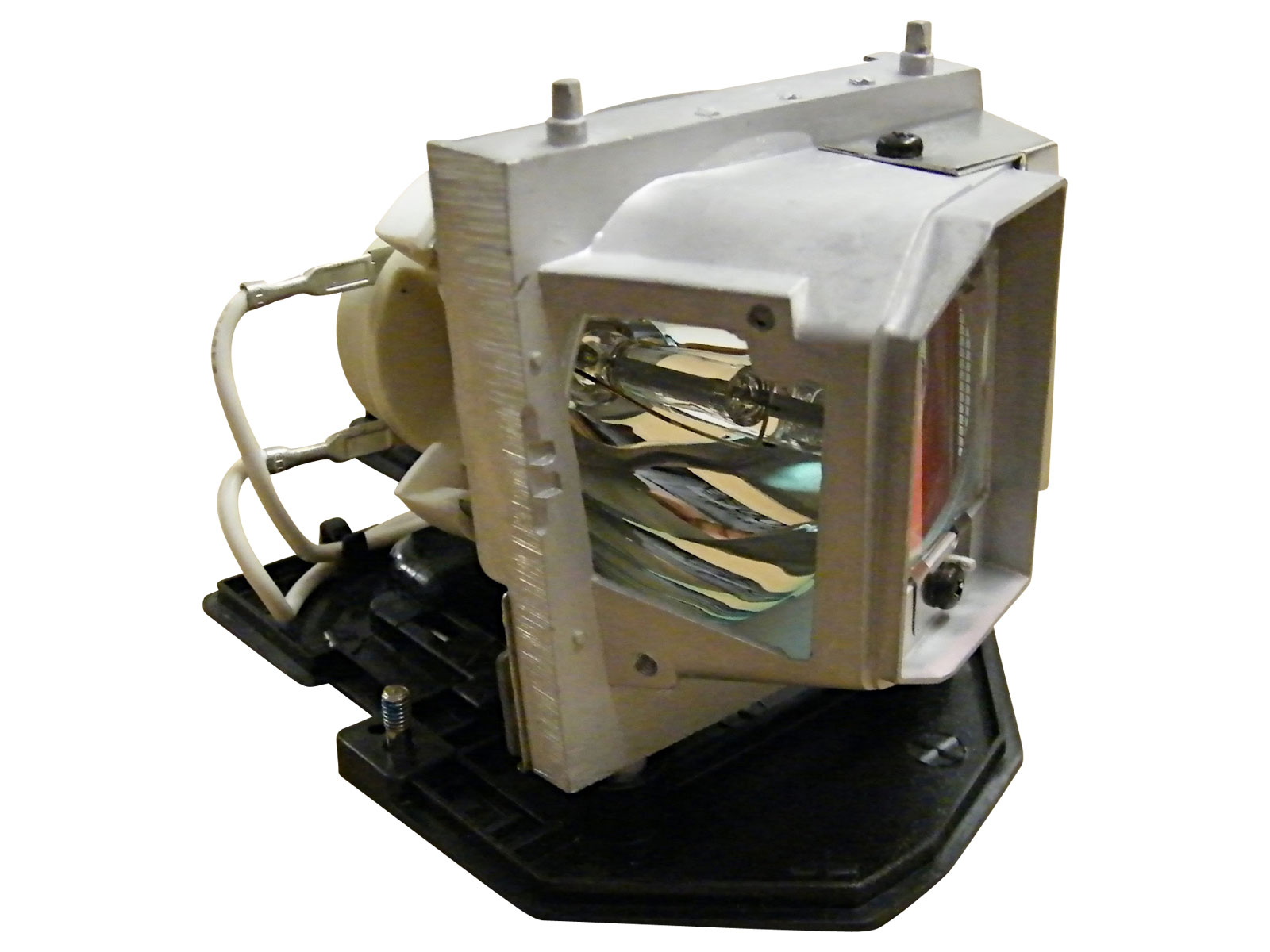

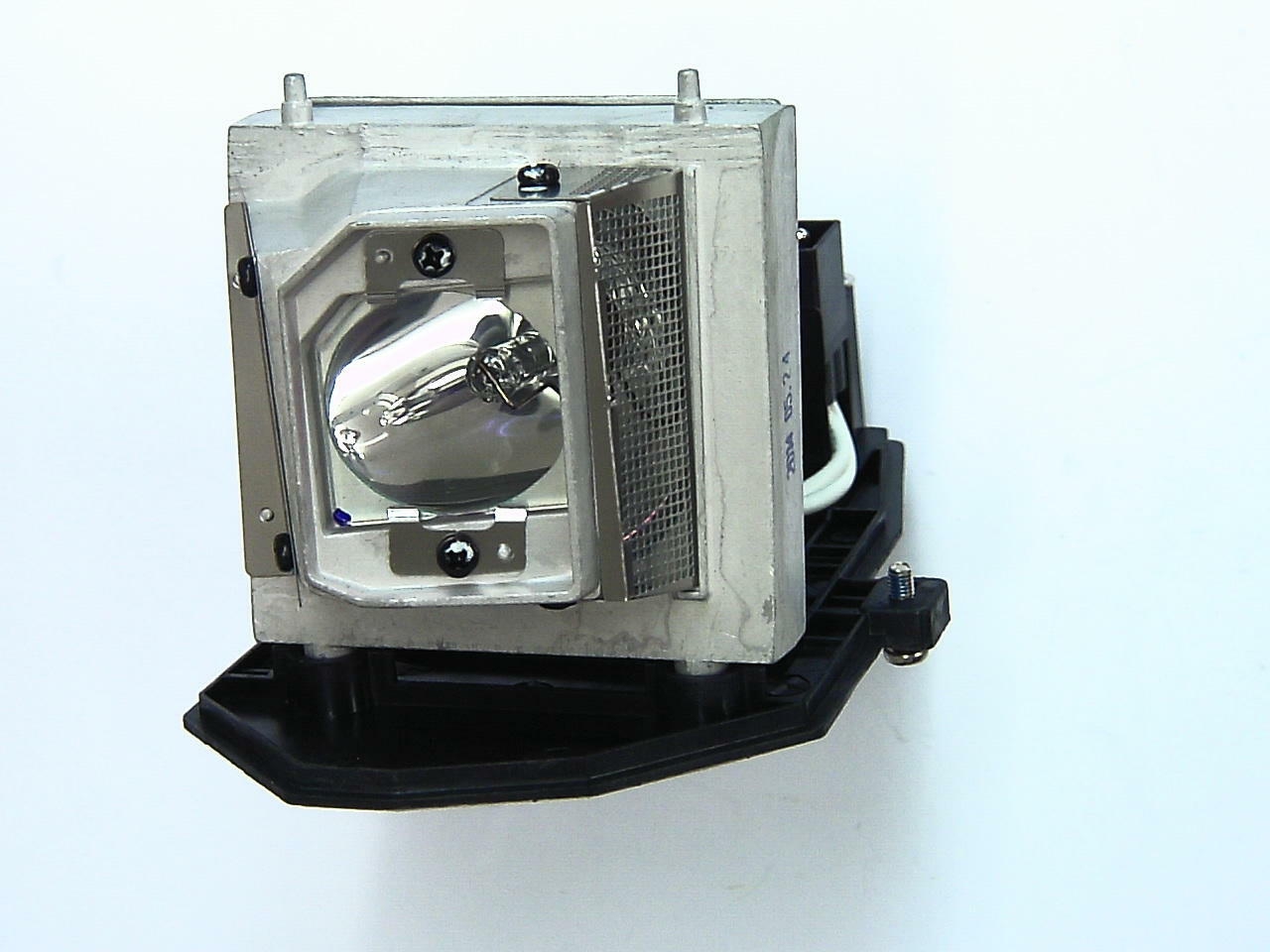

190W UHP Lamp
Article Nr.: MC.JG811.005
|
|
| Light Life |
4500 h. 6000 h. in Eco Mode |
| Operating Costs |
|
|
390 - 430 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,41-2,55 f=21,79-23,99 mm |
| Throw Ratio |
1,95-2,15:1 show |
| Audio |
1 x 2W |
| Connections |
HDMI 1.4a in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
USB Typ B in
Mini Jack Audio in und out
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W |
| Size WxHxD |
288 x 83 x 225 mm (11,3"x3,3"x8,9") 5,38 L/dm³
|
| Operating Noise |
32 / 30 dB in Eco Mode |
|
| Weight |
2,40 kg / 5,29 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 30-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Crestron®-Software compatible.
2x digital zoom
6 segment colour wheel
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer P1273B compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
44 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 45 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2362 (From: 7662) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
