Acer XD1320Wi

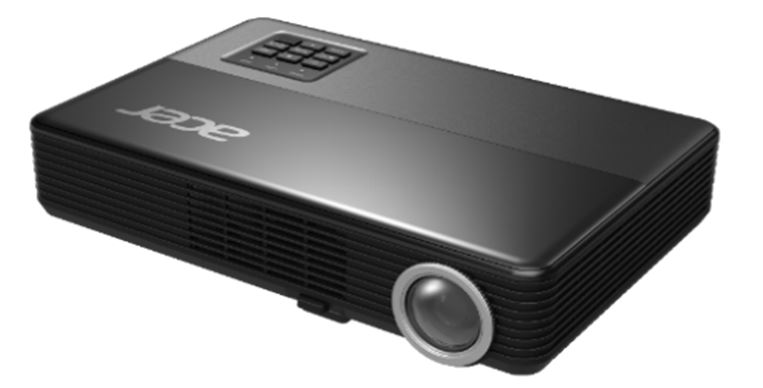

Image Acer XD1320Wi
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Known as the XD1320Wi, this 3D-DLP projector by Acer features basic specs of 1600 ANSI lumens, a contrast of 1000000:1 at a WXGA 1280 x 800 resolution. The LED unit of this model is rated for up to 20000 hours of runtime. With four hours of daily operation, this corresponds to a period of 13.7 years.
Regarding projection size, the value of 1600 ANSI lumens allows for an image width of up to 406 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 271 cm.
Regarding signal processing, the model is compatible with incoming 1080P content, and also offers the technical capability for 360° projection.
The projector was released in 2021 and is officially no longer distributed by Acer.
Display Type       1 x 0,45" DLP Chip
      WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1600 / 1120 im Eco Mode
Screen
640 Lux (200 cm Screen width)
Contrast 1000000:1 1000000:1
Black Level 0,0016 min. Lumen 0,001 min. Lumen
Offset 53% 4 cm over screen top edge →
SCREEN
+ Projector
Resolution WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
3D Compatibility Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source LED
Article Nr.: SP.8VH02GC01
Order Accessories
27,75 €
Light Life 20000 h. / 30000 h. in Eco Mode
Operating Costs 0,00 € LED
Calculated brightness quality Perfect
254 cm (no Zoom)
Lux: 640 Lux
Contrast: 1000000:1
Candela pro m²: 202 cd/m²
Foot-Lamberts: 59 fL
66 cm


Screen width:cm
          Room:
Focus Manual
Zoom No Zoom
Objective F=1,7 f=12,6mm
Throw Ratio 1,27:1
Audio 1 x 3W Mono
Connections HDMI
D-sub 15pin in
Cinch Video in
Mini Jack Audio in und out
USB in
share output port
Ceiling Mounting Yes, is possible.
Power 177W / 74W in Eco Mode
Size WxHxD 297 x 69 x 200 mm (11,7"x2,7"x7,9") 4,1 L/dm³
Operating Noise 32 / 26 dB in Eco Mode
Key: 279 cm
Key: 147 cm

Weight 2,10 kg / 4,41 lbs.
Keystone Vert.: +/-40°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 24-120 Hz
Foot-Lamberts 59 fL / max. 406 cm screen width
Candela m² 202 cd/m²
Features Full HD 1080P compatible
Eco Mode
Kensington Slot
360° installable
24/7 continuous operation capable
Optional Wi-Fi network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Acer XD1320Wi compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
20 Weight:
91
Contrast:
20 dB:
74
Black level:
100 Power cons.:
79
Picture Total Points:47 Projector Total Points:81
Popularity Top 100
0 popularity points 7 popularity points 6 popularity points 0 popularity points 1 popularity points 3 popularity points
Points:
3
Ranking: 5150 (From: 7737)
Optional accessories
remote control OriginalSP.8VH02GC0127,75 €
Status 2021 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Acer Website
Product Sheet english
Product Sheet english HC
Quick Start Guide
User Manual english (5.48 MB)

Projektor Acer XD1320Wi
