Brief Introduction
Beta 2.5 |

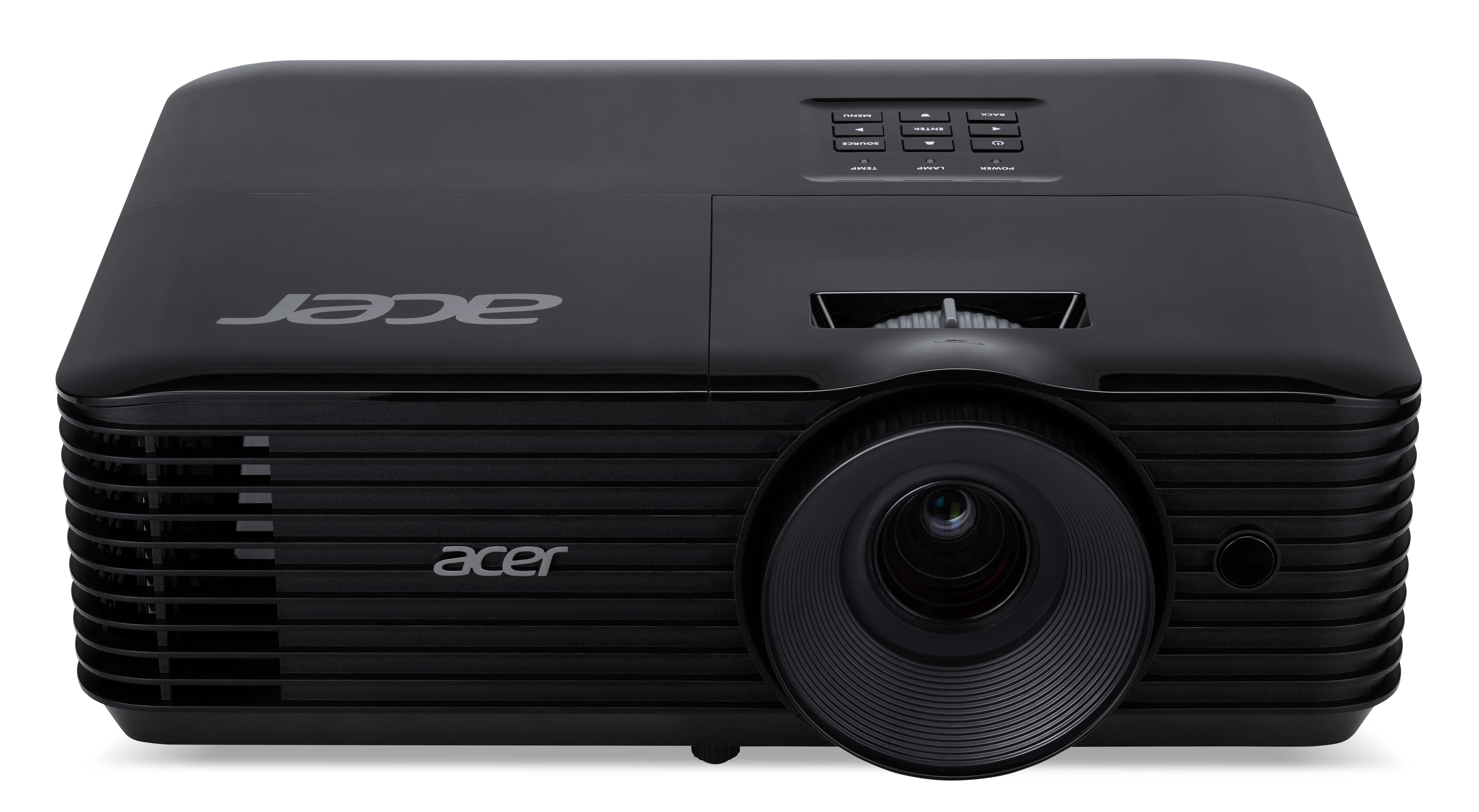

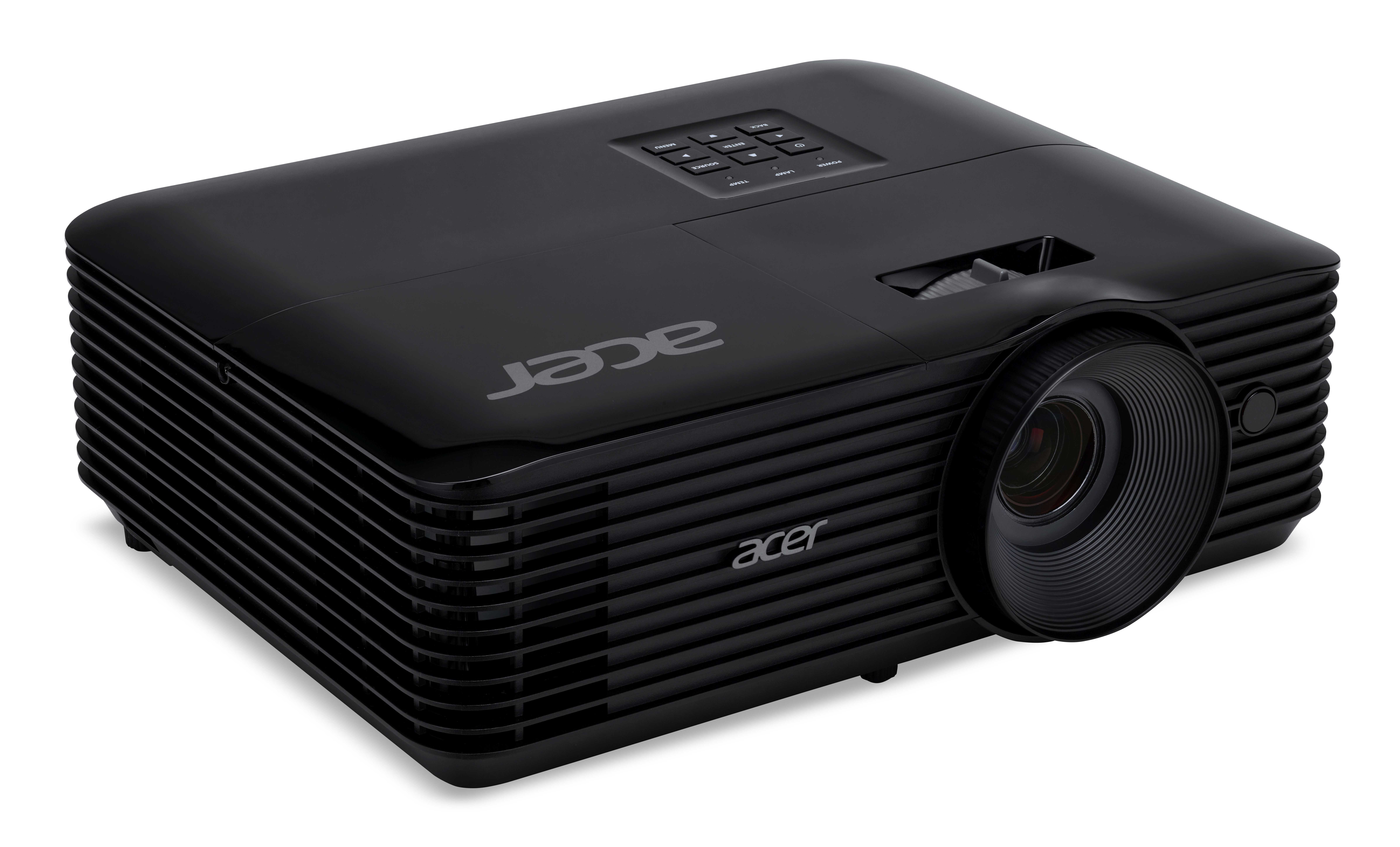

The Acer X138WH standard portable 3D BrilliantColor DLP projector has 3700 Ansi lumens, a contrast of 20000:1 and a WXGA 1280 x 800 resolution. The lamp in the projector is specified with a lamp life of 4000 hours, which is over 5.5 years if enjoyed for two hours every day. The ambient light sensor allows the projector to automatically optimize the projected image. The projector will be able to illuminate an image width of 618 cm well. Rooms with residual light can be created by the projector with a smaller image width, max. 412 cm is recommended here. The model is also Full HD 1080P and 3D compatible. The operating noise of just 30 decibels makes the projection quiet. The model built in 2018 is no longer offered by Acer, but is still one of the very popular projectors.
|
| Display Type |
1 x 0,65" DLP DMD Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3700 / 2960 im Eco Mode |
Screen |
1480 Lux (200 cm Screen width) |
| Contrast |
20000:1 |
20000:1
|
| Black Level |
0,1850 min. Lumen |
0,074 min. Lumen |
| Offset |
62% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

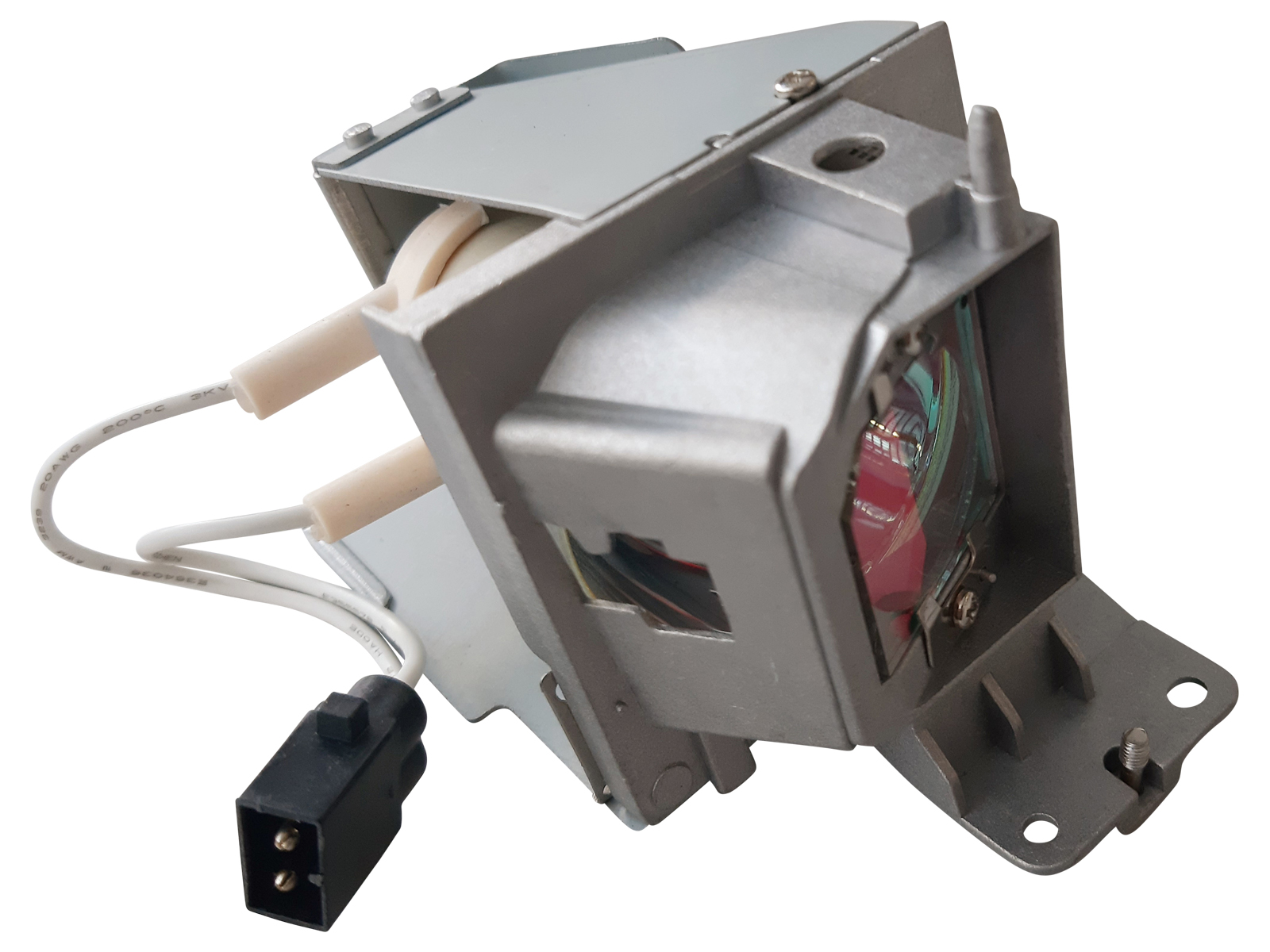

203W Lamp
Article Nr.: MC.JPV11.001
|
|
| Light Life |
4000 h. 6000 h. in Eco Mode |
| Operating Costs |
|
|
312 - 342 cm
|
 |
|
Lux: |
1480 Lux |
|
Room light max.: |
296 Lux |
|
Candela pro m²: |
469 cd/m² |
|
Foot-Lamberts: |
137 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,41-2,53 f=21,85-24 mm |
| Throw Ratio |
1,56-1,71:1 show |
| Audio |
3W |

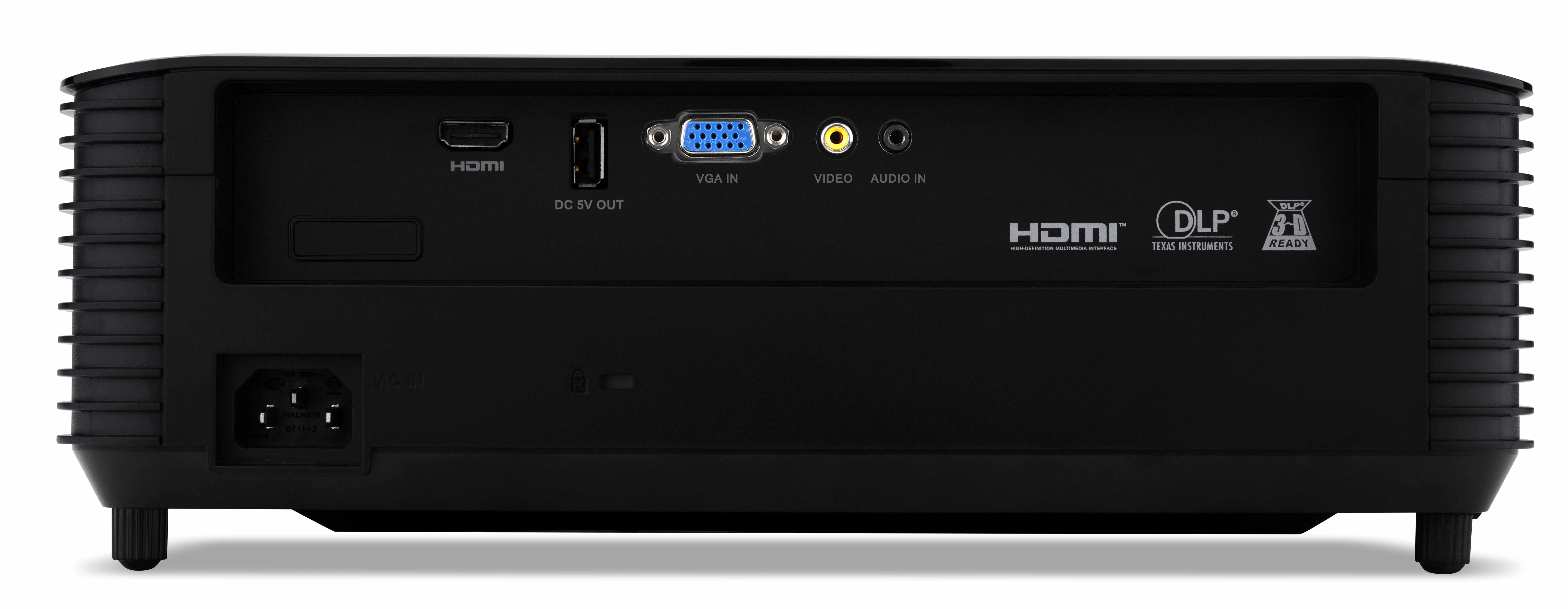

| Connections |
1x HDMI 1.4a mit HDCP Unterstützung
D-sub 15pin in
Cinch Video in
Mini Jack Audio in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W/195W in Eco Mode |
| Size WxHxD |
313 x 113,7 x 240 mm (12,3"x4,4"x9,4") 8,49 L/dm³
|
| Operating Noise |
30 / 24 dB in Eco Mode |
|
| Weight |
2,70 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
137 fL
/ max. 618 cm screen width |
| Candela m² |
469 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
BrilliantColor™
Ambient Light Sensor.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer X138WH compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
96 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 45 |
Projector Total Points: | 98 |
|
| Popularity Top 100 |
|
| Points: |
|
19 |
| Ranking: |
164 (From: 7662) |
|
|
|
|
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2018-04-05 19:36:35
|
