Acer UL5630


Artikelnummer: MR.JT711.001
Image Acer UL5630
Customer review
Offer Ads
Discover the projector on Amazon. Now!
Model Overview The UL5630 model from Acer combines DLP technology in the Short Distance sector with 4500 ANSI lumens, a contrast of 2000000:1 and a native WUXGA 1920 x 1200 resolution. With its laser unit, the projector offers a specified light lifespan of 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible.
The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. The short-throw capabilities allow for large images at a short projection distance. According to specifications, a 2-meter wide image requires a distance of only 50 cm.
A look at the light output reveals: The 4500 ANSI lumens are sufficient to illuminate an image width of up to 682 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 455 cm.
For media input, video signals up to 1080P as well as 3D are supported. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type 1 x 0,48" DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
4500 / 3600 im Eco Mode
Screen
2000 Lux (200 cm Screen width)
Contrast 2000000:1 2000000:1
Black Level 0,0023 min. Lumen 0,001 min. Lumen
Offset 94% 49 cm over screen top edge →
SCREEN
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source Laser
Article Nr.: MC.JT711.002
Order Accessories
27,67 €
Light Life 20000 h. / 30000 h.
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
50 cm (no Zoom)
Lux: 2000 Lux
Contrast: 2000000:1
Candela pro m²: 637 cd/m²
Foot-Lamberts: 186 fL
106 cm



Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective F=2 f=24,85mm
Throw Ratio 0,252:1
Audio 2 x 10W

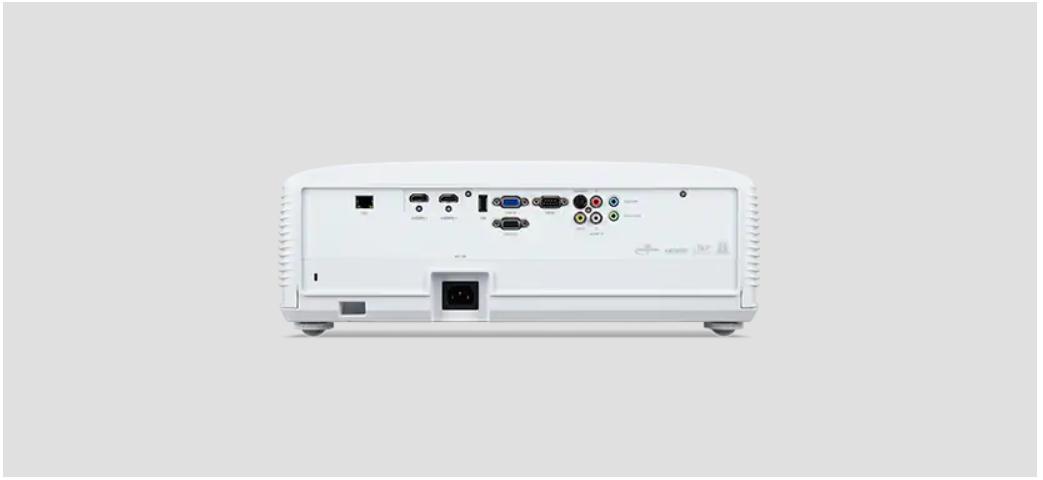

Connections 2x HDMI 2.0
1x Cinch
1x RJ45 Lan
1x D-sub15 IN and out
2x 3,5mm Audio IN and OUT
Ceiling Mounting Yes, is possible.
Size WxHxD 429 x 158 x 389 mm (16,9"x6,2"x15,3") 26,37 L/dm³
Power 430W /275W in Eco Mode
Keystone
Key: 110 cm

Key: 4 cm
+
+
SCREEN

Key: 4 cm
Key: -102 cm

Operating Noise 33 / 28 dB in Eco Mode
Weight 7,70 kg / 15,43 lbs.
Keystone Vert.: +/-5°
Hori.: +/-5°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 24-120 Hz
Foot-Lamberts 186 fL / max. 682 cm screen width
Candela m² 637 cd/m²
Features Real Full HD 3D
Full HD 1080P
Eco Mode
PJLink™
Optional W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Short Throw Projector
Crestron® Software compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Acer UL5630 compared to others current "Short Distance" projectors.
Ansi-Lumen:
36 Weight:
76
Contrast:
33 dB:
60
Black level:
100 Power cons.:
62
Picture Total Points:56 Projector Total Points:66
Popularity Top 100
4 popularity points in May 2 popularity points in June 4 popularity points in July 4 popularity points in August 8 popularity points in September 2 popularity points in October
Points:
2
Ranking: 328 (From: 388)
Live-Trend (Last 3 days)   LiveLIVE
Points: 2 ±0% Trend
Optional accessories
Remote MC.JMV11.00G27,67 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2021 Current model // Last update of the data: 2026-11-19
