Brief Introduction
Beta 2.5 |
The S1213 3D DLP projector from Acer has 3000 Ansi lumens, a contrast of 4500:1 and an XGA 1024 x 768 resolution. The lamp in the projector is specified with a lamp life of 4000 hours, which is over 5.5 years with a daily viewing time of 2 hours. As it is a short-throw projector, the projector can be placed very close to the wall. For a 2 m wide image, the projector only needs to be 122 cm away from the screen. Even 1080P video signals are no problem for the projector. This model is no longer offered by Acer.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 / 2400 im Eco Mode |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
4500:1 full on/off |
4500:1 full on/off
|
| Black Level |
0,6667 min. Lumen |
0,222 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

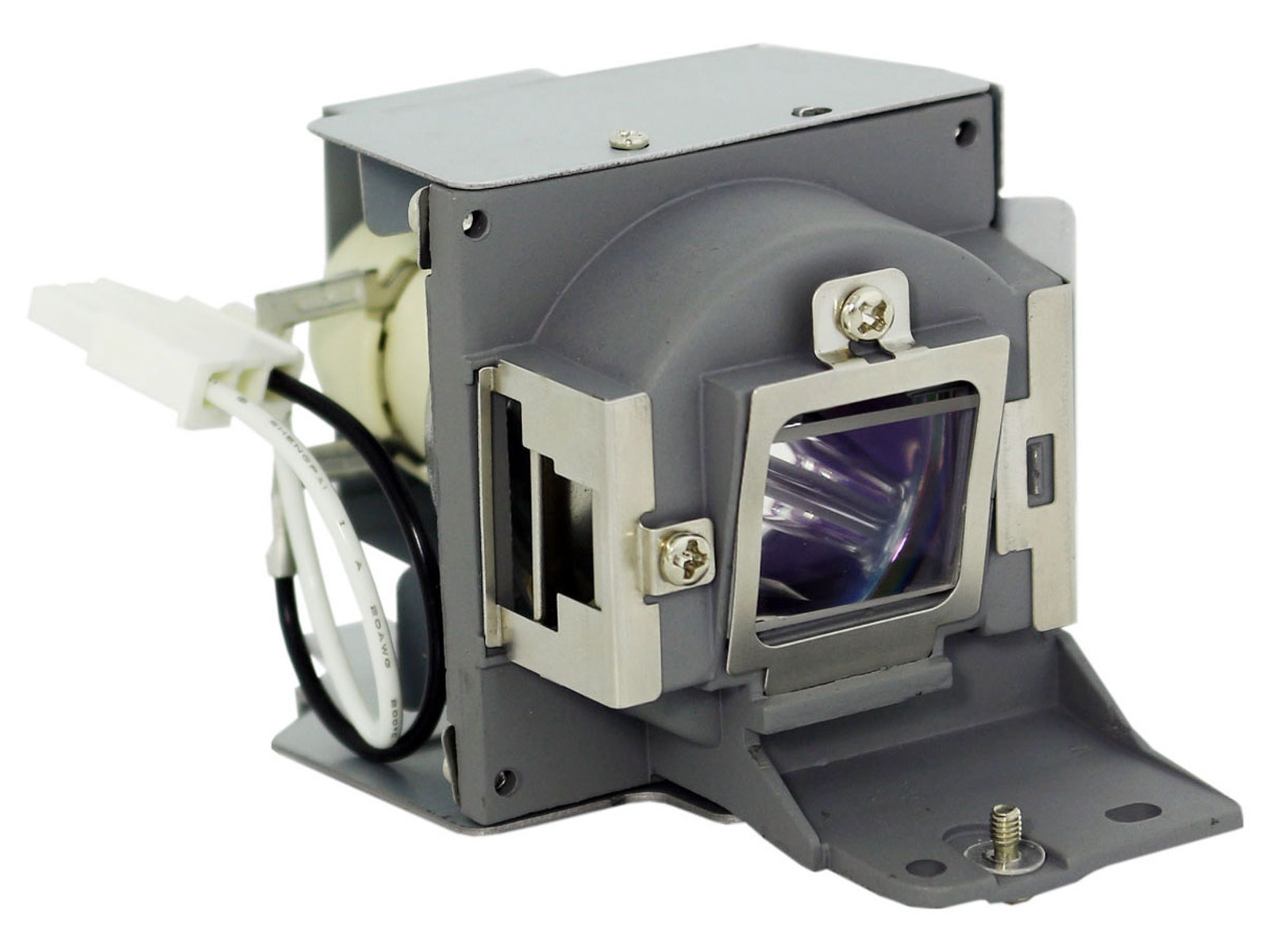

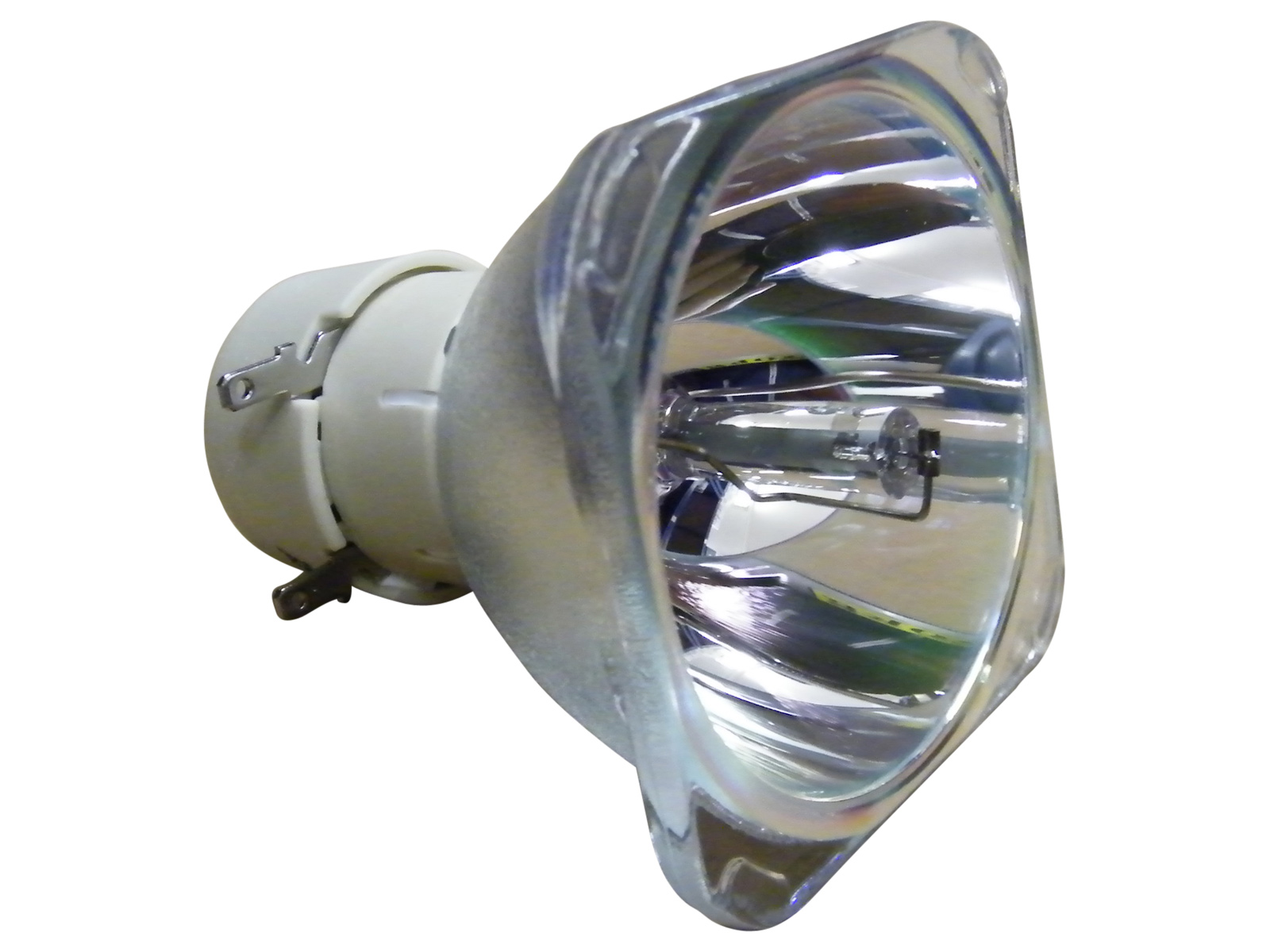

210W Lamp
Article Nr.: MC.JEL11.001
|
|
| Light Life |
4000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
122 cm (no Zoom)
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,6 f=6,90mm |
| Throw Ratio |
0,61:1 |
| Audio |
1 x 2W |
| Connections |
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ B in
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300W |
| Size WxHxD |
272 x 104 x 229 mm (10,7"x4,1"x9") 6,48 L/dm³
|
| Operating Noise |
33 / 26 dB in Eco Mode |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 30-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Lan network compatible.
Short-throw projector
Brilliant 6-segment colour wheel
|
|
- |
In Comparison
The Acer S1213 compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
35 |
Weight: |
|
95 |
| Contrast: |
|
1 |
dB: |
|
47 |
| Black level: |
|
99 |
Power cons.: |
|
93 |
| Picture Total Points: | 45 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
18 |
| Ranking: |
285 (From: 974) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
