Brief Introduction
Beta 2.5 |
The Optoma model X306ST is a DLP projector with XGA 1024 x 768 resolution and a contrast of 15000:1. This projector has a projection ratio of just 0.626:1. For a 2 m wide image, the projector needs to be just 125 cm away from the screen. As the X306ST is equipped with a microphone jack plug and 10W speakers, no additional audio system is required for presentations or training courses. Playing 1080P and 3D is also no problem for the projector. It was launched on the market in 2013 and is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3200 |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,2133 min. Lumen |
0,071 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

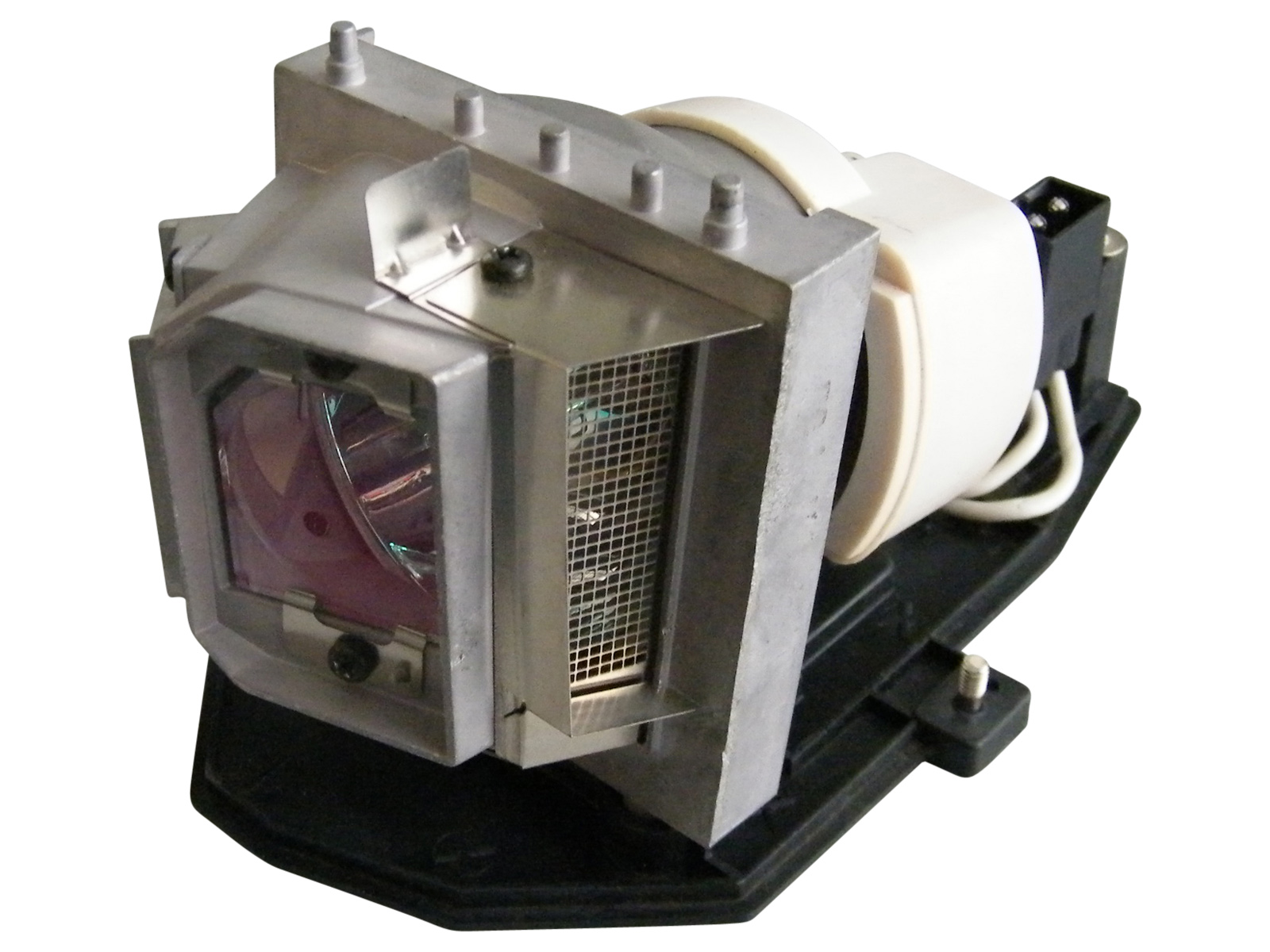

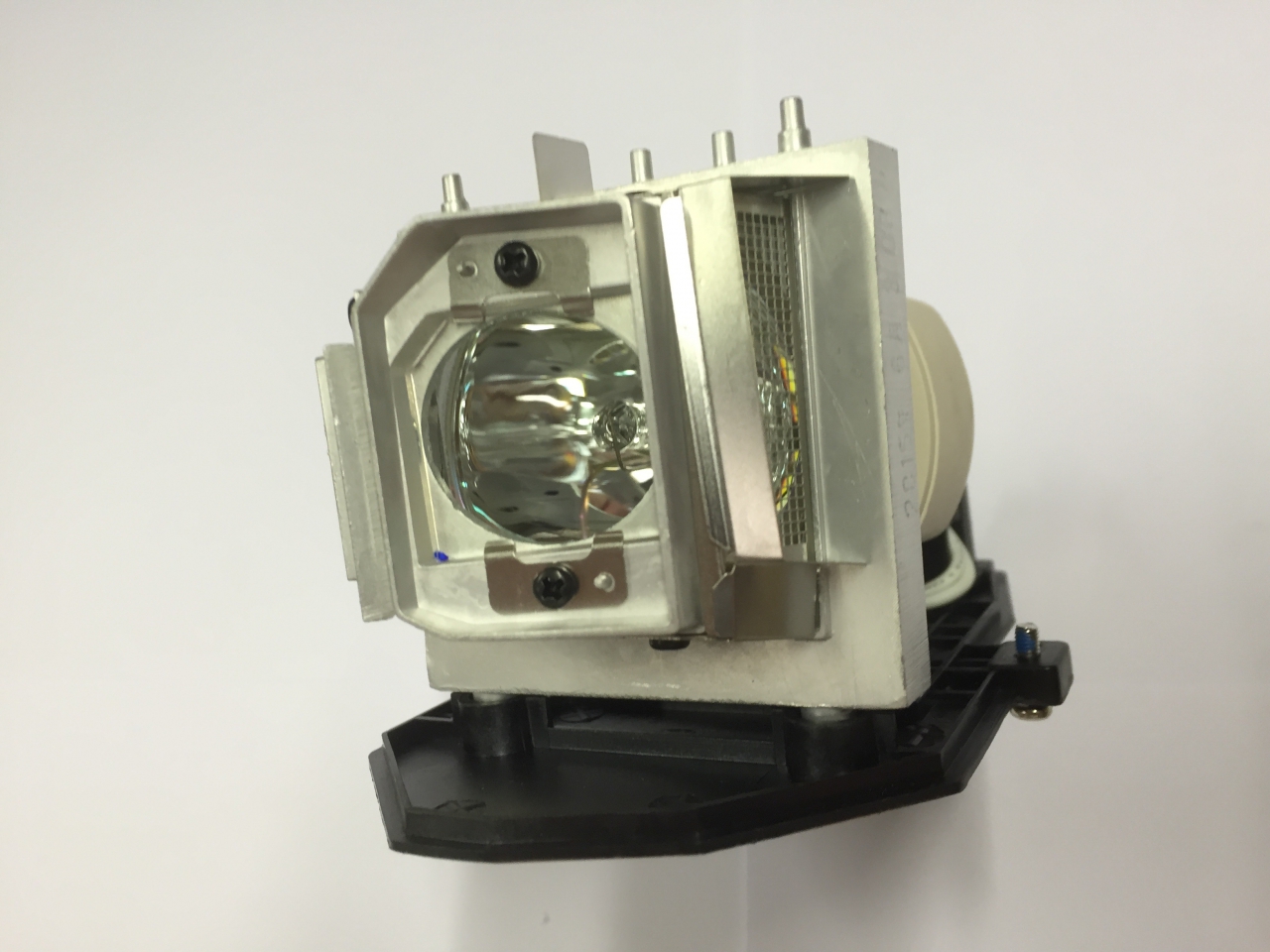

240W Lamp
Article Nr.: SP.8TU01GC01 / BL-FP240C
|
|
| Light Life |
3500 h. 6000 in Eco Mode |
| Operating Costs |
-
|
|
125 cm (no Zoom)
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,8 f=7,26mm |
| Throw Ratio |
0,626:1 |
| Audio |
1 x 10W |
| Connections |
HDMI in
D-Sub 15 pin in und out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS343C
RJ45
USB
Mikrofon in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
288 x 99 x 245 mm (11,3"x3,9"x9,6") 6,99 L/dm³
|
| Operating Noise |
33dB |
|
| Weight |
2,71 kg / 5,97 lbs. |
| Keystone |
Vert.: +/-12°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
99 fL
/ max. 493 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma X306ST compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
95 |
| Contrast: |
|
1 |
dB: |
|
47 |
| Black level: |
|
100 |
Power cons.: |
|
0 |
| Picture Total Points: | 46 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
600 (From: 974) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
