Optoma ZK1320


Optoma ProScene ZK1320

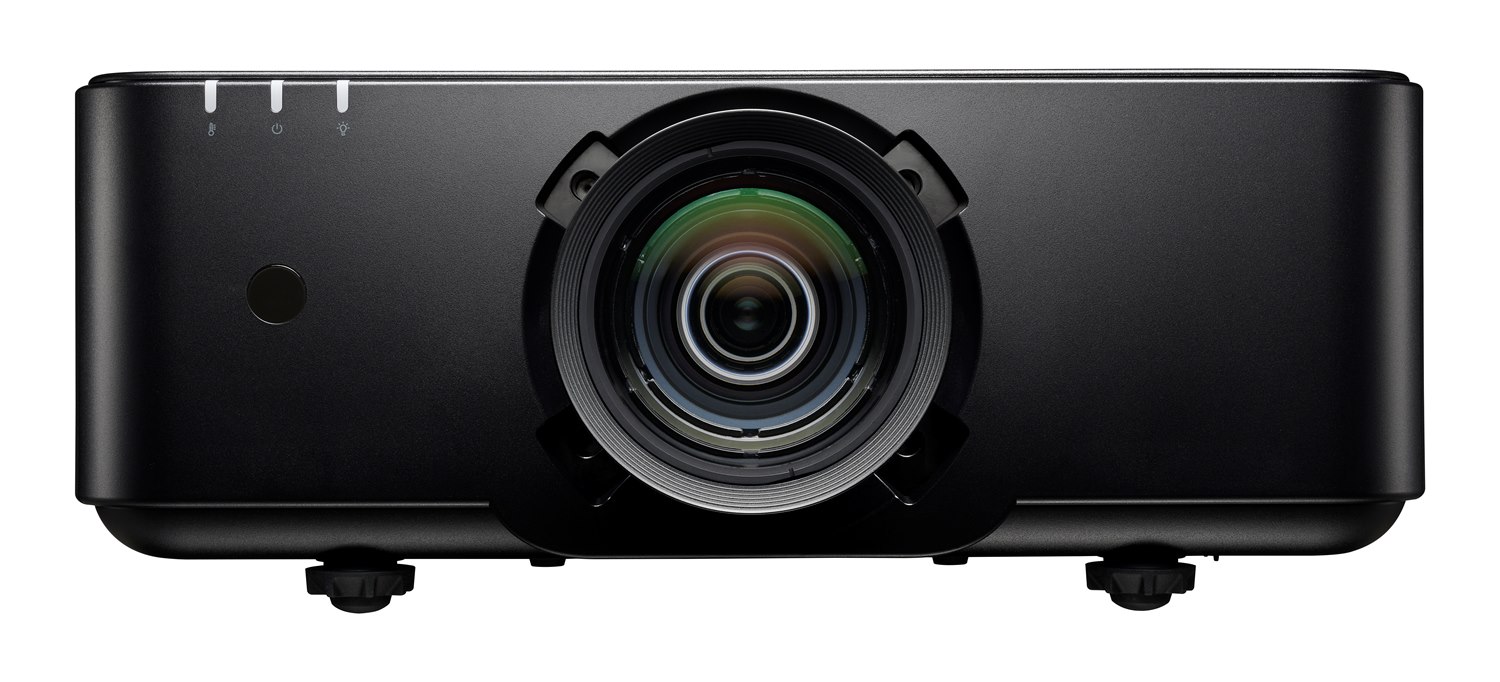

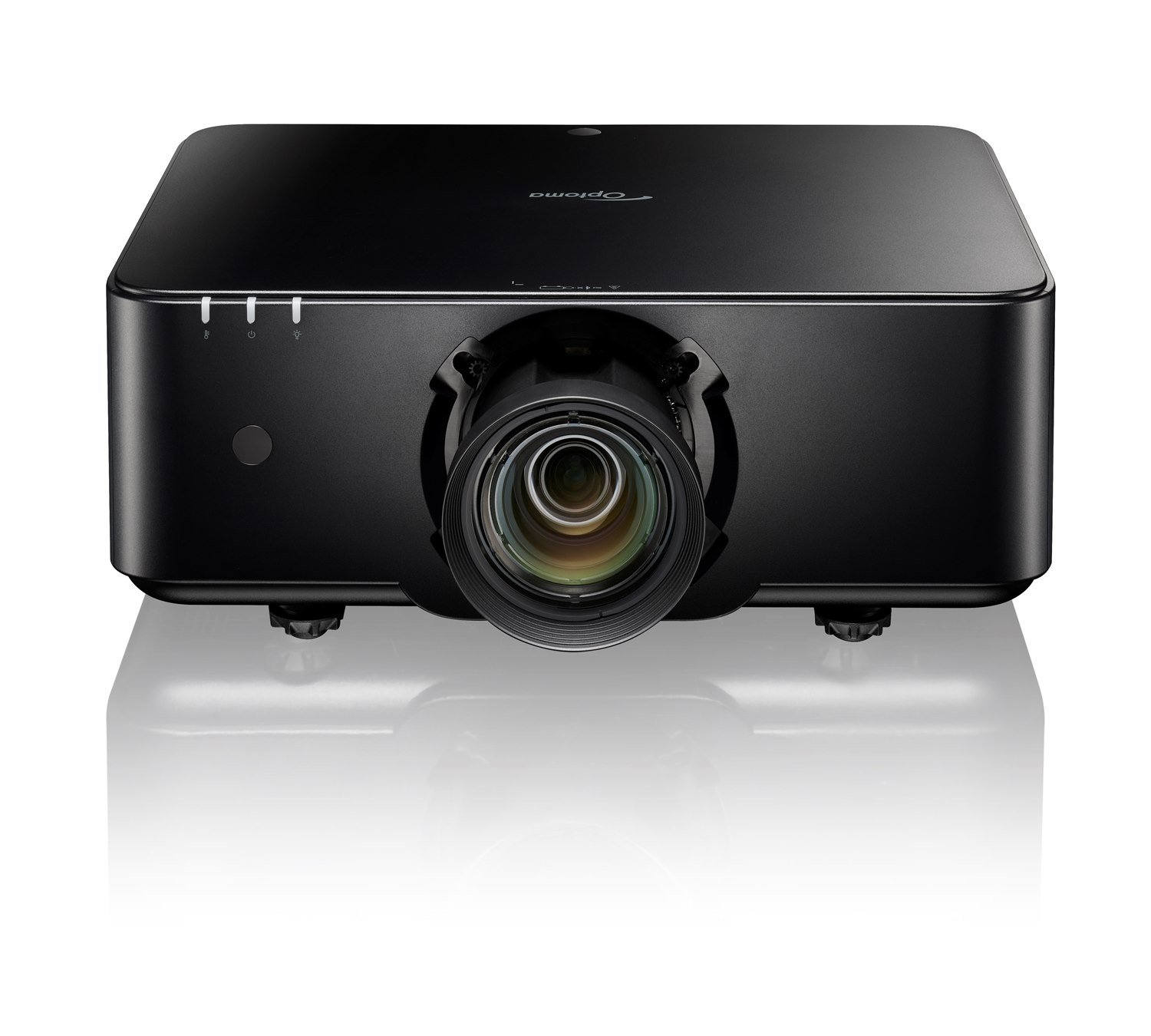

Image Optoma ZK1320
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview With the ZK1320, Optoma offers a 3D-LED-DLP projector that features 11500 ANSI lumens, a contrast of 4000000:1 and a resolution of UHD (4K2K+) 3840 x 2400. The manufacturer lists the lifespan for this model at 30000 hours – calculating to 20.5 years at four hours of use per day.
Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Distance Calculator.
A look at the light output reveals: The 11500 ANSI lumens are sufficient to illuminate an image width of up to 934 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 623 cm.
For media input, video signals up to 1080P and 4K as well as 3D are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Display Type 1 x TI 0,8" HEP DLP Chip
UHD 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
11500
Screen
5111 Lux (200 cm Screen width)
Contrast 4000000:1 full on/off 4000000:1 full on/off
Black Level 0,0029 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +/-60% Hori.: +/-25%
 Lens shift
60%  68cm
60%  68cm
25%  50cm
25%  50cm
+ Projector
Resolution UHD (4K2K+) 3840 x 2400
9.216.000 Pixel / WUXGA E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application Event | Gaming | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source DuraCore Laser
Order Accessories
44,33 €
Light Life 30000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 5111 Lux
Contrast: 4000000:1
Candela pro m²: 1627 cd/m²
Foot-Lamberts: 475 fL
68 cm


Screen width:cm
          Room:
•
Focus Powered
Zoom Powered x1,15
Objective
Throw Ratio optional
Audio 2 x 10W

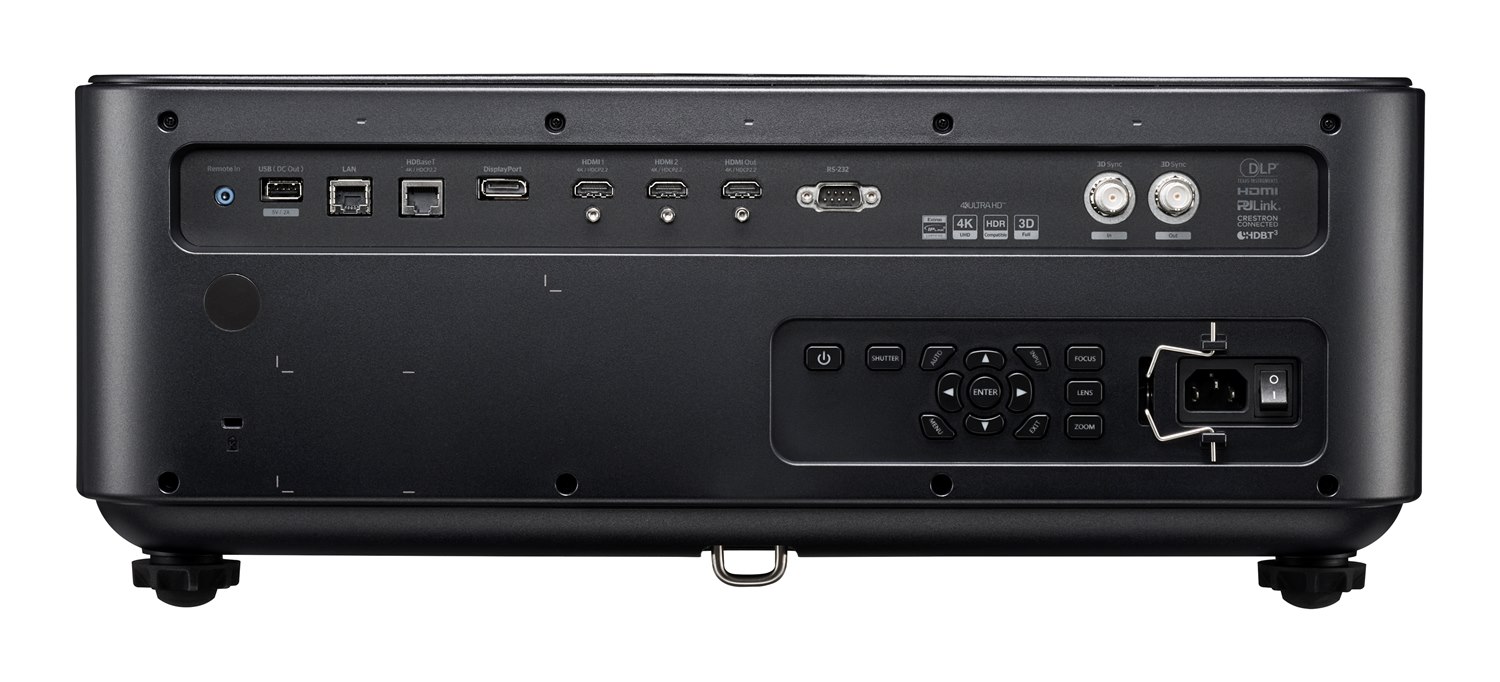

Connections 2x HDMI 2.0 in und 1x out
DisplayPort 4K
3D Sync in und out
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
HDBaseT
RJ45
Ceiling Mounting Yes, is possible.
Size WxHxD 534,9 x 189 x 396 mm (21"x7,4"x15,6") 39,97 L/dm³
Power 850W / 420W in Eco Mode
Lens shift

Shift: 68 cm


Shift: 50 cm
+
+
SCREEN


Shift: 50 cm

Shift: 68 cm

Operating Noise 40 / 35 dB in Eco Mode
Weight 15,00 kg / 33,07 lbs.
Keystone Vert.: +/-20°
Hori.: +/-20°
Illumination 95%
Frequenz H-sync: 15-140 kHz
V-sync: 24-240 Hz
Foot-Lamberts 475 fL / max. 934 cm screen width
Candela m² 1627 cd/m²
Features Real Full HD 3D
HDBaseT Connection
4K UHD (Ultra High Definition)
Direct Power Off
Custom Logo Display
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Warping
360° Installation Capable
24/7 Operation Capable
Password Protection

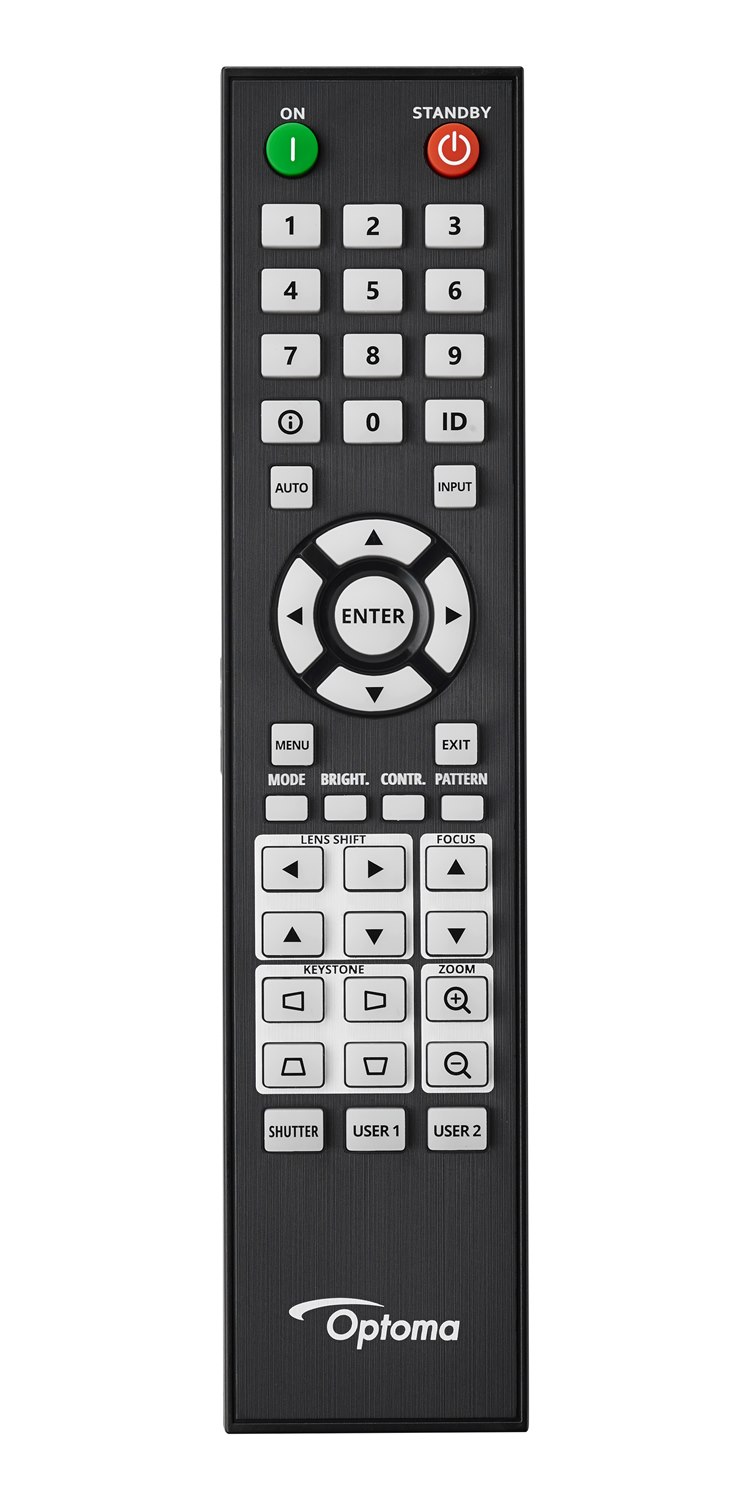

Backlit Remote Control
Lan Netzwerk kompatibel.
Crestron® Software compatible.
Portrait projection
Gaming mode
Color management system
Optoma Management Suite (OMS)?
True AV Mute
Cable remote control connection
Telnet
AMX
Game mode Input latency: 4.5 ms @ 4K
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Optoma ZK1320 compared to others current "Event" projectors.
Ansi-Lumen:
4 Weight:
98
Contrast:
80 dB:
64
Black level:
100 Power cons.:
87
Picture Total Points:61 Projector Total Points:83
Popularity Top 100
4 popularity points in May 3 popularity points in June 7 popularity points in July 9 popularity points in August 18 popularity points in September 19 popularity points in October
Points:
19
Ranking: 87 (From: 180)
Live-Trend (Last 3 days)   LiveLIVE
Points: 46 +27% Trend🔥
Optional accessories
remote control OriginalBR-3074W / SP.72N03GC0144,33 €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
BX-CTA23 4.8-8.64:1 960-1728 m +/-60% +/-25% Powered
BX-CTA22 2.4-4.8:1 480-960 m +/-60% +/-25% Powered
BX-CTA21 1.8-2.4:1 360-480 m +/-60% +/-25% Powered
BX-CTA08 1.25-2:1 250-400 m +/-60% +/-25% Powered
BX-CTA07 1.3-1.8:1 260-360 m +/-60% +/-25% Powered
BX-CTA20 1.44-1.8:1 288-360 m +/-60% +/-25% Powered
BX-CTA12 0.9-1.3:1 180-260 m Powered
BX-CTA11 0.78-0.9:1 156-180 m Powered
BX-CTA28 0.34-0.37:1 68-74 m Powered
Status 2025 Current model // Last update of the data: 2026-10-13
Created:
Data
Optoma Website
Product Sheet english
Product Sheet english HC
User Manual english (14.32 MB)
