Brief Introduction
Beta 2.5 |

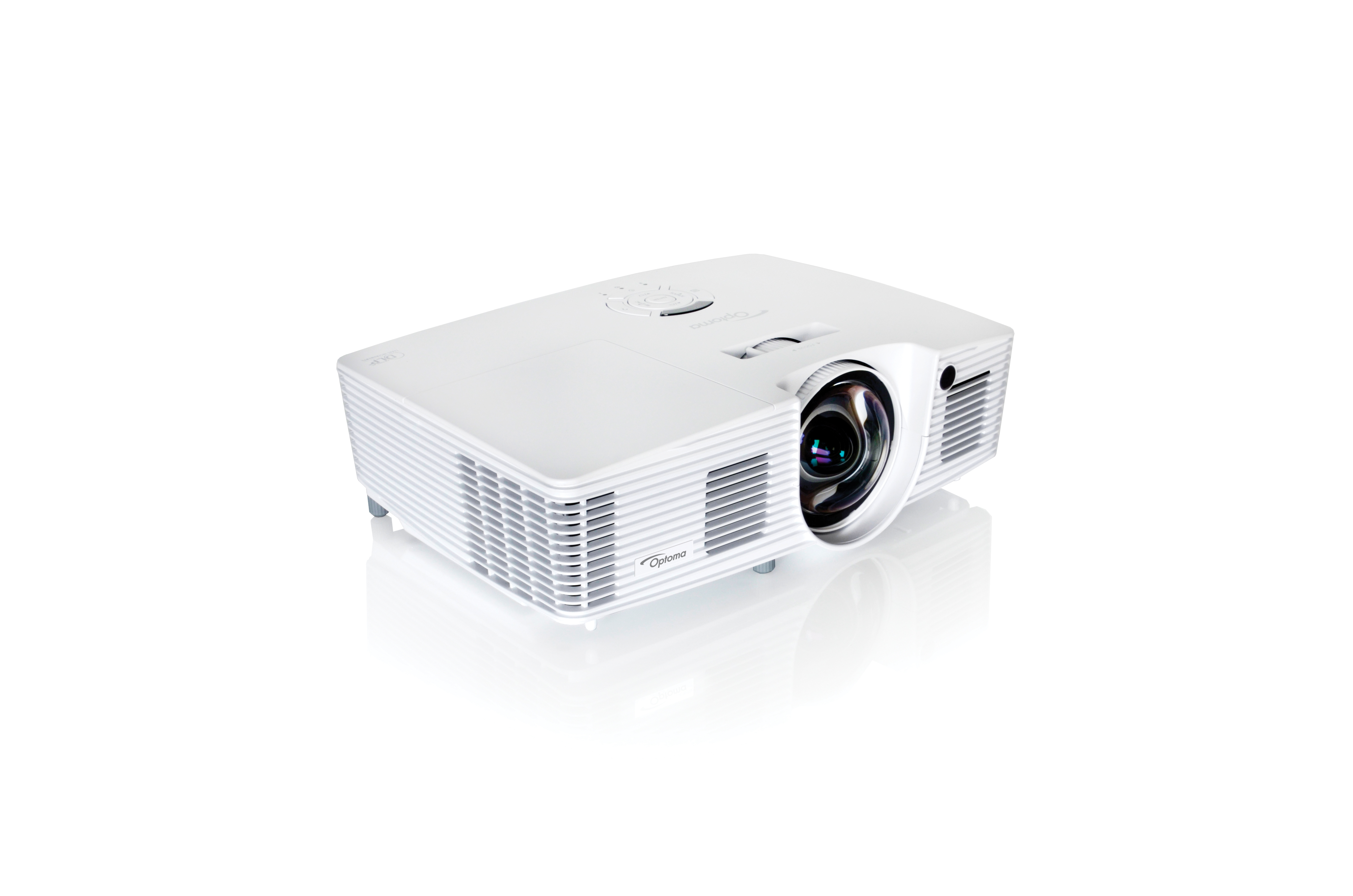

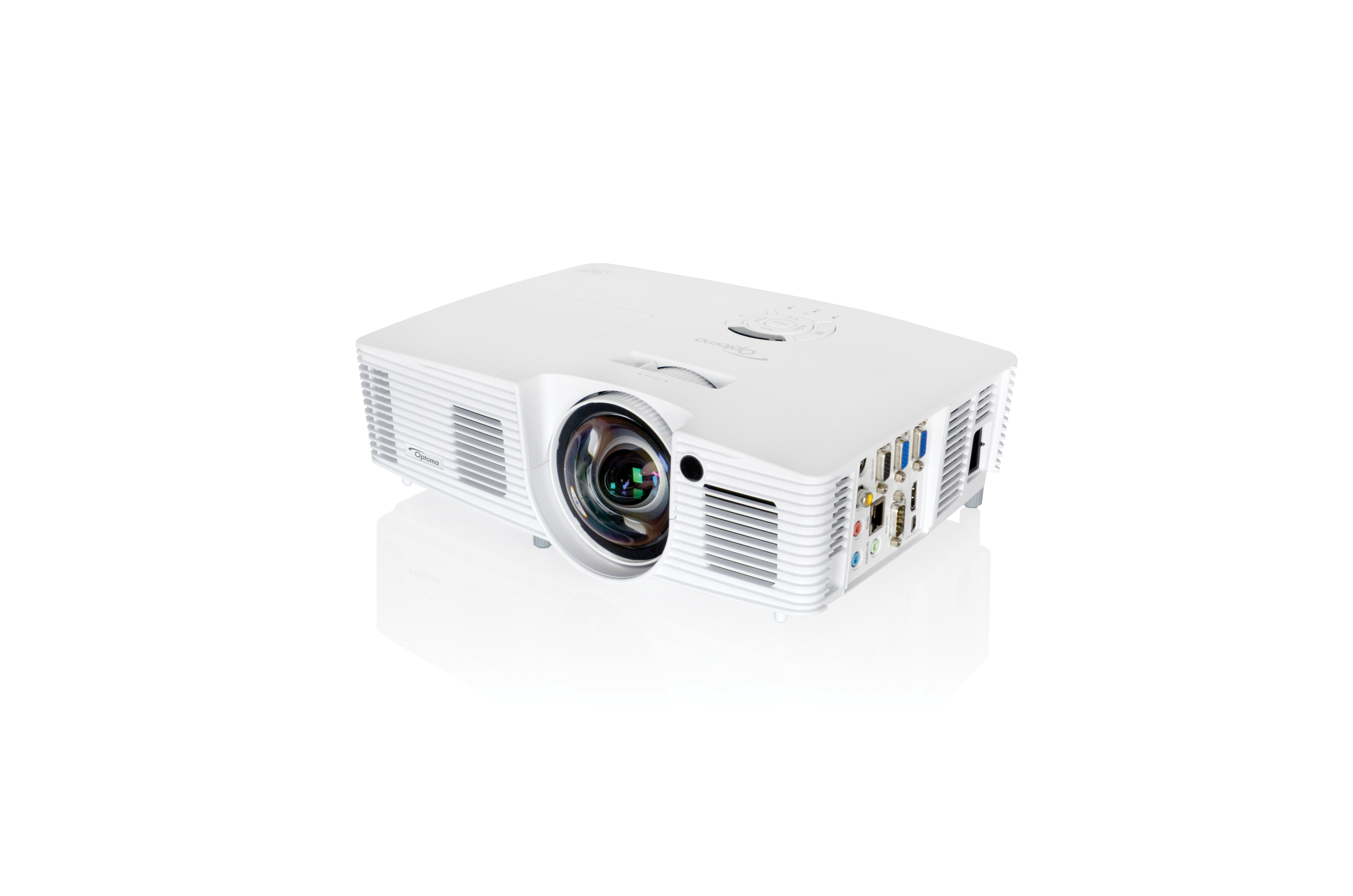

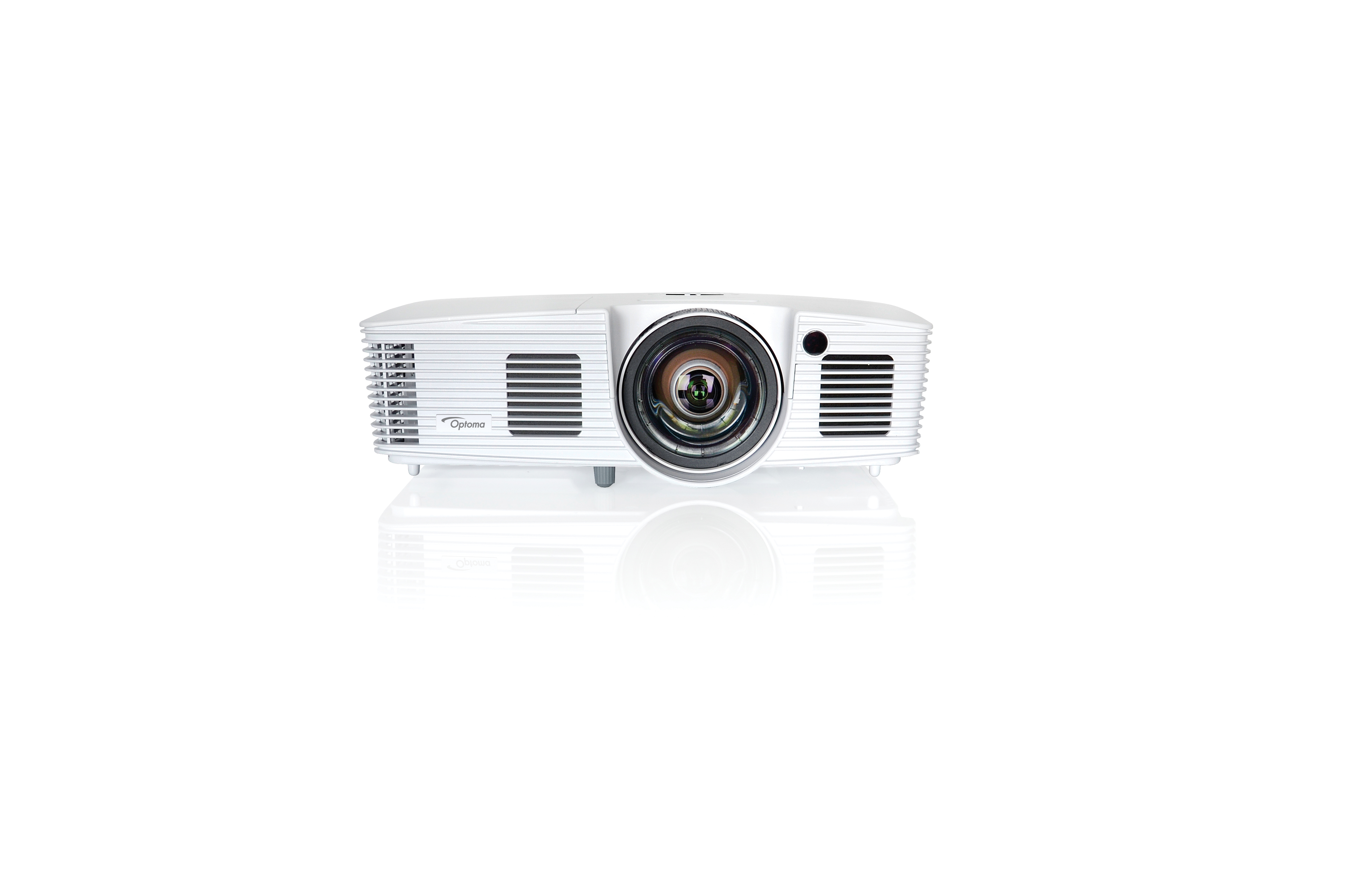

The W316ST 3D BrilliantColor DLP projector from Optoma has 3400 Ansi lumens, a contrast of 20000:1 and a WXGA 1280 x 800 resolution. The manufacturer specifies a lamp life of 4000 hours, which is over 5.5 years if enjoyed for two hours a day. With a projection ratio of just 0.52:1, this projector never gets in the way. For a 2m wide image, the projector needs to be just 104 cm away from the screen. It is also Full HD 1080P and 3D compatible. This model is no longer offered by Optoma, but is still a popular projector in our database.
|
| Display Type |
1 x 0,56" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3400 |
Screen |
1360 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,1700 min. Lumen |
0,068 min. Lumen |
| Offset |
62% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

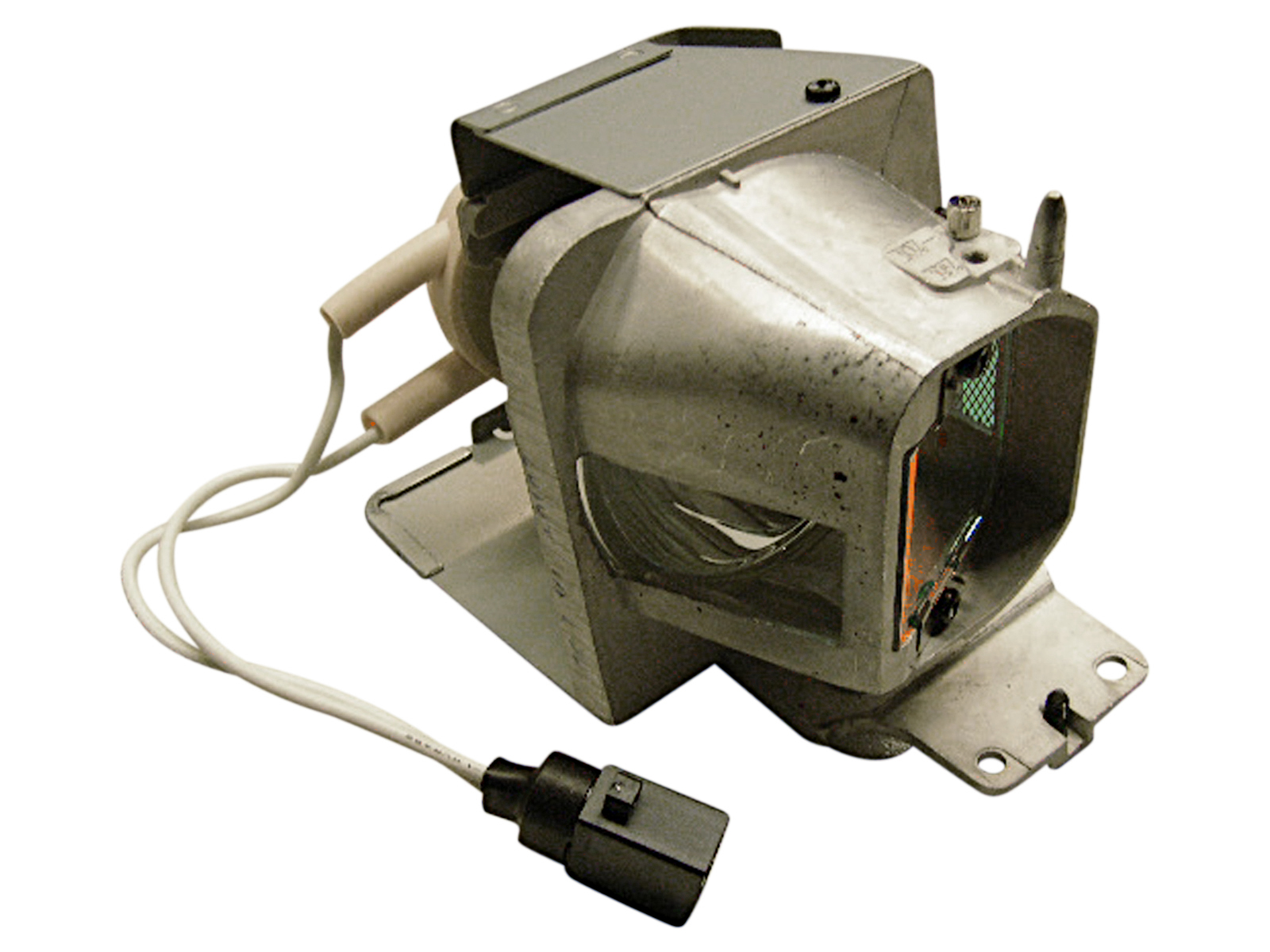

210W Lamp
Article Nr.: SP.70201GC01
|
|
| Light Life |
4000 h. 8000 h. in Eco Mode |
| Operating Costs |
-
|
|
104 cm (no Zoom)
|
 |
|
Lux: |
1360 Lux |
|
Room light max.: |
272 Lux |
|
Candela pro m²: |
432 cd/m² |
|
Foot-Lamberts: |
126 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 1,1 |
| Objective |
F=2,8 f=7,51mm |
| Throw Ratio |
0,52:1 |
| Audio |
10W |
| Connections |
HDMI 1.4a in
2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack Audio in
RS232C Din 9 pin in
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
225 / 191W in Eco Mode |
| Size WxHxD |
314,6 x 101,7 x 222,60 mm (12,4"x4"x8,8") 7,04 L/dm³
|
| Operating Noise |
26 dB in Eco Mode |
|
| Weight |
2,35 kg / 5,18 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15,3-91,10 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
126 fL
/ max. 592 cm screen width |
| Candela m² |
432 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
Password protection
BrilliantColor™

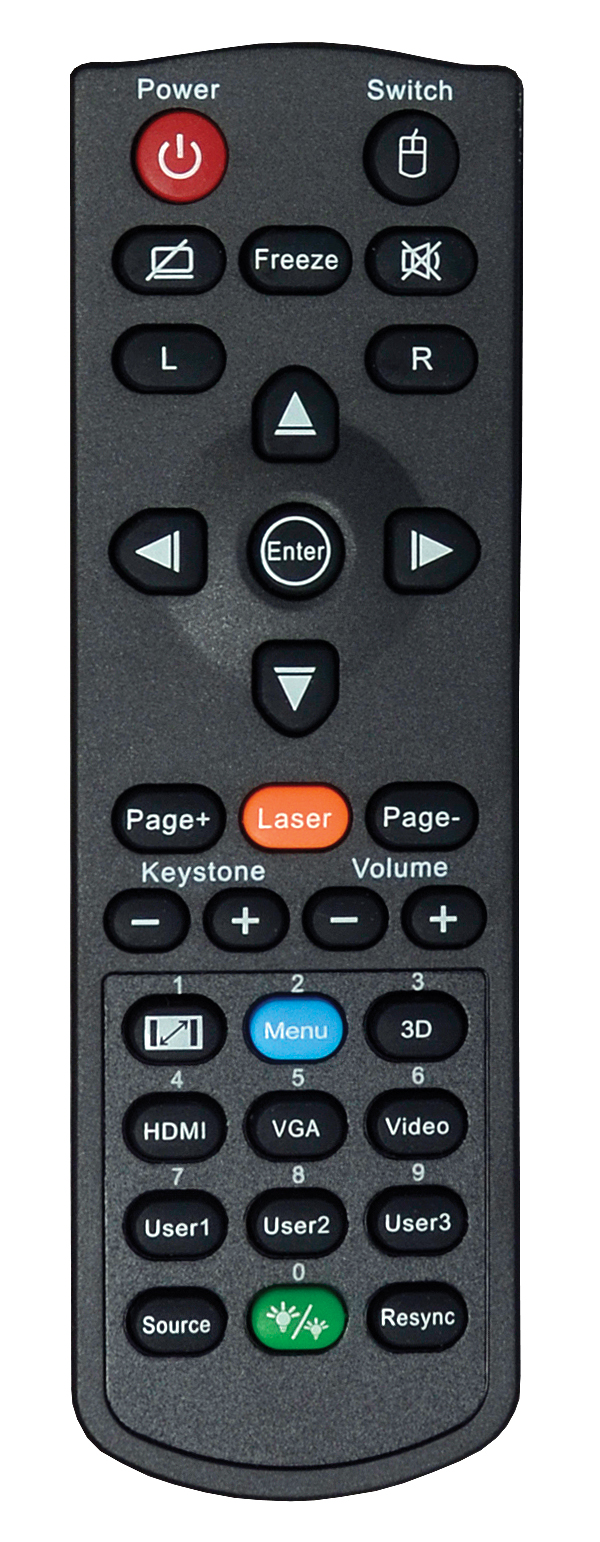

Remote control with laser pointer
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma W316ST compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
40 |
Weight: |
|
96 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
100 |
Power cons.: |
|
96 |
| Picture Total Points: | 47 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
17 |
| Ranking: |
335 (From: 974) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2014-09-22 16:14:44
|
