Brief Introduction
Beta 2.5 |

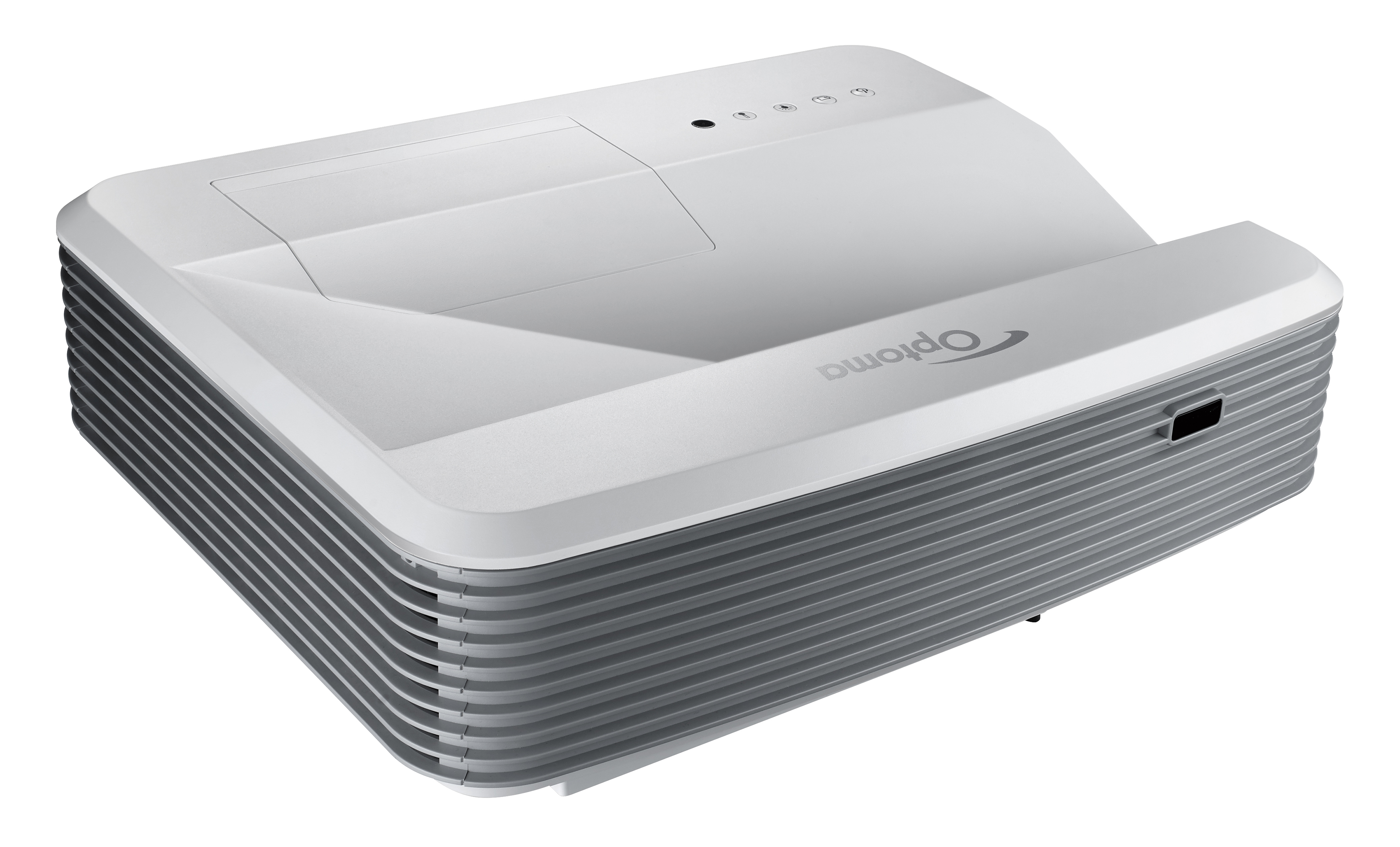

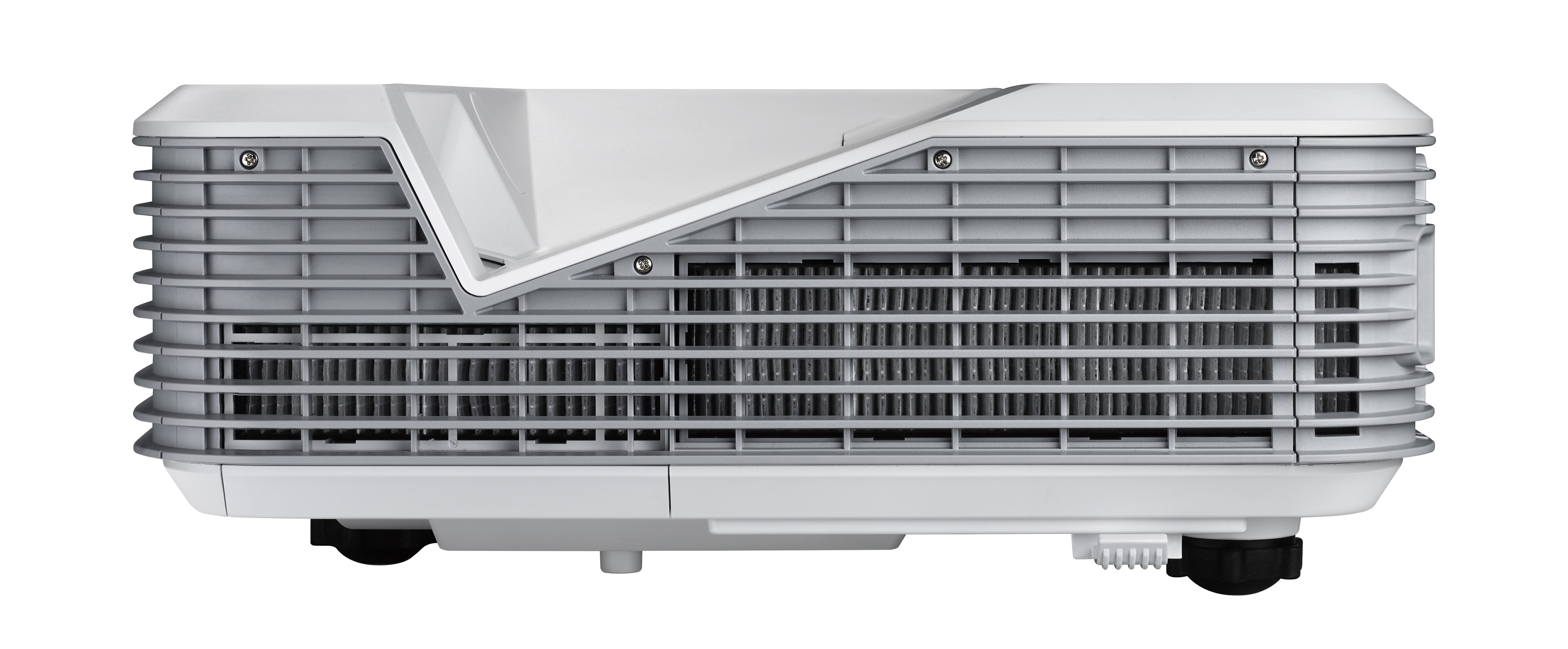

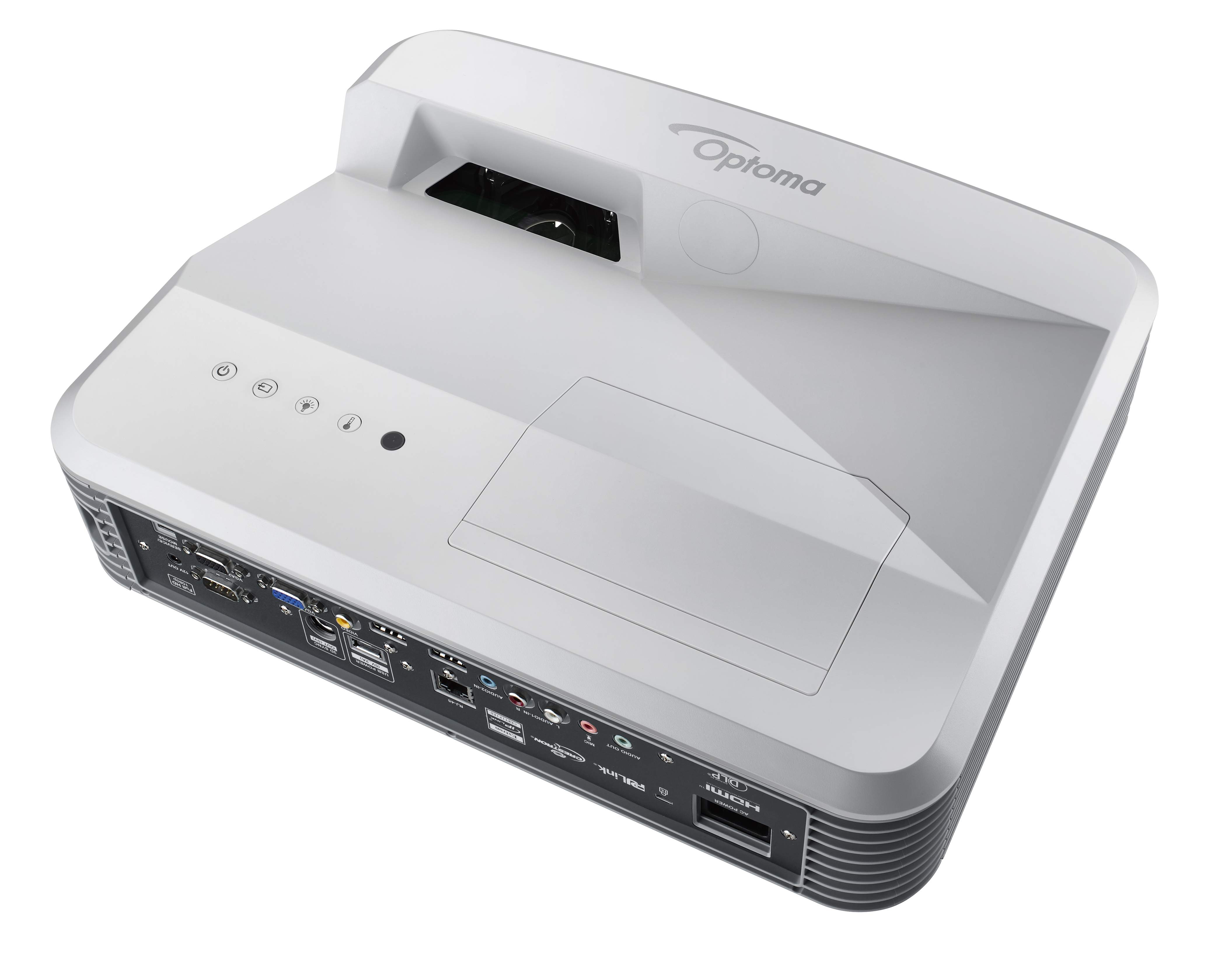

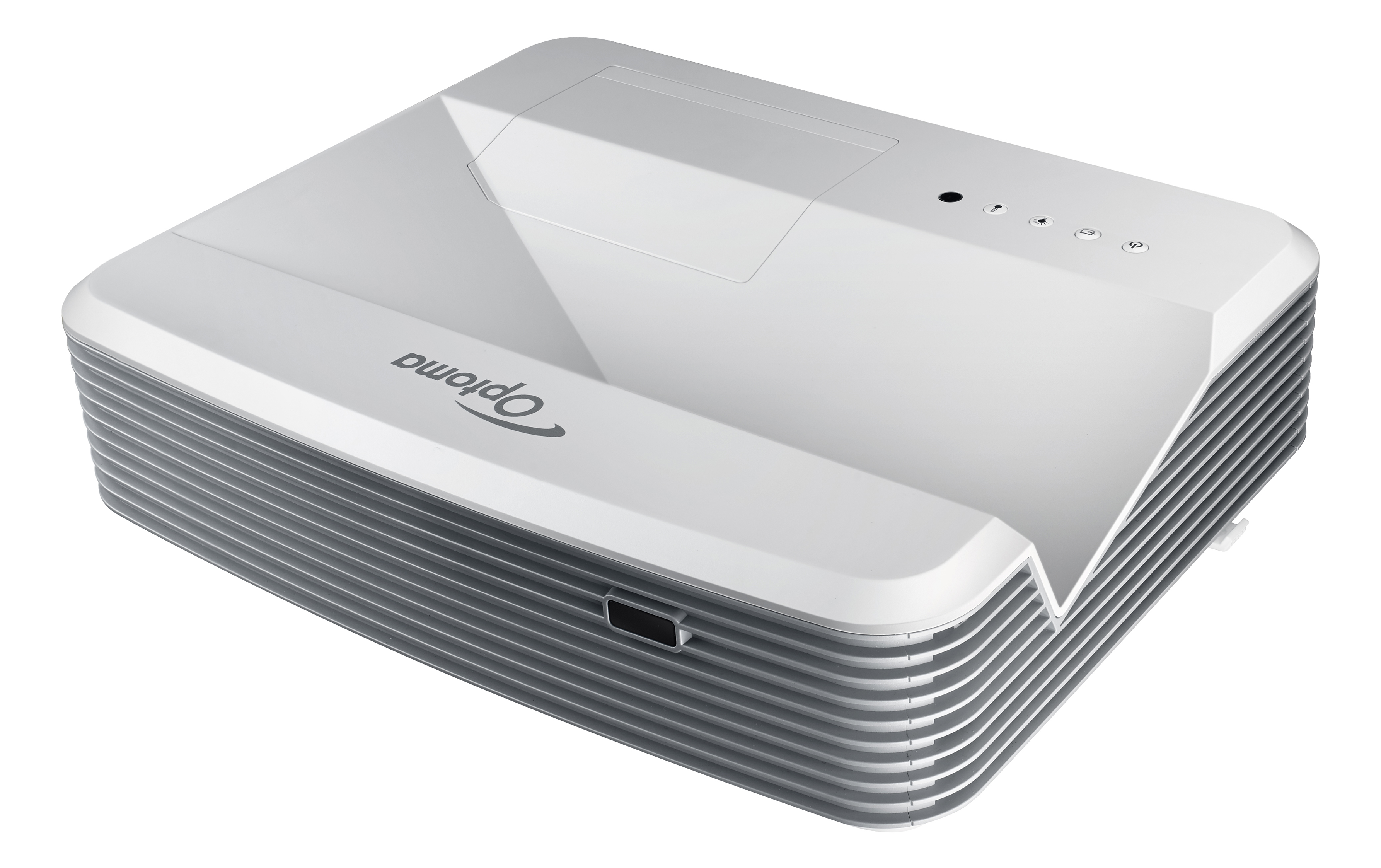

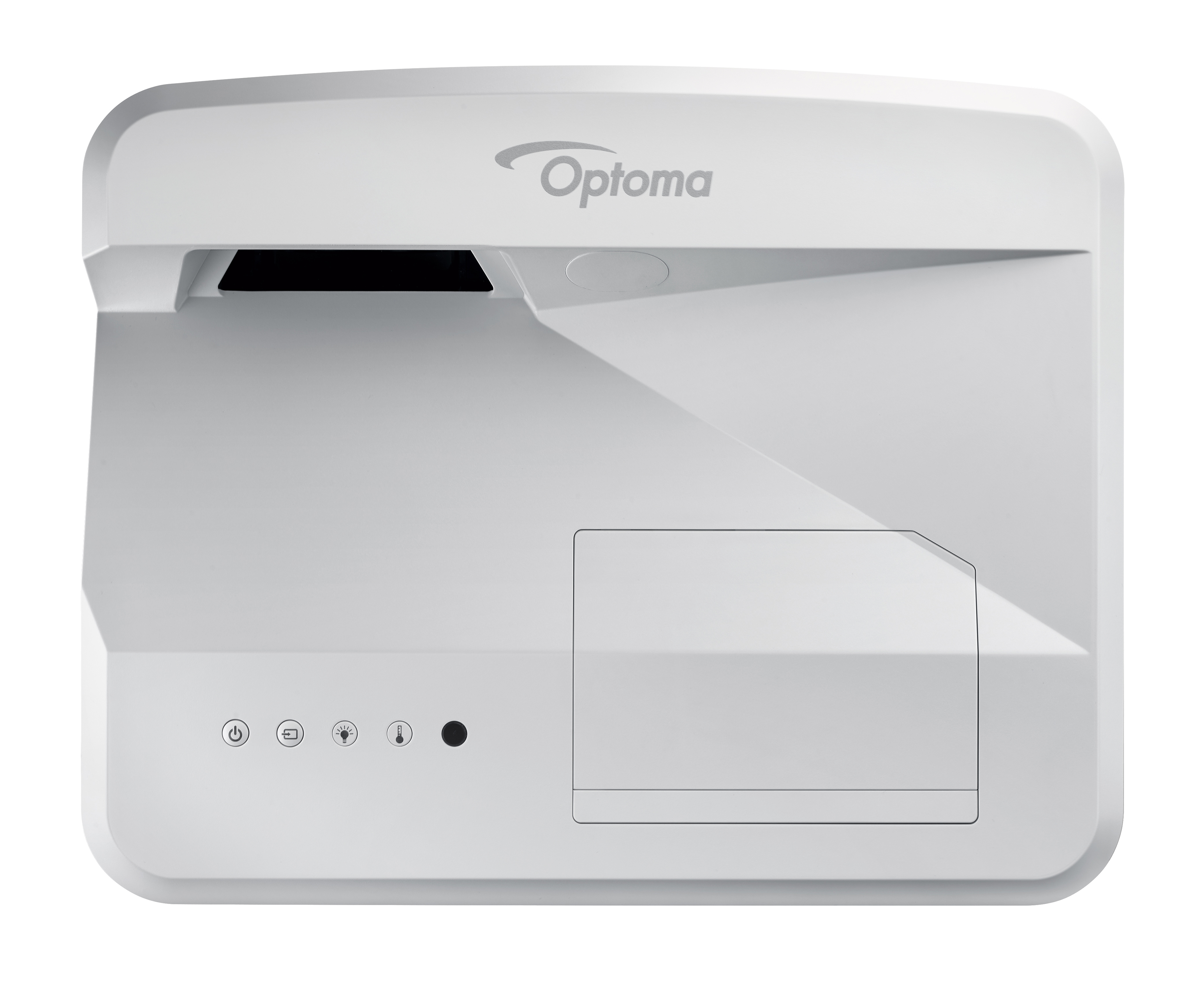

The Optoma model GT5500 is a DLP projector with HDTV 1920 x 1080 resolution and a contrast of 25000:1. As it is a short-throw projector, the projector can be placed very close to the wall. For a 2 m wide image, the projector only needs to be 50 cm away from the screen. Even 1080P video signals and 3D are no problem for the projector. The model built in 2016 is no longer offered by Optoma, but is still very popular in our projector database.
|
| Display Type |
1 x 0,65 DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1556 Lux (200 cm Screen width) |
| Contrast |
25000:1 full on/off |
25000:1 full on/off
|
| Black Level |
0,1400 min. Lumen |
0,062 min. Lumen |
| Offset |
68% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

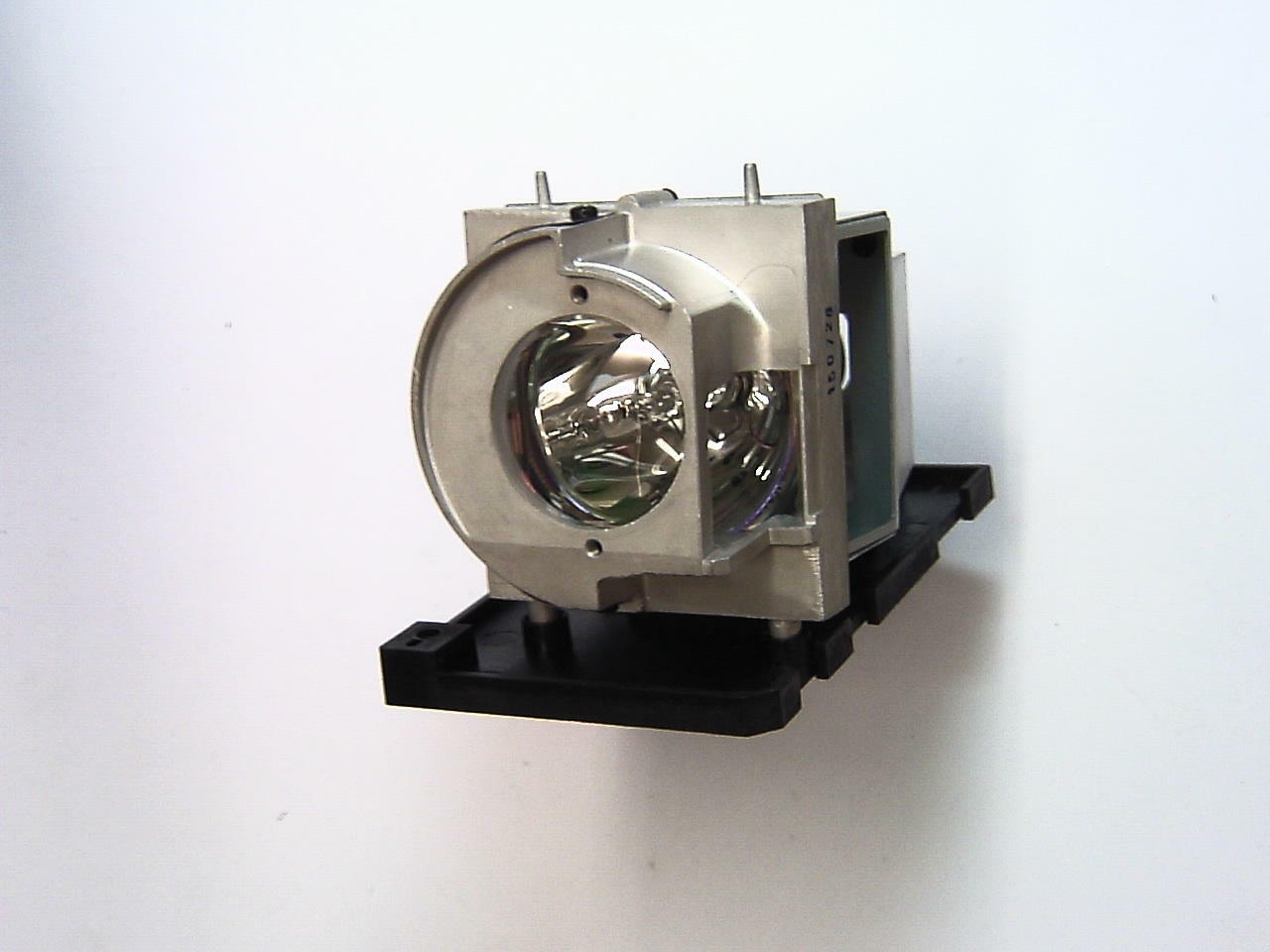

260W Lamp
Article Nr.: SP.71K01GC01 / BL-FU190G
|
|
| Light Life |
3000 h. 6500 h. in Eco Mode |
| Operating Costs |
-
|
|
50 cm (no Zoom)
|
 |
|
Lux: |
1556 Lux |
|
Room light max.: |
311 Lux |
|
Candela pro m²: |
497 cd/m² |
|
Foot-Lamberts: |
145 fL |
|
 |
| 77 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,4 f=3,72mm |
| Throw Ratio |
0,25:1 |
| Audio |
- |

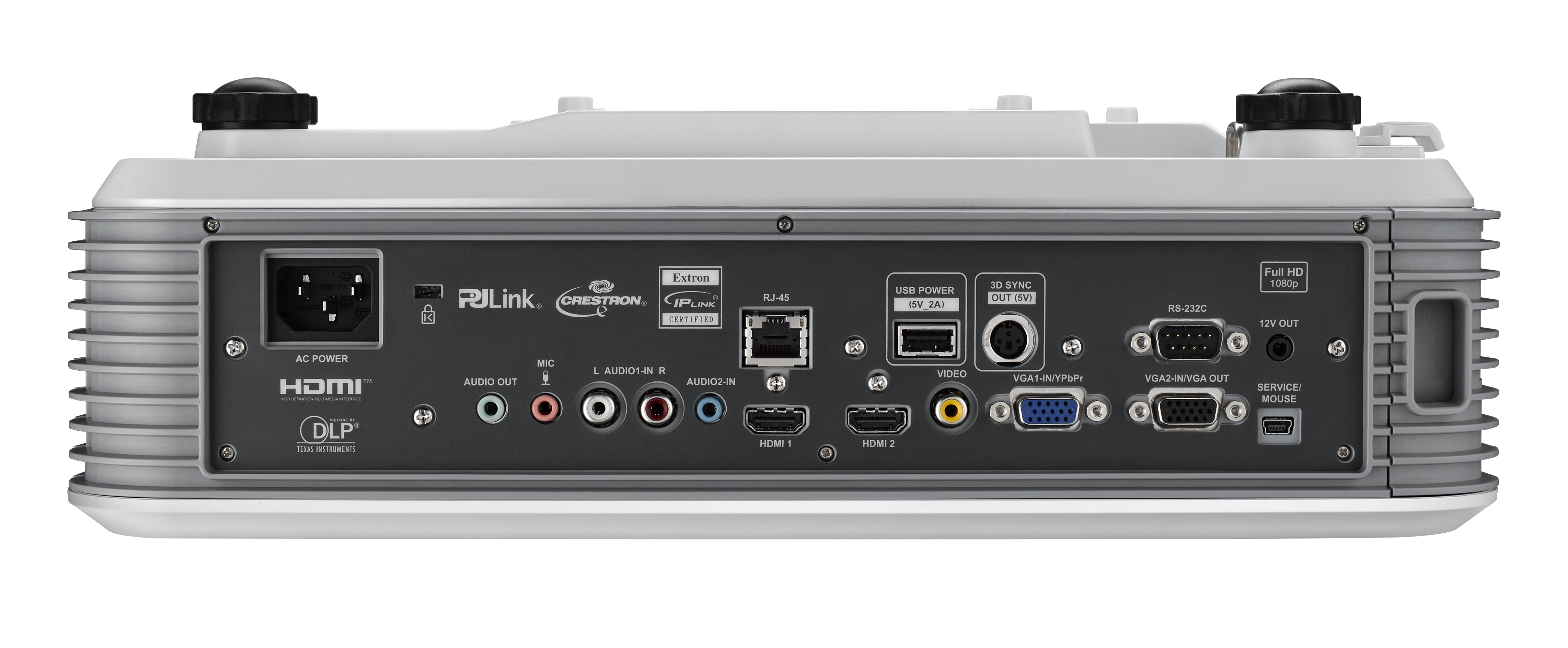

| Connections |
2 x HDMI 1.4a in
DVI in
2 x D-sub 15pin in 1 x out
Cinch Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
310 / 260W in Eco Mode |
| Size WxHxD |
385 x 120 x 310 mm (15,2"x4,7"x12,2") 14,32 L/dm³
|
| Operating Noise |
28 dB in Eco Mode |
|
| Weight |
4,78 kg / 10,54 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
145 fL
/ max. 601 cm screen width |
| Candela m² |
497 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
BrilliantColor™
Lan network compatible.
Short-throw projector
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma GT5500 compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
92 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
100 |
Power cons.: |
|
93 |
| Picture Total Points: | 48 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
20 |
| Ranking: |
236 (From: 974) |
|
|
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2016-03-01 14:27:32
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (7.77 MB)

|
Optoma Website
