Brief Introduction
Beta 2.5 |
The Optoma 3DS1 3D BrilliantColor DLP projector has 2800 Ansi lumens, a contrast of 4000:1 and an SVGA 800 x 600 resolution. Due to the brightness of 2800 Ansi lumens, a picture width of 461 cm is possible. In room light, the picture should be max. 307 cm wide. It is also Full HD 1080P and 3D compatible. The model built in 2011 is no longer offered by Optoma.
|
| Display Type |
1 x 0,55" DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2800 |
Screen |
933 Lux (200 cm Screen width) |
| Contrast |
4000:1 full on/off |
4000:1 full on/off
|
| Black Level |
0,7000 min. Lumen |
0,233 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

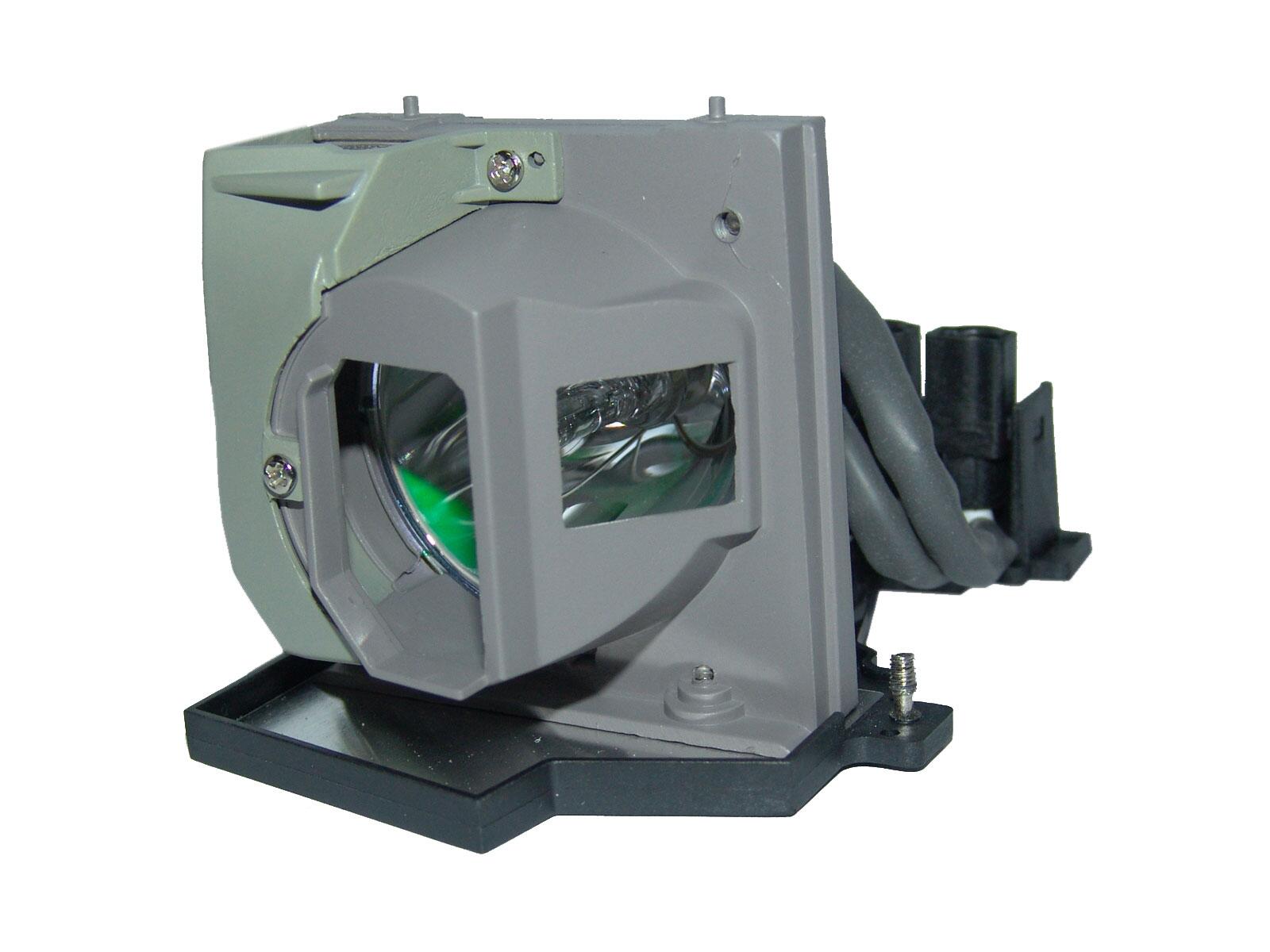

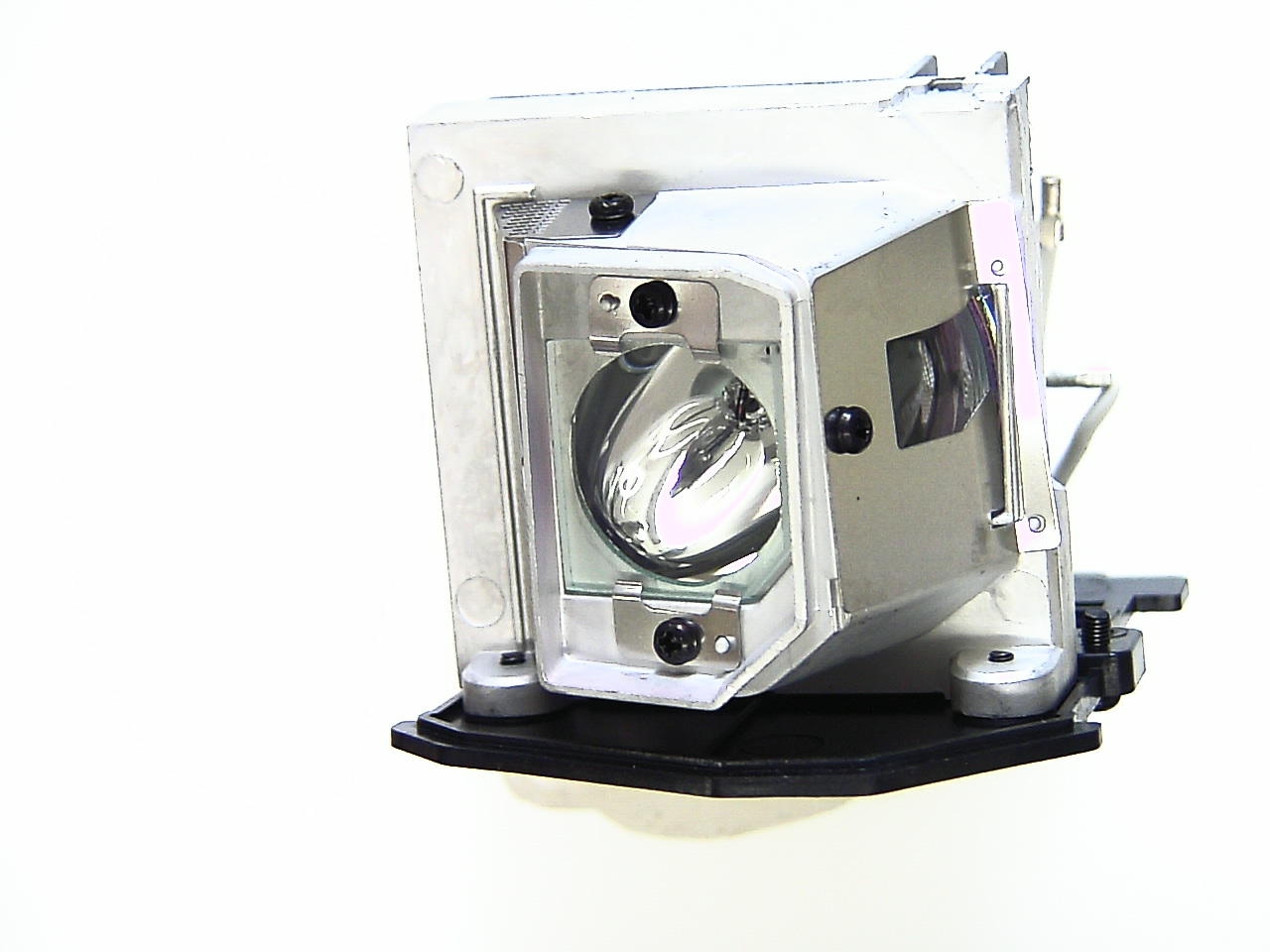

185W Lamp
Article Nr.: LMP6018561
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
390 - 430 cm
|
 |
|
Lux: |
933 Lux |
|
Room light max.: |
187 Lux |
|
Candela pro m²: |
298 cd/m² |
|
Foot-Lamberts: |
87 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,41-2,55 f=21,8-23,98 mm |
| Throw Ratio |
1,95-2,15:1 show |
| Audio |
1 x 2W |
| Connections |
HDMI in
D-sub 15 pin in und out
S-Video in
Cinch Video in
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
-
|
| Operating Noise |
- |
|
| Weight |
2,30 kg / 5,07 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24,85 Hz
|
| Foot-Lamberts |
87 fL
/ max. 461 cm screen width |
| Candela m² |
298 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
BrilliantColor™
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma 3DS1 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
33 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
0 |
| Picture Total Points: | 44 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2528 (From: 7662) |
|
|
|
|
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2023-08-04
|
