Brief Introduction
Beta 2.5 |

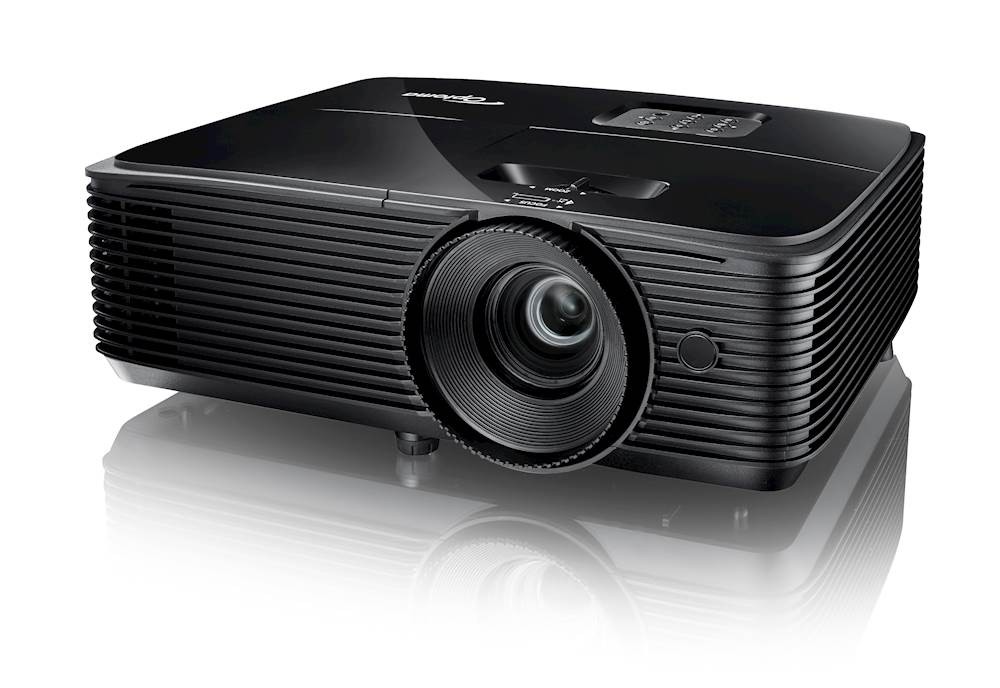

The Optoma HD145X model is a DLP projector with a resolution and contrast of 25000:1. The lamp life is up to 10,000 hours, which is over 13.7 years if enjoyed for two hours a day. The projector can illuminate a picture width of up to 592 cm with its 3400 Ansi lumens. In room light, however, the picture width should ideally be less than 395 cm. Playing 1080P and 3D is also no problem for the projector. At just 26 decibels, the device is one of the quieter projectors.
|
| Display Type |
1 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3400 |
Screen |
1511 Lux (200 cm Screen width) |
| Contrast |
25000:1 |
25000:1
|
| Black Level |
0,1360 min. Lumen |
0,06 min. Lumen |
| Offset |
66% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
|
|
| Application |
Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
240W Lamp
Article Nr.: SP.7EH01GC01 / BL-FU200E
|
|
| Light Life |
Normal 4000 / Eco 10000 / Dynamisch 15.000 h. |
| Operating Costs |
|
|
294 - 324 cm
|
 |
|
Lux: |
1511 Lux |
|
Room light max.: |
302 Lux |
|
Candela pro m²: |
480 cd/m² |
|
Foot-Lamberts: |
140 fL |
|
 |
| 74 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
f=15,59-17,14 mm |
| Throw Ratio |
1,47-1,62:1 show |
| Audio |
1 x 5W |
| Connections |
1x HDMI
1x USB TYP A
1x 3,5mm mini Jack |
| Ceiling Mounting |
Yes, is possible. |
| Power |
295 / 205W in Eco Mode |
| Size WxHxD |
316 x 108 x 244 mm (12,4"x4,3"x9,6") 8,33 L/dm³
|
| Operating Noise |
26 / 28 dB in Eco Mode |
|
| Weight |
2,80 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40° automatisch
|
| Illumination |
80% |
| Frequenz |
- |
| Foot-Lamberts |
140 fL
/ max. 592 cm screen width |
| Candela m² |
480 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Direkt Power Off
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
Optional LAN network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma HD145X compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
35 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
78 |
| Black level: |
|
91 |
Power cons.: |
|
80 |
| Picture Total Points: | 42 |
Projector Total Points: | 86 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
233 (From: 984) |
|
|
|
|
|
| Status |
2021 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2021-07-27 12:05:56
|
