Brief Introduction
Beta 2.5 |

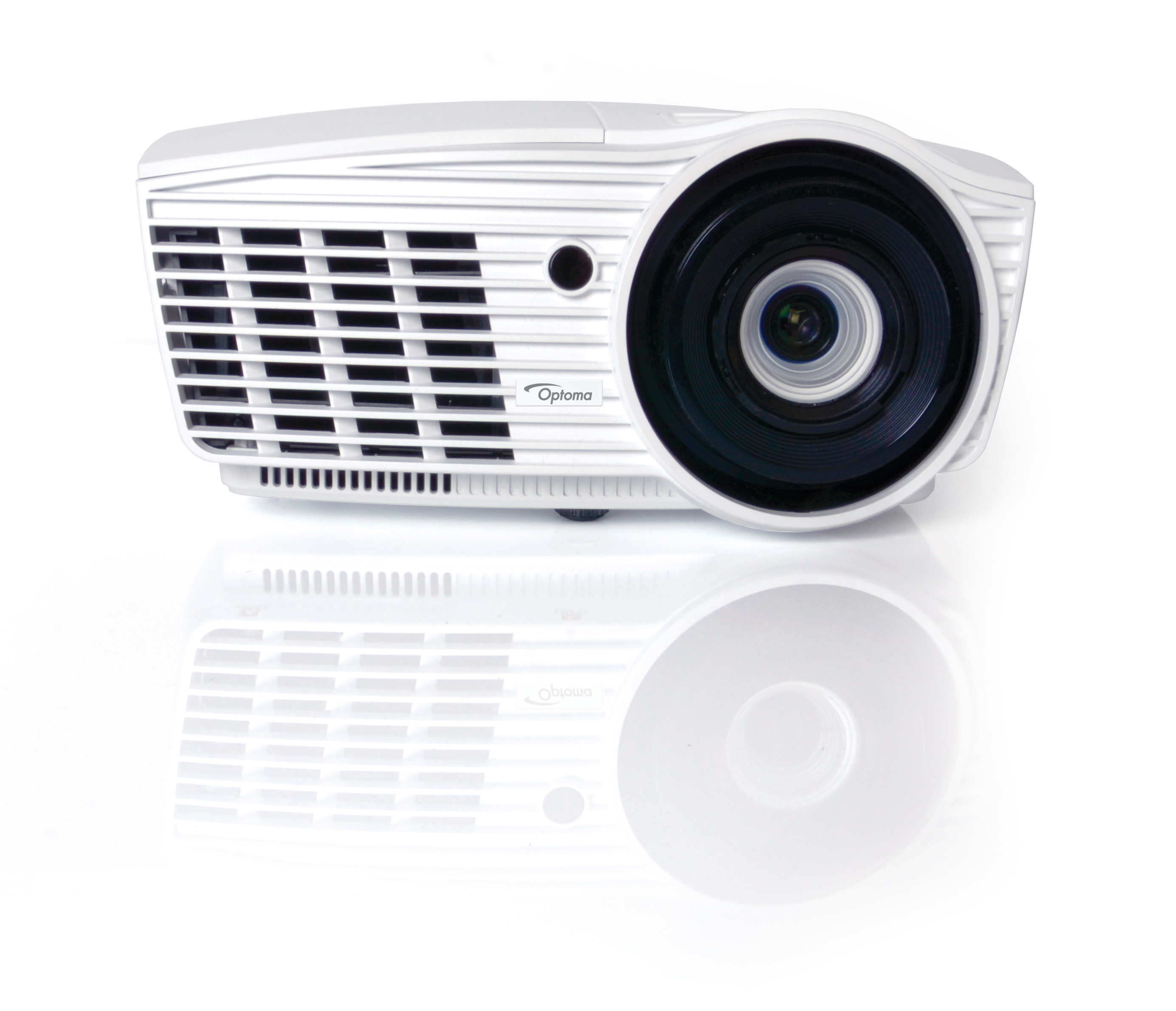

The Optoma HD37 3D DLP home cinema projector has 2600 Ansi lumens, a contrast of 20000:1 and an HDTV 1920 x 1080 resolution. Includes a lens shift and keystone correction function, which provides freedom during installation. An image width of up to 518 cm is possible as the projector has 2600 Ansi lumens. However, if room light is available, the image should be max. 345 cm wide. With the HDMI MHL port, the smartphone image can be transmitted to the projector in Full HD at 60 Hz by screen mirroring and the smartphone is charged at the same time. It is also Full HD 1080P and 3D compatible. The operating noise of just 29 decibels makes the projection quiet. On the market since 2015, the model is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x 0,65 DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2600 |
Screen |
1156 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,1300 min. Lumen |
0,058 min. Lumen |
| Lens shift |
Vert.: +74% --60%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |

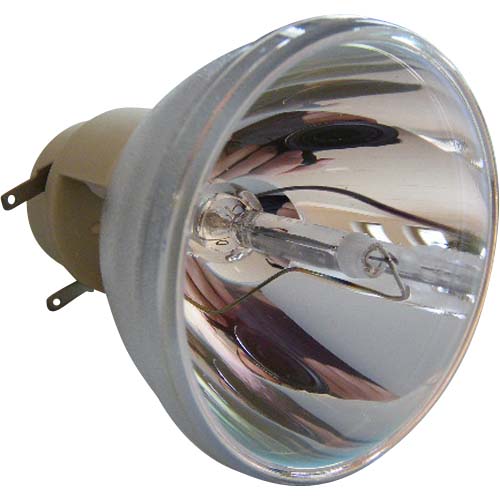

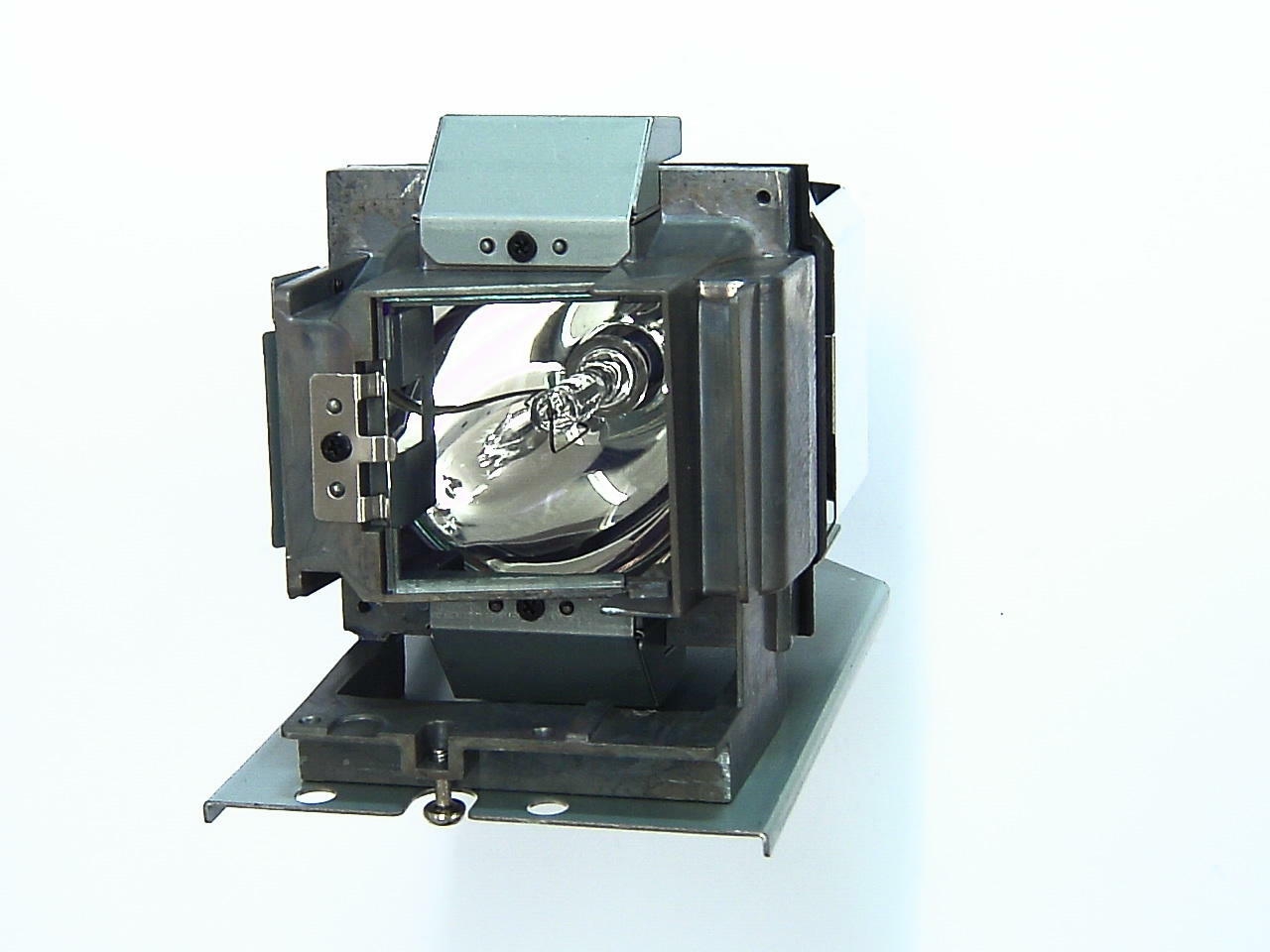

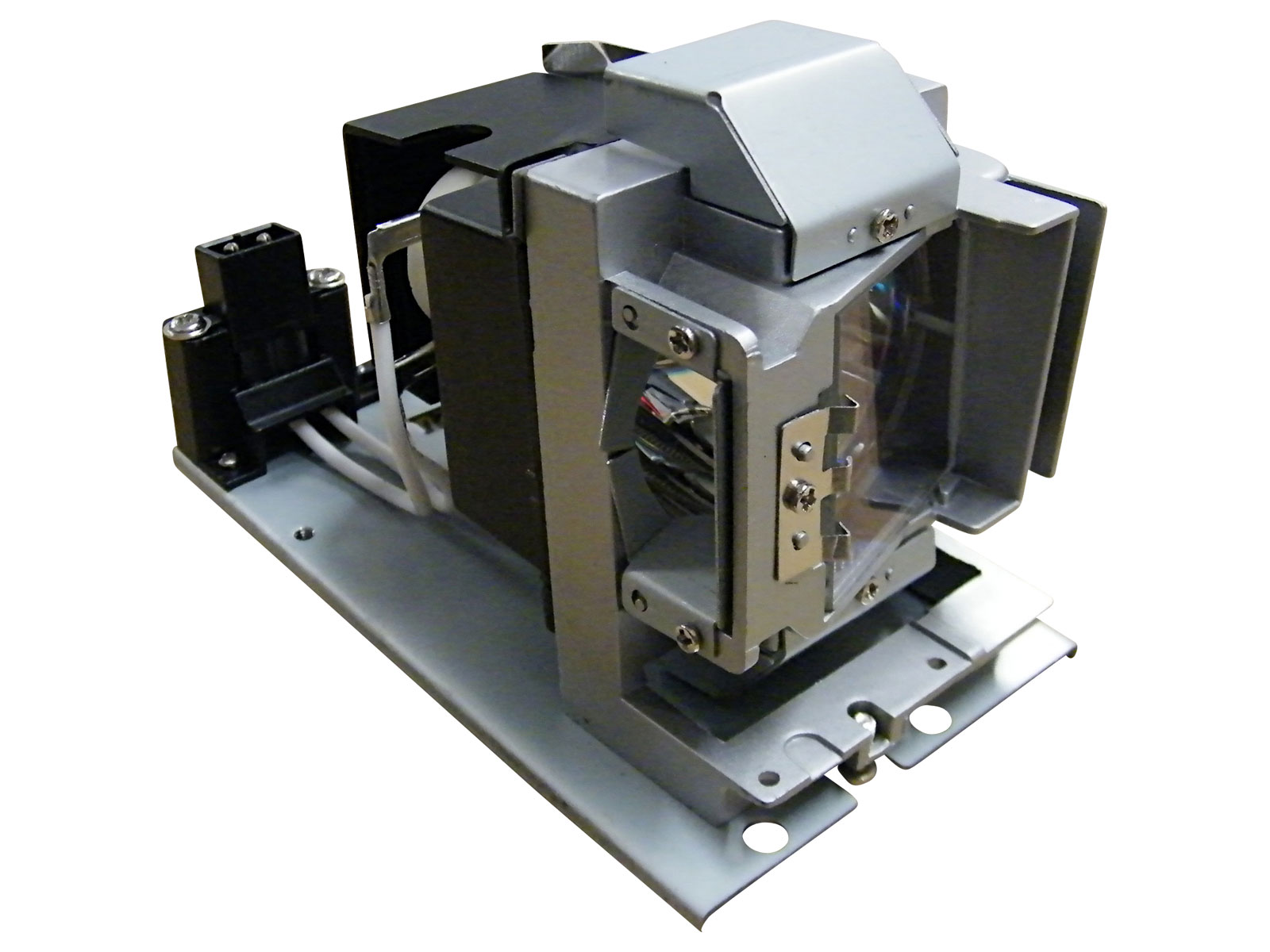

| Light Source |
-
Article Nr.: 5811118924-SOT
|
|
| Light Life |
3000 h. 7000 h. in eco Mode |
| Operating Costs |
-
|
|
278 - 418 cm
|
 |
|
Lux: |
1156 Lux |
|
Room light max.: |
231 Lux |
|
Candela pro m²: |
367 cd/m² |
|
Foot-Lamberts: |
107 fL |
|
 |
| 83 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,5 |
| Objective |
F=2,42-2,97 f=20,7-31,5 mm |
| Throw Ratio |
1,39-2,09:1 show |
| Audio |
10W Mono |

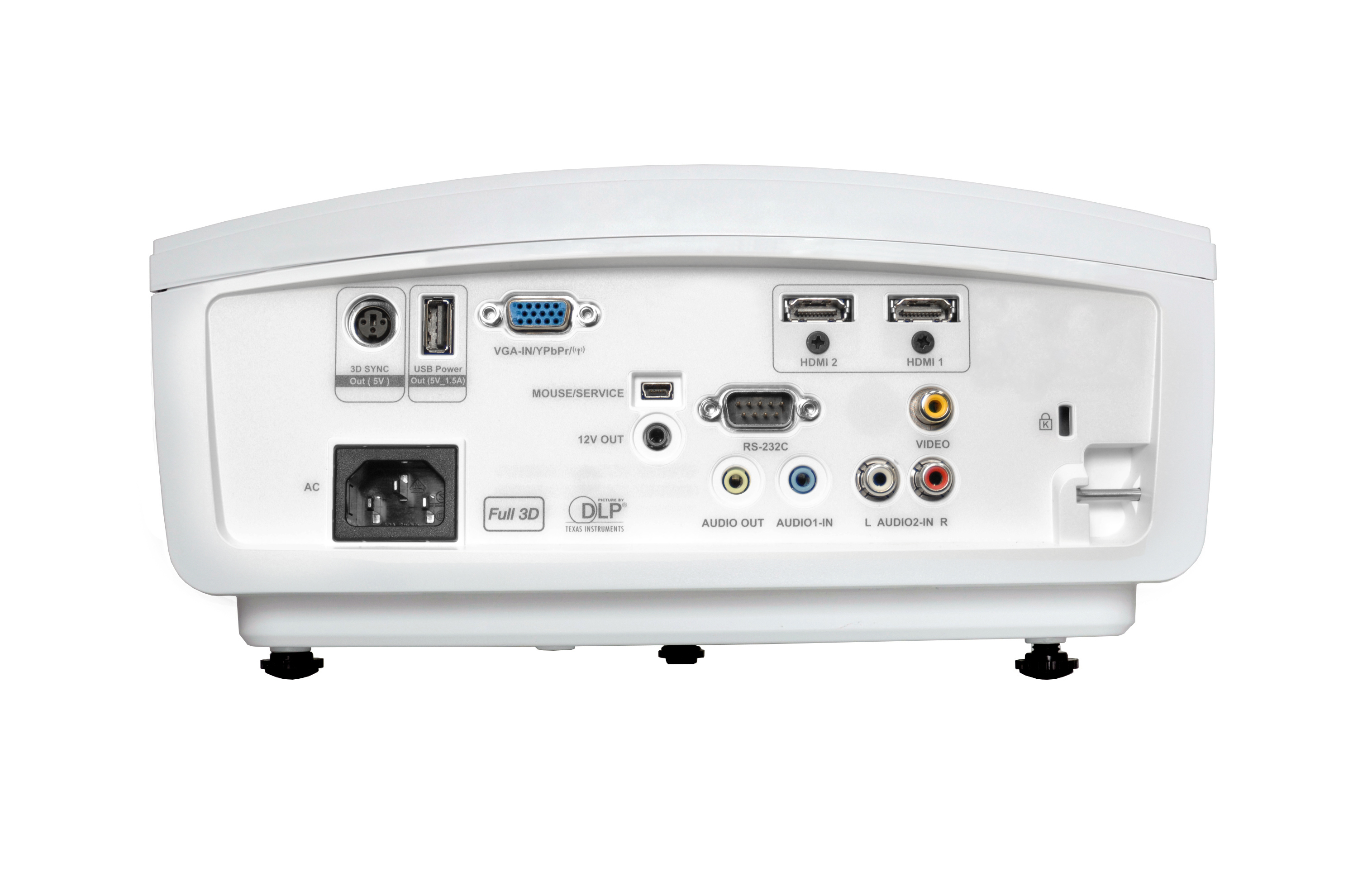

| Connections |
2 x HDMI 1.4 mit MHL in
D-sub 15pin in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
310 / 230W in Eco Mode |
| Size WxHxD |
286 x 124 x 265 mm (11,3"x4,9"x10,4") 9,4 L/dm³
|
| Operating Noise |
29dB |
|
| Weight |
3,49 kg / 7,69 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
80% |
| Frequenz |
H-sync: 24-85 kHz
V-sync: 15,37-91,1 Hz
|
| Foot-Lamberts |
107 fL
/ max. 518 cm screen width |
| Candela m² |
367 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
Remote control with mouse control
Remote control with backlight
Digital Zoom 0.8 ~ 2.0
|
|
über HDMI MHL |
In Comparison
The Optoma HD37 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
24 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
70 |
| Black level: |
|
99 |
Power cons.: |
|
93 |
| Picture Total Points: | 41 |
Projector Total Points: | 88 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
495 (From: 984) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2015-05-30 11:14:43
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (8.04 MB)

|
Optoma Website
