| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |
The Optoma model H190X is a DLP projector with WXGA 1280 x 800 resolution and a contrast of 30000:1. The manufacturer specifies a lamp life of 10000 hours, which is over 13.7 years if enjoyed for two hours a day. 634 cm picture width, the projector will be able to illuminate well. Rooms with residual light can be created by the projector with a smaller image width, we would recommend a maximum of 423 cm here. Playing 1080P and 3D is also no problem for the projector. At just 29 decibels, the device is one of the quieter projectors.
|
| Display Type |
1 x DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3900 |
Screen |
1560 Lux (200 cm Screen width) |
| Contrast |
30000:1 full on/off |
30000:1 full on/off
|
| Black Level |
0,1300 min. Lumen |
0,052 min. Lumen |
| Offset |
62% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
|
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
203W Lampe
Article Nr.: SP.7D1R1GR01
|
|
| Light Life |
6000 h. / 10000 h. Eco / 15000 Extrem Eco |
| Operating Costs |
|
|
310 - 346 cm
|
 |
|
Lux: |
1560 Lux |
|
Room light max.: |
312 Lux |
|
Candela pro m²: |
497 cd/m² |
|
Foot-Lamberts: |
145 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual x1,1 |
| Objective |
- |
| Throw Ratio |
1,55-1,73:1 show |
| Audio |
10W |

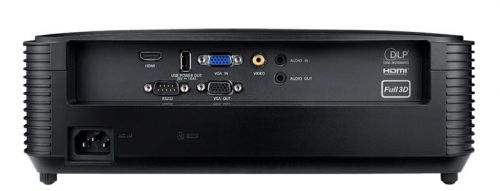

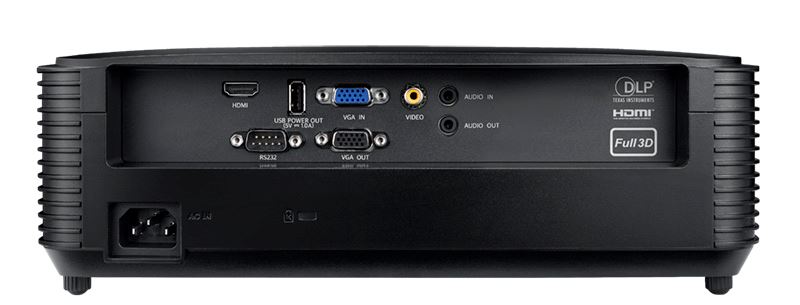

| Connections |
HDMI in
D-sub 15pin in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
225W |
| Size WxHxD |
316 x 108 x 224 mm (12,4"x4,3"x8,8") 7,64 L/dm³
|
| Operating Noise |
29 / 27 dB in Eco Mode |
|
| Weight |
3,58 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
75% |
| Frequenz |
H-sync: 15,38-91,1 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
145 fL
/ max. 634 cm screen width |
| Candela m² |
497 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Direkt Power Off
Eco Mode
Wi-Fi network compatible.
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma H190X compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
54 |
Weight: |
|
68 |
| Contrast: |
|
1 |
dB: |
|
79 |
| Black level: |
|
98 |
Power cons.: |
|
65 |
| Picture Total Points: | 51 |
Projector Total Points: | 71 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2090 (From: 7662) |
|
|
|
|
|
| Status |
2021 Discontinued (EOL) // Last update of the data: 2025-04-07
Created: 2022-07-04 15:37:51
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (11.24 MB)

|
Optoma Website
