Brief Introduction
Beta 2.5 |

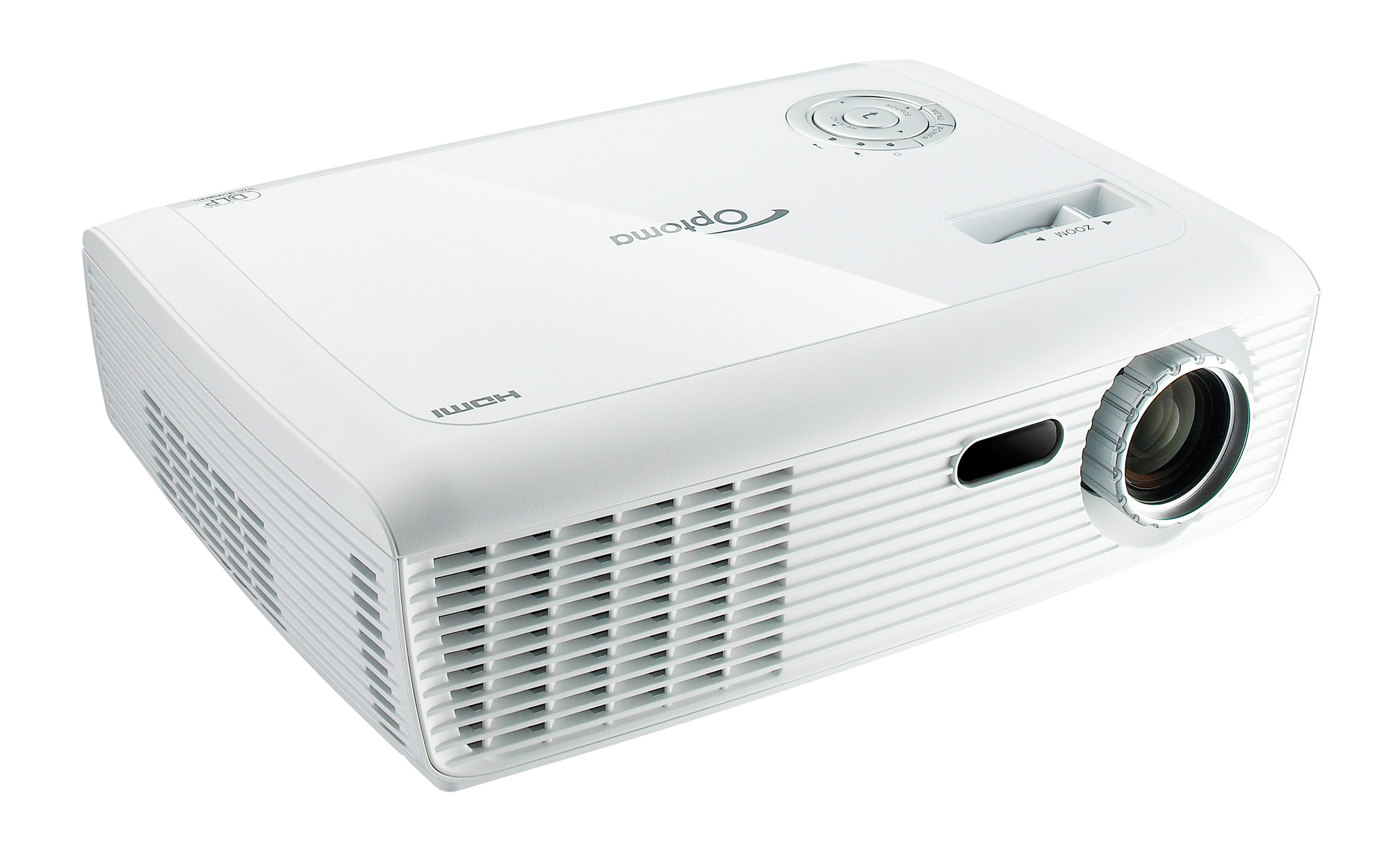

A brief introduction to the Optoma HD66. The DLP projector has an HDTV 1280 x 720 resolution and a contrast of 4000:1. An image width of up to 508 cm is possible. However, the image should be smaller in room light. We recommend max. 339 cm. The model is also Full HD 1080P compatible. The projector is very quiet compared to others with an operating noise of 30 decibels. The model built in 2009 is no longer offered by Optoma.
|
| Display Type |
1 x 0,65" DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
1111 Lux (200 cm Screen width) |
| Contrast |
4000:1 |
4000:1
|
| Black Level |
0,6250 min. Lumen |
0,278 min. Lumen |
| Offset |
66% show
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
185W P-VIP Lamp
Article Nr.: BL-FU185A / SP.8EH01GC01
|
|
| Light Life |
3000 h. |
| Operating Costs |
-
|
|
310 - 340 cm
|
 |
|
Lux: |
1111 Lux |
|
Room light max.: |
222 Lux |
|
Candela pro m²: |
353 cd/m² |
|
Foot-Lamberts: |
103 fL |
|
 |
| 74 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,41-2,55 f=21,8-24,0 mm |
| Throw Ratio |
1,55-1,7:1 show |
| Audio |
- |

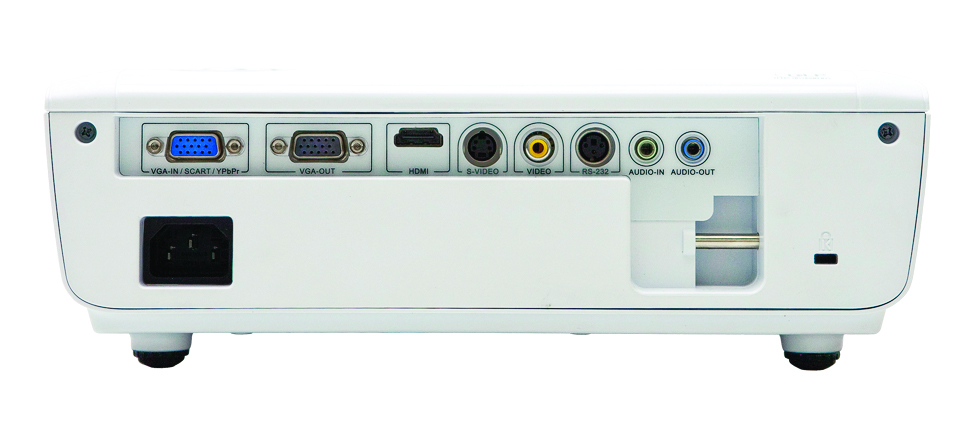

| Connections |
HDMI in
D-sub 15 pin in und out
S-Video in
Cinch video in
RS232C
Mini Jack Audio in und out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
255 / 207W in Eco Mode |
| Size WxHxD |
287 x 101 x 193 mm (11,3"x4"x7,6") 5,59 L/dm³
|
| Operating Noise |
30 / 28 dB in Eco Mode |
|
| Weight |
2,31 kg / 5,09 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
- |
| Foot-Lamberts |
103 fL
/ max. 508 cm screen width |
| Candela m² |
353 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Digital image shift
Password protection
BrilliantColor™
Overscan adjustable
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma HD66 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
98 |
Power cons.: |
|
98 |
| Picture Total Points: | 43 |
Projector Total Points: | 79 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
1572 (From: 7662) |
|
|
|
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-04
|
