Brief Introduction
Beta 2.5 |

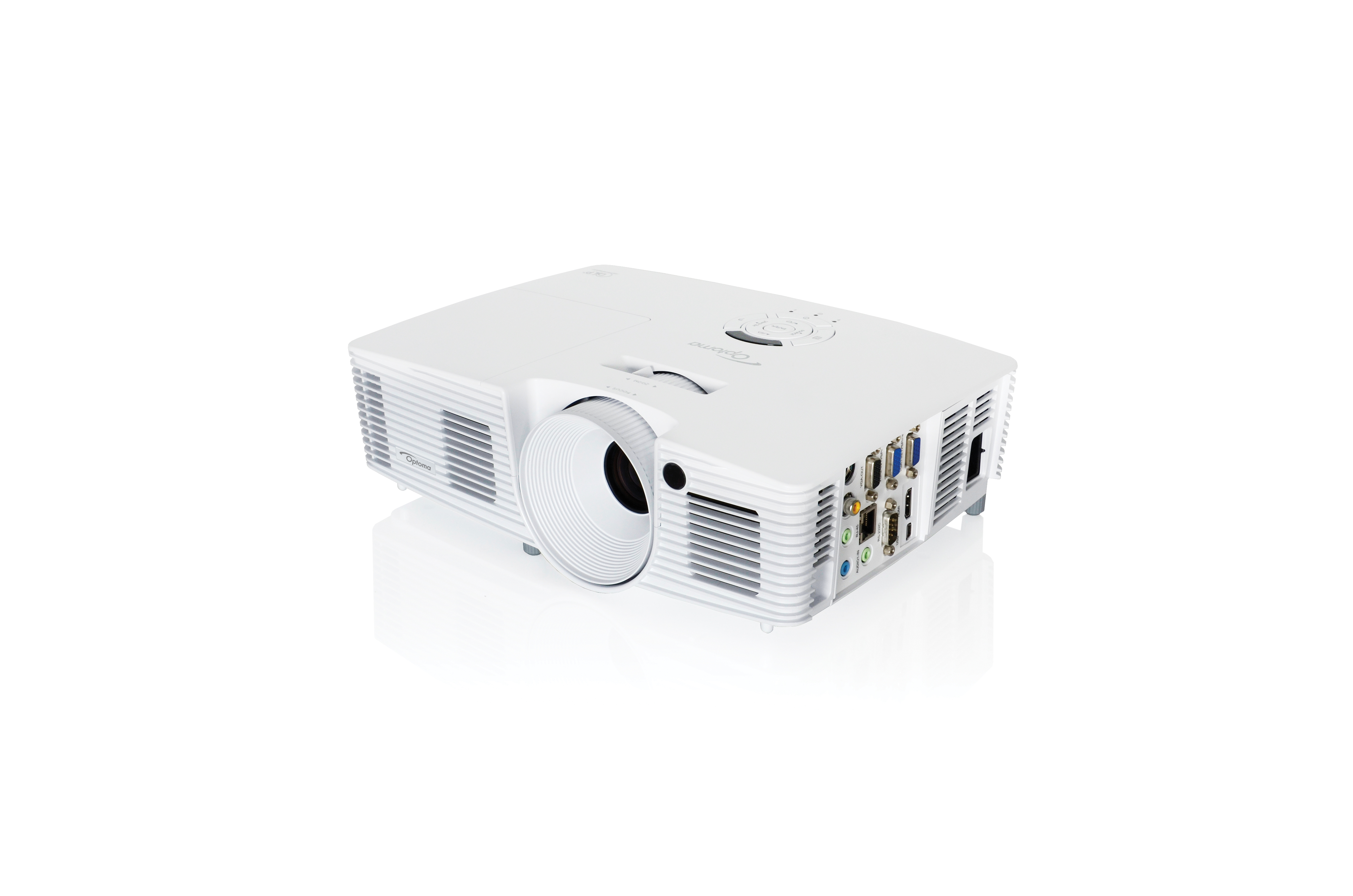

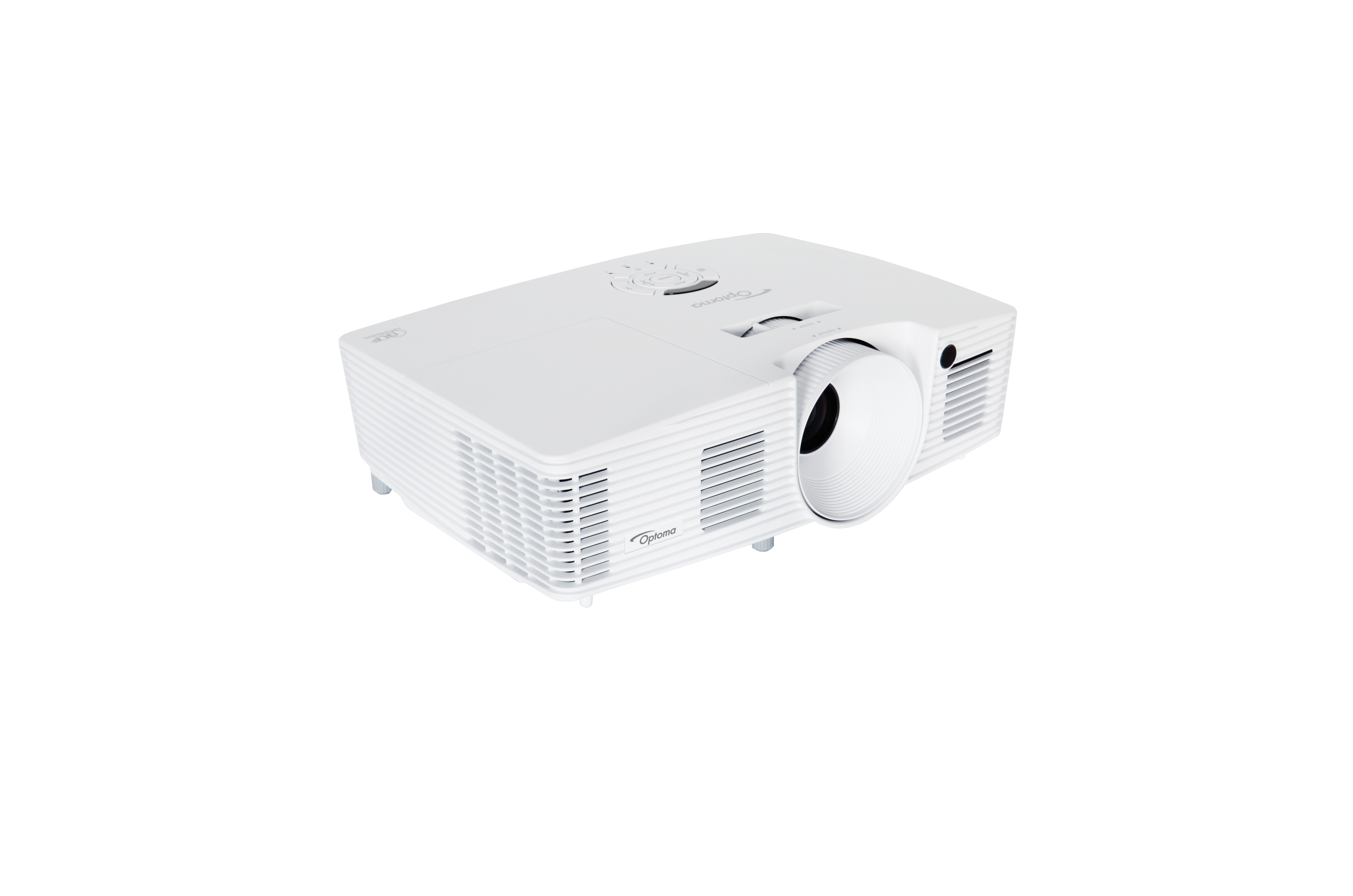

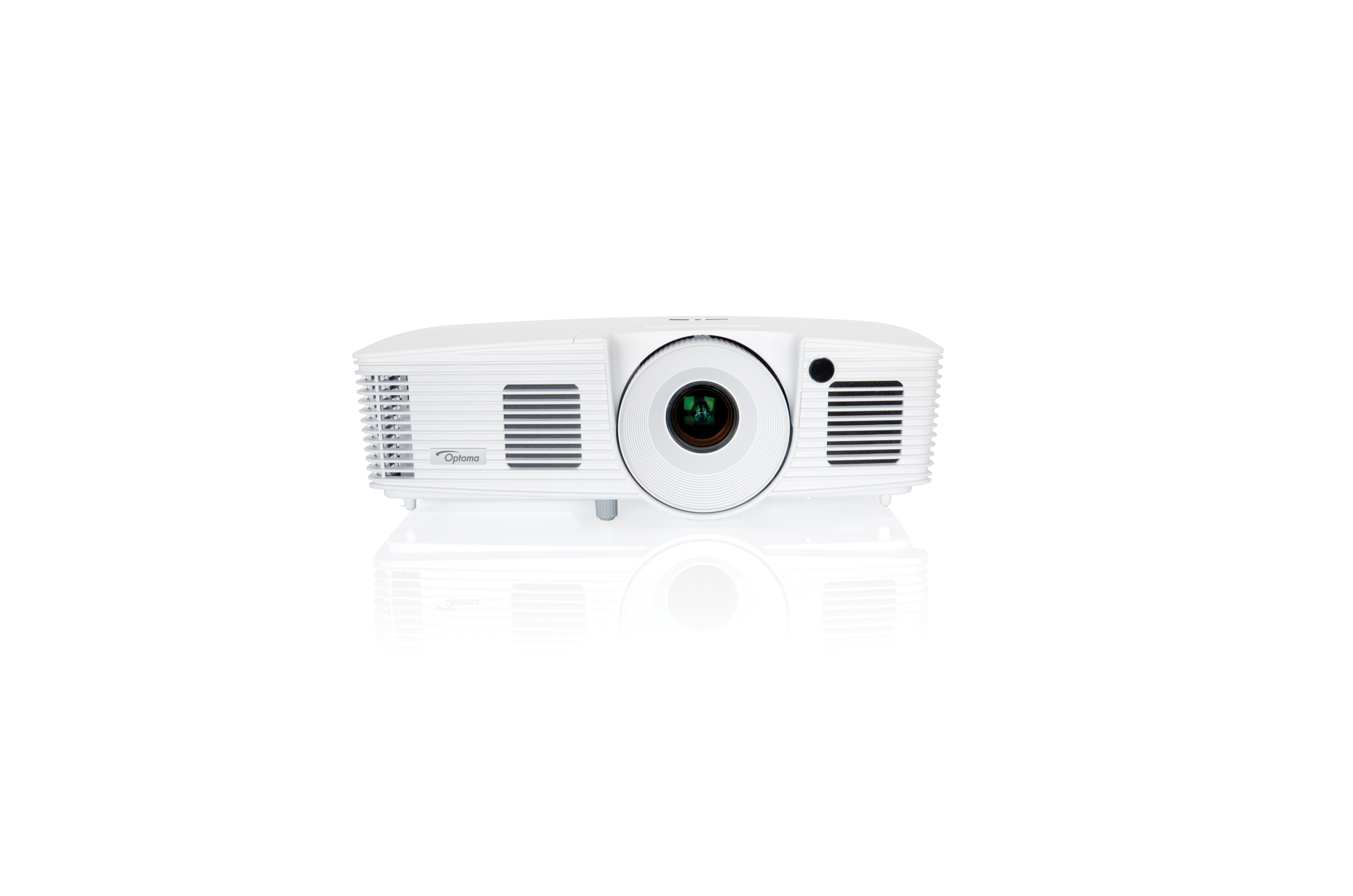

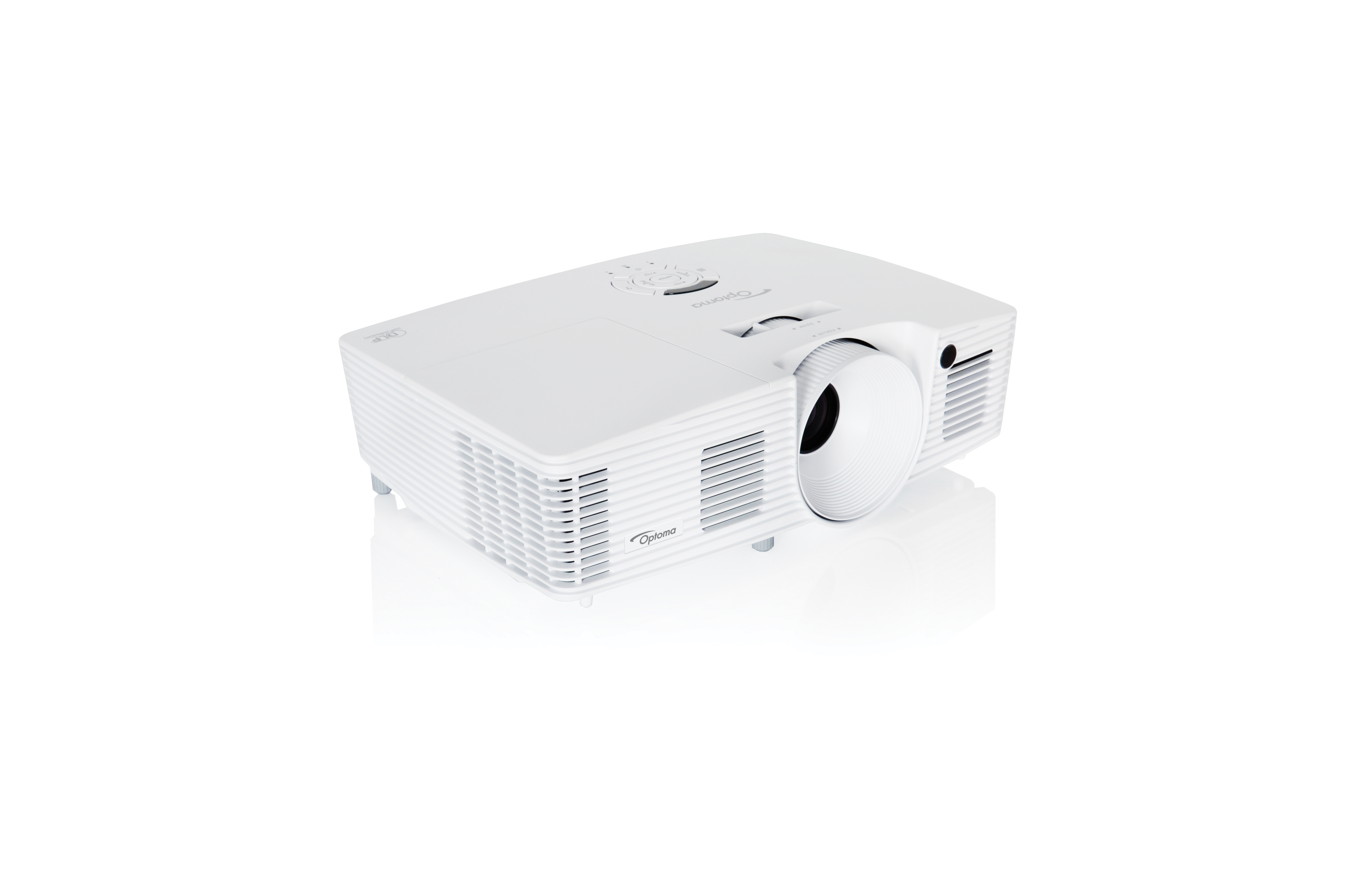

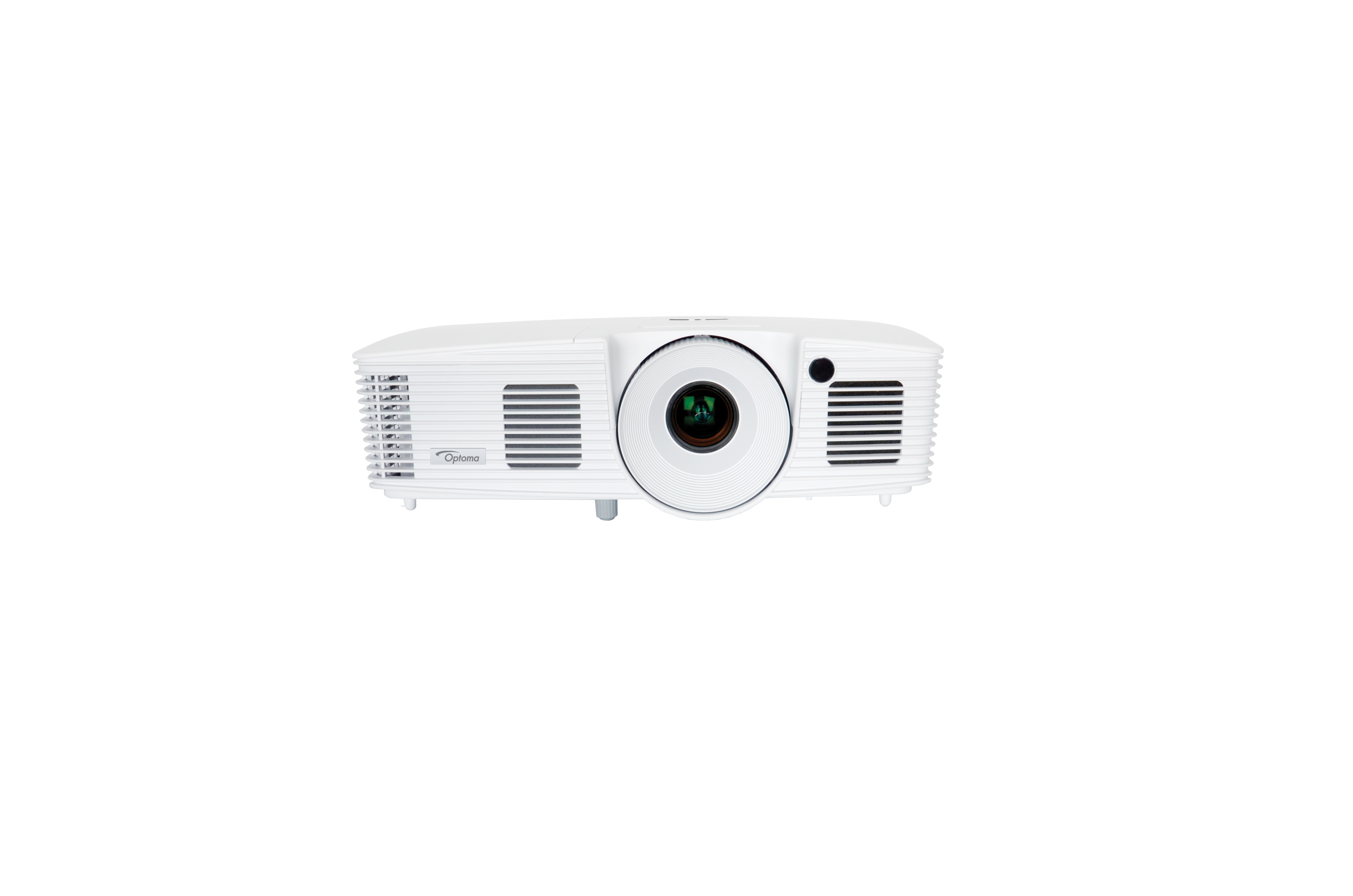

The Optoma model W402 is a DLP projector with WXGA 1280 x 800 resolution and a contrast of 20000:1. An image width of up to 682 cm is possible, as the projector has 4500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 455 cm. The projector can also play 1080P and 3D without any problems. On the market since 2015, the model is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x 0,65" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4500 |
Screen |
1800 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2250 min. Lumen |
0,09 min. Lumen |
| Offset |
62,4% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |

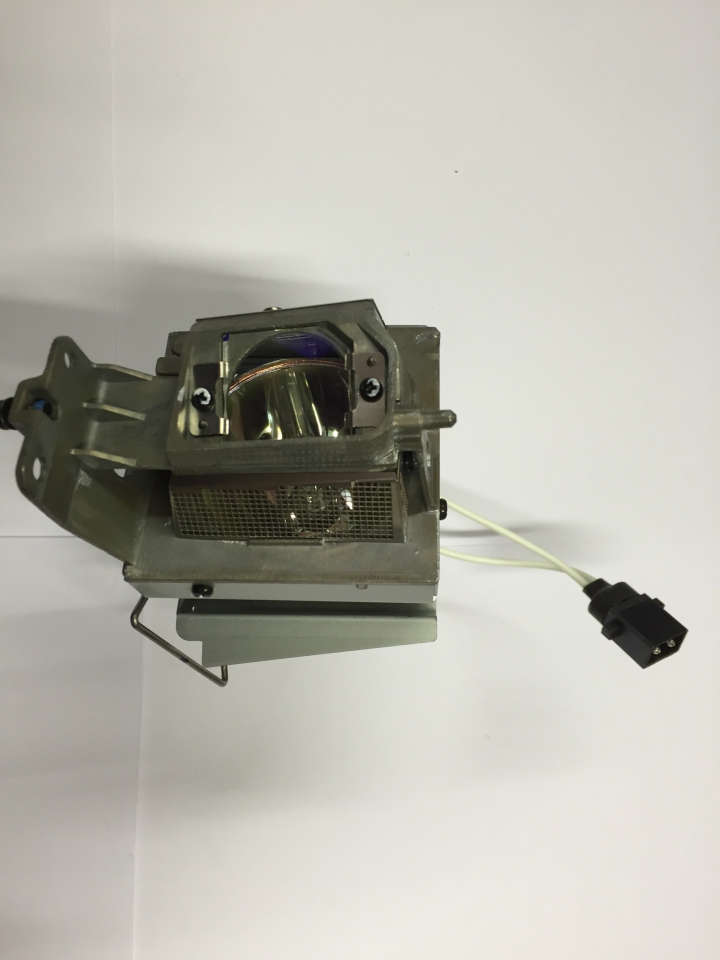

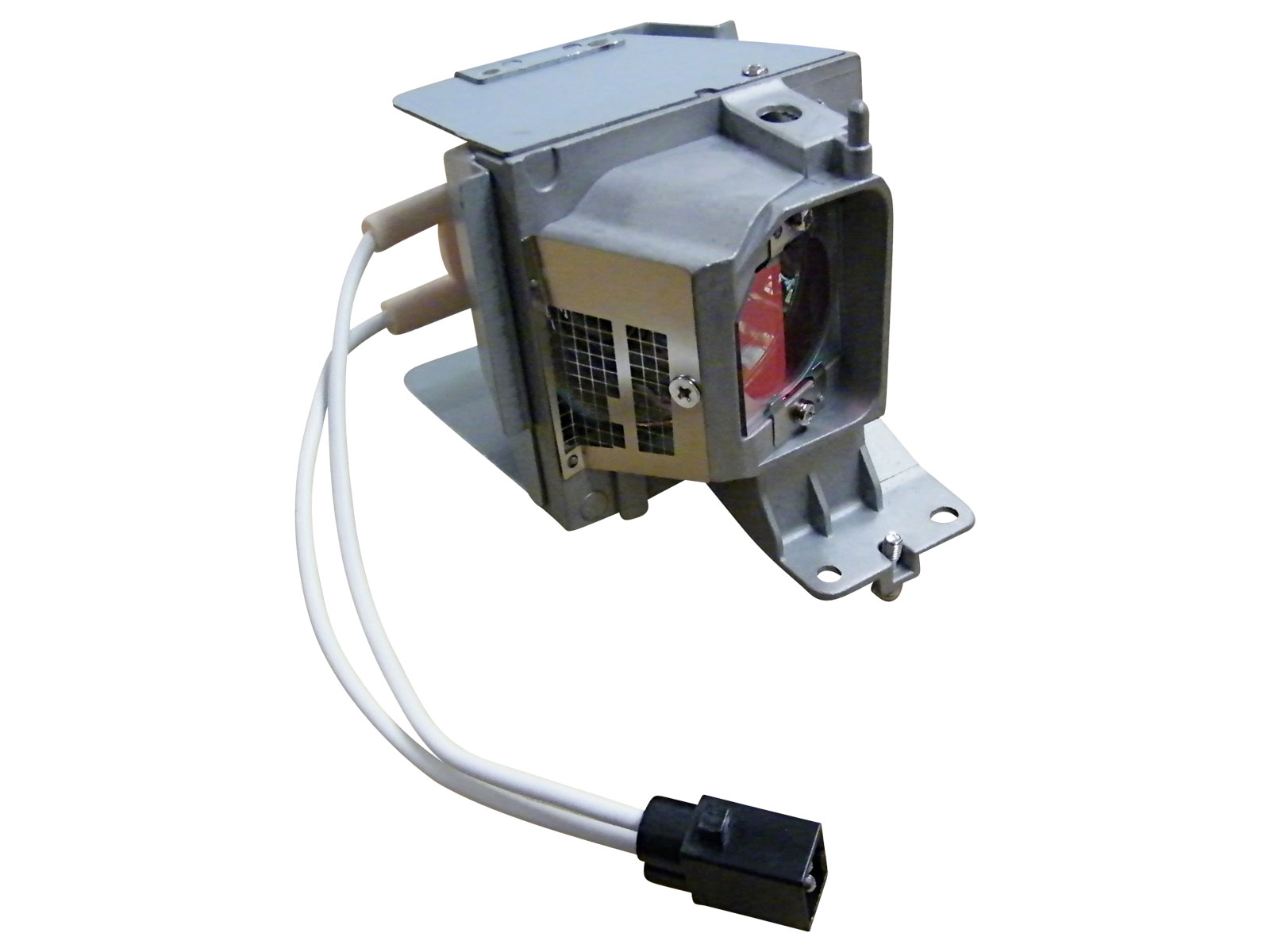

| Light Source |
260W Lamp
Article Nr.: SP.70701GC01
|
|
| Light Life |
3000 h. |
| Operating Costs |
|
|
256 - 307 cm
|
 |
|
Lux: |
1800 Lux |
|
Room light max.: |
360 Lux |
|
Candela pro m²: |
572 cd/m² |
|
Foot-Lamberts: |
167 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,5-2,67 f=21,8-23,98 mm |
| Throw Ratio |
1,28-1,536:1 show |
| Audio |
- |

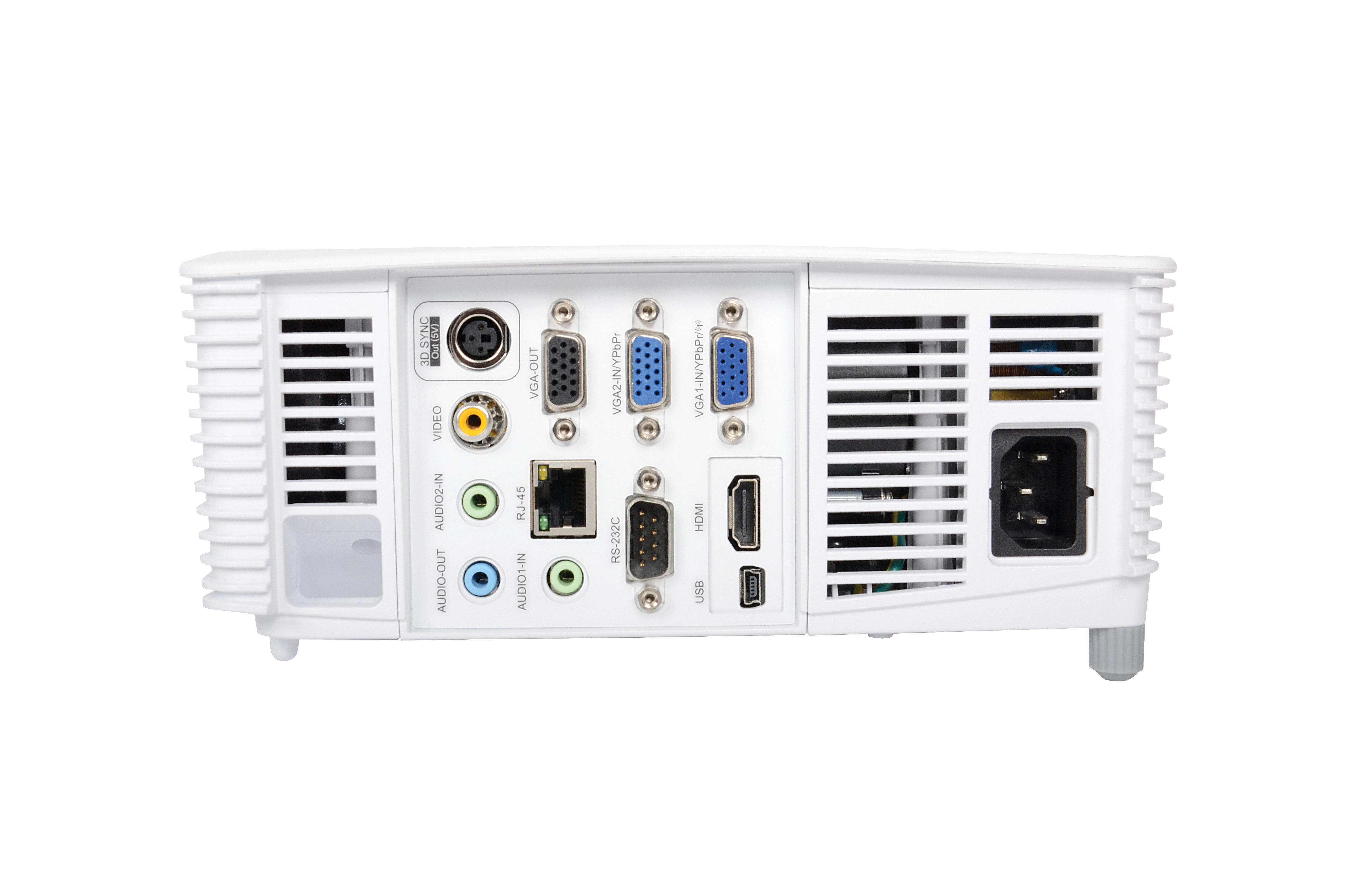

| Connections |
HDMI 1.4a in
2 x D-sub 15pin in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
306 / 257W in Eco Mode |
| Size WxHxD |
314,6 x 101,7 x 223,6 mm (12,4"x4"x8,8") 7,07 L/dm³
|
| Operating Noise |
31 dB in Eco Mode |
|
| Weight |
2,57 kg / 5,67 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
167 fL
/ max. 682 cm screen width |
| Candela m² |
572 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
Password protection
BrilliantColor™
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma W402 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
55 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 52 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2215 (From: 7662) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2015-01-13 10:39:33
|
