Brief Introduction
Beta 2.5 |

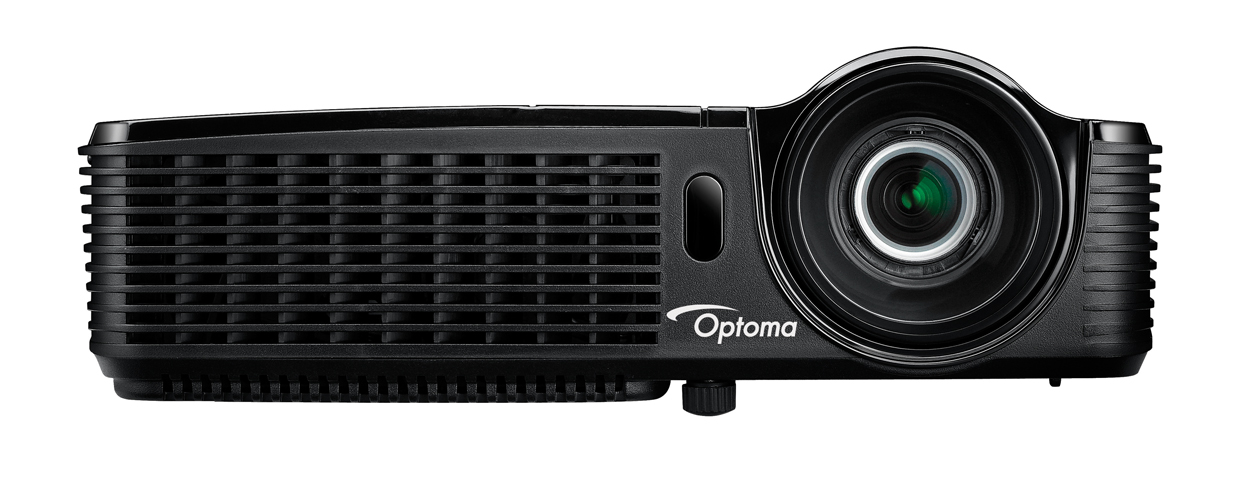

A brief introduction to the Optoma FX5200. The DLP projector has an XGA 1024 x 768 resolution and a contrast of 8000:1. The service life is 3500 hours, which is over 4.8 years if enjoyed for two hours a day. 3300 Ansi lumens ensure that a picture width of 500 cm is also possible. However, if room light is available, the picture should be a maximum of 333 cm wide. Furthermore, the projector can play 1080P without any problems. The projector was launched in 2012 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3300 |
Screen |
1100 Lux (200 cm Screen width) |
| Contrast |
8000:1 full on/off |
8000:1 full on/off
|
| Black Level |
0,4125 min. Lumen |
0,138 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

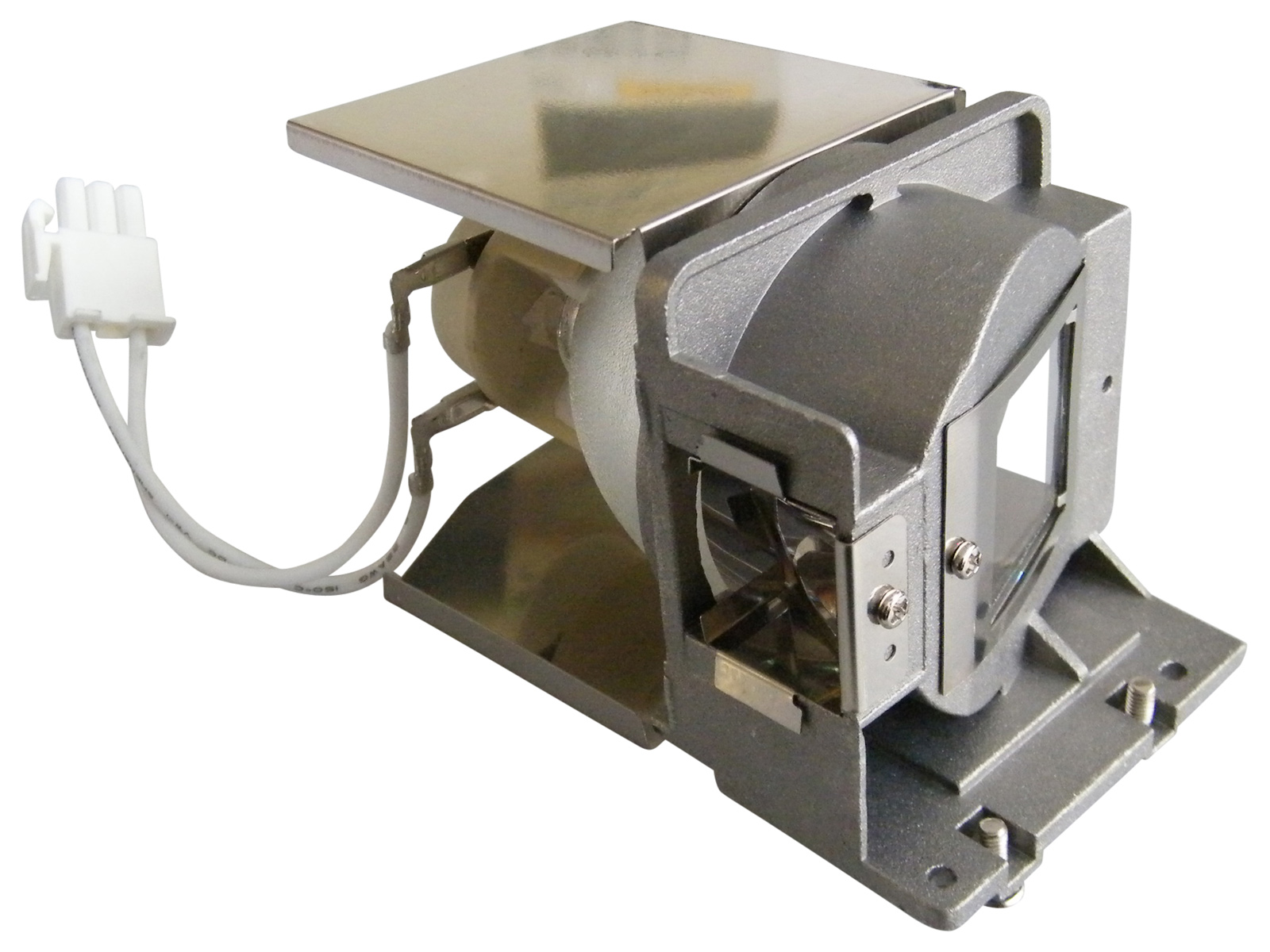

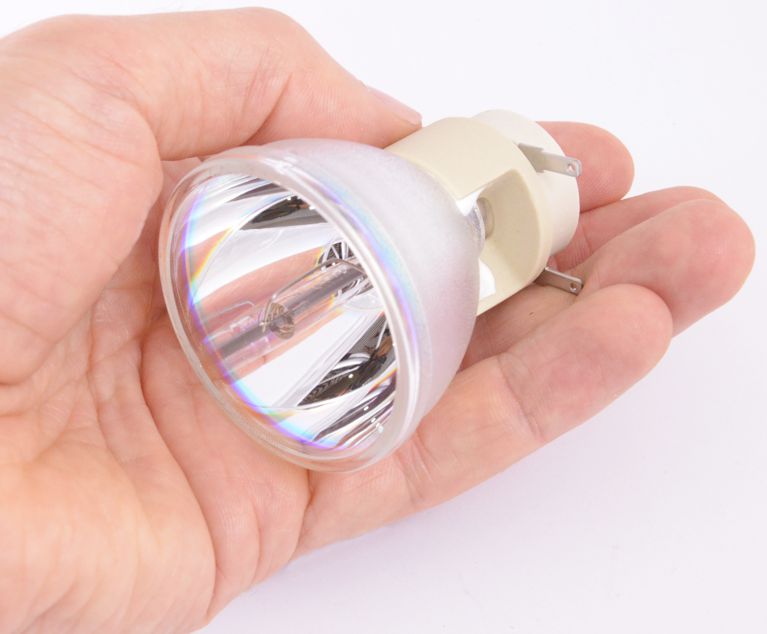

240W Lamp
Article Nr.: FX.PE884-2401
|
|
| Light Life |
3500 h. 6000 in Eco Mode |
| Operating Costs |
-
|
|
394 - 434 cm
|
 |
|
Lux: |
1100 Lux |
|
Room light max.: |
220 Lux |
|
Candela pro m²: |
349 cd/m² |
|
Foot-Lamberts: |
102 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,51-2,69 f=21,95-24,18 mm |
| Throw Ratio |
1,97-2,17:1 show |
| Audio |
10W Mono |

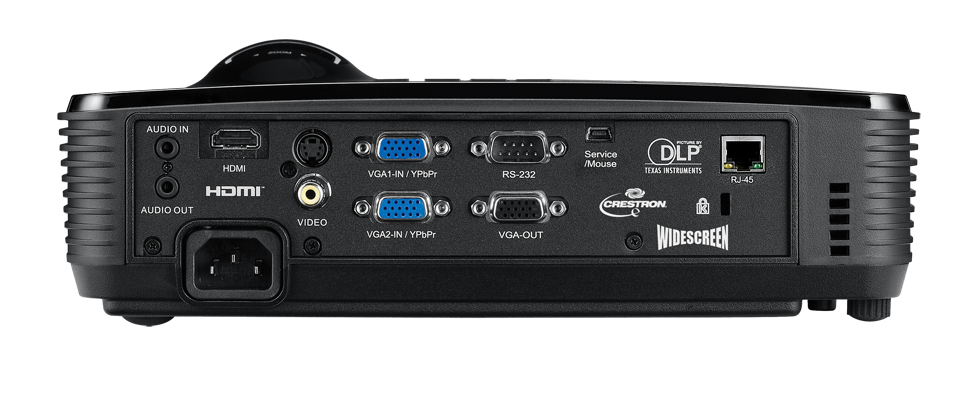

| Connections |
HDMI in
2 x D-sub 15 pin in 1 x out
S-Bideo in
Cinch Video in
RS232C
Mini USB in
Mini Jack Audio in und out
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
285W |
| Size WxHxD |
280 x 78,4 x 230 mm (11"x3,1"x9,1") 5,02 L/dm³
|
| Operating Noise |
29 dB in Eco Mode |
|
| Weight |
2,20 kg / 4,85 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
102 fL
/ max. 500 cm screen width |
| Candela m² |
349 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Gamma correction
Password protection
BrilliantColor™
Remote control with laser pointer und mouse control
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma FX5200 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
40 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
97 |
| Picture Total Points: | 46 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4307 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
