Optoma X343


EAN/UPC:
Image Optoma X343
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Categorized in the Standard-Portabel segment, the X343 projector from Optoma projects with a XGA 1024 x 768 resolution, alongside 3600 ANSI lumens and a contrast of 22000:1. The manufacturer specifies a runtime of 6000 hours for this projector's lamp, which amounts to roughly 8.2 years at 2 hours of daily use.
Regarding projection size, the value of 3600 ANSI lumens allows for an image width of up to 523 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 349 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device.
A look at the data sheet confirms a very subtle fan noise for the projector at just 27 decibels. Since entering the market in 2018, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type 1 x 0,55" DMD Chip
XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3600
Screen
1200 Lux (200 cm Screen width)
Contrast 22000:1 22000:1
Black Level 0,1636 min. Lumen 0,055 min. Lumen
Offset 66% 24 cm over screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 203W Lamp
Article Nr.: BL-FU200D / SP.7D101GC01
Order Lamp
76,51 - 177,73 €
Light Life 6000 h. / 15000 in Eco+ Mode
Operating Costs
| cheap costly |
1
 7,14% / 0,03 €
Calculated brightness quality
The screen width may also be larger. Perfect
388 - 430 cm
Lux: 1200 Lux
Contrast: 22000:1
Candela pro m²: 380 cd/m²
Foot-Lamberts: 111 fL
99 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,1
Objective F=2,5-3,39 f=17,63-31,36 mm
Throw Ratio 1,94-2,15:1 show
Audio 10W

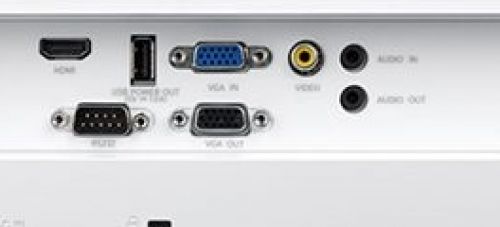

Connections 1 x HDMI in(1.4a 3D support ;MHL)
D-sub 15pin in and out
Cinch Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
Ceiling Mounting Yes, is possible.
Size WxHxD 315 x 99,1 x 243,8 mm (12,4"x3,9"x9,6") 7,58 L/dm³
Power 295W
Keystone
Key: 425 cm

Not
possible
+
+
SCREEN

Not
possible
Key: 227 cm

Operating Noise 27dB
Weight 3,04 kg / 6,7 lbs.
Keystone Vert.: +/-40°
Illumination -
Frequenz H-sync: 15,4-91,2 kHz
V-sync: 50-120 Hz
Foot-Lamberts 111 fL / max. 523 cm screen width
Candela m² 380 cd/m²
Features Real Full HD 3D
Eco Mode
Kensington Slot
BrilliantColor™
Crestron® Software compatible.
Screen Mirroring über HDMI MHL
In Comparison
The Optoma X343 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
51 Weight:
76
Contrast:
53 dB:
56
Black level:
43 Power cons.:
68
Picture Total Points:49 Projector Total Points:67
Popularity Top 100
1 popularity points in May 2 popularity points in June 5 popularity points in July 5 popularity points in August 17 popularity points in September 9 popularity points in October
Points:
9
Ranking: 2718 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 5 -4% Trend
Optional accessories
Philips bulb only NLMP2473776,51 €
lamp ruby Ruby-LMP24737108,22 €
lamp OriginalBL-FU200D / SP.7D101GC01177,73 €
Compatible lamp LMP-K2471781,11 €
Universal Remote Fernb-uni-V322,31 €
remote control OriginalBR-3079N, 45.71P01G002 , HR21G-YHGD0133,58 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2018 Discontinued (EOL) // Last update of the data: 2026-06-09
