Brief Introduction
Beta 2.5 |

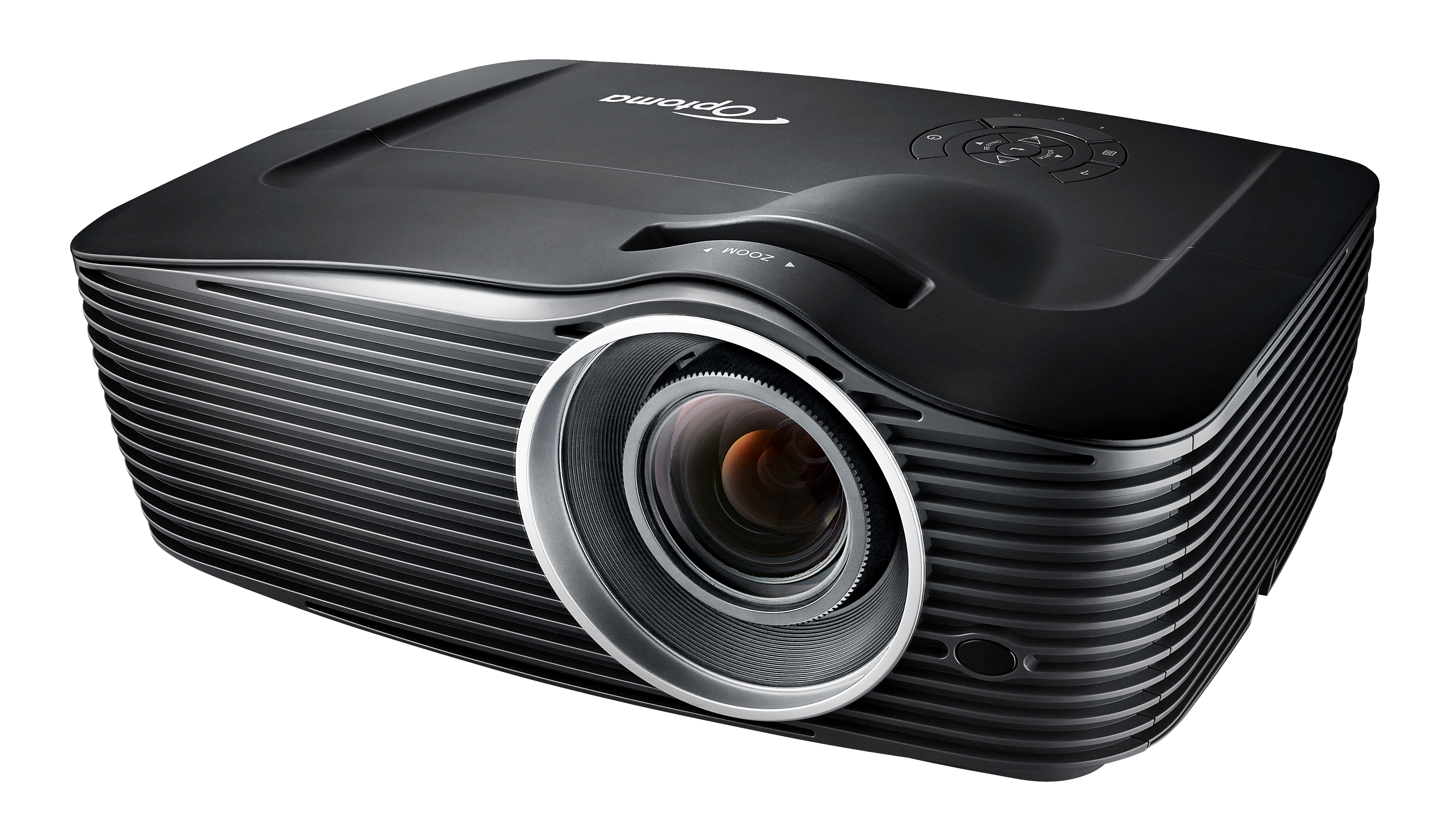

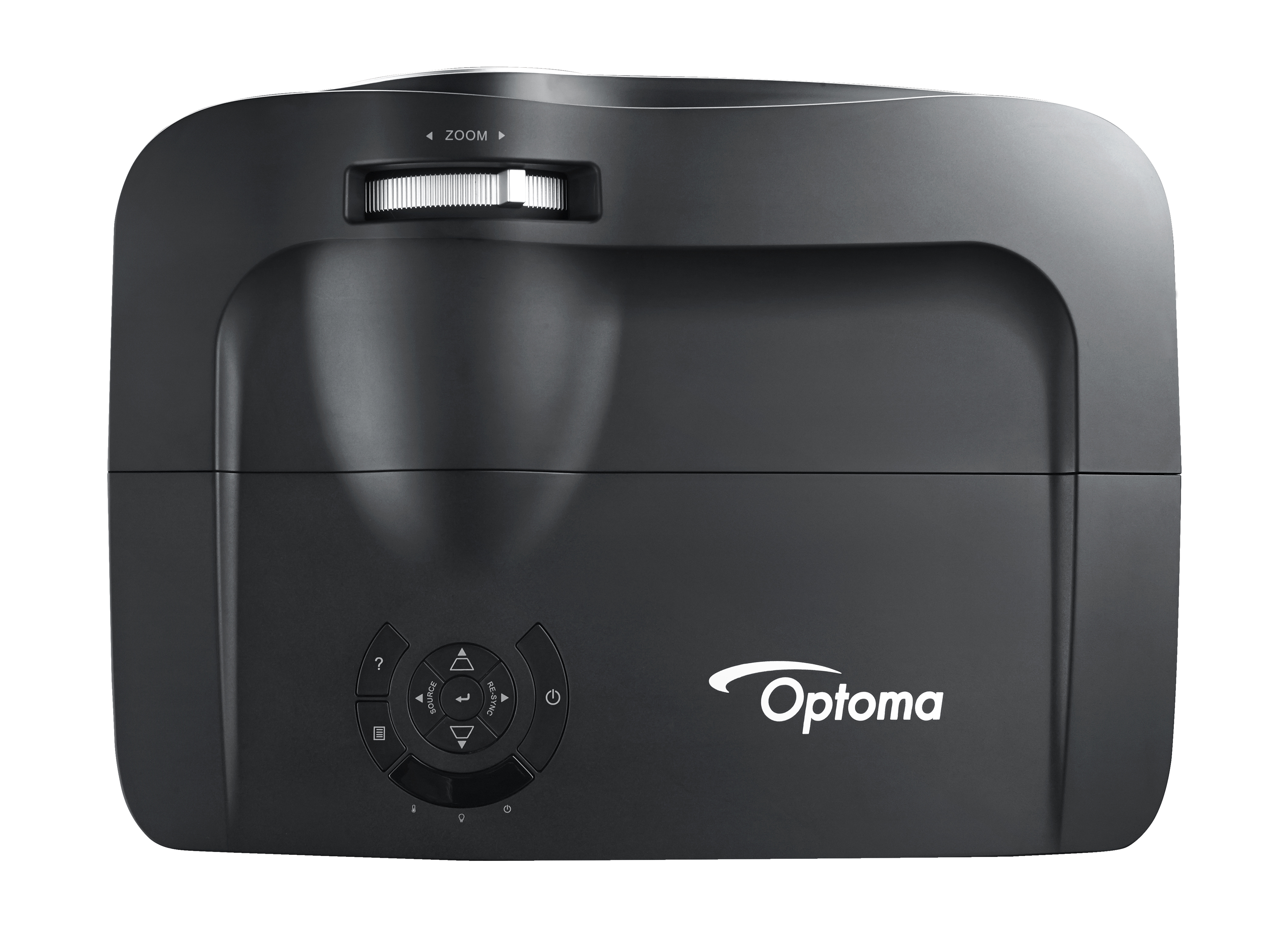

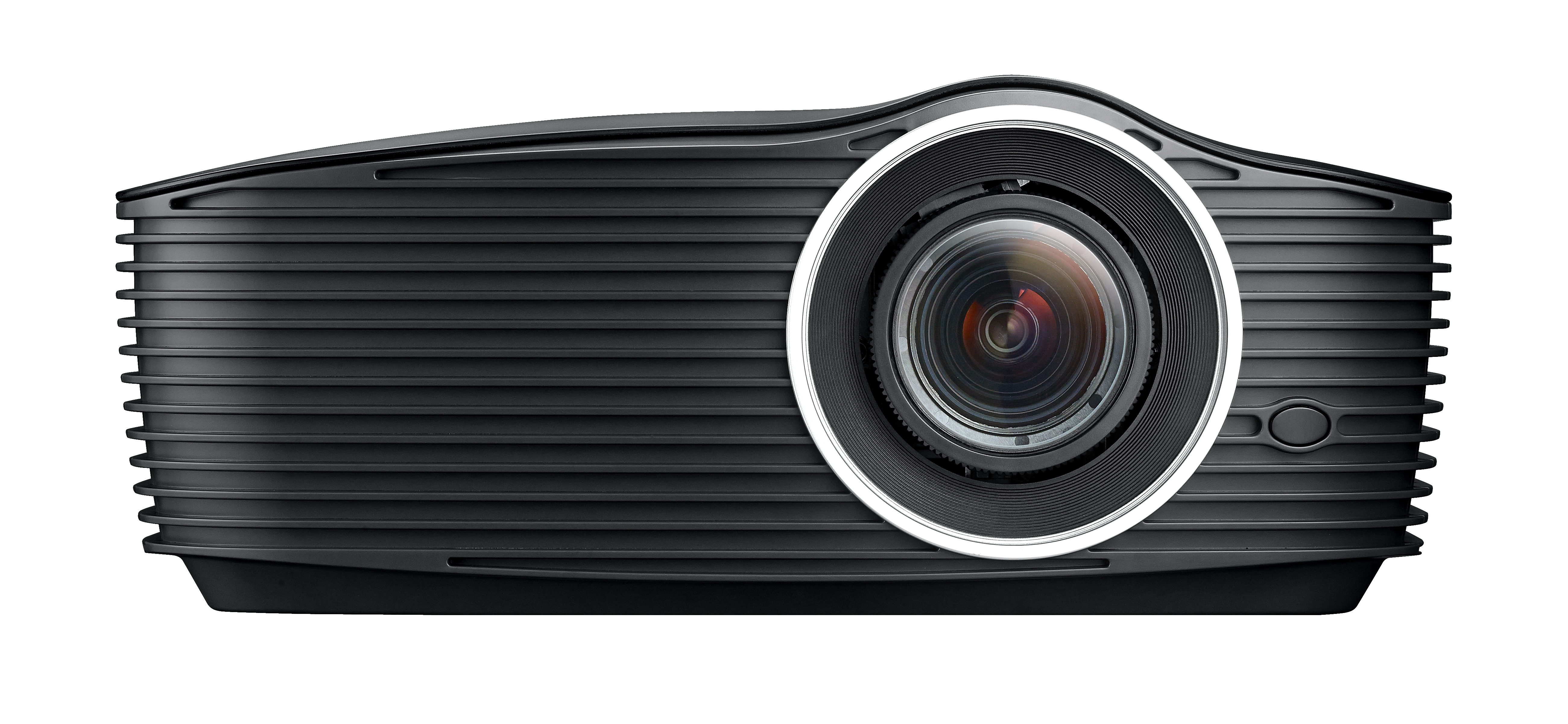

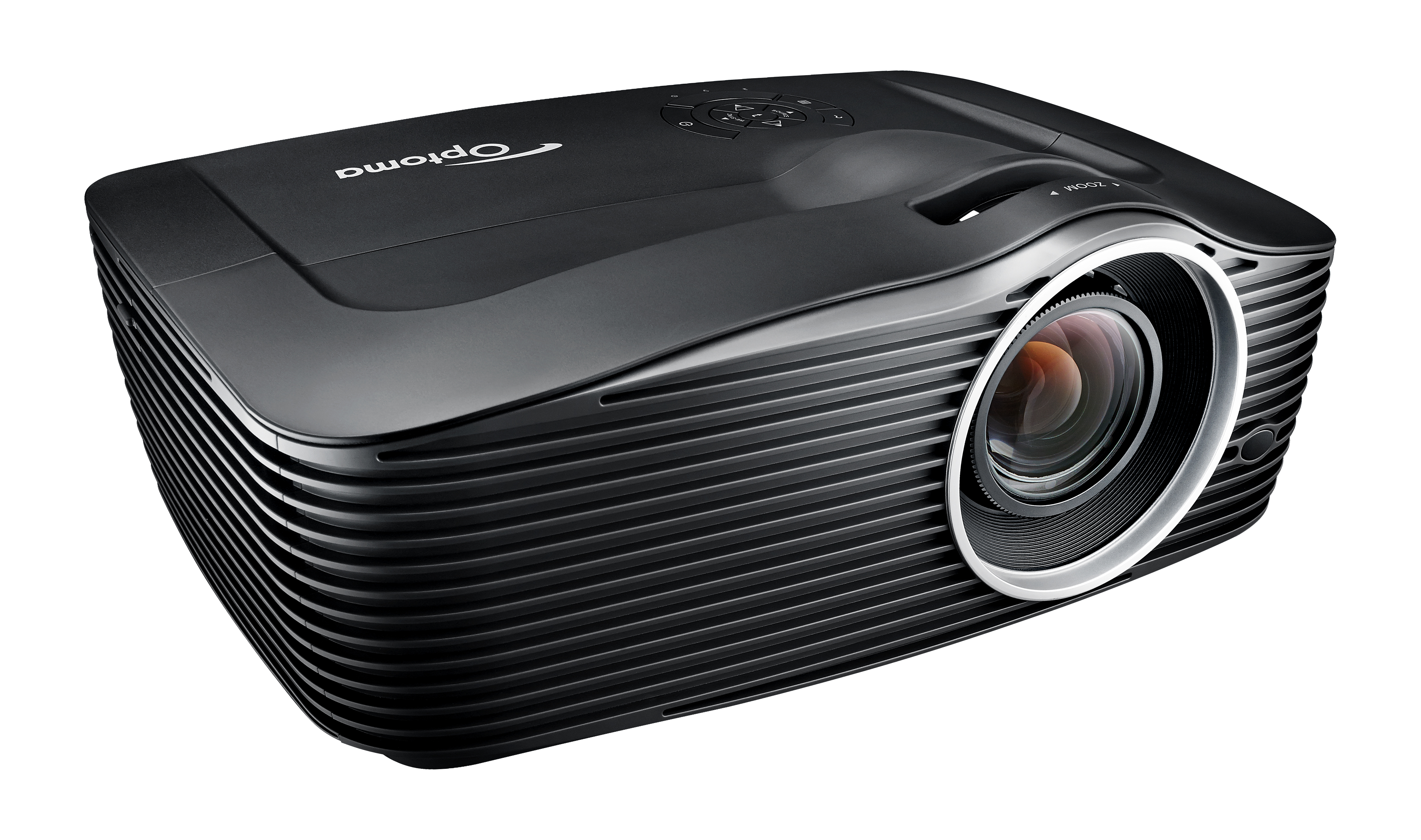

With the W501, manufacturer Optoma offers a standard portable DLP projector with WXGA 1280 x 800 resolution and a contrast of 15000:1. The built-in lens shift and keystone correction function provides freedom when setting up. The model offers a microphone jack plug and 15W speakers, so no additional audio equipment is required for presentations or training courses. Thanks to the brightness of 5000 Ansi lumens, a picture width of 718 cm is possible. The projector can also handle slightly brighter rooms with a narrower picture width (we recommend max. 479 cm). It is also Full HD 1080P and 3D compatible. At just 27 decibels, the device is one of the quieter projectors. It was launched on the market in 2014 and is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x 0,65" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2000 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,3333 min. Lumen |
0,133 min. Lumen |
| Lens shift |
Vert.: +64% --56%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
-

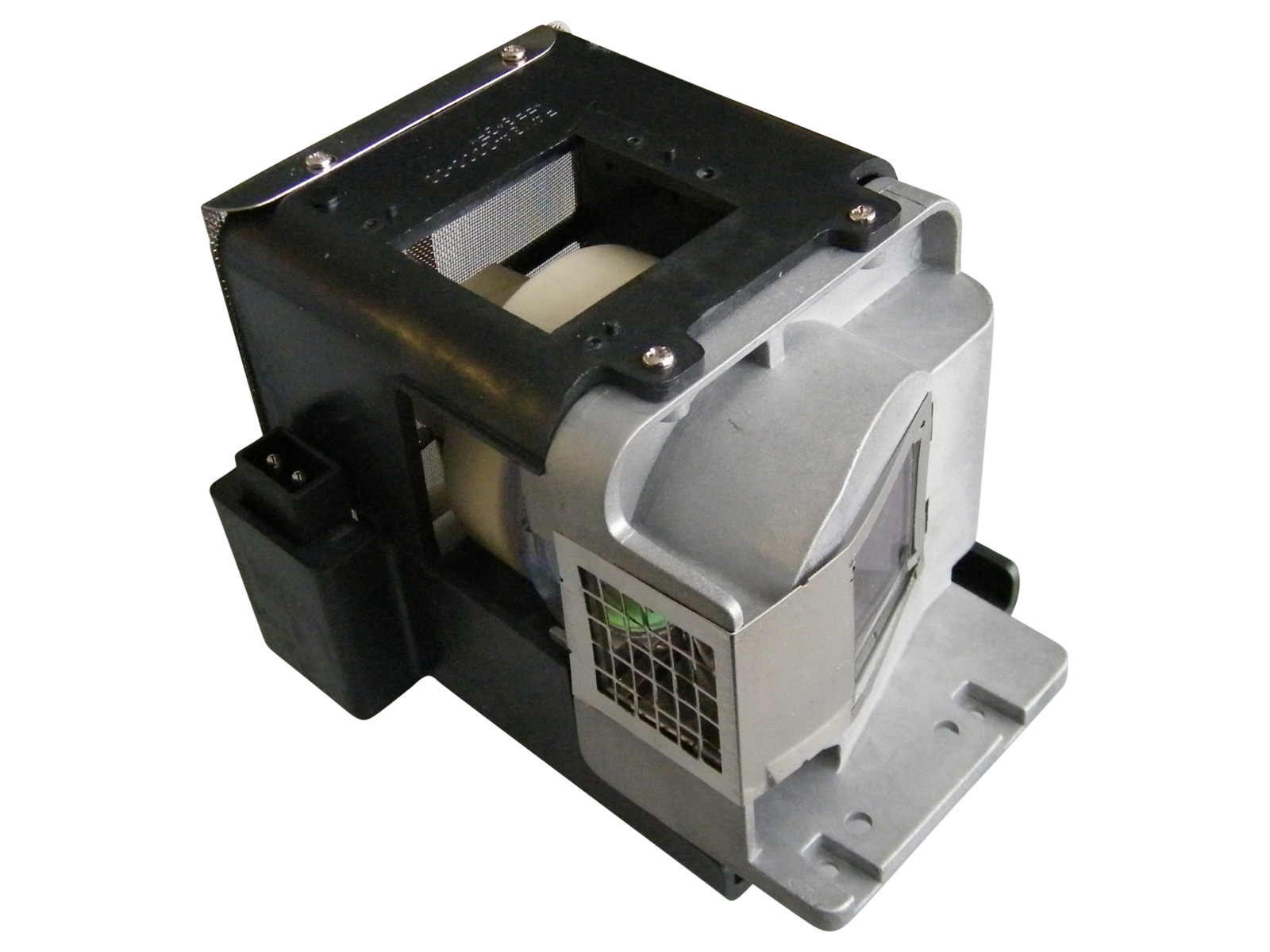

Article Nr.: BL-FU310A
|
|
| Light Life |
2500 h. 4000 h. in Eco Mode |
| Operating Costs |
|
|
290 - 434 cm
|
 |
|
Lux: |
2000 Lux |
|
Room light max.: |
400 Lux |
|
Candela pro m²: |
637 cd/m² |
|
Foot-Lamberts: |
186 fL |
|
 |
| 80 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,5 |
| Objective |
F=2,42-2,98 f=20,77-31,13 mm |
| Throw Ratio |
1,45-2,17:1 show |
| Audio |
2 x 15W |

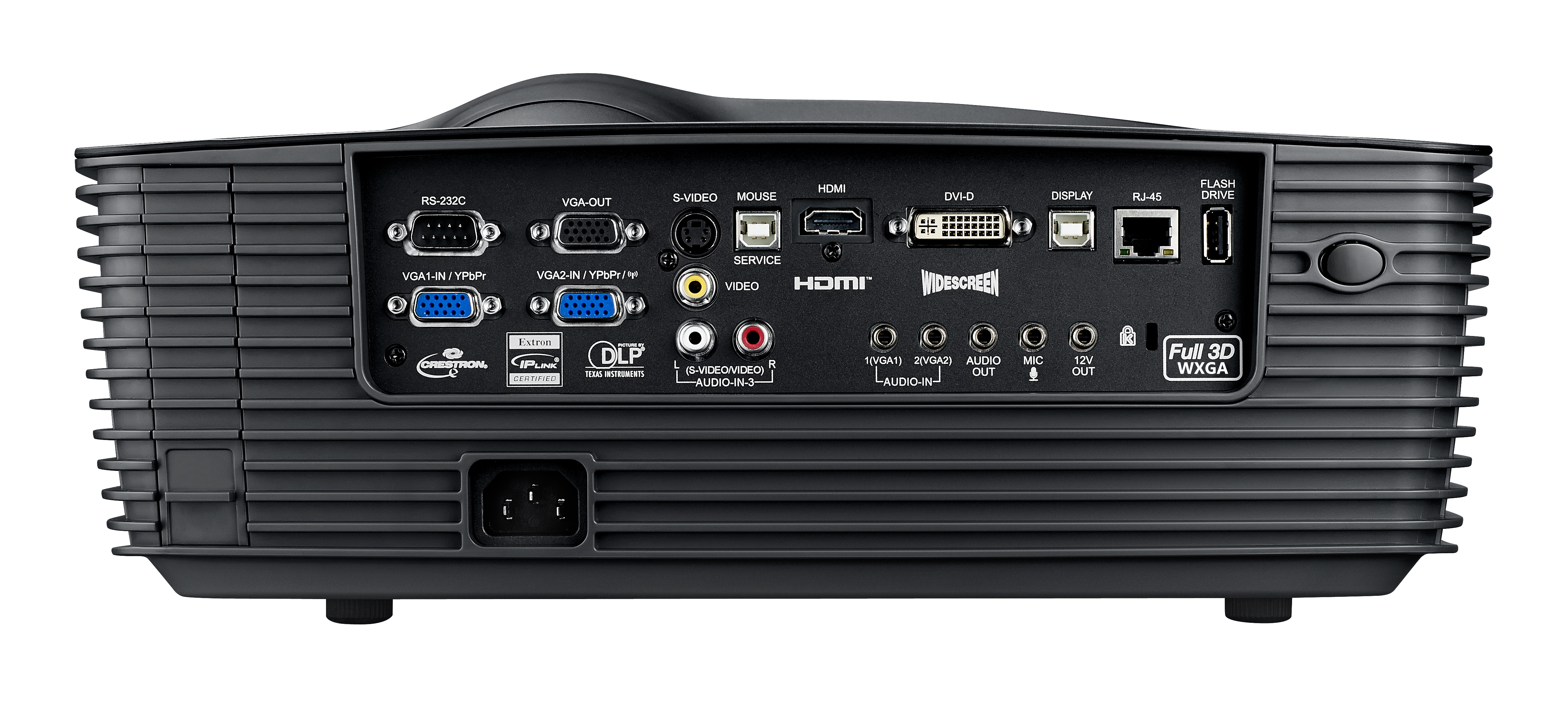

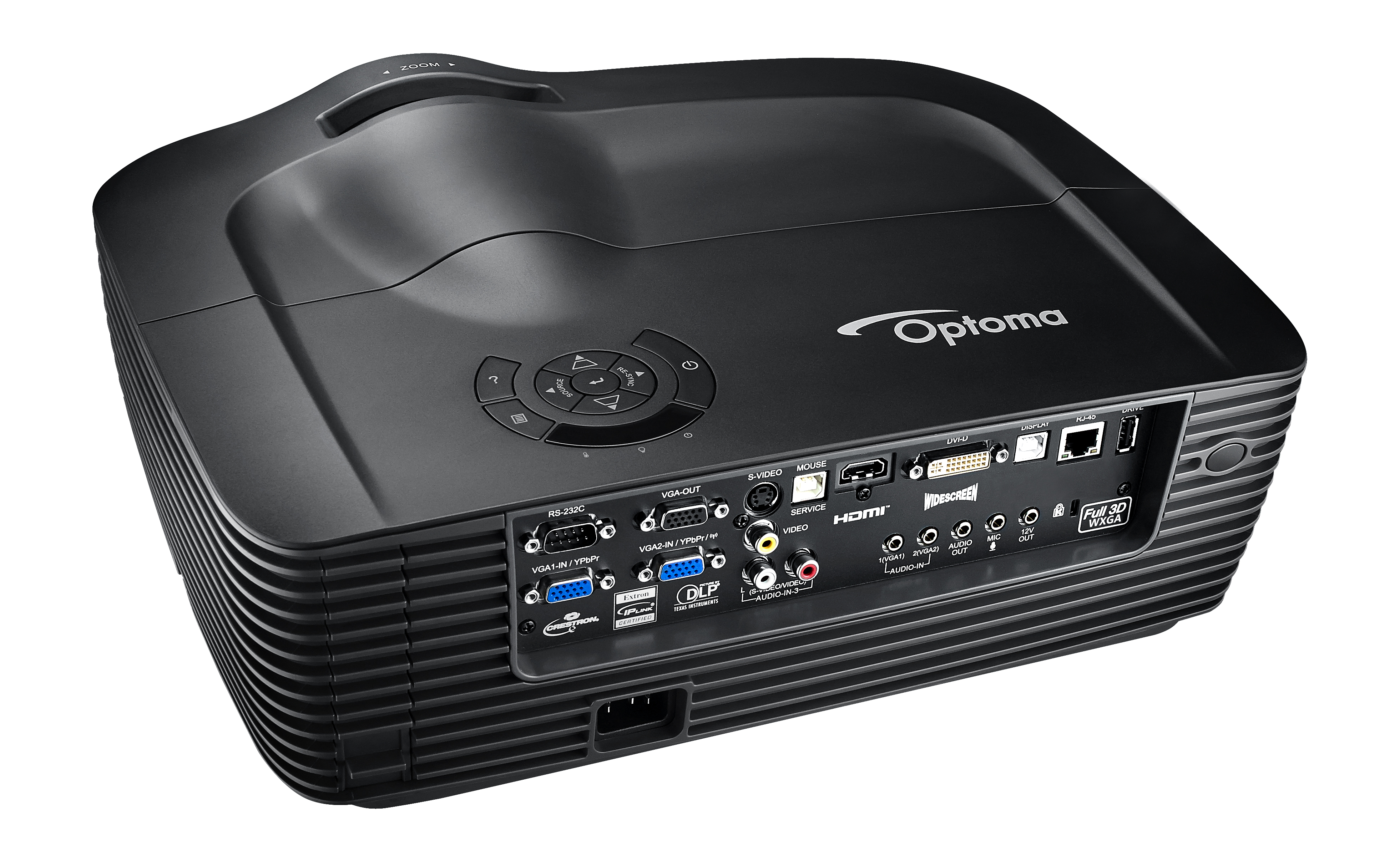

| Connections |
HDMI in
DVI-D in
2 x D-Sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
Mikrofon in
12V Trigge rout
RJ45 in
USB Typ A in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
355 / 279W in Eco Mode |
| Size WxHxD |
-
|
| Operating Noise |
27dB |
|
| Weight |
4,50 kg / 9,92 lbs. |
| Keystone |
Vert.: +/-40° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 24-85 kHz
V-sync: 15,3-91,1 Hz
|
| Foot-Lamberts |
186 fL
/ max. 718 cm screen width |
| Candela m² |
637 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Freeze
Eco Mode
Automatic and manual vertical keystone correction

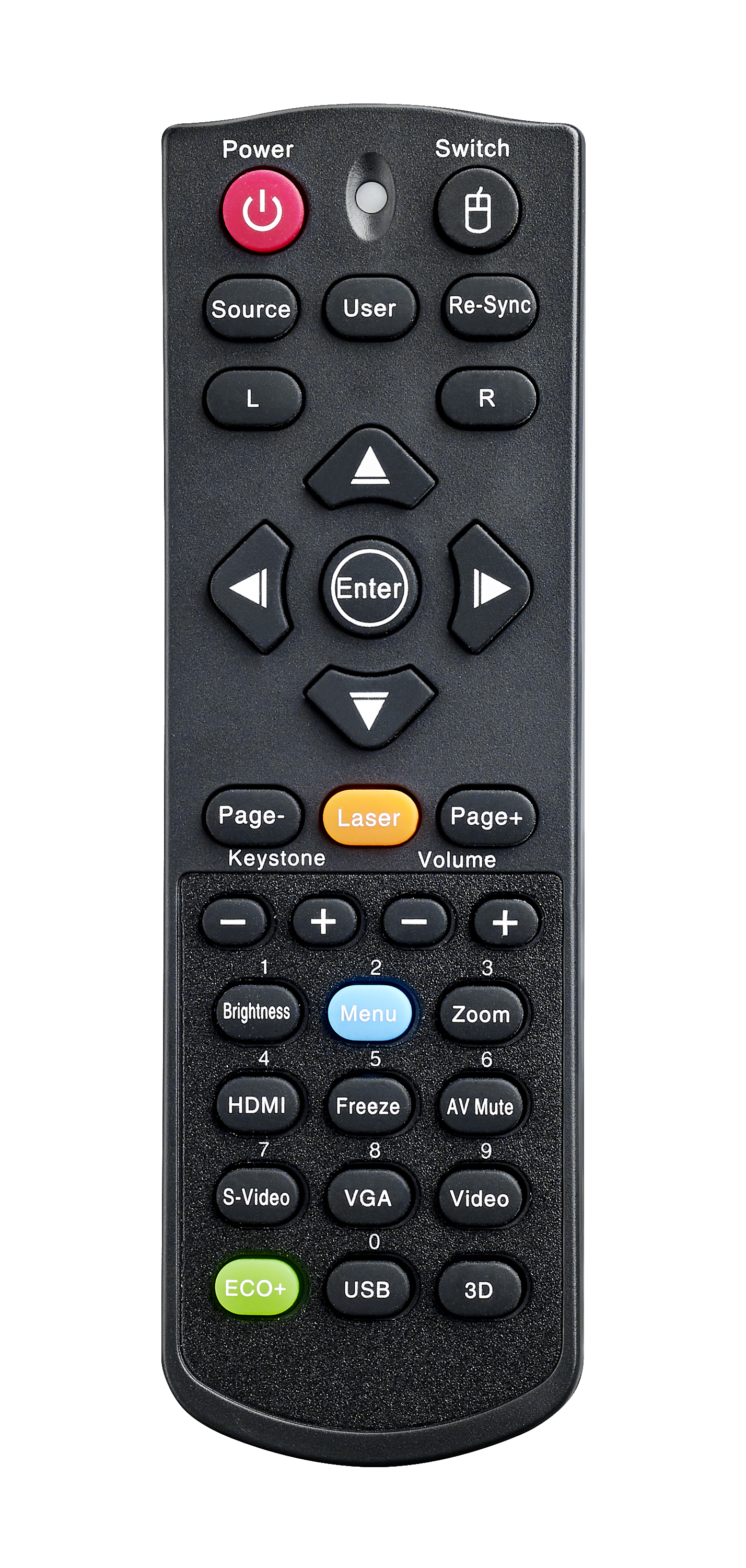

Remote control with laser pointer
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma W501 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
61 |
Weight: |
|
78 |
| Contrast: |
|
1 |
dB: |
|
56 |
| Black level: |
|
99 |
Power cons.: |
|
96 |
| Picture Total Points: | 54 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2530 (From: 7662) |
|
|
|
| Optional accessories |

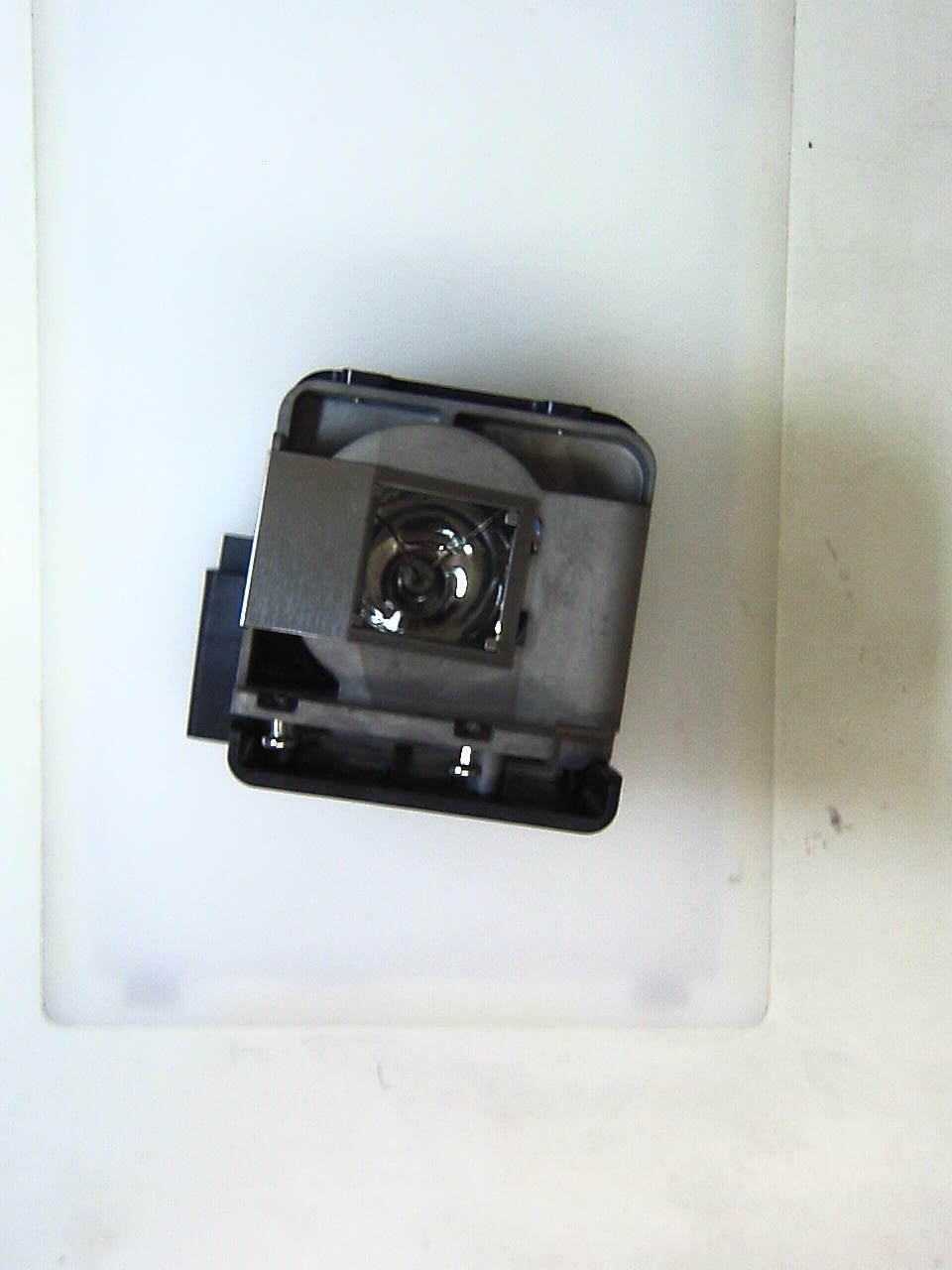

 | Philips bulb only | NLMP24915 | 115,70 € |  | lamp ruby | Ruby-LMP24915 | 137,89 € |  | lamp Original | BL-FU310A / FX.PM584-2401 | 203,43 € |  | Compatible lamp | LMP-K21920 | 87,14 € |  | Universal Remote | Fernb-uni-V3 | 22,31 € |  | remote control Original | BR-5043N, BR-5046L, OP.45.8QJ01G001, BR-5048N | 30,37 € |  | Ceiling Mount 100-120 | Halterung100 | 47,86 € |
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2013-06-25 10:23:48
|
