Brief Introduction
Beta 2.5 |

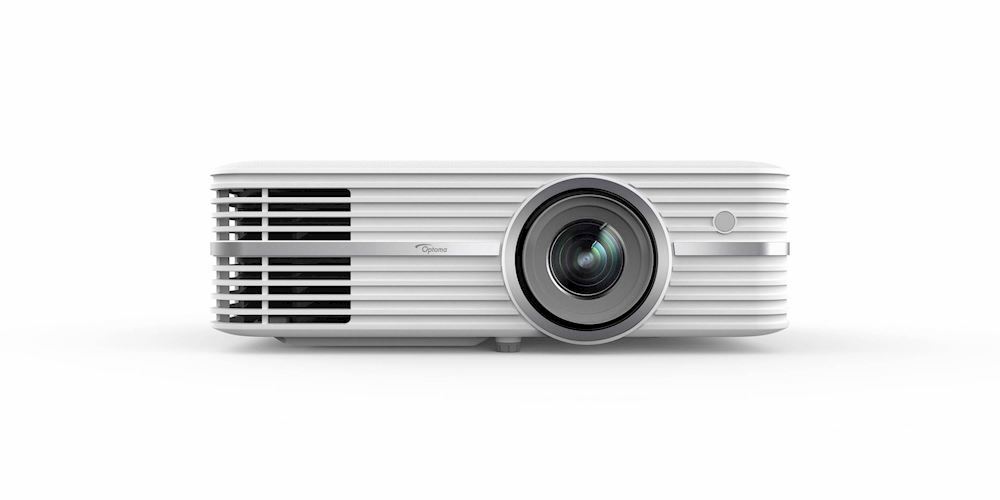

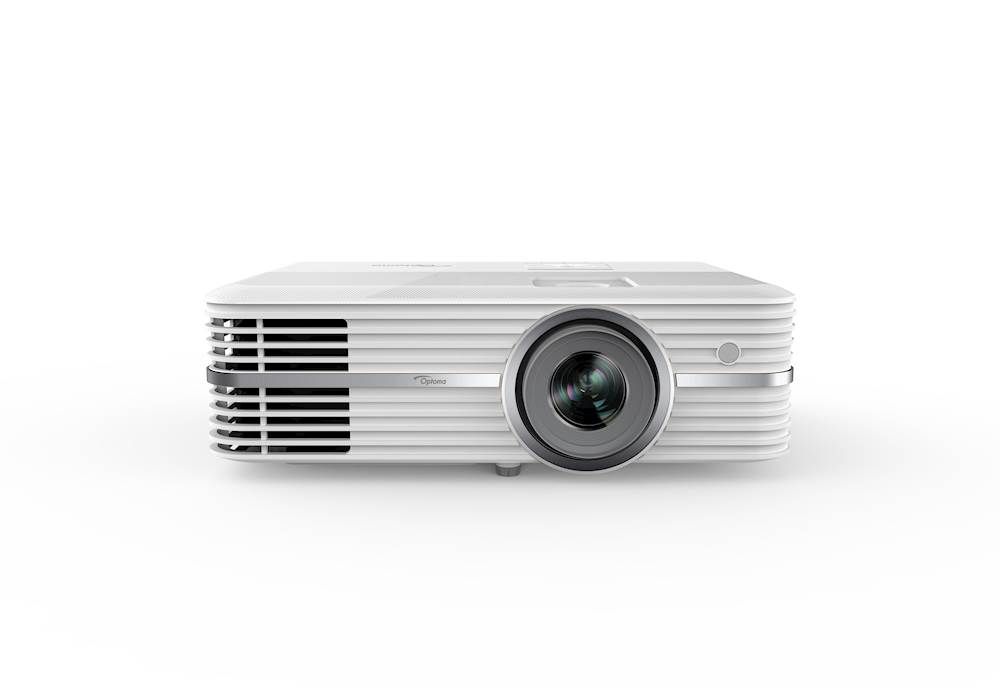

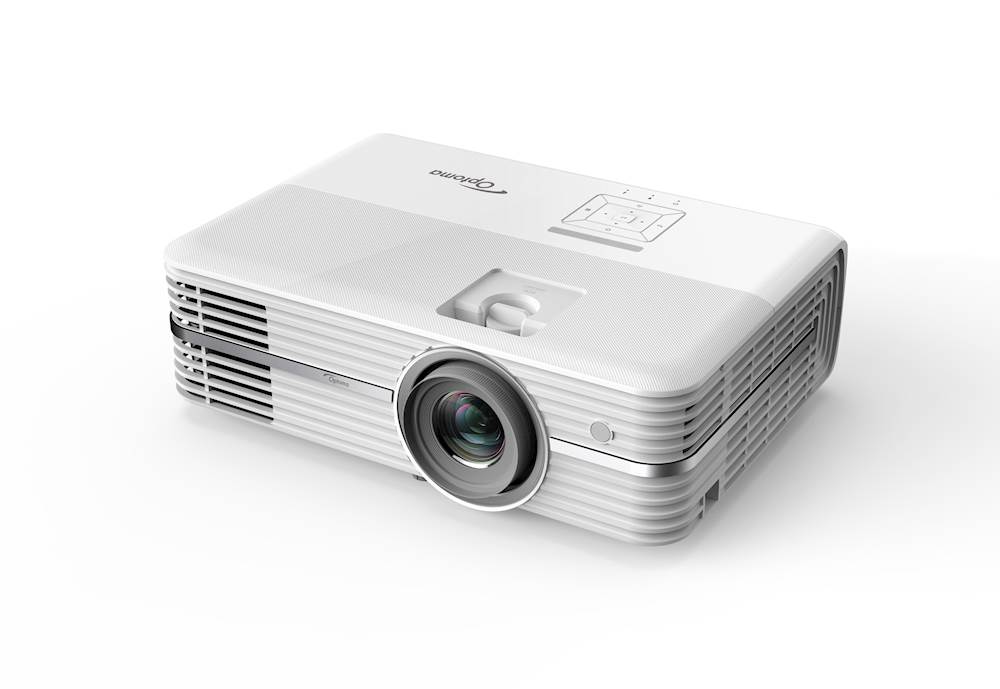

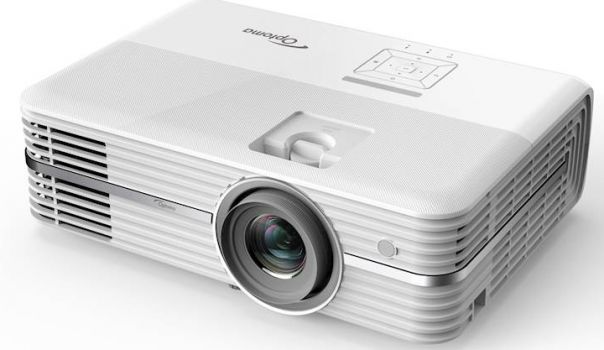

The home cinema UHD380x 3D DLP has 3500 Ansi lumens, a contrast of 500000:1 and a 4KESHIFT 2716 x 1528 4,150,048 pixel resolution. The manufacturer specifies a lamp life of 10,000 hours, which is over 13.7 years if enjoyed for two hours every day. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. The projector also offers a lens shift function that makes image adjustment childs play. The projector can illuminate images up to 601 cm wide thanks to its 3500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 401 cm. Video signals 1080P and 4K as well as 3D are also no problem for the projector, meaning that all Blu-ray formats currently available can be recognized by the projector. The model was built by Optoma in 2019 and is no longer current, but is still very popular in our projector database.
|
| Display Type |
1 x DLP Chip
4KESH 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1556 Lux (200 cm Screen width) |
| Contrast |
500000:1 full on/off |
500000:1 full on/off
|
| Black Level |
0,0070 min. Lumen |
0,003 min. Lumen |
| Lens shift |
Vert.: +75% --65%
|
| Resolution |
4KESHIFT 2716 x 1528 4.150.048 Pixel
(4K2K) 3840 x 2160 mit E-Shift |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
Media player formats: MPG, MPEG
MOV, MP4, MKV
AVI, MOV, MP4
AVI, MP4, MOV, MKV
WMV, ASF
3GP, MP4, AVI, MOV
MP4, MOV, MKV
MKV
MP4, MOV, TS, TRP, TP PDF Word Excel Excel |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |

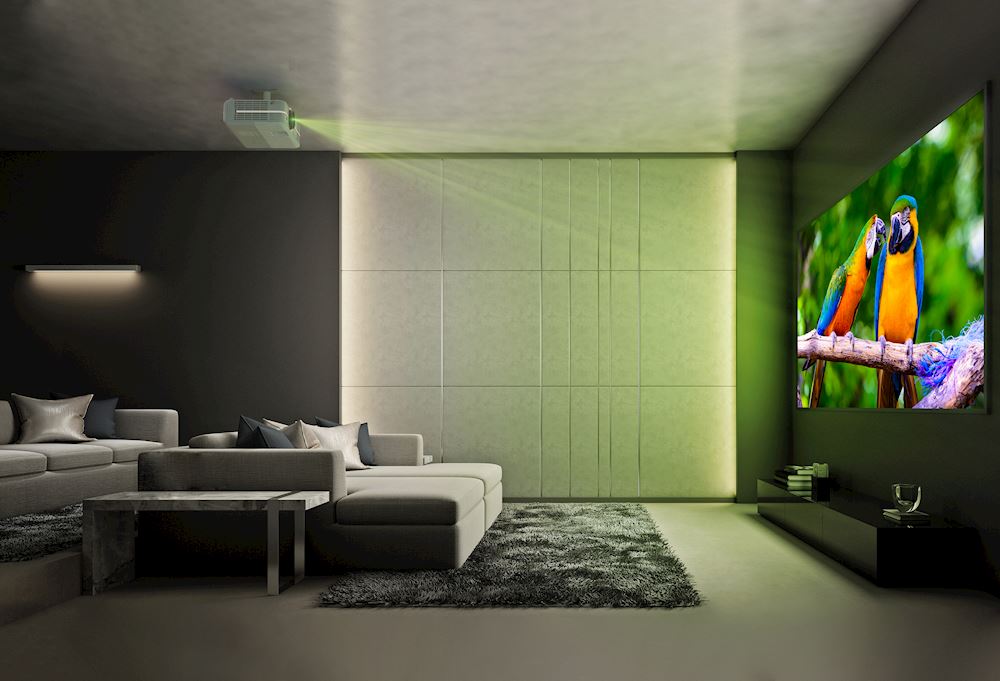

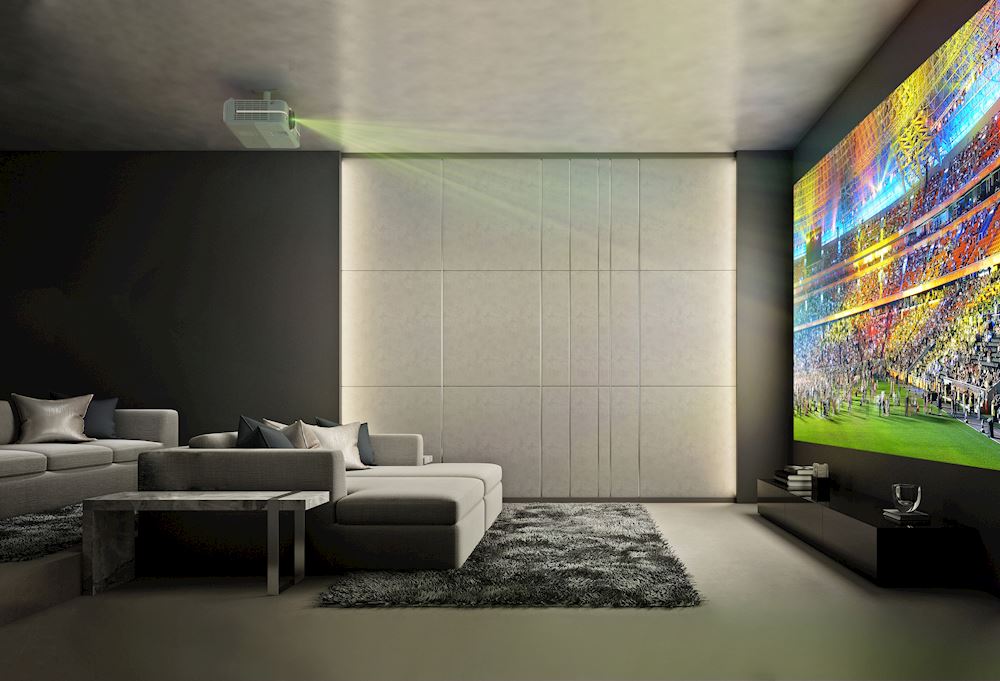

Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

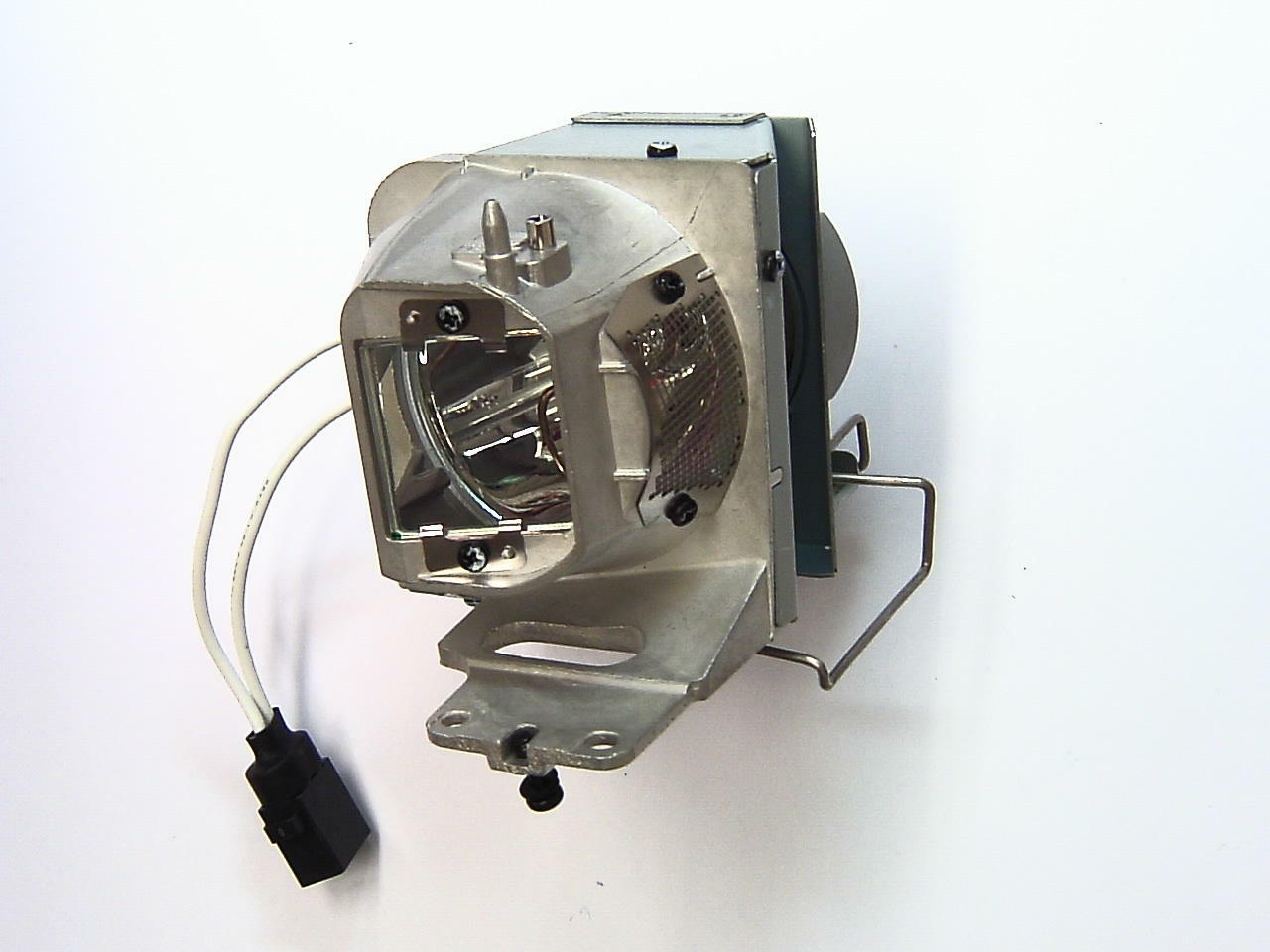

240W Lamp
Article Nr.: BL-FP240E / SP.78V01GC01
|
|
| Light Life |
4000 h. 10000 h. in Eco Mode |
| Operating Costs |
|
|
242 - 318 cm
|
 |
|
Lux: |
1556 Lux |
|
Room light max.: |
311 Lux |
|
Candela pro m²: |
497 cd/m² |
|
Foot-Lamberts: |
145 fL |
|
 |
| 84 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,31 |
| Objective |
- |
| Throw Ratio |
1,21-1,59:1 show |
| Audio |
5W |

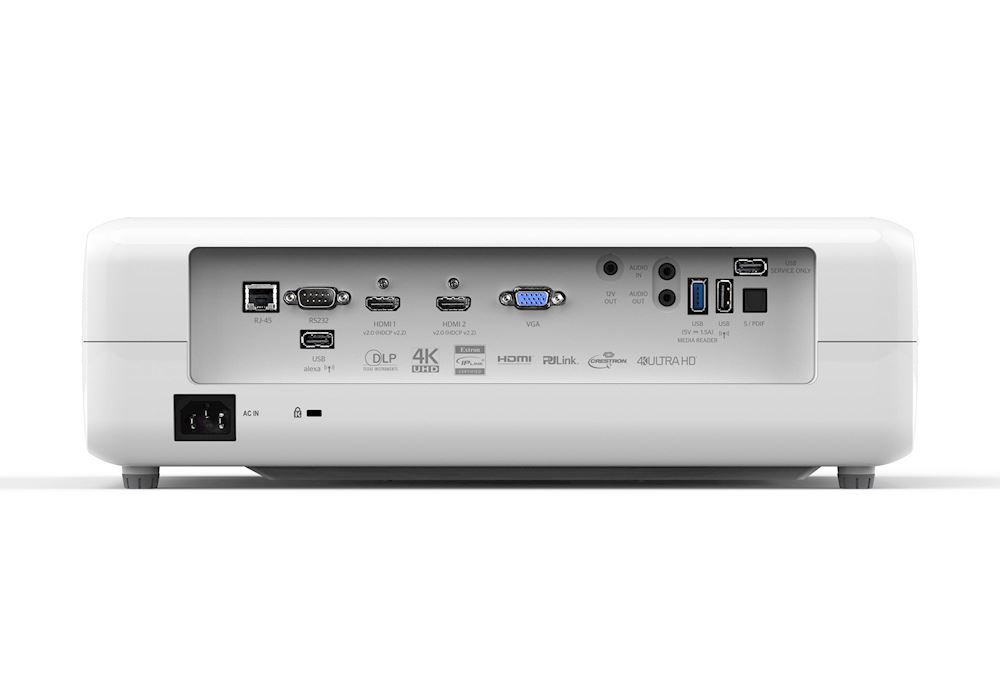

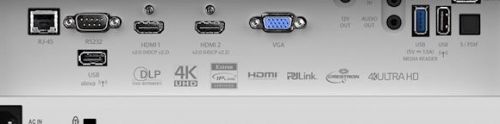

| Connections |
2 x HDMI 2.0 in
D-sub 15pin in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
1 x USB-A Wireless Alexa
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
305 / 249W in Eco Mode |
| Size WxHxD |
392 x 118 x 281 mm (15,4"x4,6"x11,1") 13 L/dm³
|
| Operating Noise |
25 dB in Eco Mode |
|
| Weight |
5,22 kg / 11,02 lbs. |
| Keystone |
- |
| Illumination |
75% |
| Frequenz |
H-sync: 31-135 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
145 fL
/ max. 601 cm screen width |
| Candela m² |
497 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Integrated Mediaplayer
Eco Mode
Lan network compatible.
Wireless Alexa
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma UHD380x compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
33 |
Weight: |
|
100 |
| Contrast: |
|
17 |
dB: |
|
0 |
| Black level: |
|
100 |
Power cons.: |
|
93 |
| Picture Total Points: | 50 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
15 |
| Ranking: |
165 (From: 984) |
|
|
|
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2023-08-30
Created: 2019-11-07 12:32:03
|
