Brief Introduction
Beta 2.5 |
The ZH461 3D Laser DLP has 5000 Ansi-Lumen, a contrast of 300000:1 and a HDTV 1920 x 1080 resolution. The manufacturer specifies a laser life of 30000 hours, which is over 20.5 years with a daily viewing time of 4 hours. The integrated lens shift gives freedom when positioning the projector. The projector can illuminate images up to 718 cm wide thanks to its 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. It is also Full HD 1080P and 3D compatible. Even projection onto the ceiling is possible thanks to the 360° projection. It was launched in 2022 and is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
300000:1 full on/off |
300000:1 full on/off
|
| Black Level |
0,0167 min. Lumen |
0,007 min. Lumen |
| Lens shift |
Vert.: +66% --50%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Dura Core Laser
Article Nr.: BR-5053C/BR-5080C/SP.72702GC01
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € Laser
|
|
280 - 448 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 74 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual x1,6 |
| Objective |
f=20,91-32,62 mm |
| Throw Ratio |
1,4-2,24:1 show |
| Audio |
10W |

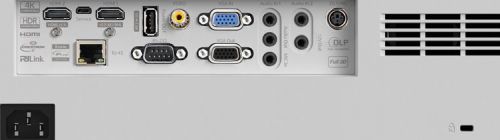

| Connections |
2x HDMI in
DVI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger
3D Sync
Micro USB
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
282W |
| Size WxHxD |
337 x 122,5 x 265 mm (13,3"x4,8"x10,4") 10,94 L/dm³
|
| Operating Noise |
32 / 30 dB in Eco Mode |
Key: 162 cm
Shift: 74 cm |
Key: 162 cm |
| Key: 162 cm |
| |
|
|
| Weight |
4,50 kg / 9,92 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15,37-91,1 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
High Dynamic Range (HDR)
360° installable
24/7 continuous operation capable
Password protection
PJLink™
Lan network compatible.
Crestron®-Software compatible.
AMX compatibility
portrait projection
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma ZH461 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
71 |
Weight: |
|
53 |
| Contrast: |
|
6 |
dB: |
|
72 |
| Black level: |
|
100 |
Power cons.: |
|
50 |
| Picture Total Points: | 59 |
Projector Total Points: | 58 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3249 (From: 7662) |
|
|
|
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2024-05-16
Created: 2022-07-21 13:32:53
|
| Data |
 Product Sheet english
Product Sheet english HC
Quick Start Guide

|
Optoma Website
