Brief Introduction
Beta 2.5 |
With the ZU1100, manufacturer Optoma offers a DLP laser projector with WUXGA 1920 x 1200 resolution and a contrast of 2000000:1. The manufacturer specifies a laser service life of 30000 hours, which is over 20.5 years with a daily viewing time of 4 hours. A built-in horizontal and vertical keystone correction provides freedom when positioning the projector. 995 cm image width, the projector will be able to illuminate well. The projector can manage rooms with residual light with a smaller image width, we recommend a maximum of 663 cm here. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. Furthermore, it is Full HD 1080P and 3D compatible, and even has the option of projecting HD 1080P Blu-rays onto the ceiling using 360° projection.
|
| Display Type |
1 x DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
9600 / 11500 lumen |
Screen |
4267 Lux (200 cm Screen width) |
| Contrast |
2000000:1 full on/off |
2000000:1 full on/off
|
| Black Level |
0,0048 min. Lumen |
0,002 min. Lumen |
| Offset |
-
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Multicolor Laser (MCL)
Article Nr.: BR-3074W / SP.72N03GC01
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
4267 Lux |
|
Room light max.: |
853 Lux |
|
Candela pro m²: |
1357 cd/m² |
|
Foot-Lamberts: |
396 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |

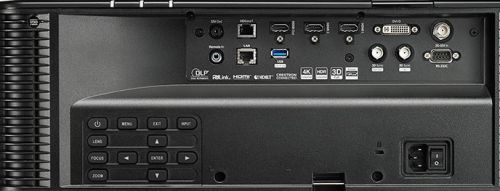

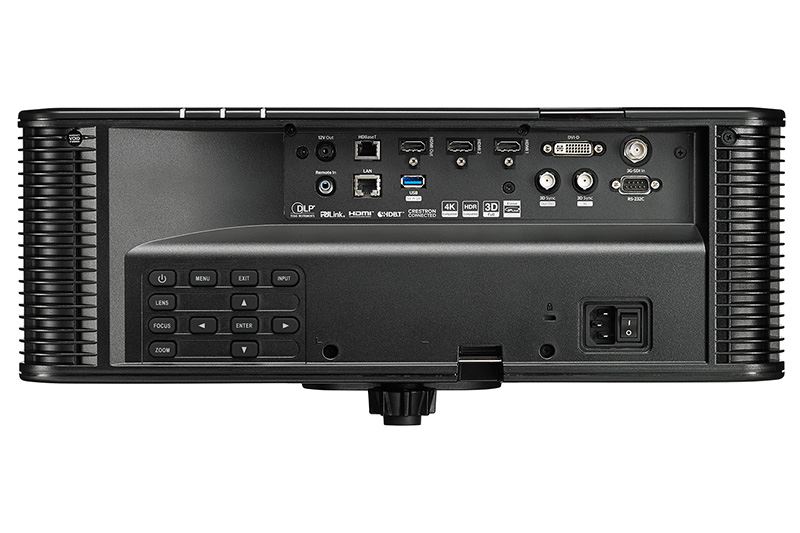

| Connections |
2x HDMI in
3D Sync in und out
HDBaseT
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
360W |
| Size WxHxD |
529 x 207,8 x 484 mm (20,8"x8,1"x19,1") 53 L/dm³
|
| Operating Noise |
- |
|
| Weight |
21,00 kg / 46,3 lbs. |
| Keystone |
Vert.: +/-20°
Hori.: +/-20°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
396 fL
/ max. 995 cm screen width |
| Candela m² |
1357 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Direkt Power Off
Kensington Slot
Warping
360° installable
24/7 continuous operation capable
Edge Blending
Picture-in-Picture
PJLink™
Lan network compatible.
Crestron®-Software compatible.
IP6X Airtight optical engine
Telnet
Full lens shift
Portrait mode
AMX
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma ZU1100 compared to others current "Stationary" projectors. |
| Ansi-Lumen: |
|
96 |
Weight: |
|
83 |
| Contrast: |
|
40 |
dB: |
|
0 |
| Black level: |
|
100 |
Power cons.: |
|
87 |
| Picture Total Points: | 79 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
29 |
| Ranking: |
64 (From: 231) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2022 Current model // Last update of the data: 2025-03-03
Created: 2022-08-09 10:43:44
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (24.3 MB)

|
Optoma Website
