Brief Introduction
Beta 2.5 |
The stationary EH7500 BrilliantColor DLP has 6500 Ansi lumens, a contrast of 2000:1 and a WUXGA 1920 x 1200 resolution. The built-in lens shift and keystone correction function provides freedom in projection adjustment. 819 cm image width, the projector will be able to illuminate well. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 546 cm here. Furthermore, the projector can play 1080P without any problems. On the market since 2011, the model is no longer offered by the manufacturer Optoma, but is still a popular projector in our database.
|
| Display Type |
1 x 0,67" DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
6500 |
Screen |
2889 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
3,2500 min. Lumen |
1,446 min. Lumen |
| Lens shift |
Vert.: +60% -20% Hori.: +/-10%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
2 x 330W Lamp
Article Nr.: SP.8JN08CG01
|
|
| Light Life |
1500 h. 2000 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
2889 Lux |
|
Room light max.: |
578 Lux |
|
Candela pro m²: |
918 cd/m² |
|
Foot-Lamberts: |
268 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |

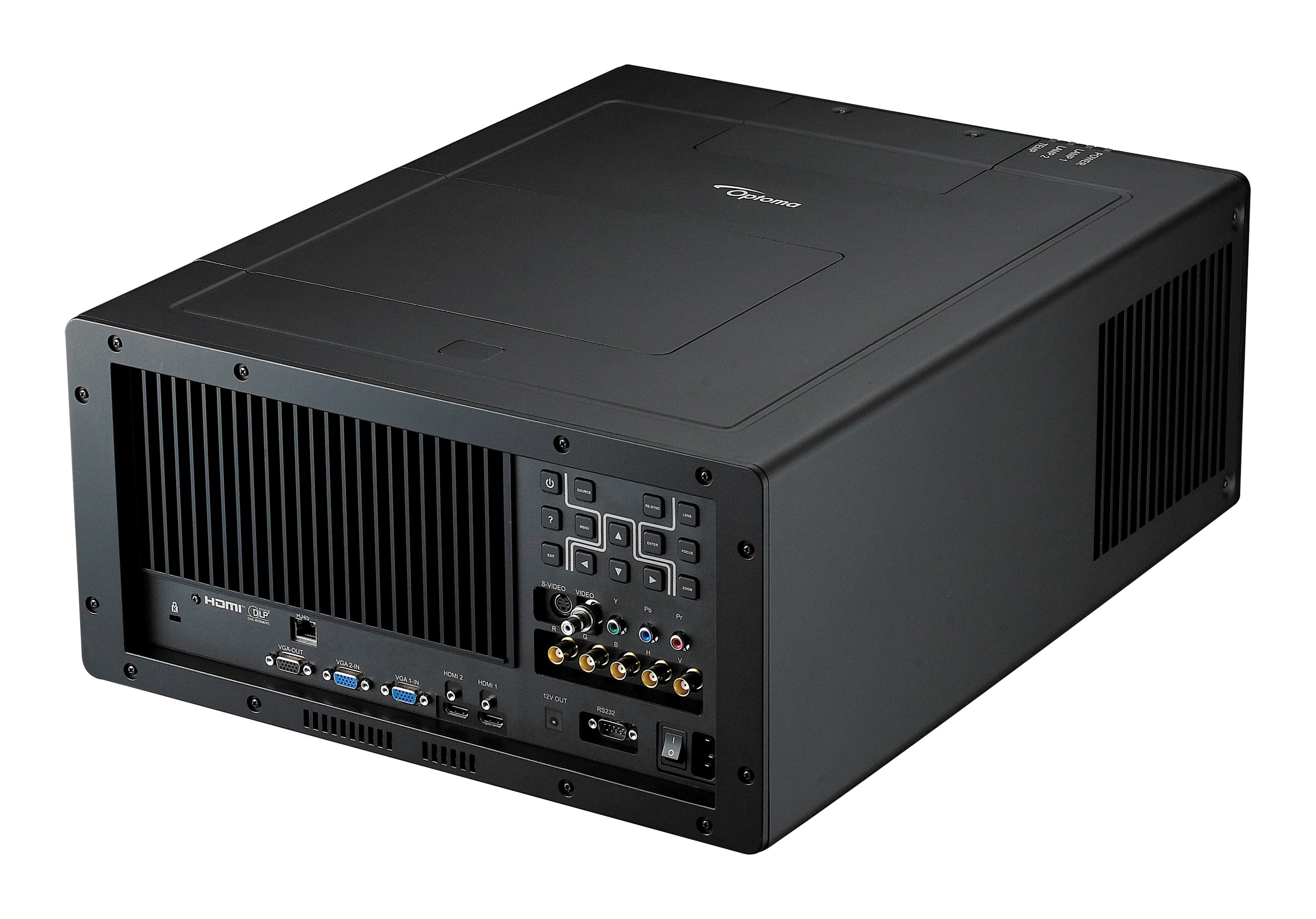

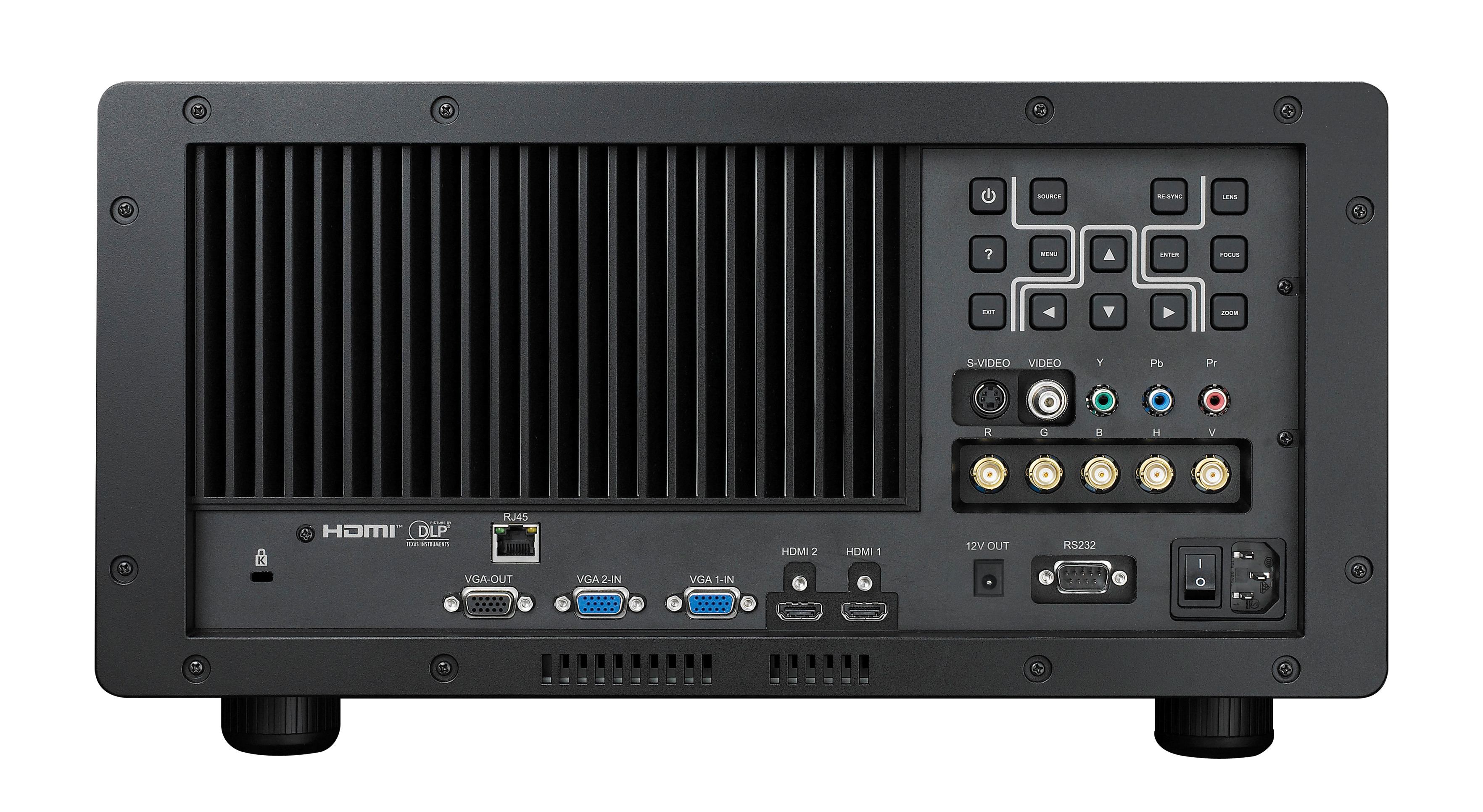

| Connections |
2 x HDMI in
2 x D sub 15 pin in 1 x out
5 x BNC RGBHV in
YUV in
S-Video in
RJ45 in
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
860W |
| Size WxHxD |
436 x 235 x 549 mm (17,2"x9,3"x21,6") 56,25 L/dm³
|
| Operating Noise |
42 / 38 dB in Eco Mode |
Shift: 68 cm
|
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
23,30 kg / 50,71 lbs. |
| Keystone |
Vert.: +/-20°
Hori.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 15,37-100 kHz
V-sync: 25-85 Hz
|
| Foot-Lamberts |
268 fL
/ max. 819 cm screen width |
| Candela m² |
918 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Gamma correction
Digital image shift
24/7 continuous operation capable
Picture-in-Picture
Password protection
BrilliantColor™

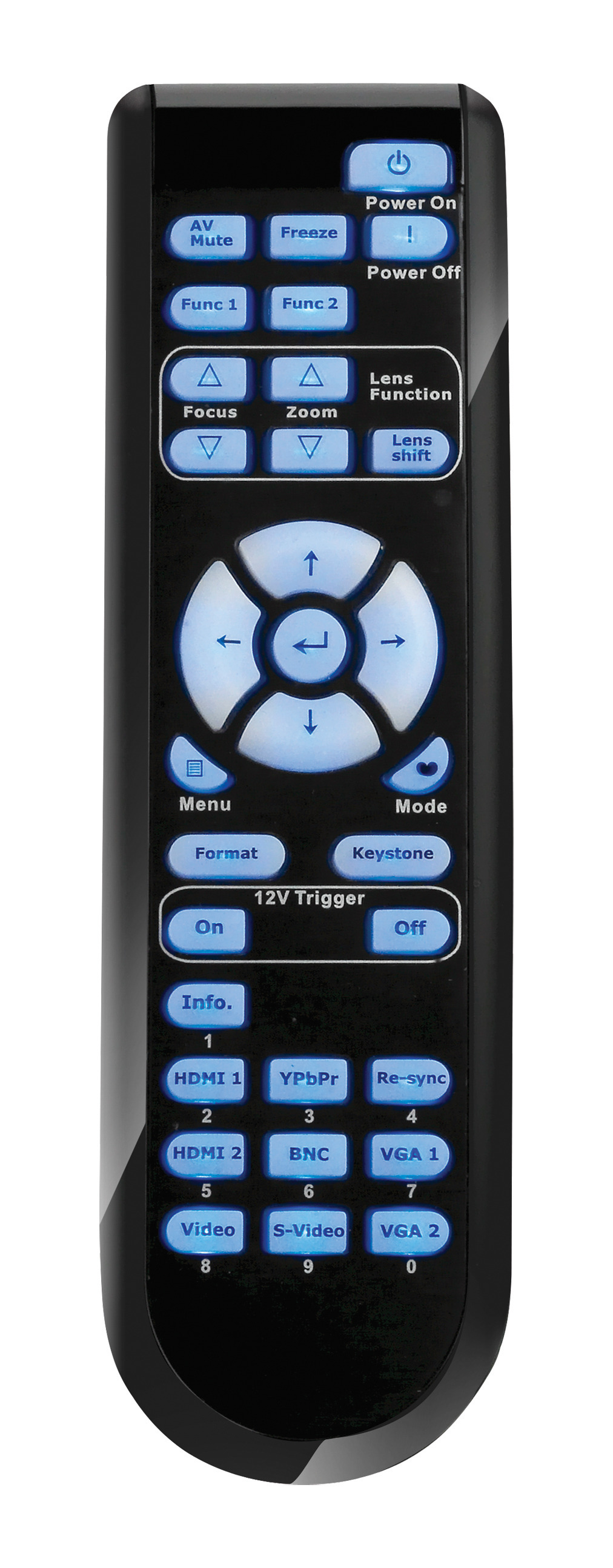

Remote control with laser pointer
Control via web browser
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma EH7500 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
64 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
93 |
| Black level: |
|
90 |
Power cons.: |
|
89 |
| Picture Total Points: | 52 |
Projector Total Points: | 91 |
|
| Popularity Top 100 |
|
| Points: |
|
39 |
| Ranking: |
373 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| TZ2 | 3.67-6.98:1 | 734-1396 m |
60-20% |
+/-10% |
Powered |
| TZ1 | 1.94-3.67:1 | 388-734 m |
60-20% |
+/-10% |
Powered |
| ST1 | 1.45-1.94:1 | 290-388 m |
60-20% |
+/-10% |
|
| WT2 | 1.2-1.45:1 | 240-290 m |
60-20% |
+/-10% |
Powered |
| WT1 | 0.77:1 | 154 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2024-07-04
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (9.19 MB)

|
Optoma Website
