Brief Introduction
Beta 2.5 |
The Optoma UHZ35ST short-throw 3D laser DLP projector has 3500 Ansi lumens, a contrast of 500000:1 and a UHD (4K2K) 3840 x 2160 resolution. Due to the laser, the projector is specified with 30000 hours of light life, which is over 20.5 years if enjoyed for four hours a day. Horizontal and vertical keystone correction makes image adjustment childs play. As it is a short-throw projector, the projector can be positioned very close to the wall. For a 2 m wide image, the projector needs to be just 99 cm away from the screen. Furthermore, it is Full HD 1080P and 4K as well as 3D compatible, meaning that all Blu-ray formats currently available can be recognized by the projector. At just 30 decibels, the device is one of the quieter projectors.
|
| Display Type |
1 x 0,65 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1556 Lux (200 cm Screen width) |
| Contrast |
500000:1 |
500000:1
|
| Black Level |
0,0070 min. Lumen |
0,003 min. Lumen |
| Offset |
65% show
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
Laser
Article Nr.: BR-5053C/BR-5080C/SP.72702GC01
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € Laser
|
|
99 cm (no Zoom)
|
 |
|
Lux: |
1556 Lux |
|
Room light max.: |
311 Lux |
|
Candela pro m²: |
497 cd/m² |
|
Foot-Lamberts: |
145 fL |
|
 |
| 73 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 1,3 |
| Objective |
F=2,8 f=7,51mm |
| Throw Ratio |
0,496:1 |
| Audio |
1 x 15W Mono |

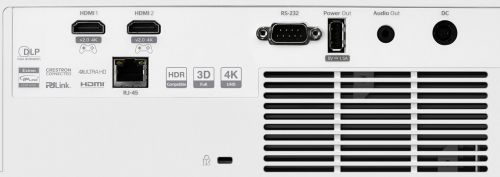

| Connections |
2x 2.0 HDMI (1xeARC) in
Mini Jack Audio out
USB-A in
RS232C Din 9 pin in
RJ45
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
185W / 126W in Eco Mode |
| Size WxHxD |
274 x 114 x 216 mm (10,8"x4,5"x8,5") 6,75 L/dm³
|
| Operating Noise |
30 / 28 dB in Eco Mode |
Key: 100 cm |
Key: 27 cm |
| Key: 27 cm |
| |
|
|
| Weight |
3,00 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-15° automatisch
Hori.: +/-15°
|
| Illumination |
75% |
| Frequenz |
H-sync: 15-140 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
145 fL
/ max. 601 cm screen width |
| Candela m² |
497 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
360° installable
24/7 continuous operation capable
Password protection
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma UHZ35ST compared to others current "Short Distance" projectors. |
| Ansi-Lumen: |
|
41 |
Weight: |
|
99 |
| Contrast: |
|
10 |
dB: |
|
60 |
| Black level: |
|
100 |
Power cons.: |
|
90 |
| Picture Total Points: | 50 |
Projector Total Points: | 83 |
|
| Popularity Top 100 |
|
| Points: |
|
14 |
| Ranking: |
63 (From: 313) |
|
|
|
|
|
| Status |
2023 Current model // Last update of the data: 2024-11-01
Created: 2023-10-11 18:52:54
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (15.58 MB)

|
Optoma Website
