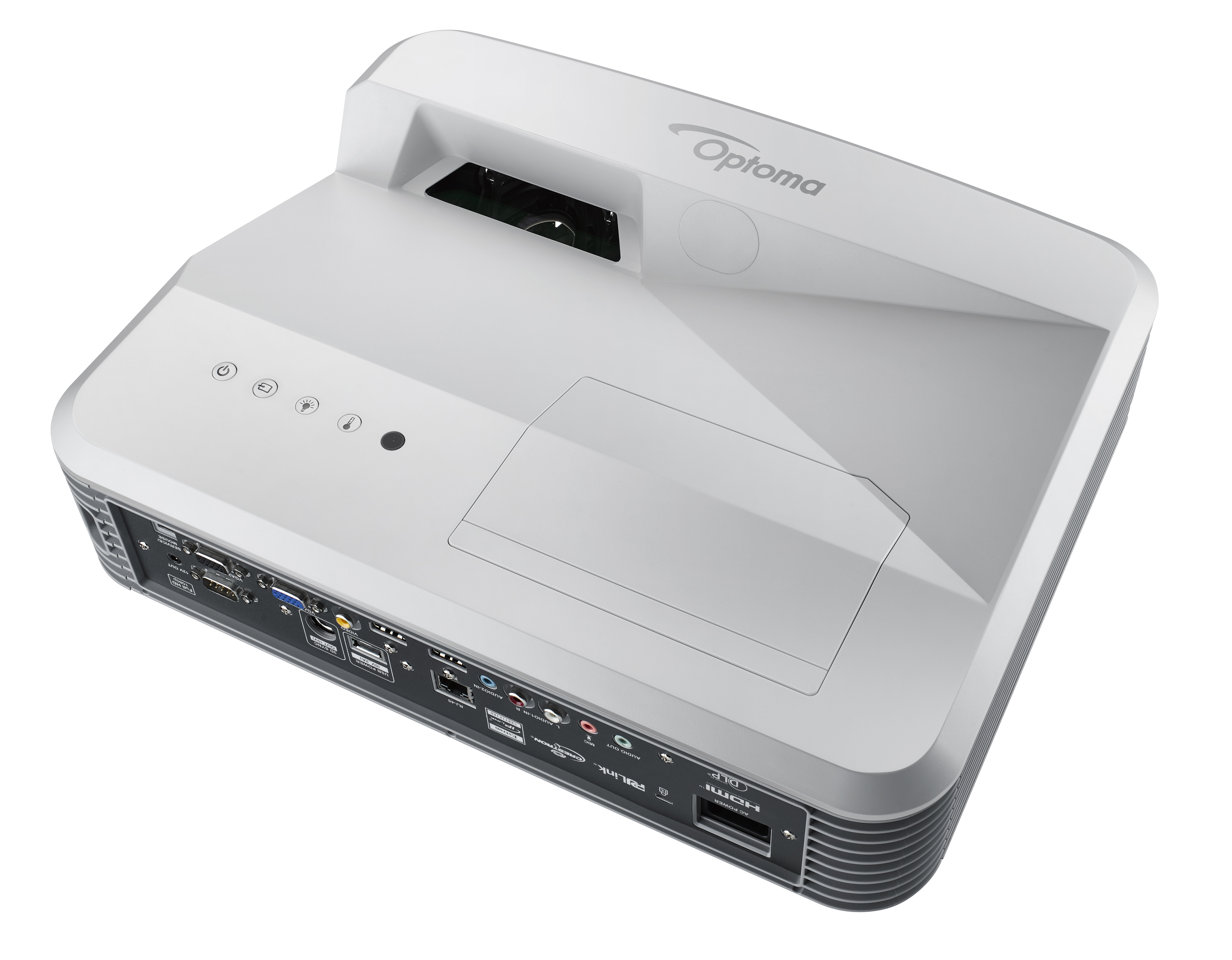

Based on DLP technology, the Optoma W319USTir projects images in a Whiteboard environment, with technical specs listing 3300 ANSI lumens, a contrast of 18000:1 and a WXGA 1280 x 800 resolution. The manufacturer rates the durability of the included lamp at 4500 hours, which amounts to roughly 6.2 years at 2 hours of daily use. A look at the light output reveals: The 3300 ANSI lumens are sufficient to illuminate an image width of up to 584 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 389 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. The projector was released in 2016 and is officially no longer distributed by Optoma.
Display Type
1 x 0,65" DC3 DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3300
Screen
1320 Lux (200 cm Screen width)
Contrast
18000:1 full on/off
18000:1 full on/off
Black Level
0,1833 min. Lumen
0,073 min. Lumen
Offset
65% 19 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Whiteboard | Training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Calculated brightness quality The screen width may also be larger. Perfect
54 cm (no Zoom)
Lux:
1320 Lux
Contrast:
18000:1
Candela pro m²:
421 cd/m²
Foot-Lamberts:
123 fL
81 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,4 f=3,72mm
Throw Ratio
0,27:1
Audio
-

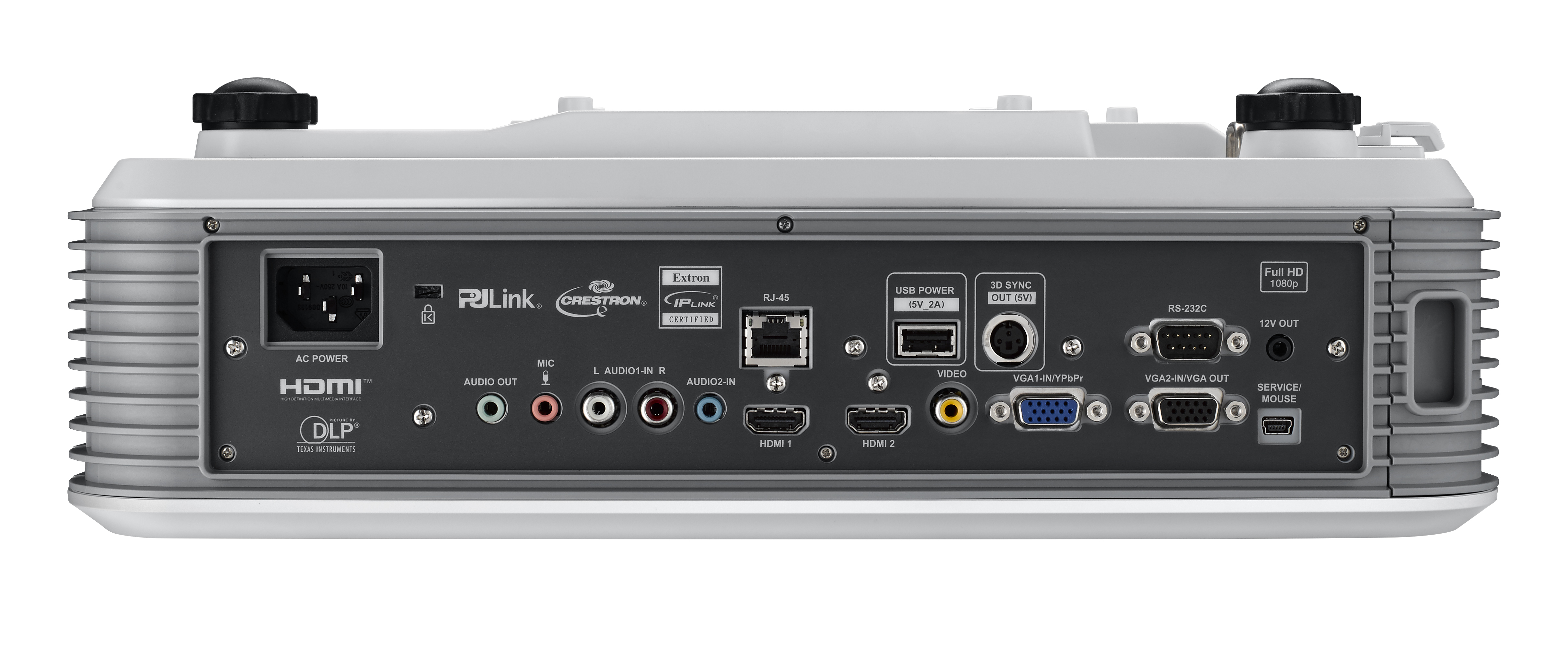

Connections
2 x HDMI 1.4a in
1 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
12V Trigger out
Maus Port
Real Full HD 3D Full HD 1080P compatible Eco Mode Kensington Slot Password protection PJLink™ Lan network compatible. Short-throw projector Crestron®-Software compatible. Whiteboard function, interactive IR pen technology.
Real Full HD 3D
