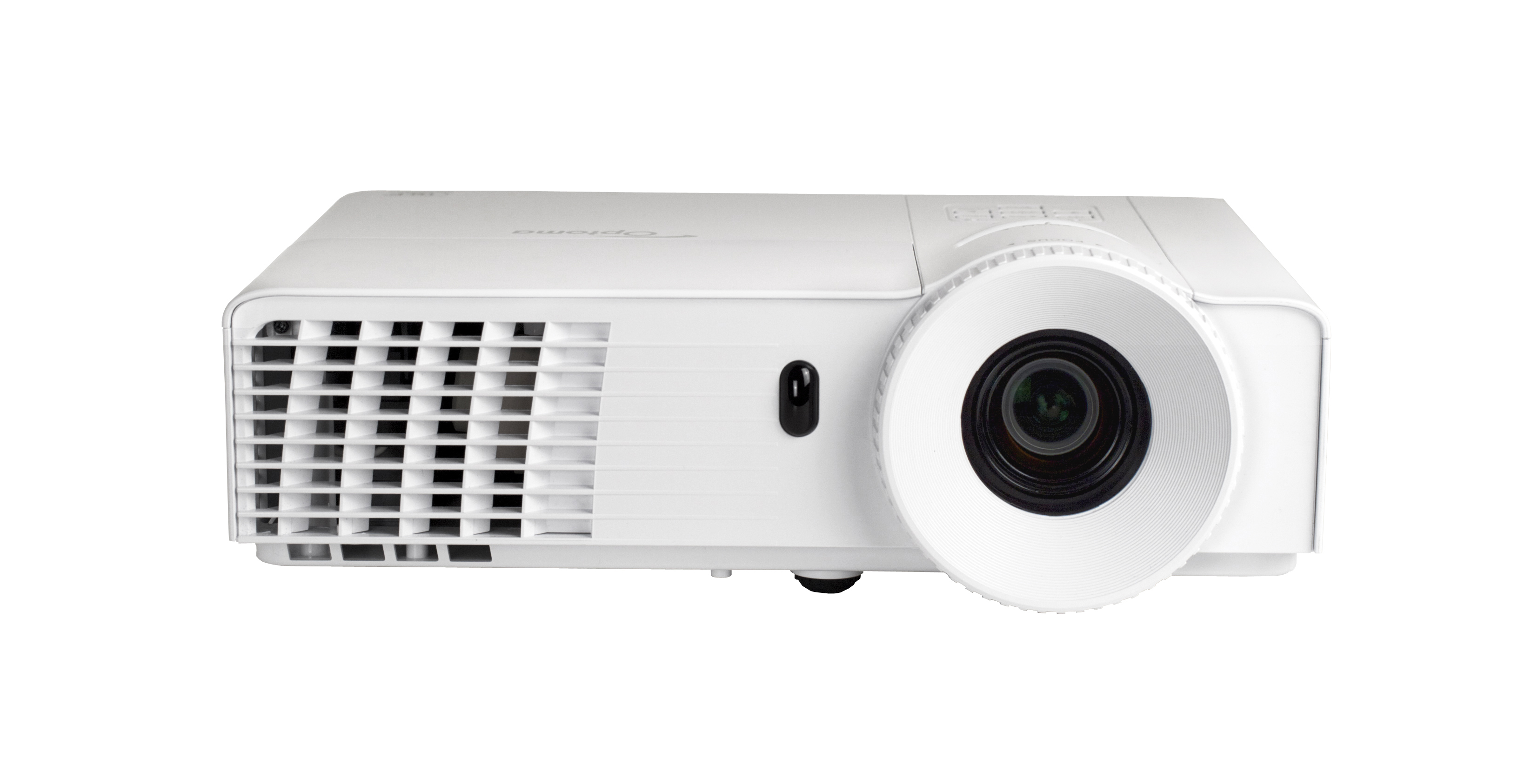

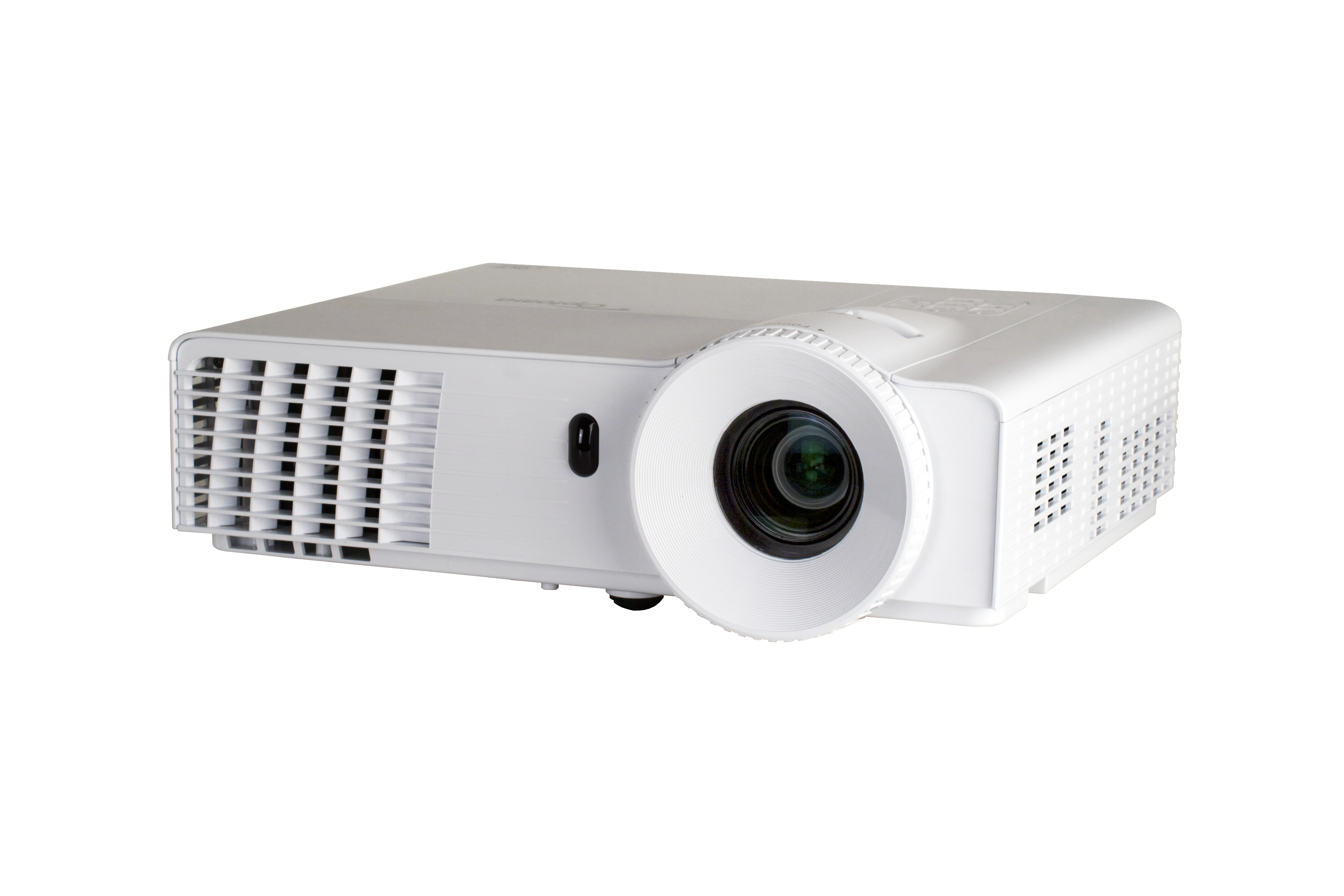

A brief introduction to the Optoma TX635 3D. The standard portable DLP projector has an XGA 1024 x 768 resolution and a contrast of 10000:1. As the TX635 3D is equipped with a microphone jack plug and 10W speakers, no additional audio system is required for presentations or training courses. The projector can illuminate a screen width of 515 cm well. The projector can manage rooms with residual light with a smaller image width, we recommend a maximum of 343 cm here. Furthermore, the projector can play 1080P without any problems. The operating noise of just 30 decibels makes the projection quiet. The projector was launched in 2012 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,3500 min. Lumen |
0,117 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
240W Lamp
Article Nr.: BL-FP240B
|
|
| Light Life |
3000 h. 6000 h. in eco Mode |
| Operating Costs |
|
|
320 - 384 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|

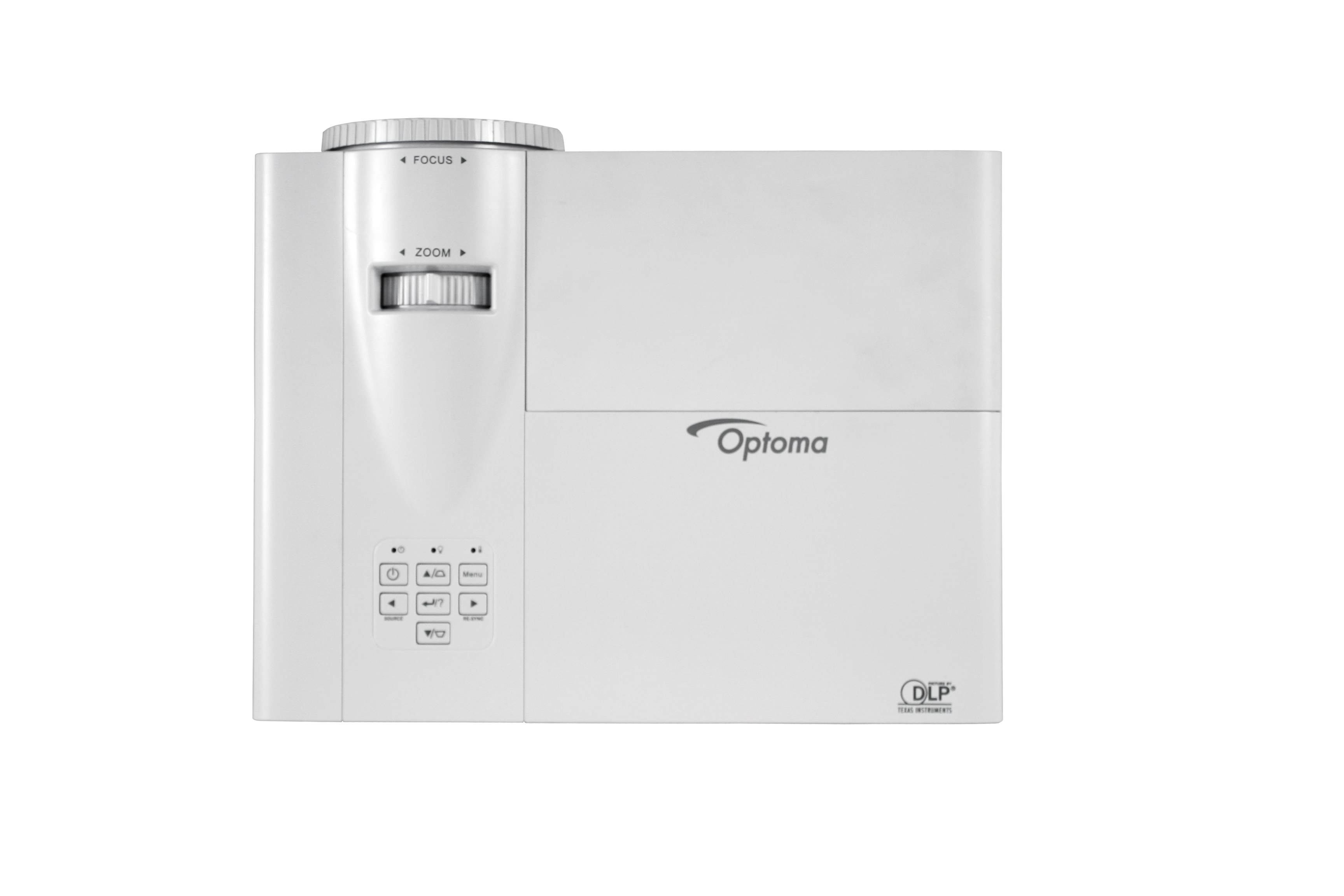

| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,4-2,66 f=18,2-21,8 mm |
| Throw Ratio |
1,6-1,92:1 show |
| Audio |
10W |

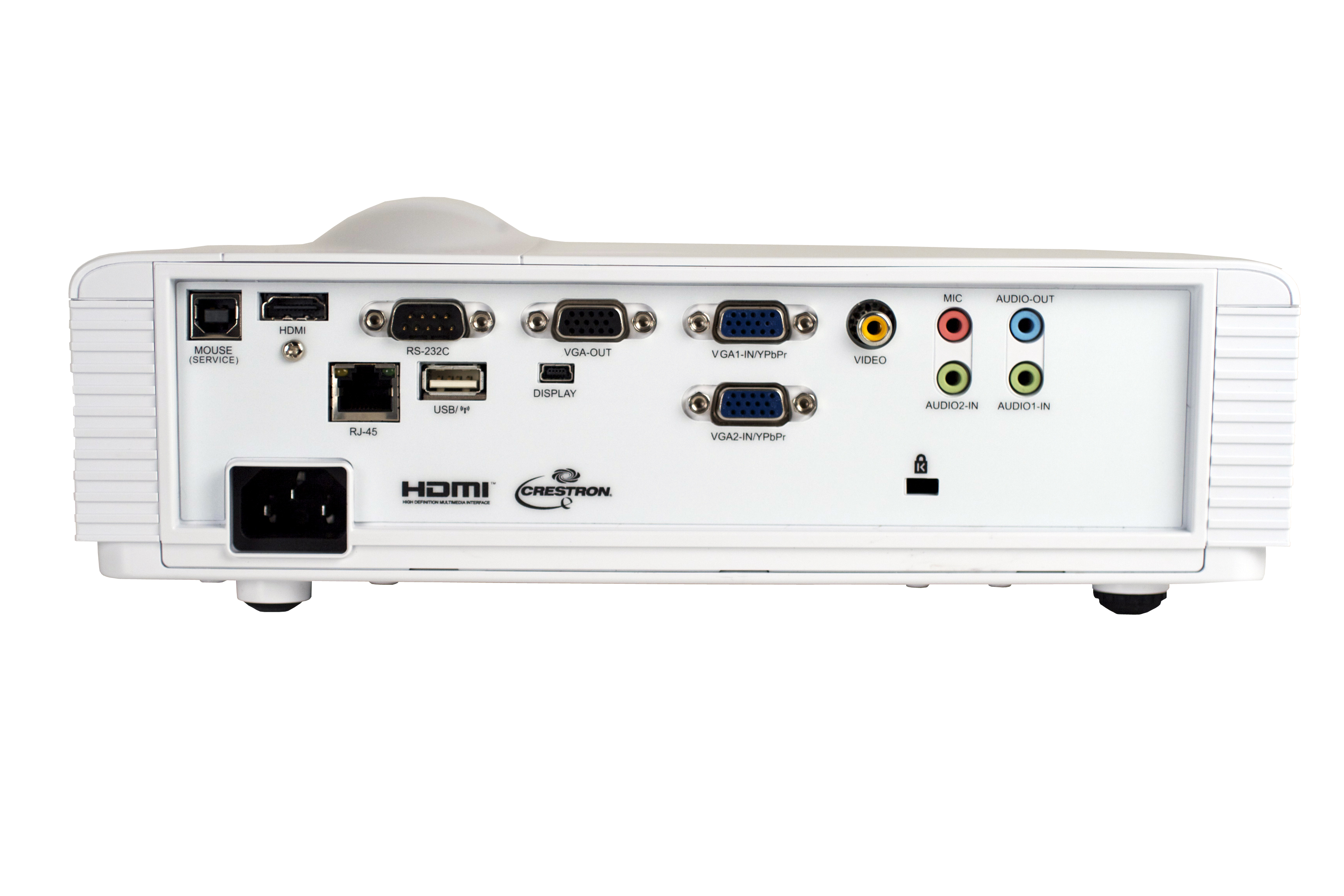

| Connections |
HDMI 1,3
2 x D-sub 15 pin in 1 x out
USB Typ B, A
Mikrofon in
Mini Jack Audio in und out
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
328 / 247W in Eco Mode |
| Size WxHxD |
-
|
| Operating Noise |
30 / 28 dB in Eco Mode |
|
| Weight |
- |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 24-120 kHz
V-sync: 15,3-91,1 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Remote control with laser pointer und mouse control
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma TX635 3D compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
0 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
99 |
Power cons.: |
|
96 |
| Picture Total Points: | 47 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3479 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
