Brief Introduction
Beta 2.5 |
The Optoma model 4K550ST is a DLP projector with 4KESHIFT 2560 x 1600 4,096,000 pixel resolution and a contrast of 10000:1. The projector also offers a lens shift function that makes image adjustment childs play. 584 cm image width, the projector will be able to illuminate well. The projector can create rooms with residual light with a smaller image width, we would recommend a maximum of 389 cm here. With the HDMI MHL port, the smartphone image can be transmitted to the projector in Full HD at 60 Hz by screen mirroring and the smartphone is charged at the same time. It is also compatible with Full HD 1080P and 4K as well as 3D, meaning that all Blu-ray formats currently available can be recognized by the projector. It was launched in 2018 and is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x 0,66" DMD DLP Chip
4KESH 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4500 |
Screen |
1500 Lux (200 cm Screen width) |
| Contrast |
10000:1 |
10000:1
|
| Black Level |
0,4500 min. Lumen |
0,15 min. Lumen |
| Lens shift |
Vert.: +65% --50%
|
| Resolution |
4KESHIFT 2560 x 1600 4.096.000 Pixel
(4K+3K+) 5120 x 3200 mit E-Shift
UHD (4K+2K) 4096 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |

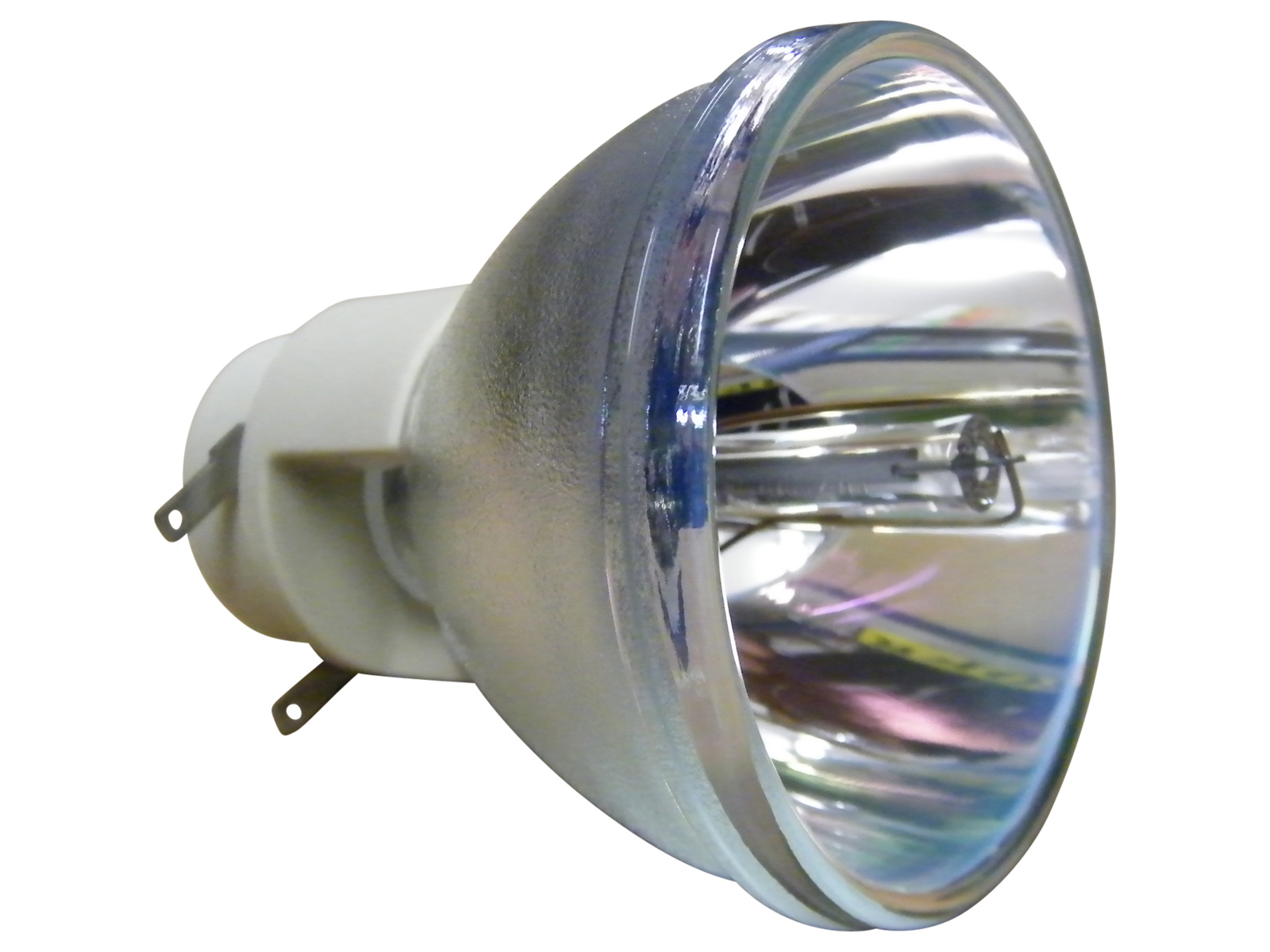

| Light Source |
330W Lamp
Article Nr.: BL-FU330C / SP.7C101GC01
|
|
| Light Life |
3000 / 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
156 cm (no Zoom)
|
 |
|
Lux: |
1500 Lux |
|
Room light max.: |
300 Lux |
|
Candela pro m²: |
476 cd/m² |
|
Foot-Lamberts: |
139 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,5 f=11,66mm |
| Throw Ratio |
0,78:1 |
| Audio |
2 x5W |

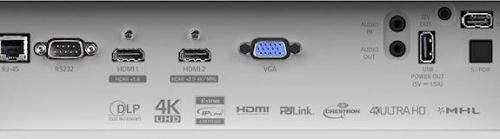

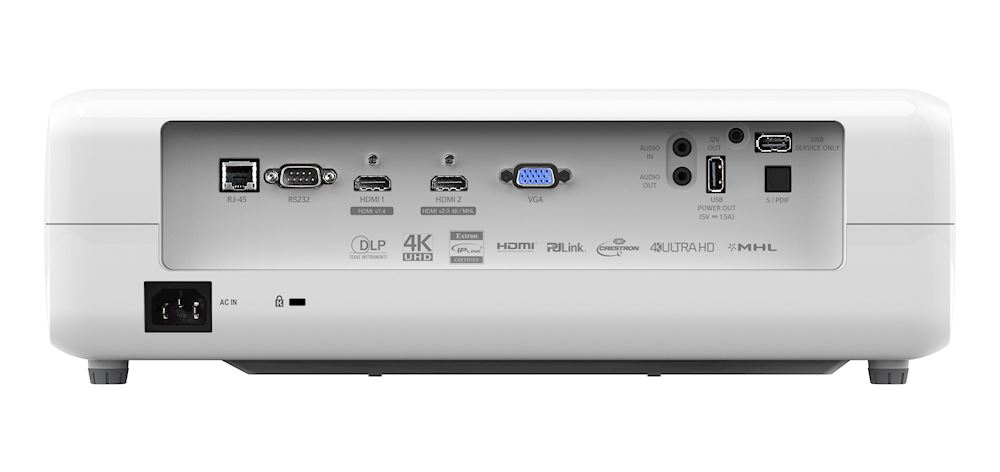

| Connections |
2 x HDMI in MHL
D-sub 15pin in
12V Trigger out
SPDIF
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
461W/ 331W in Eco Mode |
| Size WxHxD |
392 x 129 x 281 mm (15,4"x5,1"x11,1") 14,21 L/dm³
|
| Operating Noise |
32dB |
|
| Weight |
5,80 kg / 11,02 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 31-135 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
139 fL
/ max. 584 cm screen width |
| Candela m² |
476 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
AMX
|
|
über HDMI MHL |
In Comparison
The Optoma 4K550ST compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
44 |
Weight: |
|
97 |
| Contrast: |
|
1 |
dB: |
|
96 |
| Black level: |
|
99 |
Power cons.: |
|
95 |
| Picture Total Points: | 48 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
1332 (From: 7662) |
|
|
|
|
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2018-11-04 17:17:43
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (14.69 MB)

|
Optoma Website
