Brief Introduction
Beta 2.5 |

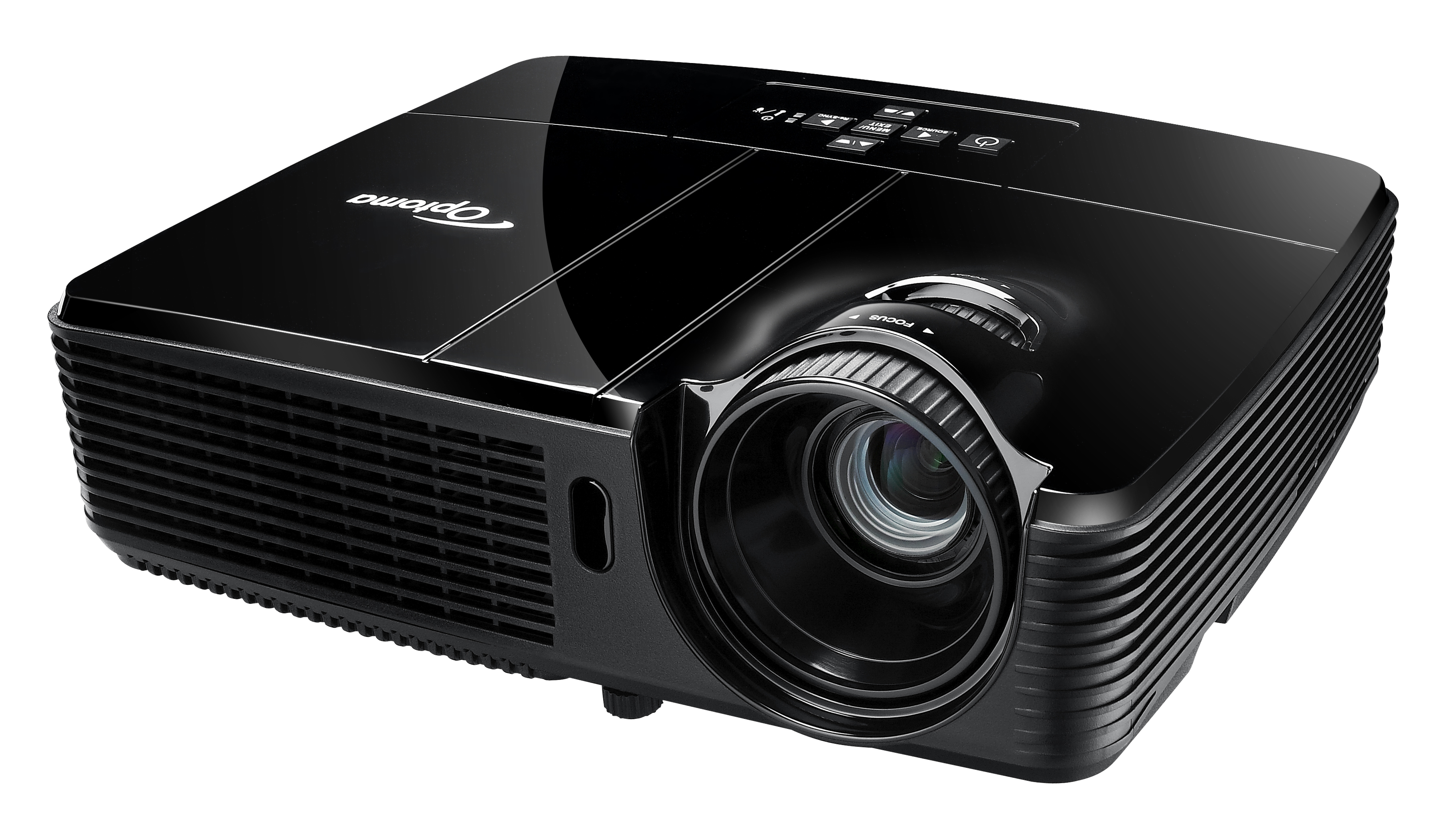

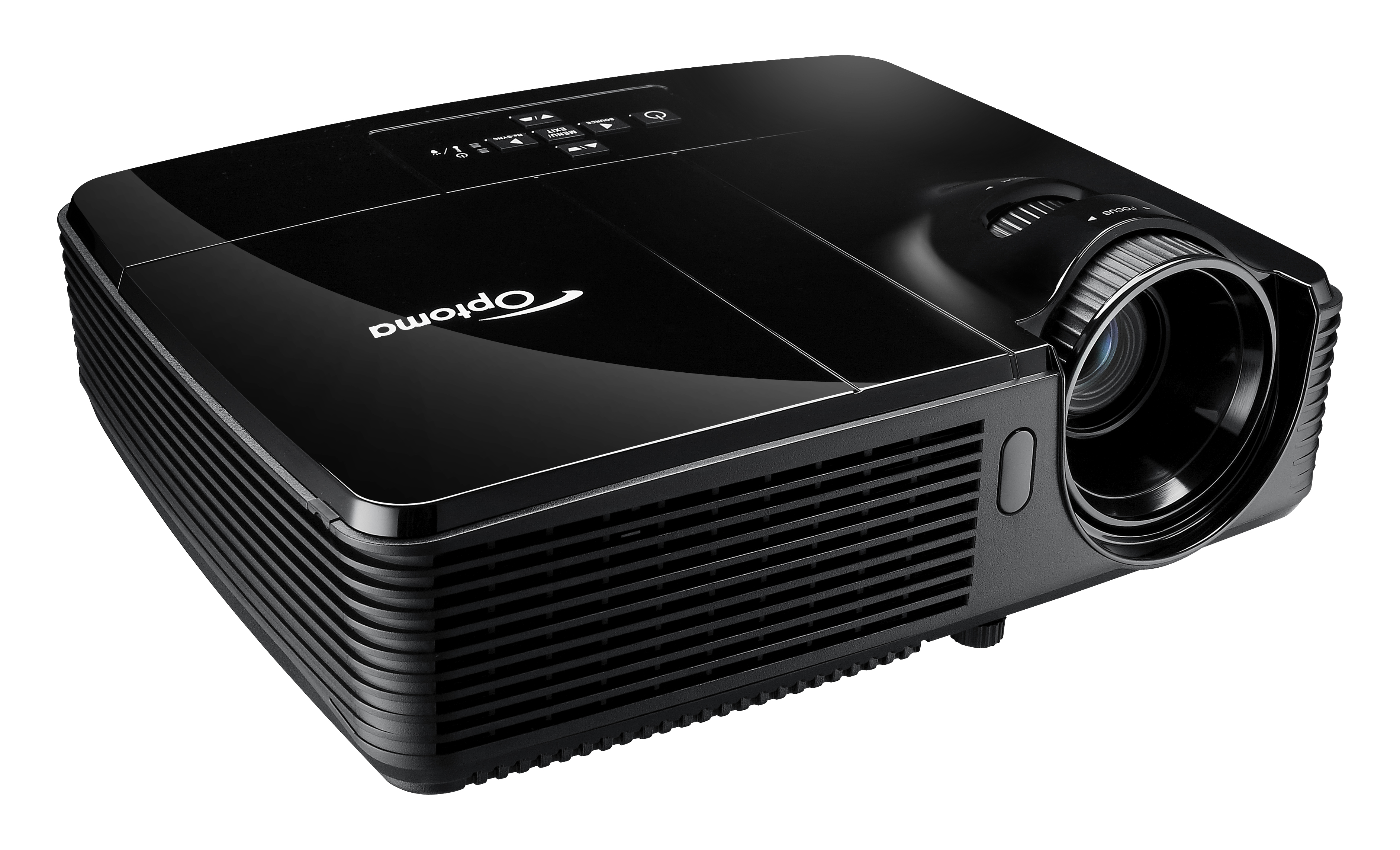

A brief introduction to the TW631 3D: The Optoma 3D BrilliantColor DLP projector offers 3500 Ansi lumens, a contrast of 8000:1 and a WXGA 1280 x 800 resolution. Thanks to the lamp, the projector has a lamp life of up to 3500 hours, which is over 4.8 years if enjoyed for two hours a day. An image width of up to 601 cm is possible as the projector has 3500 Ansi lumens. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 401 cm. Even 1080P video signals are no problem for the projector. The model was built by Optoma in 2012 and is no longer current.
|
| Display Type |
1 x 0,65" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1400 Lux (200 cm Screen width) |
| Contrast |
8000:1 full on/off |
8000:1 full on/off
|
| Black Level |
0,4375 min. Lumen |
0,175 min. Lumen |
| Offset |
62% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
| Frame Sequential (3D Ready) |
|
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

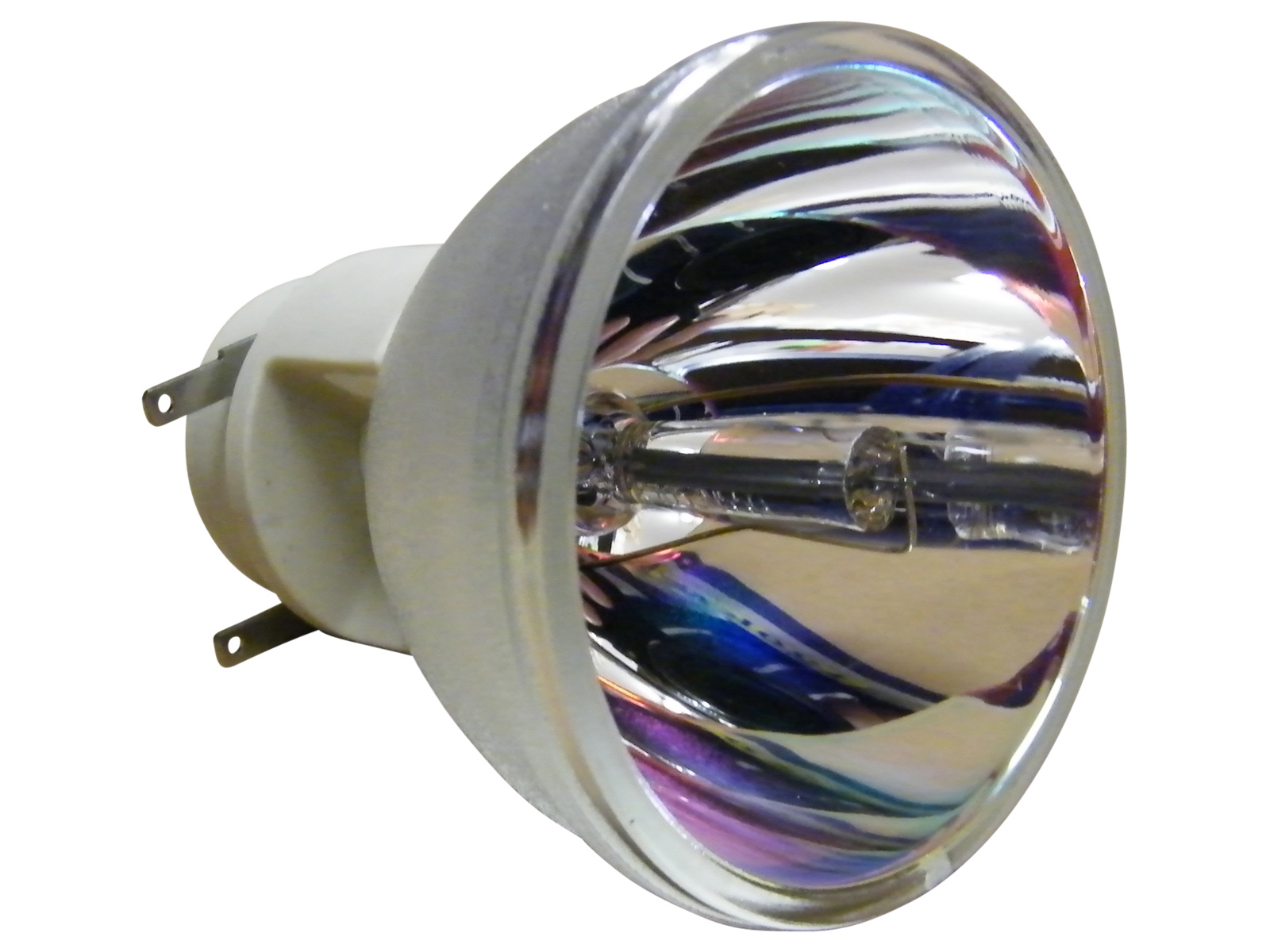

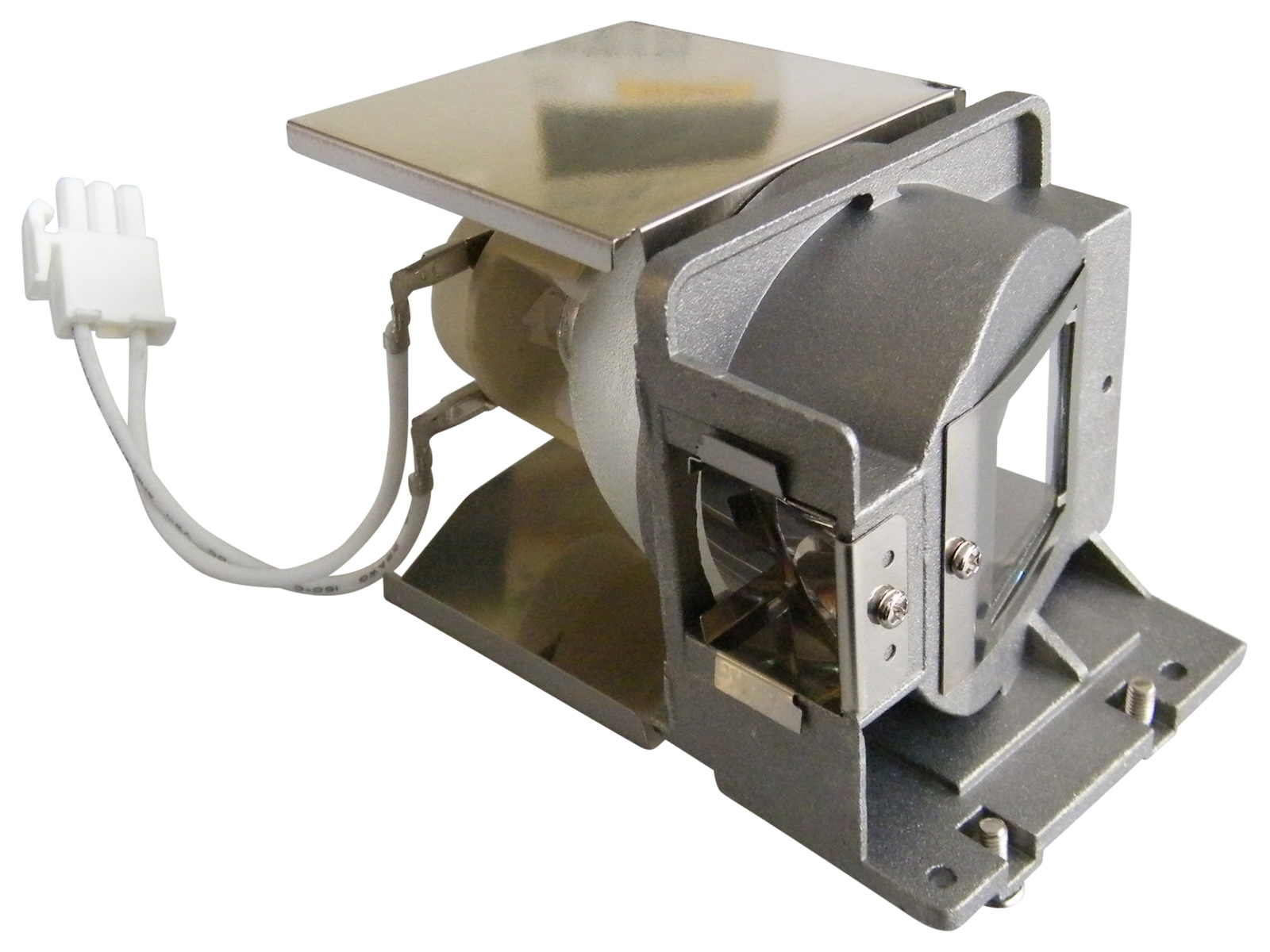

240W P-VIP Lamp
Article Nr.: BL-FP240A
|
|
| Light Life |
3500 h. 6000 h. in Eco Mode |
| Operating Costs |
-
|
|
294 - 362 cm
|
 |
|
Lux: |
1400 Lux |
|
Room light max.: |
280 Lux |
|
Candela pro m²: |
445 cd/m² |
|
Foot-Lamberts: |
130 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,23 |
| Objective |
F=2,57-2,84 f=21,0-25,6 mm |
| Throw Ratio |
1,47-1,81:1 show |
| Audio |
7W |

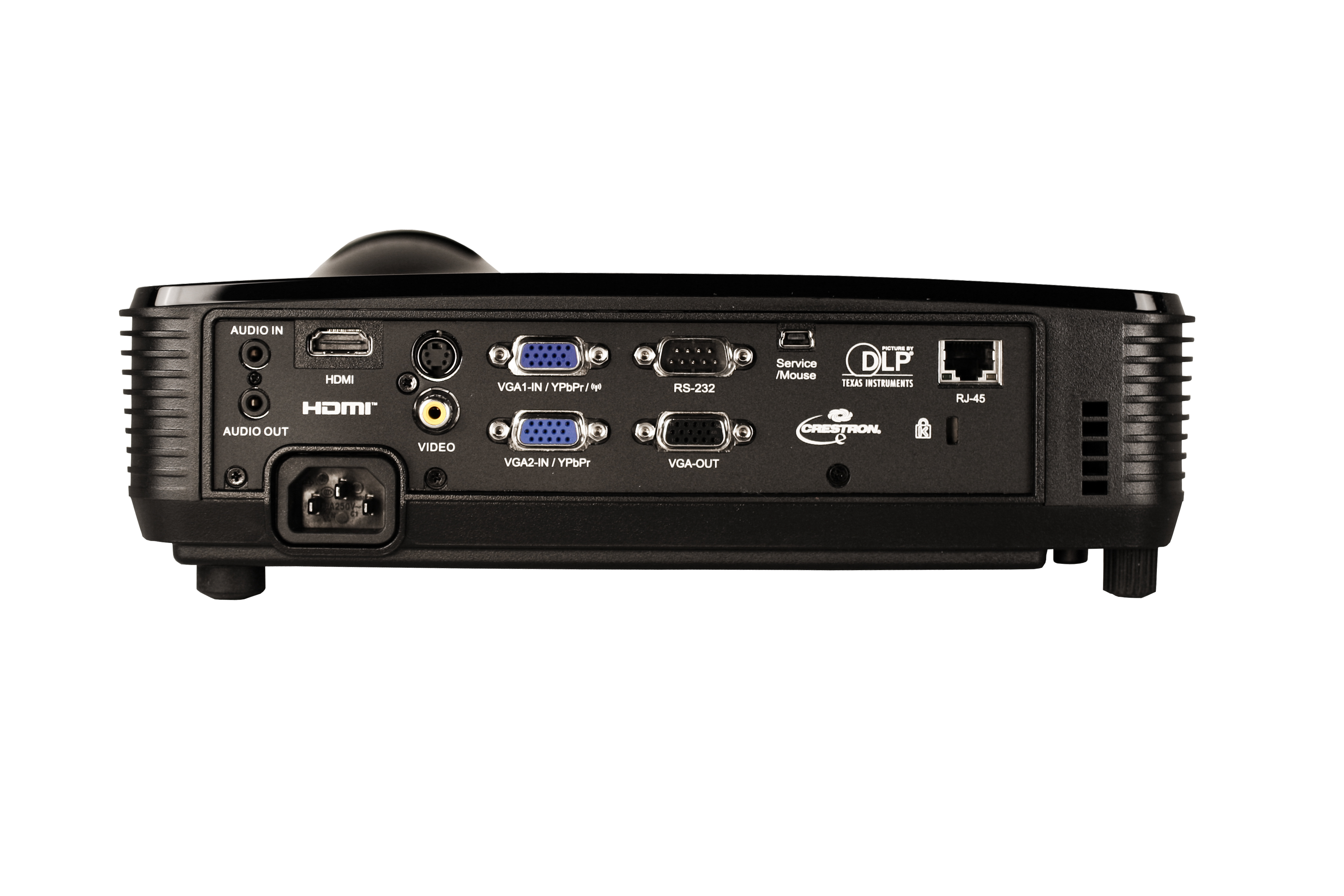

| Connections |
HDMI 1.3 in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300 / 230W in Eco Mode |
| Size WxHxD |
280 x 78,4 x 230 mm (11"x3,1"x9,1") 5,02 L/dm³
|
| Operating Noise |
31 / 29 dB in Eco Mode |
|
| Weight |
2,20 kg / 4,85 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
91,1% |
| Frequenz |
H-sync: 24-120 kHz
V-sync: 15,3 Hz
|
| Foot-Lamberts |
130 fL
/ max. 601 cm screen width |
| Candela m² |
445 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
BrilliantColor™
Remote control with laser pointer und mouse control
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma TW631 3D compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
46 |
| Black level: |
|
98 |
Power cons.: |
|
97 |
| Picture Total Points: | 47 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2752 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
