Brief Introduction
Beta 2.5 |
The X502 3D DLP has 5000 Ansi lumens, a contrast of 10000:1 and an XGA 1024 x 768 resolution. The integrated lens shift gives freedom when positioning the projector. As the X502 is equipped with a microphone jack and 16W loudspeakers, no additional audio system is required for presentations or training courses. The projector can illuminate images up to 616 cm wide thanks to its 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 411 cm is recommended. The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from the smartphone while it is being charged at the same time via the connection. The projector can also play 1080P and 3D without any problems. With only 30 decibels of operating noise, the model is already very quiet compared to others. The model was built by Optoma in 2015 and is no longer current.
|
| Display Type |
1 x 0,65" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
1667 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,167 min. Lumen |
| Lens shift |
Vert.: +65% -48,1%
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
-

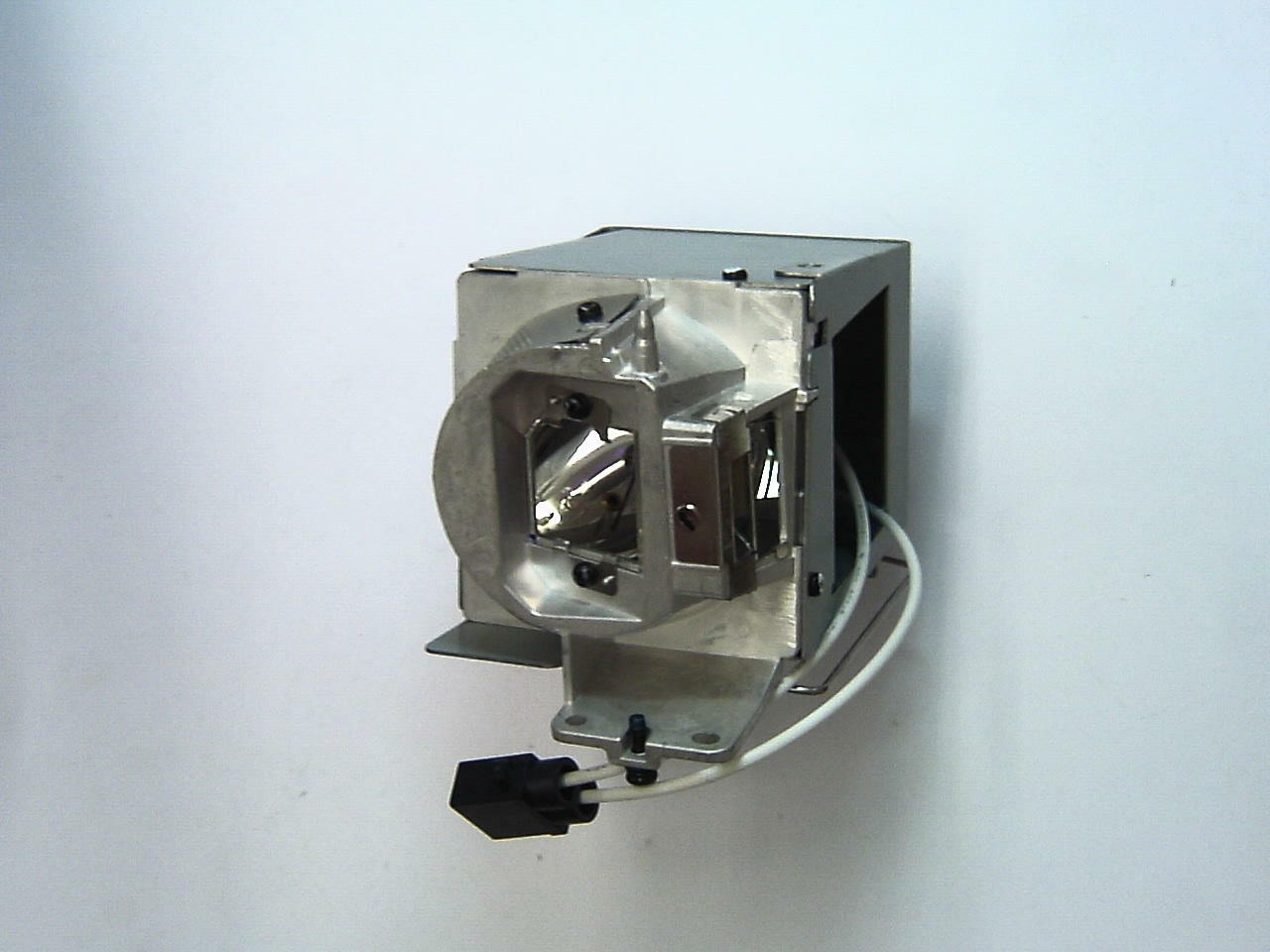

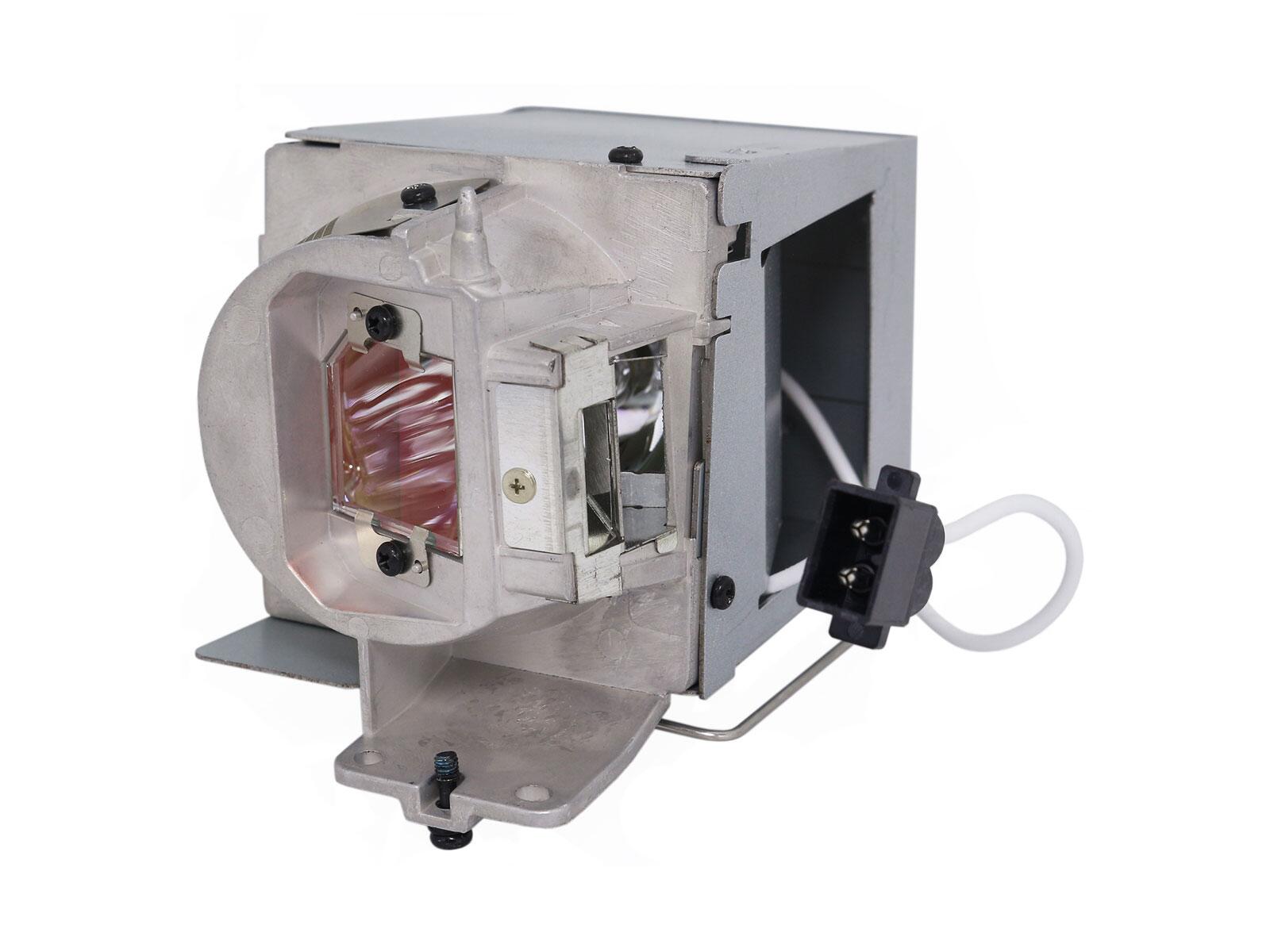

Article Nr.: SP.70B01GC01 / BL-FU310D
|
|
| Light Life |
3500 h. |
| Operating Costs |
-
|
|
370 - 588 cm
|
 |
|
Lux: |
1667 Lux |
|
Room light max.: |
333 Lux |
|
Candela pro m²: |
531 cd/m² |
|
Foot-Lamberts: |
155 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,59 |
| Objective |
- |
| Throw Ratio |
1,85-2,94:1 show |
| Audio |
2 x 16W |
| Connections |
2 x HDMI 1.4a mit MHL in
D-sub 15pin in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
Mikrofon in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
369 x 132 x 295 mm (14,5"x5,2"x11,6") 14,37 L/dm³
|
| Operating Noise |
30dB |
Key: 214 cm
Shift: 98 cm |
Key: 214 cm |
| Key: 214 cm |
| |
|
|
| Weight |
4,60 kg / 10,14 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
85% |
| Frequenz |
- |
| Foot-Lamberts |
155 fL
/ max. 616 cm screen width |
| Candela m² |
531 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
PJLink™
Lan network compatible.
Crestron®-Software compatible.
|
|
über HDMI MHL |
In Comparison
The Optoma X502 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
61 |
Weight: |
|
78 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
98 |
Power cons.: |
|
0 |
| Picture Total Points: | 53 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1813 (From: 7662) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2015-12-03 16:01:41
|
