Brief Introduction
Beta 2.5 |

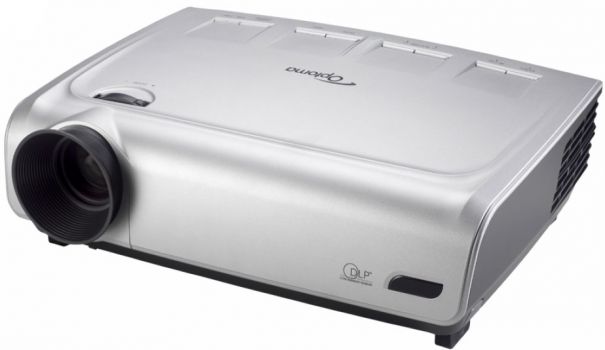

The Optoma model EzPro / EP747 is a DLP projector with XGA 1024 x 768 resolution and a contrast of 2200:1. The projector will be able to illuminate a picture width of 477 cm well. However, if room light is available, the image width should ideally not exceed 318 cm. The projector is very quiet compared to others with an operating noise of 30 decibels. The model built in 2006 is no longer offered by Optoma.
|
| Display Type |
1 x 0,7" DDR DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
2200:1 full on/off |
2200:1 full on/off
|
| Black Level |
1,3636 min. Lumen |
0,455 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
230W P-VIP Lamp
Article Nr.: BL-FP230A
|
|
| Light Life |
3000 h. in Eco Mode |
| Operating Costs |
-
|
|
400 - 480 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,4-2,6 f=28,04-35,59 mm |
| Throw Ratio |
2,0-2,4:1 show |
| Audio |
2W |

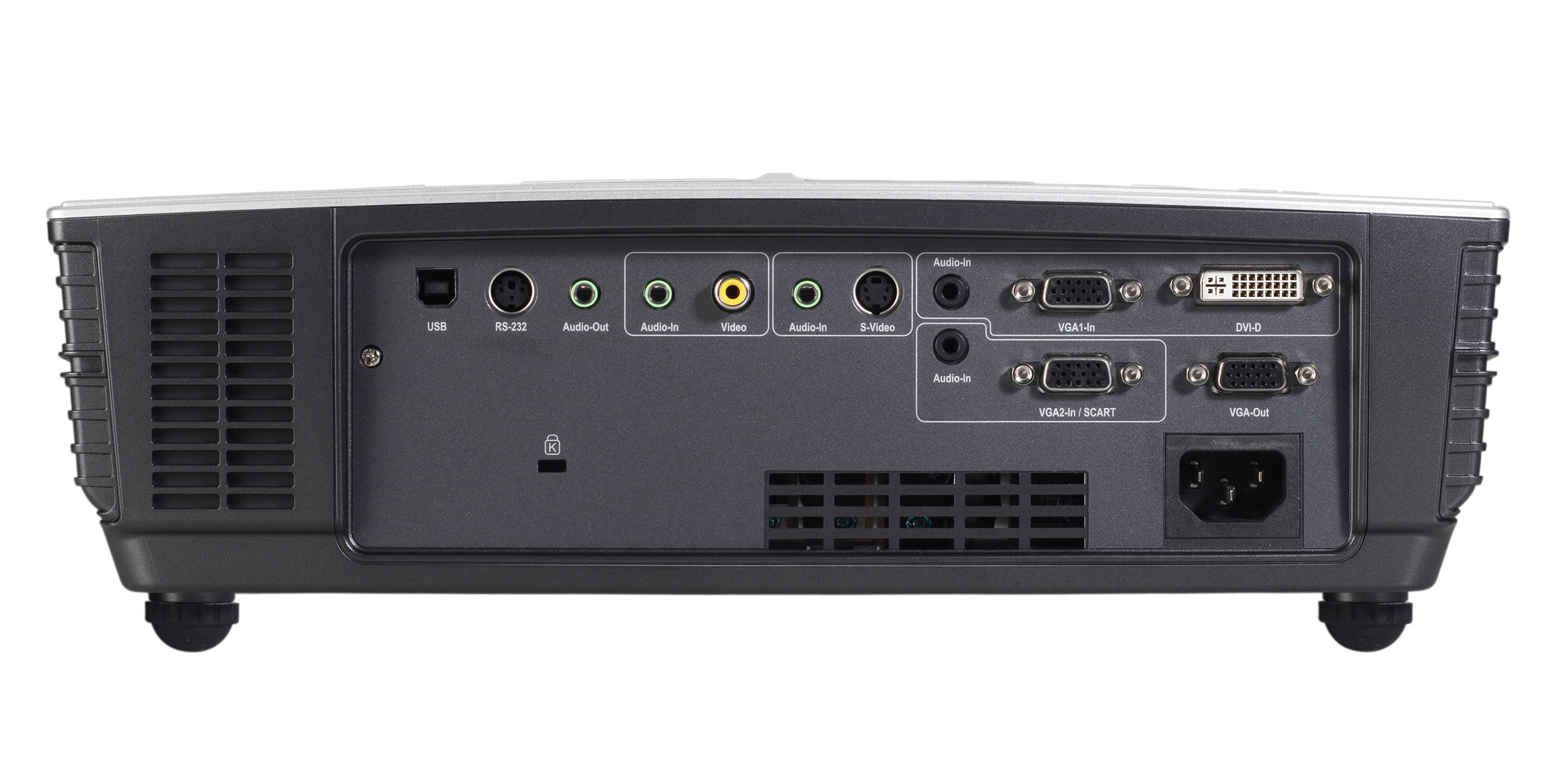

| Connections |
DVI-D mit HDCP
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
USB Maus Port
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
265W |
| Size WxHxD |
347 x 95 x 347 mm (13,7"x3,7"x13,7") 11,44 L/dm³
|
| Operating Noise |
30 / 28 dB in Eco Mode |
|
| Weight |
3,18 kg / 7,01 lbs. |
| Keystone |
Vert.: +/-16°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 43-120 Hz
|
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Password protection
Remote control with laser pointer und mouse control
|
|
- |
In Comparison
The Optoma EzPro / EP747 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
95 |
Power cons.: |
|
97 |
| Picture Total Points: | 44 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1962 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
