Brief Introduction
Beta 2.5 |

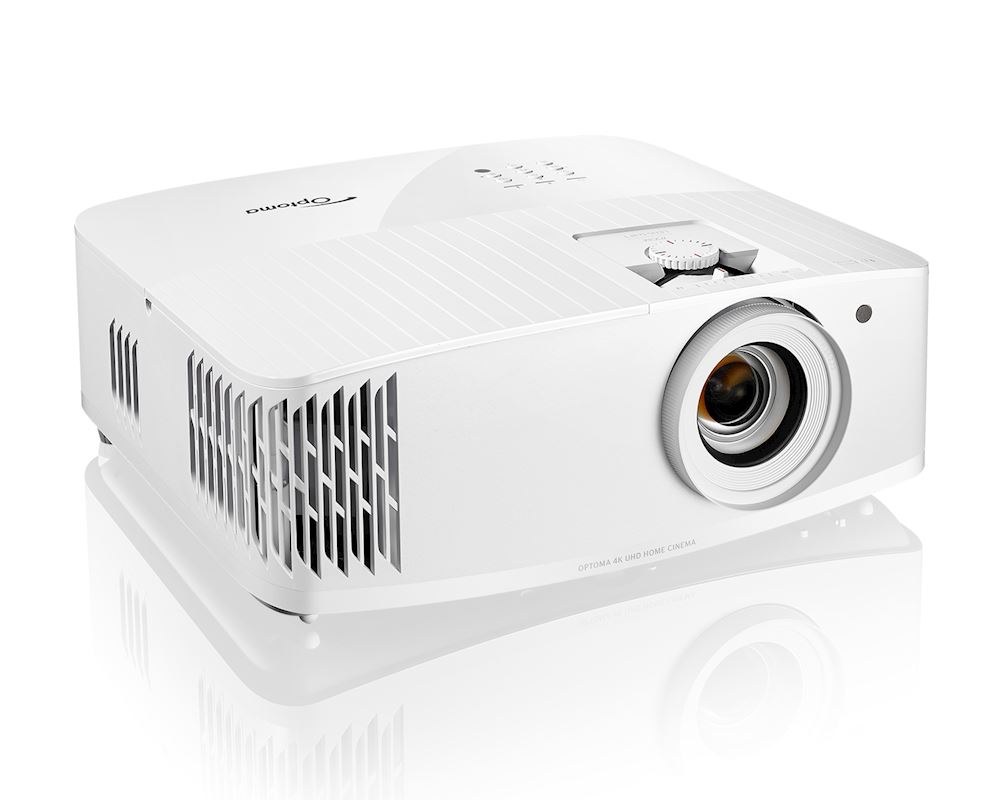

A brief introduction to the Optoma UHD3500A. The standard portable DLP projector has a UHD (4K2K) 3840 x 2160 resolution and a contrast of 1400000:1. The lamp life is up to 10000 hours, which is over 13.7 years with a daily viewing time of 2 hours. The integrated media player allows files to be played directly. With the lens shift function, the projector can be positioned very freely. Thanks to the brightness of 3600 Ansi lumens, a picture width of 610 cm is possible. The projector can also handle slightly brighter rooms with a narrower picture width (we recommend max. 407 cm). Playback of 1080P and 4K as well as 3D is also no problem for the projector, meaning that all Blu-ray formats currently on offer can be recognized by the projector. At 28 decibels, the projector is very quiet compared to other projectors.
|
| Display Type |
1 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3600 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
1400000:1 full on/off |
1400000:1 full on/off
|
| Black Level |
0,0026 min. Lumen |
0,001 min. Lumen |
| Lens shift |
Vert.: +65% --55%
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
Media player formats: Unterstützte Dateiformate
MOV
Jpeg / Jpg
PNG
BMP PowerPoint Word Excel PDF
3GP
AVI
MKV
FLV
MP4
MOV
3GP
MPEG-Transport-Stream (.ts /.trp /.tp)
ASF
WMV
AVI
MKV
MP4
MOV
MPEG-Transport-Stream (.ts /.trp /.tp)
MKV
MPEG-Programm-Stream (.DAT /.VOB /.MPG /.MPEG)
MPEG-Transport-Stream (.ts /.trp /.tp)
MP4
AVI
MKV
MP4
MOV
3GP
AVI
MKV
AVI
MP4
MOV
MP4
WMV |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
240W Lamp
Article Nr.: BR-3071N / BT16063
|
|
| Light Life |
4000 h. / 10000 h. ECO |
| Operating Costs |
|
|
242 - 318 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 73 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,31 |
| Objective |
f=12,81-16,74 mm |
| Throw Ratio |
1,21-1,59:1 show |
| Audio |
1 x 10W |

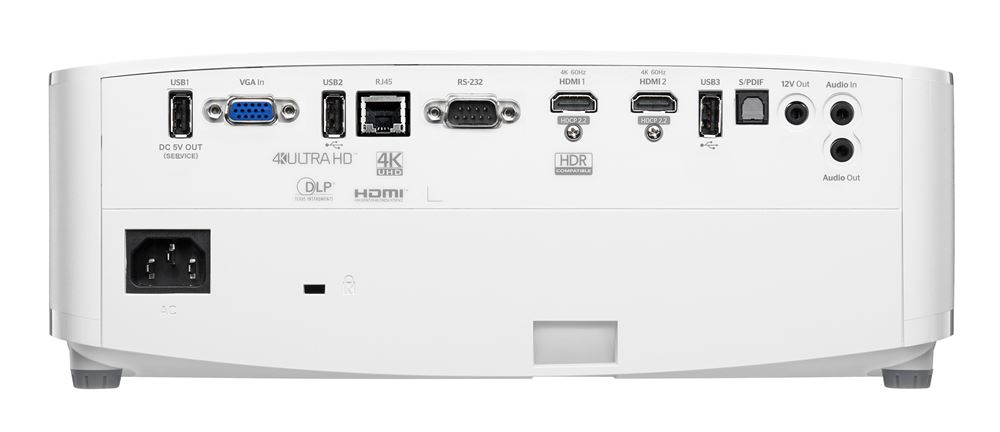

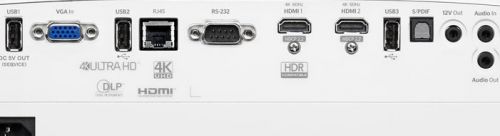

| Connections |
2 x HDMI 2.0 in
D-sub 15pin in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
1 x S/PDIF
12V Trigger
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
320 / 220W in Eco Mode |
| Size WxHxD |
315 x 118 x 270 mm (12,4"x4,6"x10,6") 10,04 L/dm³
|
| Operating Noise |
28 / 26 dB in Eco Mode |
Key: 203 cm
Shift: 73 cm |
Key: 203 cm |
| Key: 203 cm |
| |
|
|
| Weight |
3,90 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-40°
|
| Illumination |
75% |
| Frequenz |
H-sync: 31-135 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 610 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Integrated Mediaplayer
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Optional Wi-Fi network compatible.
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma UHD3500A compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
50 |
Weight: |
|
72 |
| Contrast: |
|
28 |
dB: |
|
82 |
| Black level: |
|
100 |
Power cons.: |
|
40 |
| Picture Total Points: | 59 |
Projector Total Points: | 65 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
742 (From: 7662) |
|
|
|
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2023-08-30
|
