Brief Introduction
Beta 2.5 |

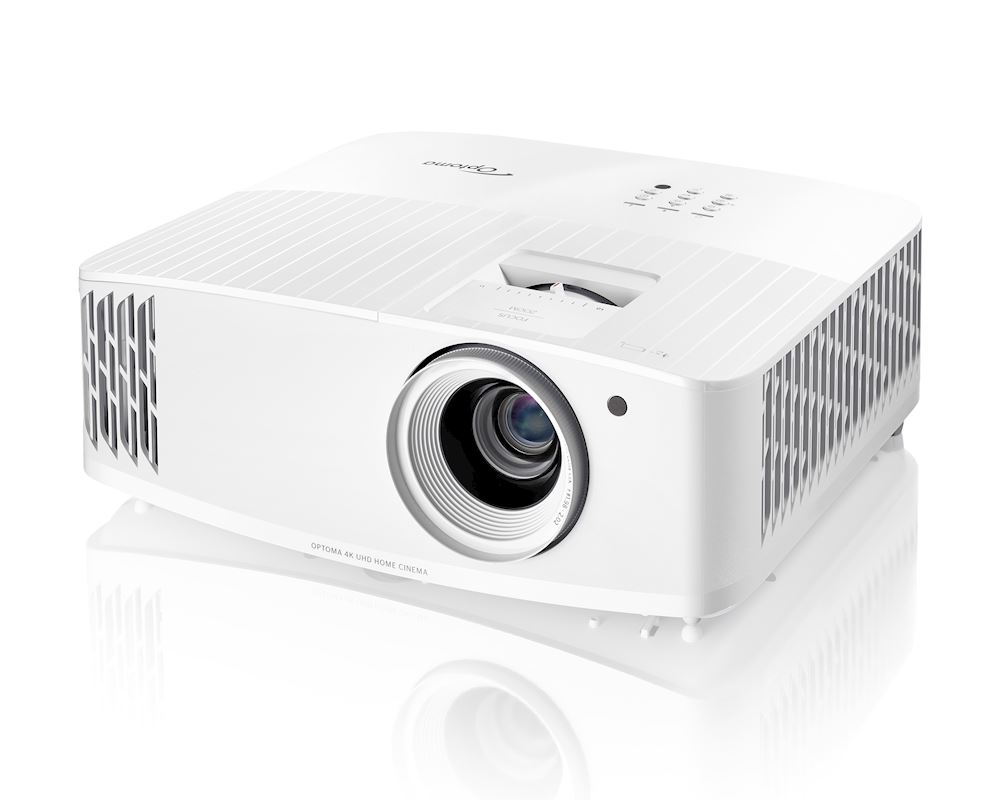

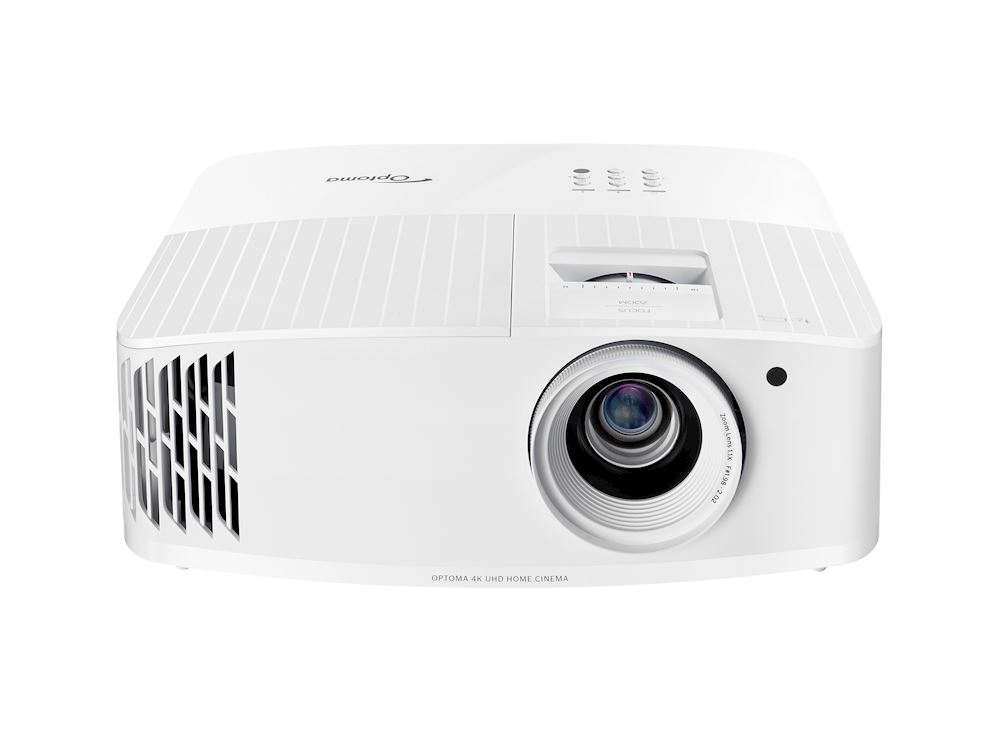

The standard Portable UHD35x 3D DLP has 3600 ANSI lumens, a contrast ratio of 1000000:1 and a UHD (4K2K) 3840 x 2160 resolution. The projectors lamp has a rated life of 10,000 hours, which would be over 13.7 years if viewed for 2 hours a day. Horizontal and vertical keystone correction makes image setup childs play. An image width of up to 610 cm is possible; if the image width is smaller (we recommend max. 407 cm), even rooms with residual light are no problem. The model is also Full HD 1080P and 4K as well as 3D compatible, meaning that all currently available Blu-ray formats can be recognized by the projector. The operating noise of only 28 decibels makes the projection quiet.
|
| Display Type |
DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3600 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
1000000:1 |
1000000:1
|
| Black Level |
0,0036 min. Lumen |
0,002 min. Lumen |
| Offset |
55% show
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
240W Lamp
Article Nr.: SP.7G6R1GR01
|
|
| Light Life |
4000 h. / 10000 h. in Eco Mode |
| Operating Costs |
|
|
300 - 332 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 62 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
f=15,84-17,42 mm |
| Throw Ratio |
1,5-1,66:1 show |
| Audio |
1 x 10W |

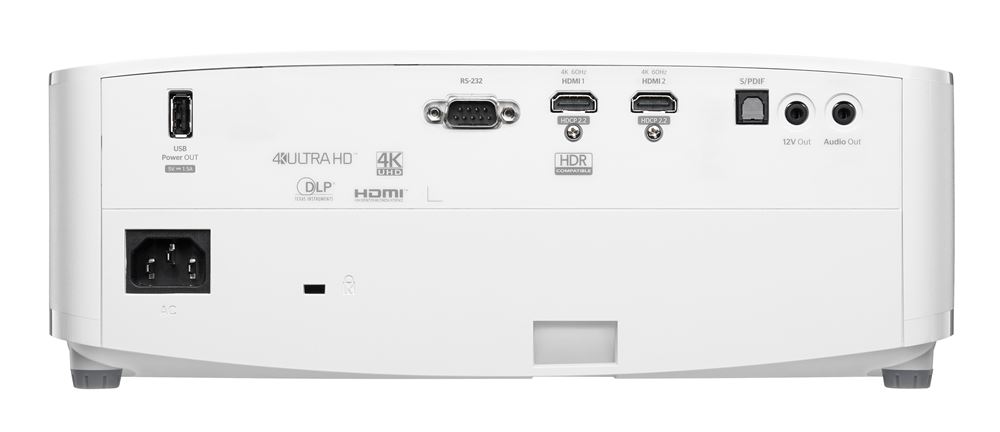

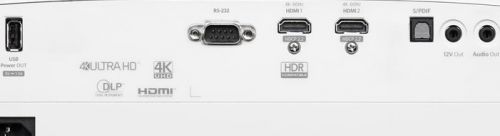

| Connections |
2 x HDMI in
SPDIF
12 V Trigger out
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
305W/220W in Eco Mode |
| Size WxHxD |
315 x 118 x 270 mm (12,4"x4,6"x10,6") 10,04 L/dm³
|
| Operating Noise |
28 / 26 dB in Eco Mode |
Key: 314 cm |
Key: 252 cm |
| Key: 252 cm |
| |
|
|
| Weight |
3,90 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 31-135 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 610 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Optional Wi-Fi network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma UHD35x compared to others current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
50 |
Weight: |
|
63 |
| Contrast: |
|
20 |
dB: |
|
80 |
| Black level: |
|
100 |
Power cons.: |
|
43 |
| Picture Total Points: | 57 |
Projector Total Points: | 62 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
132 (From: 849) |
|
|
|
|
|
| Status |
2022 Current model // Last update of the data: 2024-11-01
Created: 2022-09-27 11:40:24
|
