Brief Introduction
Beta 2.5 |

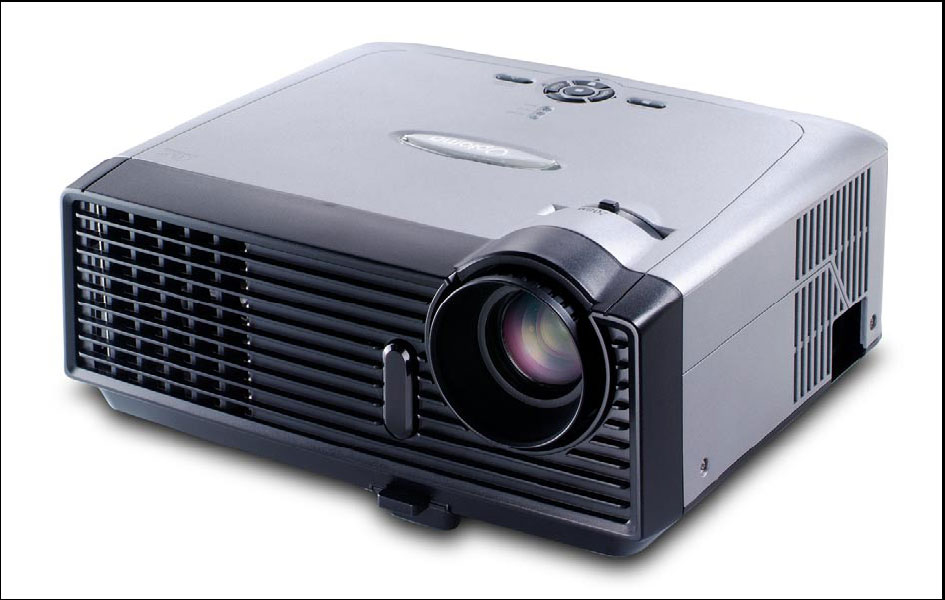

The standard portable TX700 DLP has 2200 Ansi lumens, a contrast of 2500:1 and an XGA 1024 x 768 resolution. An image width of up to 408 cm is possible. However, the image should be smaller in room light. We recommend max. 272 cm. With only 28 decibels of operating noise, the model is already very quiet compared to others. The projector was launched in 2006 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" DDR DC2 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2200 |
Screen |
733 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
0,8800 min. Lumen |
0,294 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
200W UHP Lamp
Article Nr.: BL-FU180A / SP.82G01.001/SP.82G01GC01
|
|
| Light Life |
2000 h. 3000 h. inEco Mode |
| Operating Costs |
|
|
386 - 426 cm
|
 |
|
Lux: |
733 Lux |
|
Room light max.: |
147 Lux |
|
Candela pro m²: |
233 cd/m² |
|
Foot-Lamberts: |
68 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,7-3,0 f=21,83-23,81 mm |
| Throw Ratio |
1,93-2,13:1 show |
| Audio |
1 x 2W Mono |

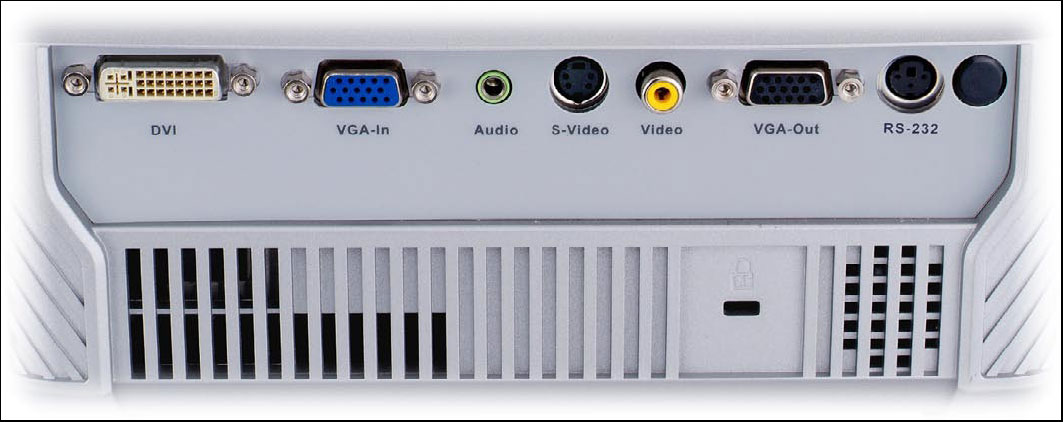

| Connections |
DVI-D mit HDCP
D-sub 15pin in und out
S-Video in
Cinch Video
Mini Jack in
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
265W / 15W standby |
| Size WxHxD |
230 x 95 x 210 mm (9,1"x3,7"x8,3") 4,59 L/dm³
|
| Operating Noise |
28dB |
|
| Weight |
1,90 kg / 4,19 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 56-85 Hz
|
| Foot-Lamberts |
68 fL
/ max. 408 cm screen width |
| Candela m² |
233 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Password protection

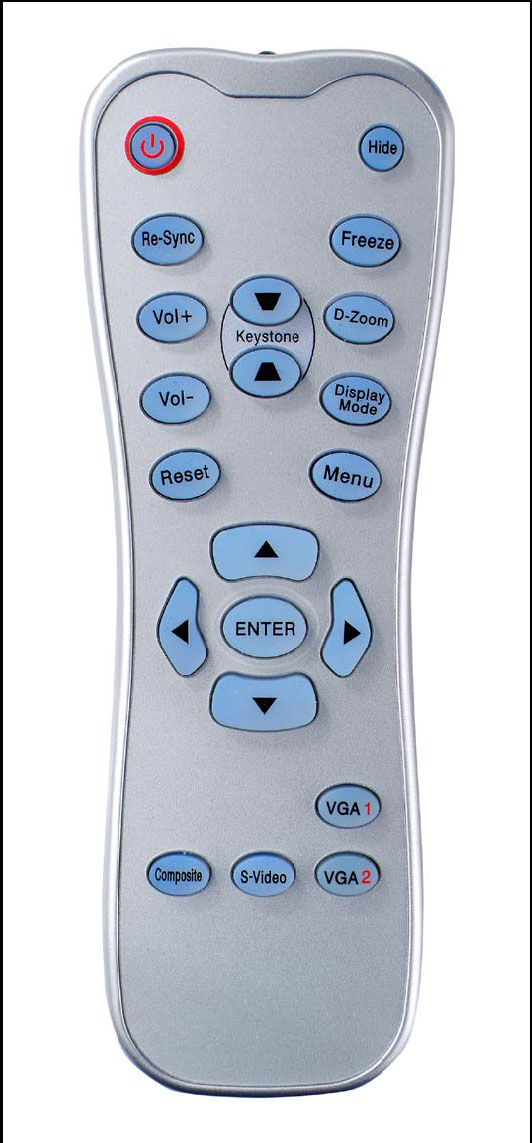

Remote control with backlight
De-interlacer with 3:2 2:2 pull down
Digital Zoom
|
|
- |
In Comparison
The Optoma TX700 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
26 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
54 |
| Black level: |
|
97 |
Power cons.: |
|
97 |
| Picture Total Points: | 41 |
Projector Total Points: | 81 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5595 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
Product Sheet Quick Start Guide
Product Sheet USA
Product Sheet USA 2
User Manual english (2.66 MB)

|
Optoma Website
