Brief Introduction
Beta 2.5 |
With the EH461, manufacturer Optoma offers a standard portable DLP projector with HDTV 1920 x 1080 resolution and a contrast of 20000:1. The horizontal and vertical keystone correction provides leeway when setting up. 5000 Ansi lumens ensure that a picture width of 718 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. It is also Full HD 1080P and 3D compatible. With only 29 decibels of operating noise, the model is already very quiet compared to others. The model built in 2019 is no longer offered by Optoma, but is still very popular in our projector database.
|
| Display Type |
1 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2500 min. Lumen |
0,111 min. Lumen |
| Offset |
65% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
285W Lamp
Article Nr.: BL-FP285A / DE.5811122606-SOT
|
|
| Light Life |
2500 h. 3500 h. in Eco Mode |
| Operating Costs |
-
|
|
244 - 292 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 73 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
f=16,8-21,87 mm |
| Throw Ratio |
1,22-1,46:1 show |
| Audio |
10W |

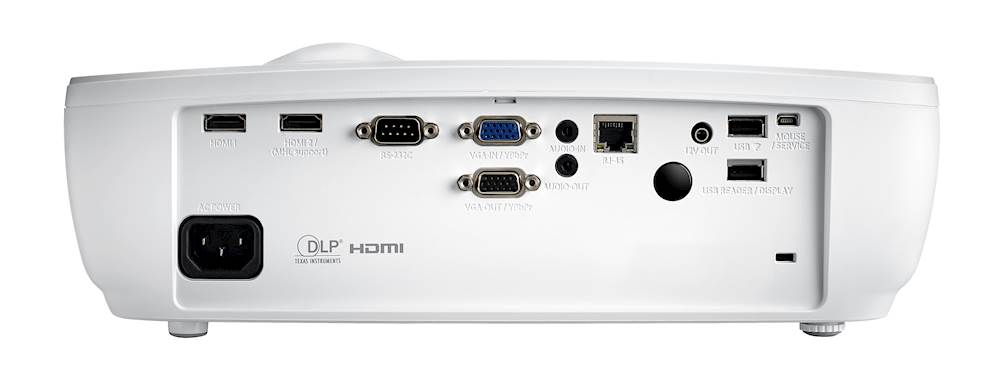

| Connections |
2 x HDMI 1.4a in
D-sub 15pin in und out
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
350W 290W in Eco Mode |
| Size WxHxD |
345 x 109 x 216 mm (13,6"x4,3"x8,5") 8,12 L/dm³
|
| Operating Noise |
29dB |
Key: 214 cm |
Key: 114 cm |
| Key: 114 cm |
| |
|
|
| Weight |
2,95 kg / 6,5 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-25°
|
| Illumination |
75% |
| Frequenz |
H-sync: 15,375-911 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
Password protection
Remote control with laser pointer und mouse control
Remote control with backlight
Optional Wi-Fi network compatible.
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma EH461 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
61 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
51 |
| Black level: |
|
99 |
Power cons.: |
|
96 |
| Picture Total Points: | 54 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
24 |
| Ranking: |
80 (From: 7662) |
|
|
|
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2023-08-04
|
