Brief Introduction
Beta 2.5 |
With the TX540, manufacturer Optoma offers a DLP projector with XGA 1024 x 768 resolution and a contrast of 2500:1. The manufacturer Optoma specifies a lamp life of 4000 hours, which is over 5.5 years with a daily viewing time of 2 hours. Thanks to the brightness of 2500 Ansi lumens, a picture width of 435 cm is possible. In room light, the image should be max. 290 cm wide. Furthermore, the projector can play 1080P without any problems. With only 29 decibels of operating noise, the model is very quiet compared to others. On the market since 2009, the model is no longer offered by the manufacturer Optoma.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,334 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |

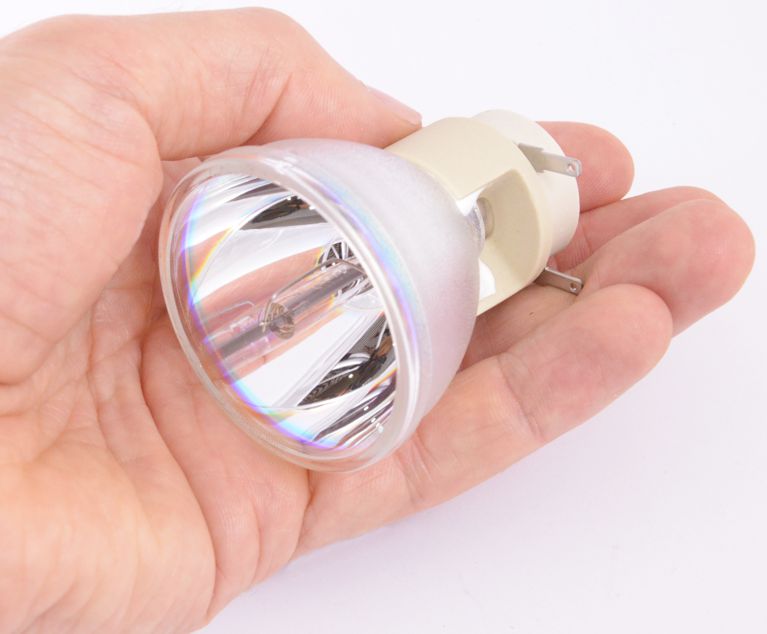

| Light Source |
180W P-VIP Lamp
Article Nr.: BL-FP180E / SP.8EF01GC01
|
|
| Light Life |
4000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
320 - 384 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,41-2,66 f=18,2-21,8 mm |
| Throw Ratio |
1,6-1,92:1 show |
| Audio |
2 x 5W |
| Connections |
HDMI
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
RS232C
RJ45
Mini Jack Audio in und out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
232W |
| Size WxHxD |
324 x 97 x 234 mm (12,8"x3,8"x9,2") 7,35 L/dm³
|
| Operating Noise |
29 / 27 dB in Eco Mode |
|
| Weight |
2,90 kg / 6,39 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 25-85 Hz
|
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
Password protection
Remote control with laser pointer
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma TX540 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
51 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 42 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
3068 (From: 7662) |
|
|
|
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-04
|
