Brief Introduction
Beta 2.5 |

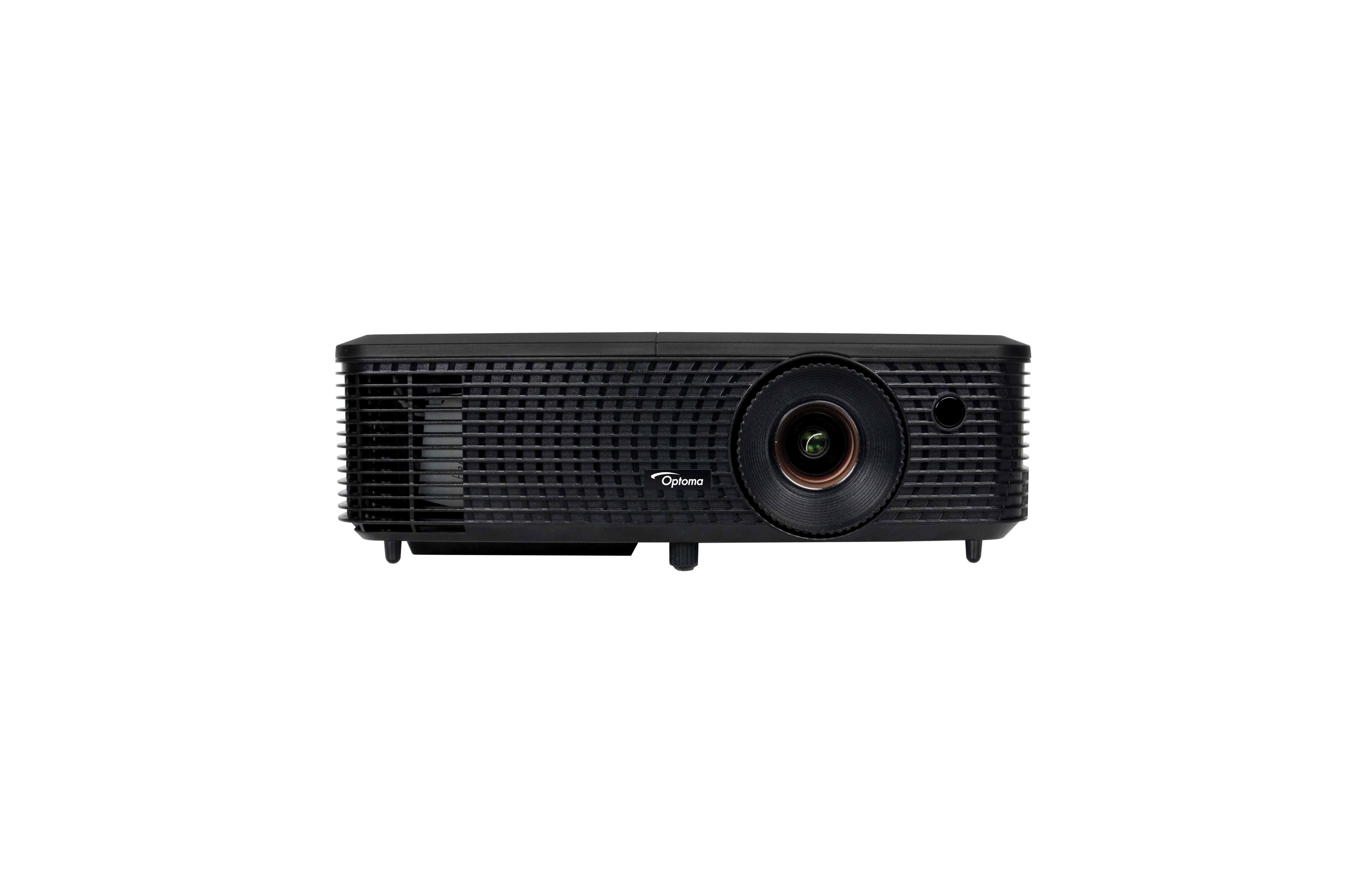

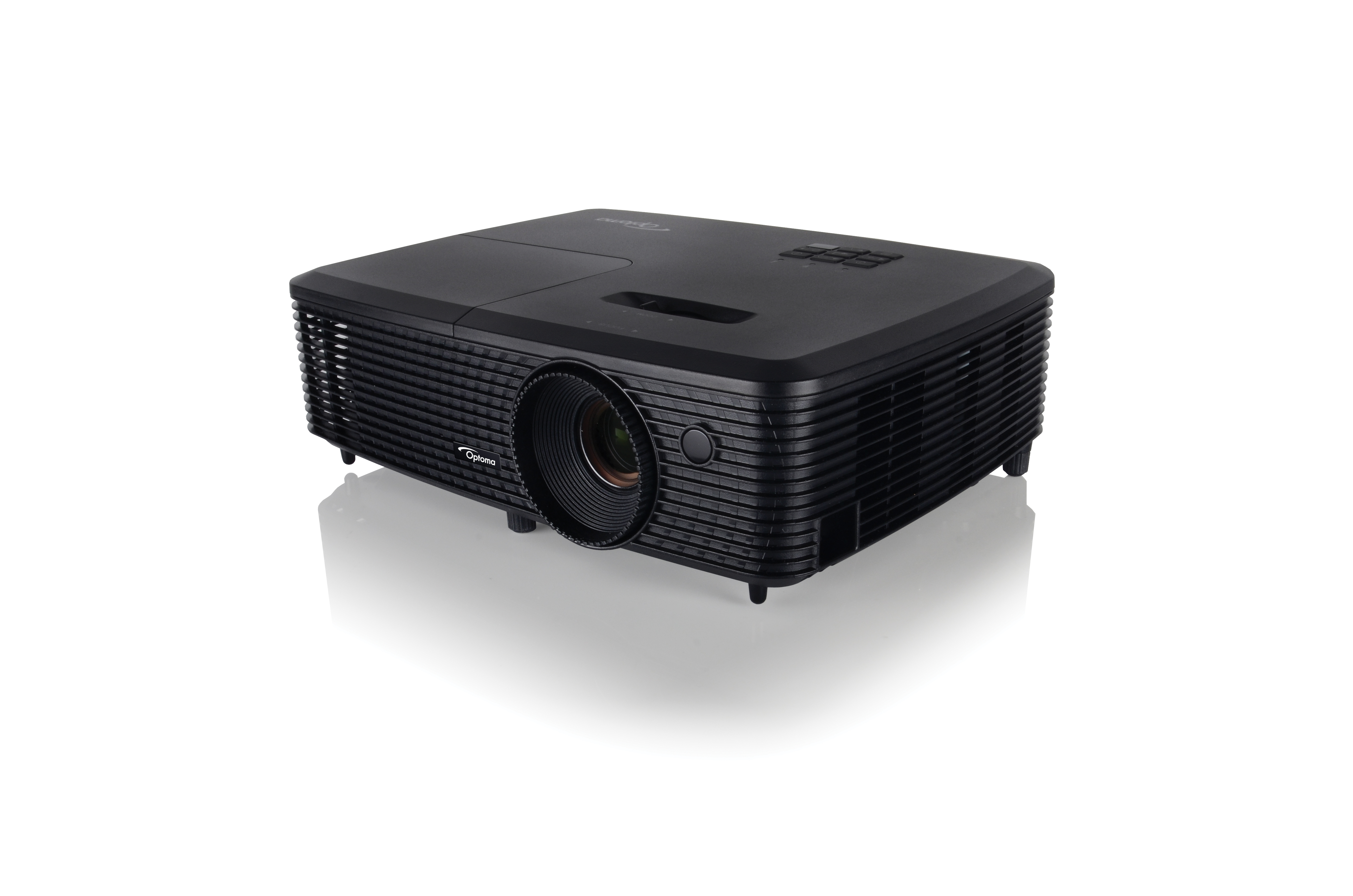

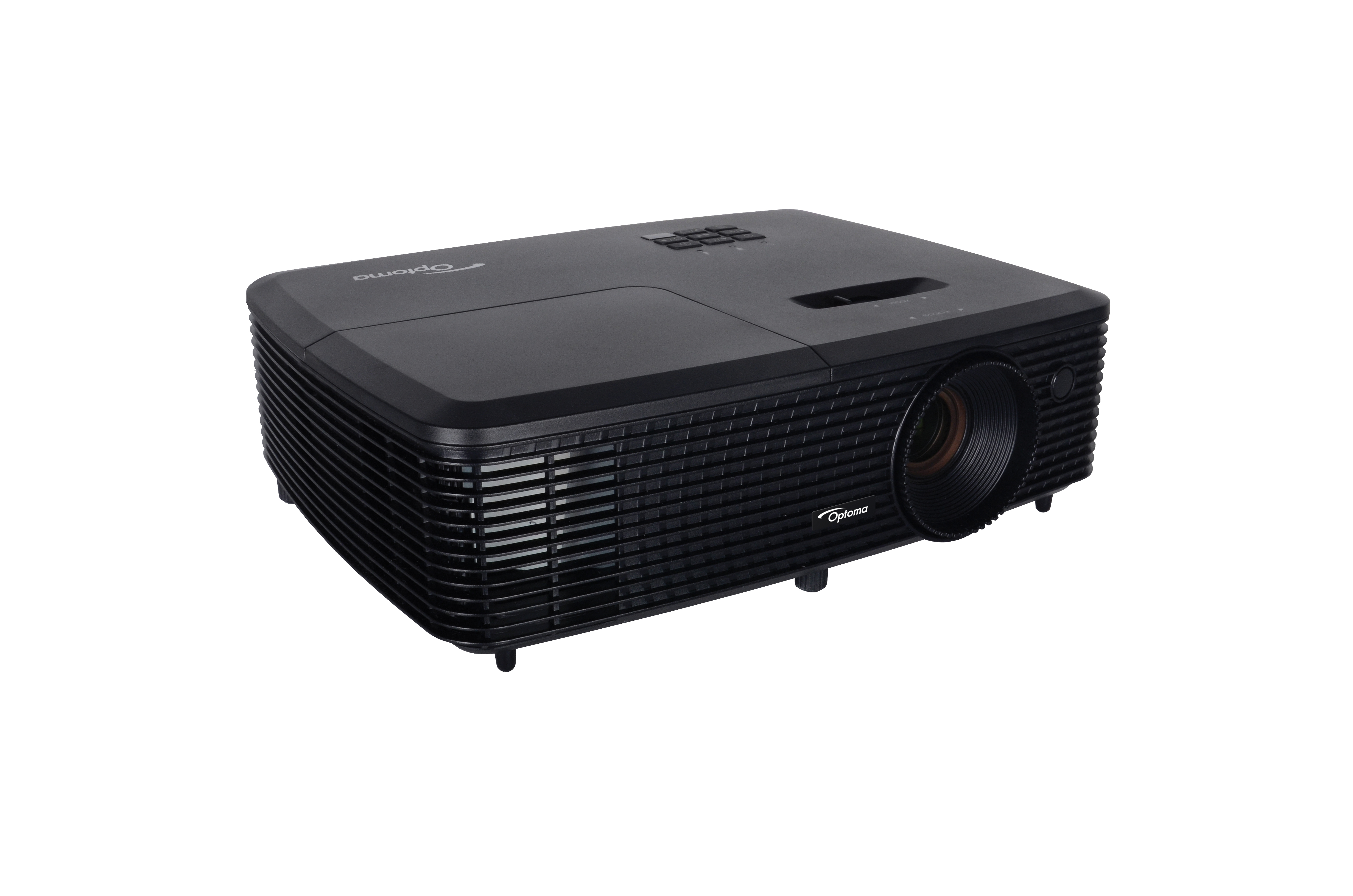

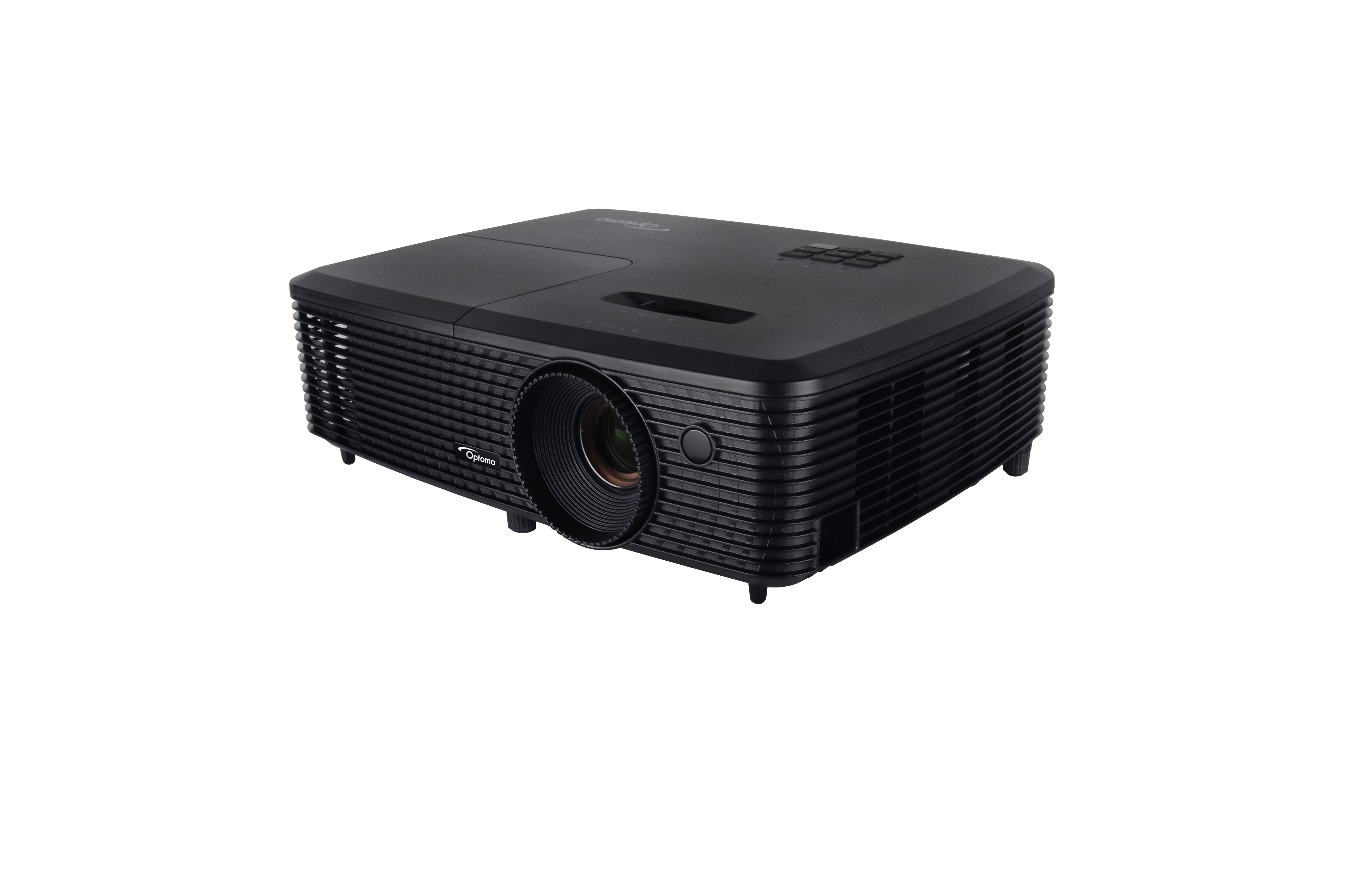

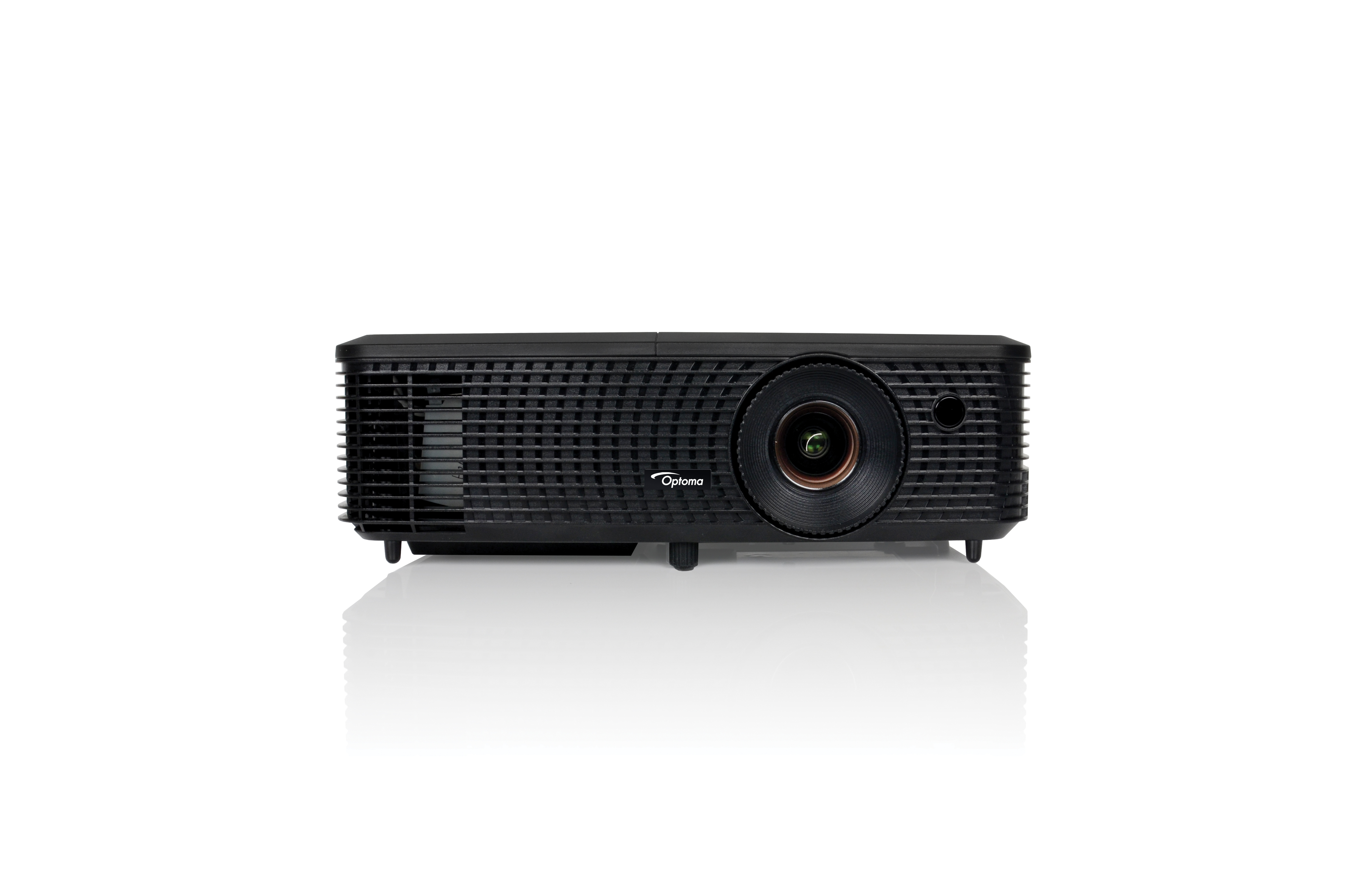

A brief introduction to the S321: The Optoma standard portable 3D BrilliantColor DLP projector offers 3200 Ansi lumens, a contrast of 22000:1 and an SVGA 800 x 600 resolution. The lamp in the projector is specified with a lamp life of 10000 hours, which converts to over 13.7 years at 2 hours per day. A picture width of up to 493 cm is possible. However, the picture should be smaller in room light. We recommend max. 329 cm. With the HDMI MHL port, the smartphone image can be transmitted to the projector in Full HD at 60 Hz by screen mirroring and the smartphone is charged at the same time. The model is also Full HD 1080P and 3D compatible. This model is no longer offered by Optoma.
|
| Display Type |
1 x 0,55 DC3 DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3200 |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
22000:1 full on/off |
22000:1 full on/off
|
| Black Level |
0,1455 min. Lumen |
0,049 min. Lumen |
| Offset |
65% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

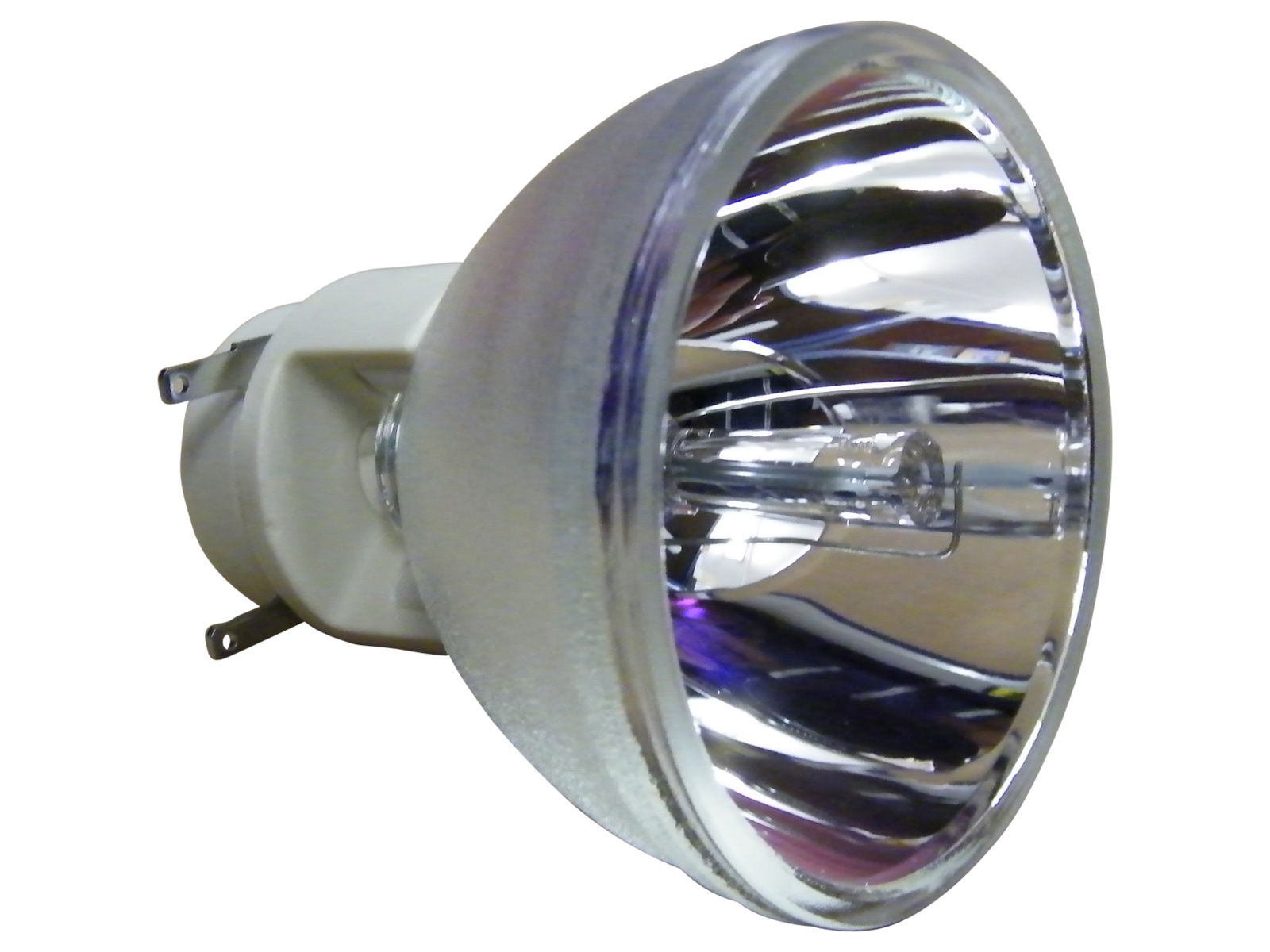

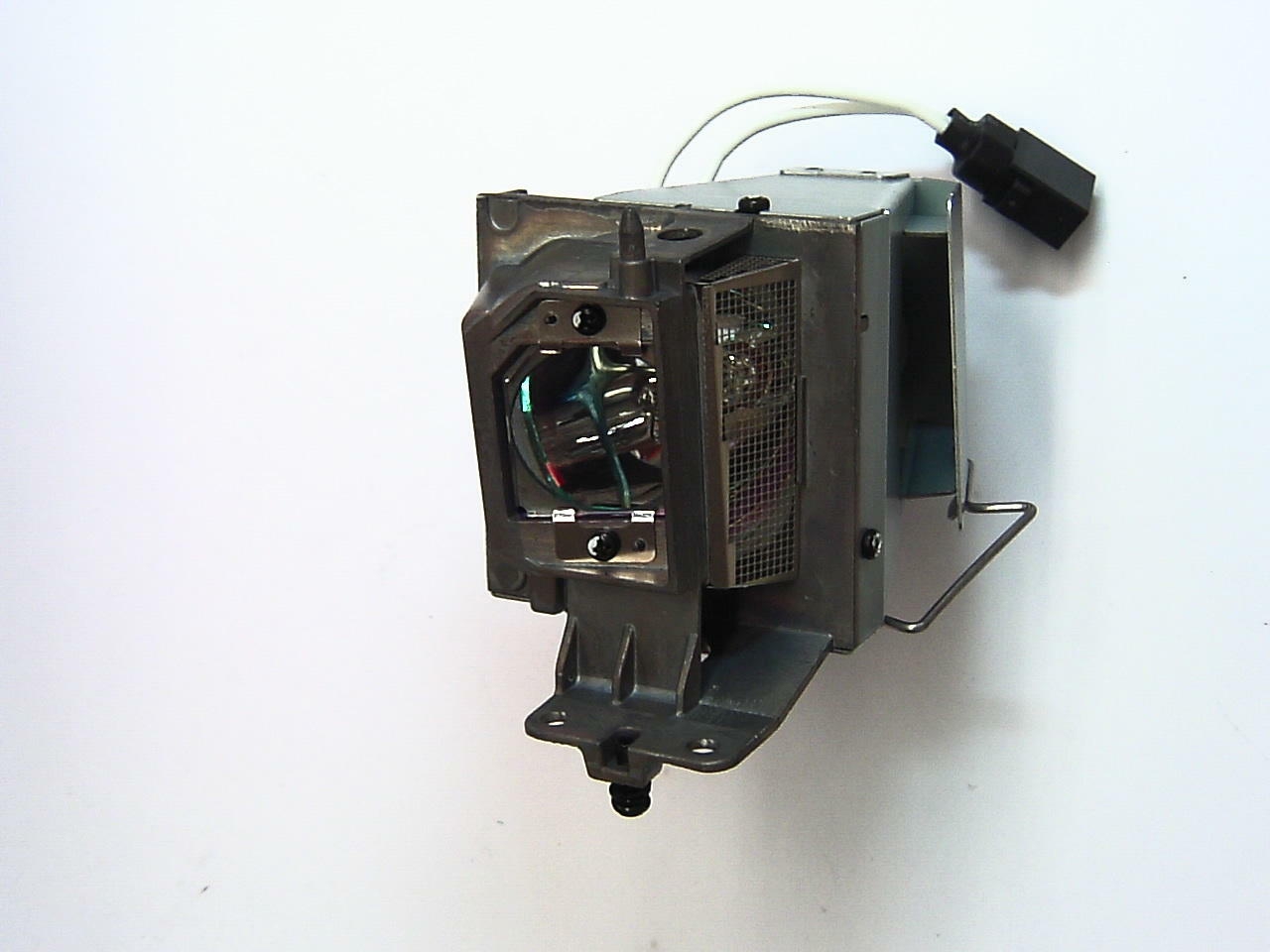

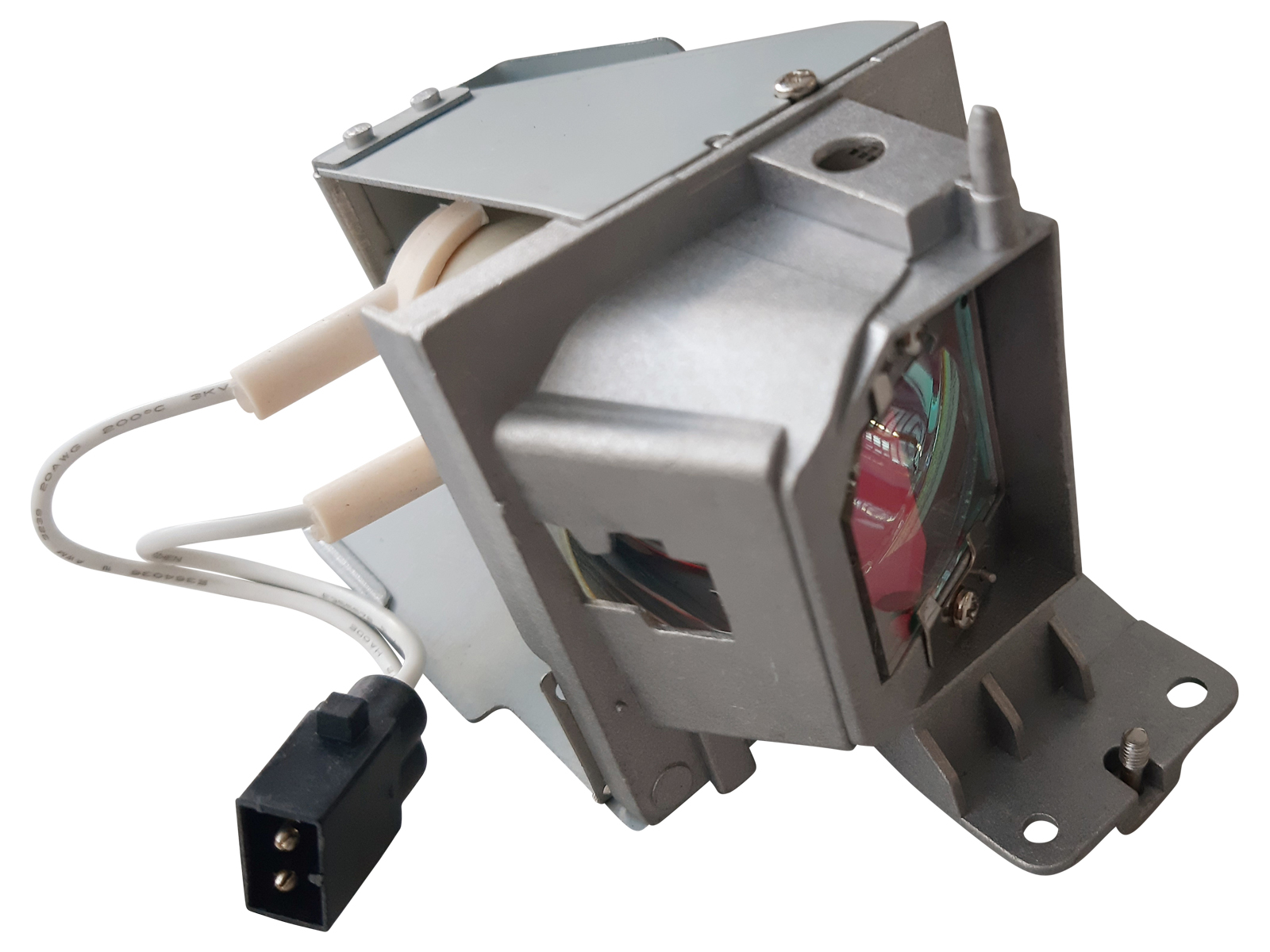

195W Lamp
Article Nr.: SP.71P01GC01
|
|
| Light Life |
5000 h. 10000 h. in Eco Mode |
| Operating Costs |
|
|
388 - 432 cm
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,11 |
| Objective |
F=2,41-2,52 f=21,85-24,01 mm |
| Throw Ratio |
1,94-2,16:1 show |
| Audio |
2W |
| Connections |
2 x HDMI mit MHL in
d-Sub 15 pin in und out
Mini Jack Audio in und out
USB Typ A in
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
225 / 187W in Eco Mode |
| Size WxHxD |
298 x 96,5 x 230 mm (11,7"x3,8"x9,1") 6,58 L/dm³
|
| Operating Noise |
29 dB in Eco Mode |
|
| Weight |
2,17 kg / 4,78 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
75% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24 - 85 Hz
|
| Foot-Lamberts |
99 fL
/ max. 493 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
BrilliantColor™
|
|
über HDMI MHL |
In Comparison
The Optoma S321 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 46 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4249 (From: 7662) |
|
|
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2016-05-13 13:08:03
|
