Brief Introduction
Beta 2.5 |
The Optoma model X313 is a DLP projector with XGA 1024 x 768 resolution and a contrast of 18000:1. The projectors lamp is specified with a lamp life of 6000 hours, which converts to over 8.2 years at 2 hours per day. 523 cm image width, the projector will be able to illuminate well. Rooms with residual light can be created by the projector with a smaller image width, we recommend a maximum of 349 cm. It is also Full HD 1080P and 3D compatible. With only 27 decibels of operating noise, the model is already very quiet compared to others. The projector was launched in 2014 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3600 |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
18000:1 full on/off |
18000:1 full on/off
|
| Black Level |
0,2000 min. Lumen |
0,067 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |

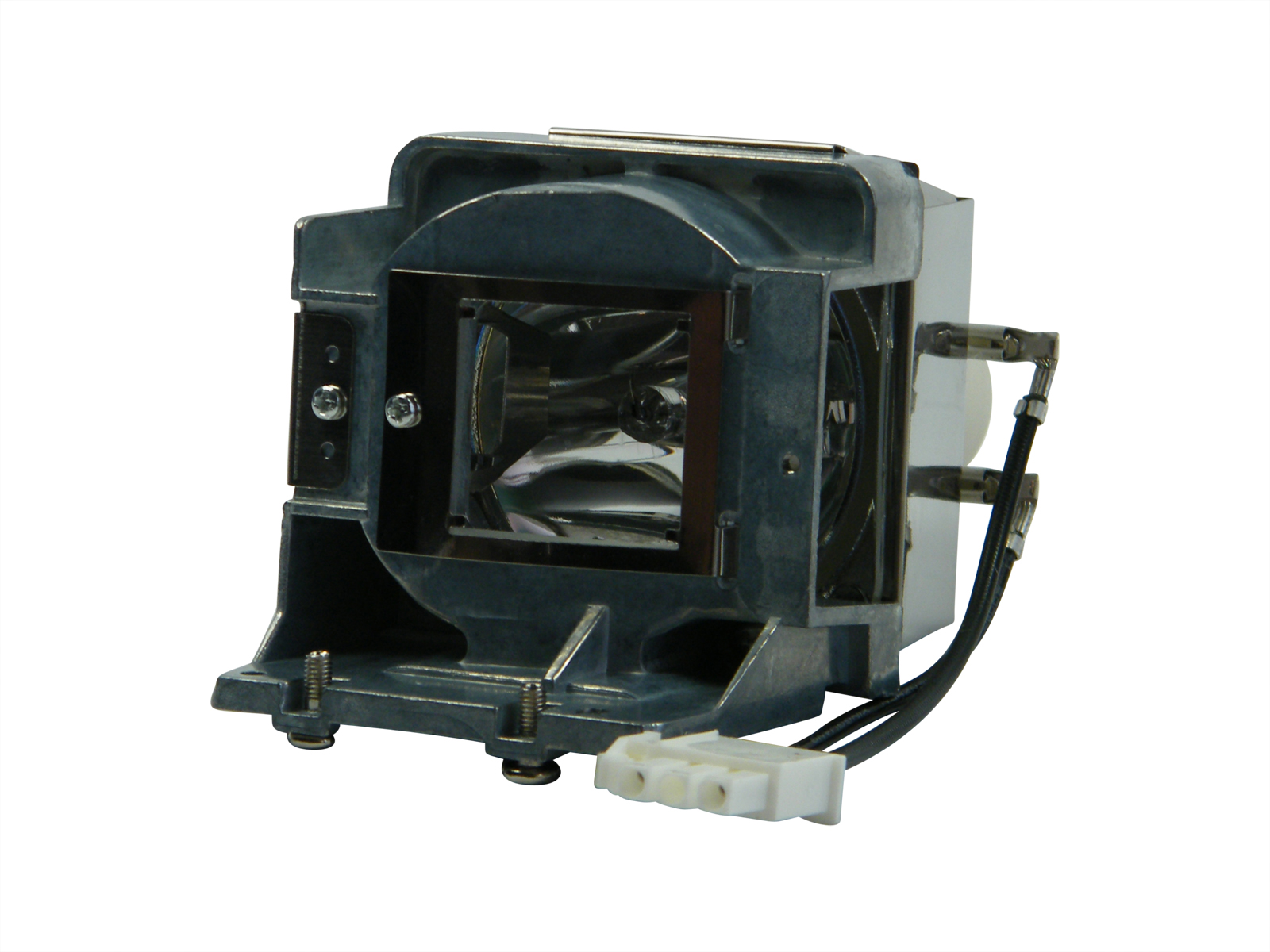

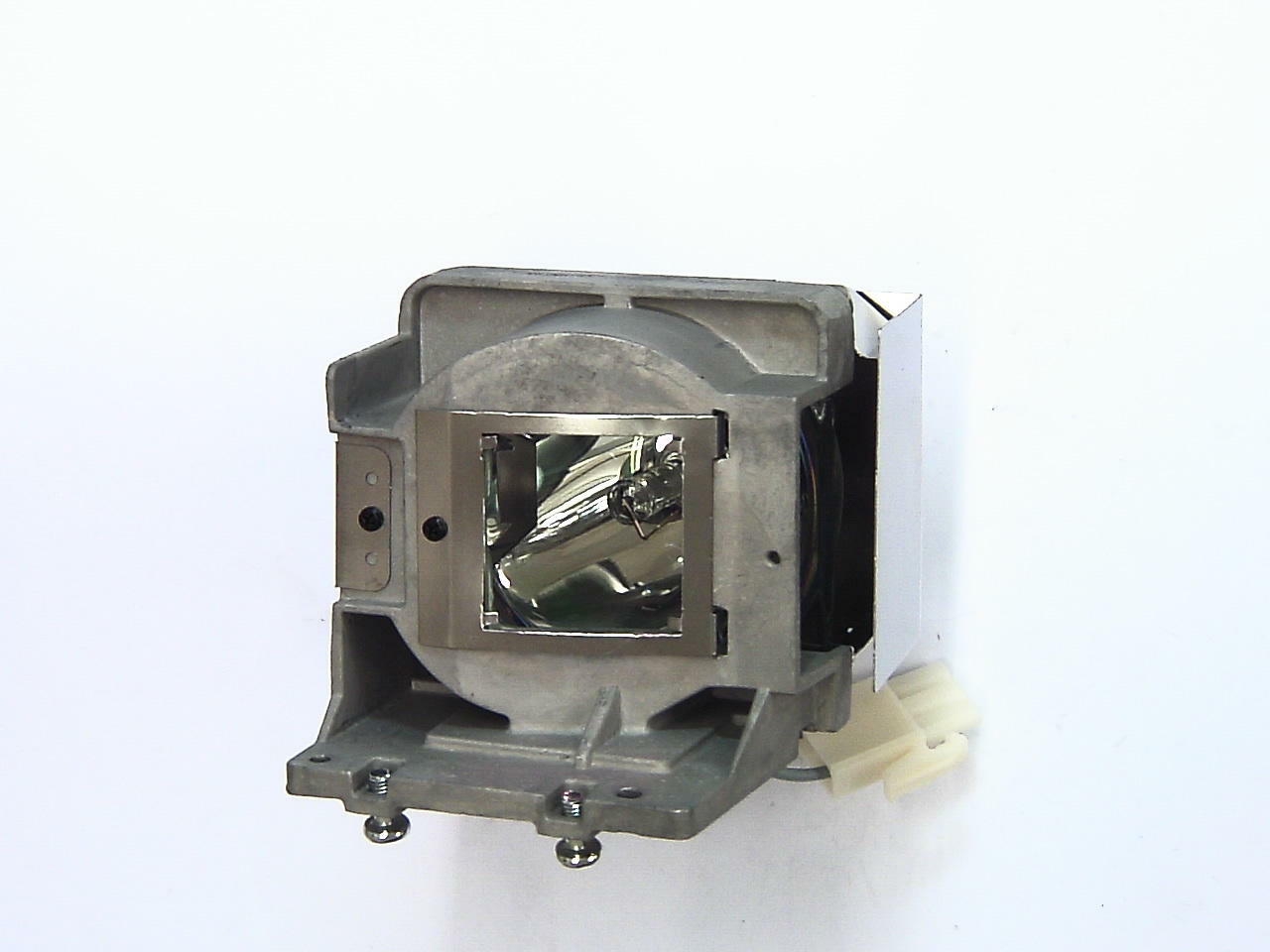

| Light Source |
-
Article Nr.: PQ484-2401 / BL-FU190C / PQ684-2400
|
|
| Light Life |
6000 h. 8000 h. in Eco Mode |
| Operating Costs |
-
|
|
394 - 434 cm
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,51-2,69 f=21,95-24,18 mm |
| Throw Ratio |
1,97-2,17:1 show |
| Audio |
1 x 2W |

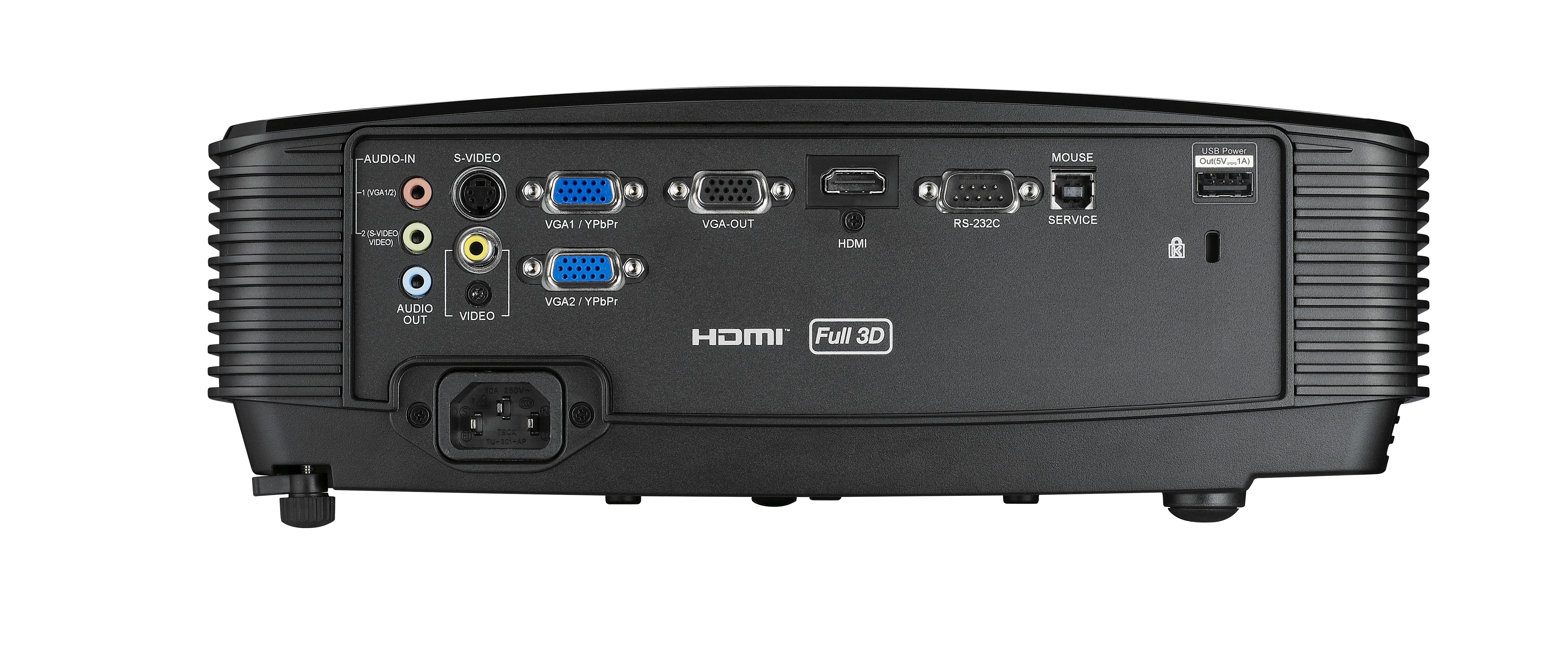

| Connections |
HDMI 1.4a in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C Din 9 pin in
USB Typ B
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
234 /202W in Eco Mode |
| Size WxHxD |
316 x 124 x 224 mm (12,4"x4,9"x8,8") 8,78 L/dm³
|
| Operating Noise |
27dB |
|
| Weight |
2,20 kg / 4,85 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 24,85 kHz
V-sync: 15,3-91 Hz
|
| Foot-Lamberts |
111 fL
/ max. 523 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
sRGB
BrilliantColor™
Crestron®-Software compatible.
6-segment colour wheel
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma X313 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
44 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
56 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 48 |
Projector Total Points: | 81 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2531 (From: 7662) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2014-05-12 14:30:17
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (4.26 MB)

|
Optoma Website
