Brief Introduction
Beta 2.5 |

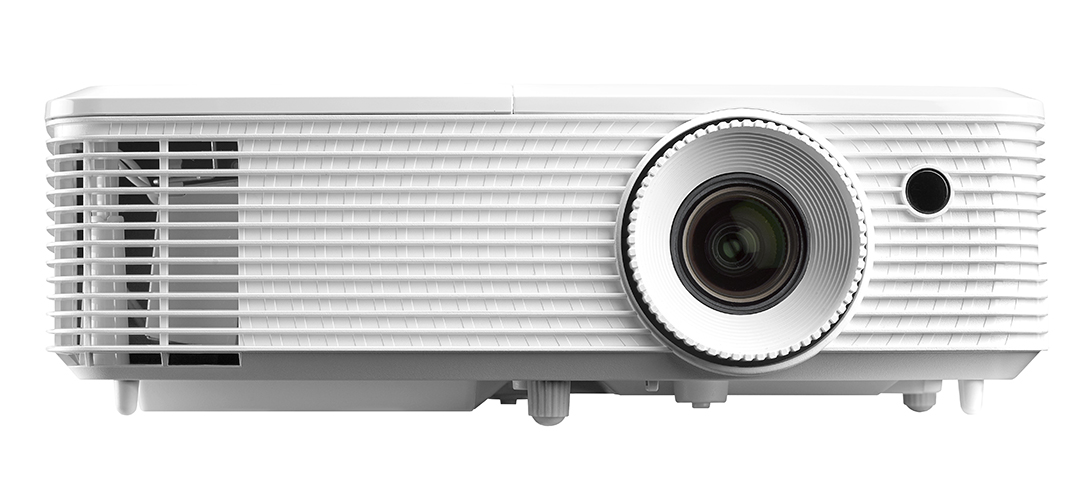

With the S365, manufacturer Optoma offers a standard portable DLP projector with SVGA 800 x 600 resolution and a contrast of 22000:1. The manufacturer specifies a lamp life of 10000 hours, which is equivalent to over 13.7 years at 2 hours per day. Including an integrated media player with which files can be played directly. The horizontal and vertical keystone correction provides leeway when setting up. 3600 Ansi lumens ensure that a picture width of 523 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 349 cm. The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from the smartphone while it is being charged at the same time via the connection. It is also Full HD 1080P and 3D compatible. It was launched in 2018 and is no longer offered by the manufacturer Optoma. Unfortunately, we can no longer offer a replacement lamp for this model, neither original nor replica.
|
| Display Type |
1 x 0,55" DMD S450 DC3 DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3600 |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
22000:1 full on/off |
22000:1 full on/off
|
| Black Level |
0,1636 min. Lumen |
0,055 min. Lumen |
| Offset |
65% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Media player formats: JPEG, GIF, BMP
PDF Viewer formats (.xls, .xlsx), PowerPoint presentations (.ppt, .pptx),
Adobe Acrobat files (.pdf) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
195W Lamp
Article Nr.: BL-FP195C
|
|
| Light Life |
5000 h. 10000 in Eco Mode |
| Operating Costs |
-
|
|
390 - 430 cm
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,41-2,53 f=21,85-24,01 mm |
| Throw Ratio |
1,95-2,15:1 show |
| Audio |
15W |

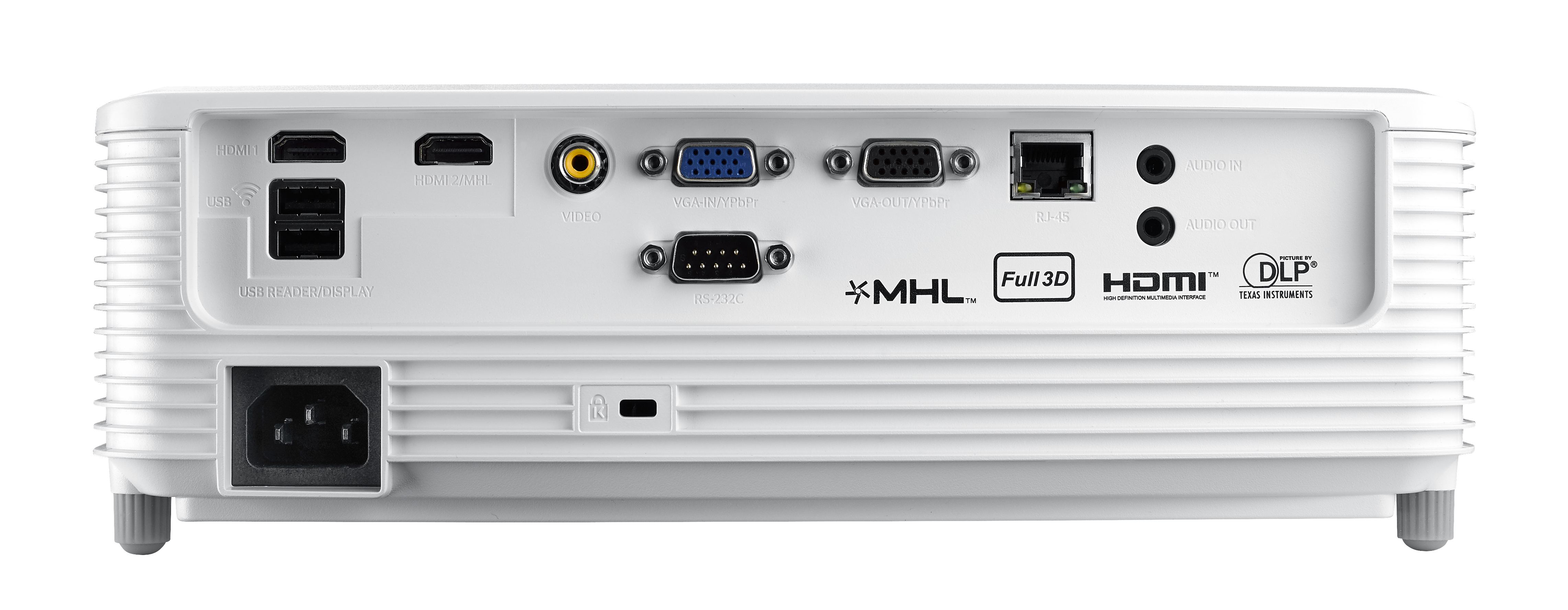

| Connections |
2 x HDMI mit MHL in
D-sub 15pin in und out
Cinch Video in
Mini Jack Audio in und out
USB Typ B in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
267 / 228W in Eco Mode |
| Size WxHxD |
297,9 x 229,9 x 96,3 mm (11,7"x9,1"x3,8") 6,53 L/dm³
|
| Operating Noise |
31 / 29 dB in Eco Mode |
Key: 240 cm |
Key: 142 cm |
| Key: 142 cm |
| |
|
|
| Weight |
2,50 kg / 5,51 lbs. |
| Keystone |
Vert.: +/-20° automatisch
Hori.: +/-20°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 25-85 Hz
|
| Foot-Lamberts |
111 fL
/ max. 523 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Freeze
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
BrilliantColor™
Remote control with laser pointer
Optional Wi-Fi network compatible.
Lan network compatible.
RYGCWB colour wheel
|
|
über HDMI MHL |
In Comparison
The Optoma S365 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
44 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
46 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 48 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3403 (From: 7662) |
|
|
|
|
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-09-20
