Brief Introduction
Beta 2.5 |

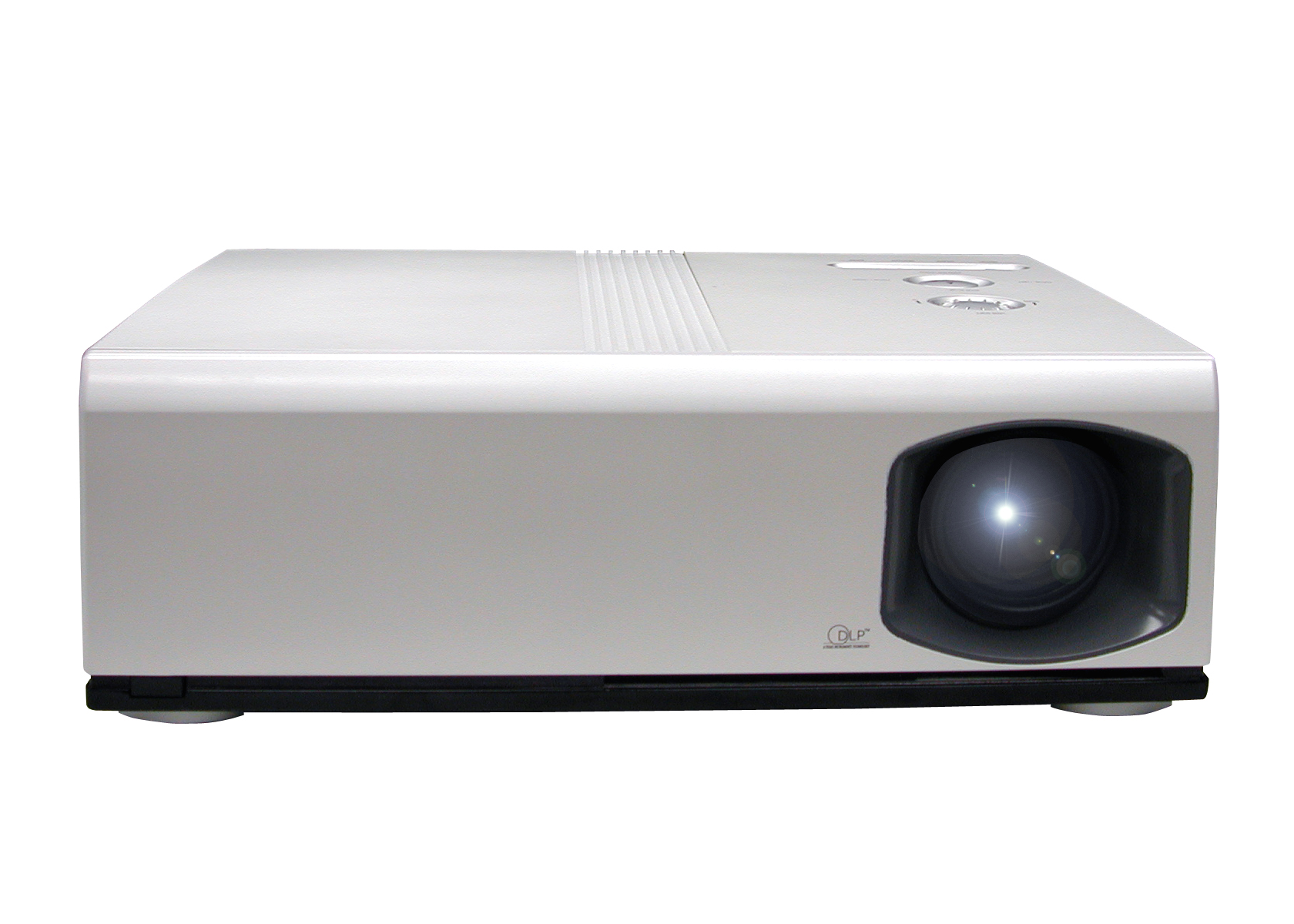

A brief introduction to the Optoma H76. The home cinema DLP projector has an HDTV 1280 x 720 resolution and a contrast of 2000:1. The horizontal and vertical keystone correction provides room for maneuver when setting up. The projector will be able to illuminate a picture width of 321 cm well. However, if room light is available, the picture width should ideally not exceed 214 cm. With only 28 decibels of operating noise, the model is already very quiet compared to others. This model is no longer offered by Optoma.
|
| Display Type |
1 x 0,79" 12° HD2 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
444 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,222 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel |
| Video Modes |
HDTV(480p/i, 576p/i, 720p, 1080i) Full NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

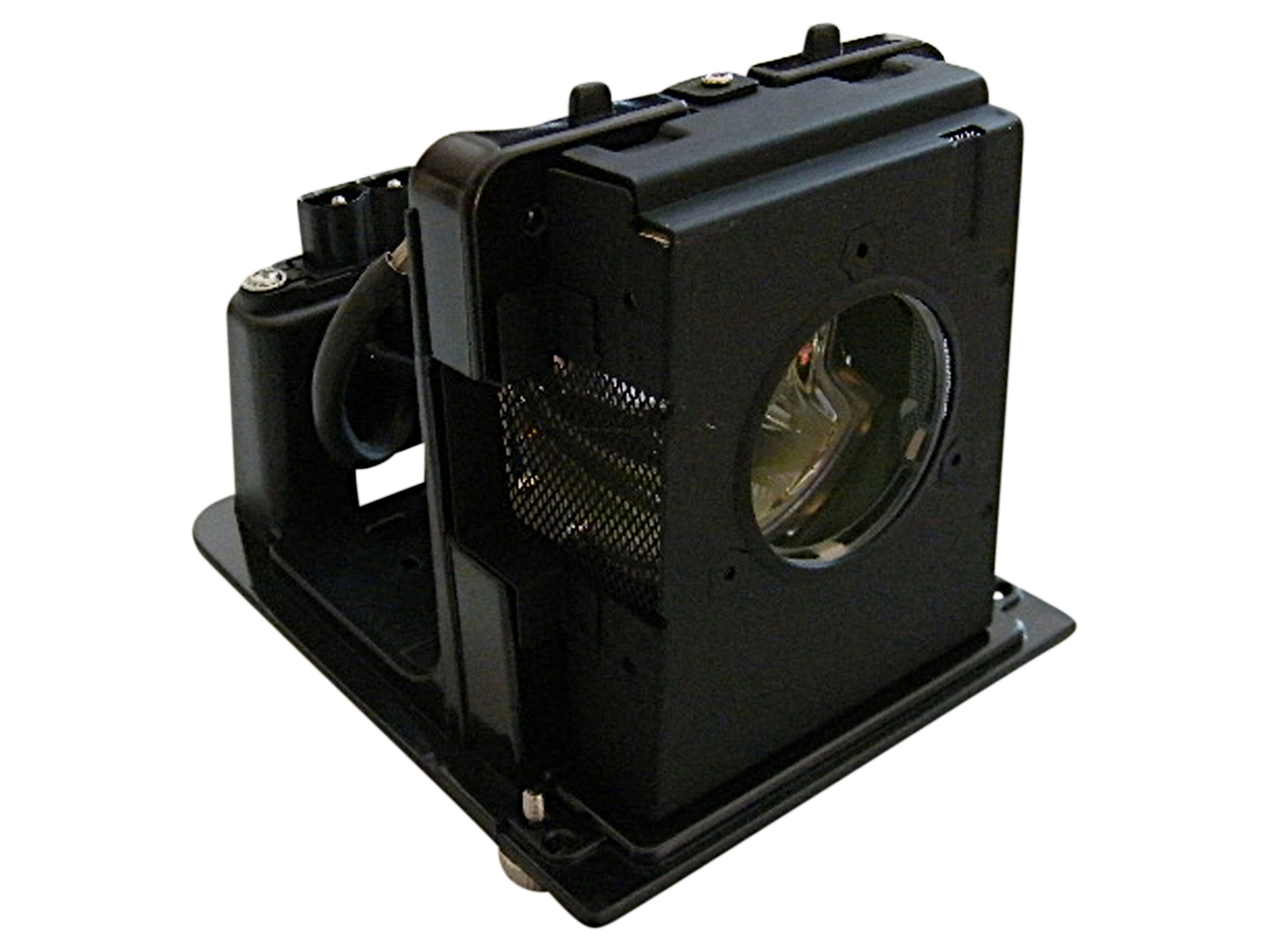

250W / 200W Eco Mode Lamp
Article Nr.: SP.L3730.001 / SP.L1301.001
|
|
| Light Life |
2000 (standard) 3000 h. (Economy) |
| Operating Costs |
-
|
|
320 - 432 cm
|
 |
|
Lux: |
444 Lux |
|
Room light max.: |
89 Lux |
|
Candela pro m²: |
140 cd/m² |
|
Foot-Lamberts: |
41 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,35 |
| Objective |
F=2,4 f=28,3-38,2 mm |
| Throw Ratio |
1,6-2,16:1 show |
| Audio |
- |

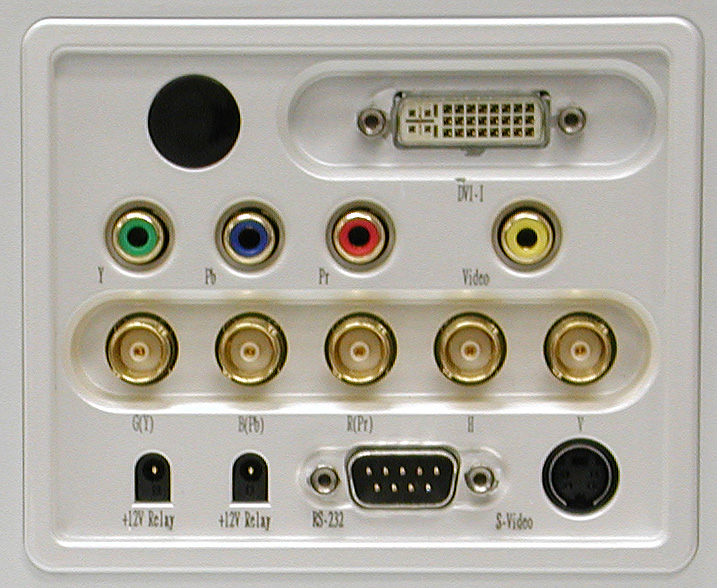

| Connections |
DVI-I
5 x BNC RGBHV
YUV in
Cinch Video in
S-Video
12V Trigger,
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
320W / 20W standby |
| Size WxHxD |
430 x 135 x 305 mm (16,9"x5,3"x12") 17,71 L/dm³
|
| Operating Noise |
28 / 25 dB in Eco Mode |
|
| Weight |
7,40 kg / 16,31 lbs. |
| Keystone |
Vertical und horizontal |
| Illumination |
- |
| Frequenz |
H-sync: 31,5-100 kHz
V-sync: 43-85 Hz
|
| Foot-Lamberts |
41 fL
/ max. 321 cm screen width |
| Candela m² |
140 cd/m² |
| Features |
 Freeze
Eco Mode
Gamma correction
Nicht in Europa erhältlich
|
|
- |
In Comparison
The Optoma H76 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
8 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
73 |
| Black level: |
|
94 |
Power cons.: |
|
93 |
| Picture Total Points: | 34 |
Projector Total Points: | 89 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
664 (From: 984) |
|
|
|
| Please note |
Not available in Europe
|
|
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english 2
Product Sheet english HC
User Manual english (0.41 MB)

|
Optoma Website
